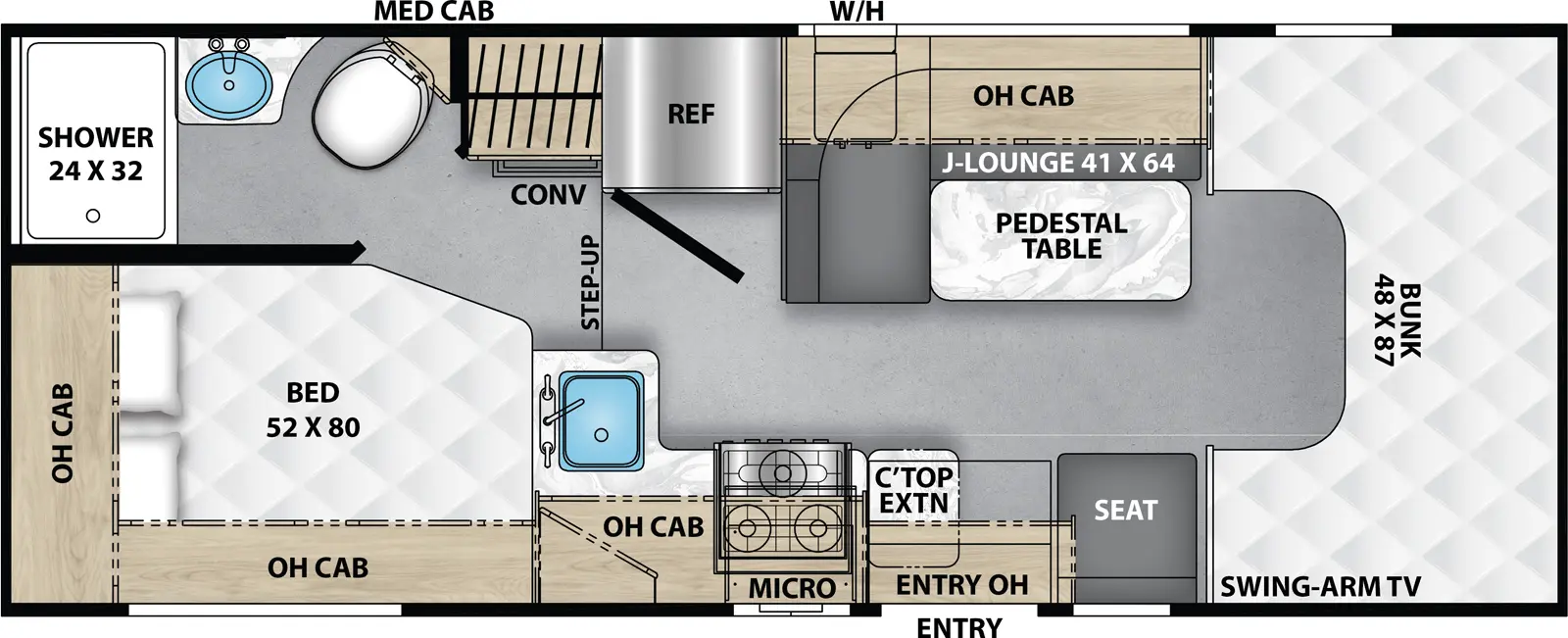

20CB Floorplan

Wheelbase
156"
GVWR
11,000 lb.
GCWR
15,000 lb.
GAWR Front
4,630 lb.
GAWR Rear
7,275 lb.
Fuel Capacity
31 gal.
LP Tank Capacity
69 lb.
Exterior Length
23' 11"
Exterior Height
10' 4"
Exterior Width
91"
Fresh Water
38 gal.
Gray Water
13 gal.
Black Water
21 gal.
Awning Size
14'

Specifications Definitions

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) – is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Note: Specifications are subject to change without notice.



  • Cross Trail XL Standard Interior Features

    • Sand Dune Woodgrain
    • Thermofoil Countertops
    • 32” Coach TV w/ Removable Bracket for Exterior
    • Kitchen Flip Up Countertop Extension
    • Tankless Water Heater
    • Upgraded Mattress
    • Cabover Child Safety Net and Ladder
    • 13.5k BTU Non-Ducted Roof A/C
    • Bed Area 110v/12v CPAP Ready Area
    • Spacious Floorplans with Maximized Storage Space

  • Cross Trail XL Standard Exterior Features

    • 30AMP Power Cord
    • NPS 4.5kw Gas Generator
    • Exterior TV Prep with Bracket
    • LP Quick Connect
    • Roof Solar Prep
    • Starlink Prep
    • Azdel Composite Sidewall Material
    • Shortened Front Nose Overhang
    • Black Armed Power Awning
    • Exterior Safety Grab Handle
    • Rear Ladder Prep
    • Heated Holding Tanks

  • Cross Trail XL Transit Chassis (20CB)

    • Ford Transit Chassis
    • 3.5L Ecoboost Engine
    • 4,000 lb Hitch
    • 10-Speed Automatic Overdrive with SelectShift transmission
    • All Wheel Drive
    • 26 Gallon Fuel Tank
    • Dual 250 Amp Alternator
    • Adaptive Cruise Control
    • Lane-Keeping System
    • Pre-Collision Assist with Automatic Emergency Braking
    • Ford AdvanceTrac w/Roll Stability Control
    • 10" Monitor Screen w/ Apple Car Play and Android Auto

  • Cross Trail XL Optional Features

    • Dual Aux Batteries
    • 200w Roof Solar
    • 400w Roof Solar
    • Sideview Cameras
    • Exterior Windshield Cover
