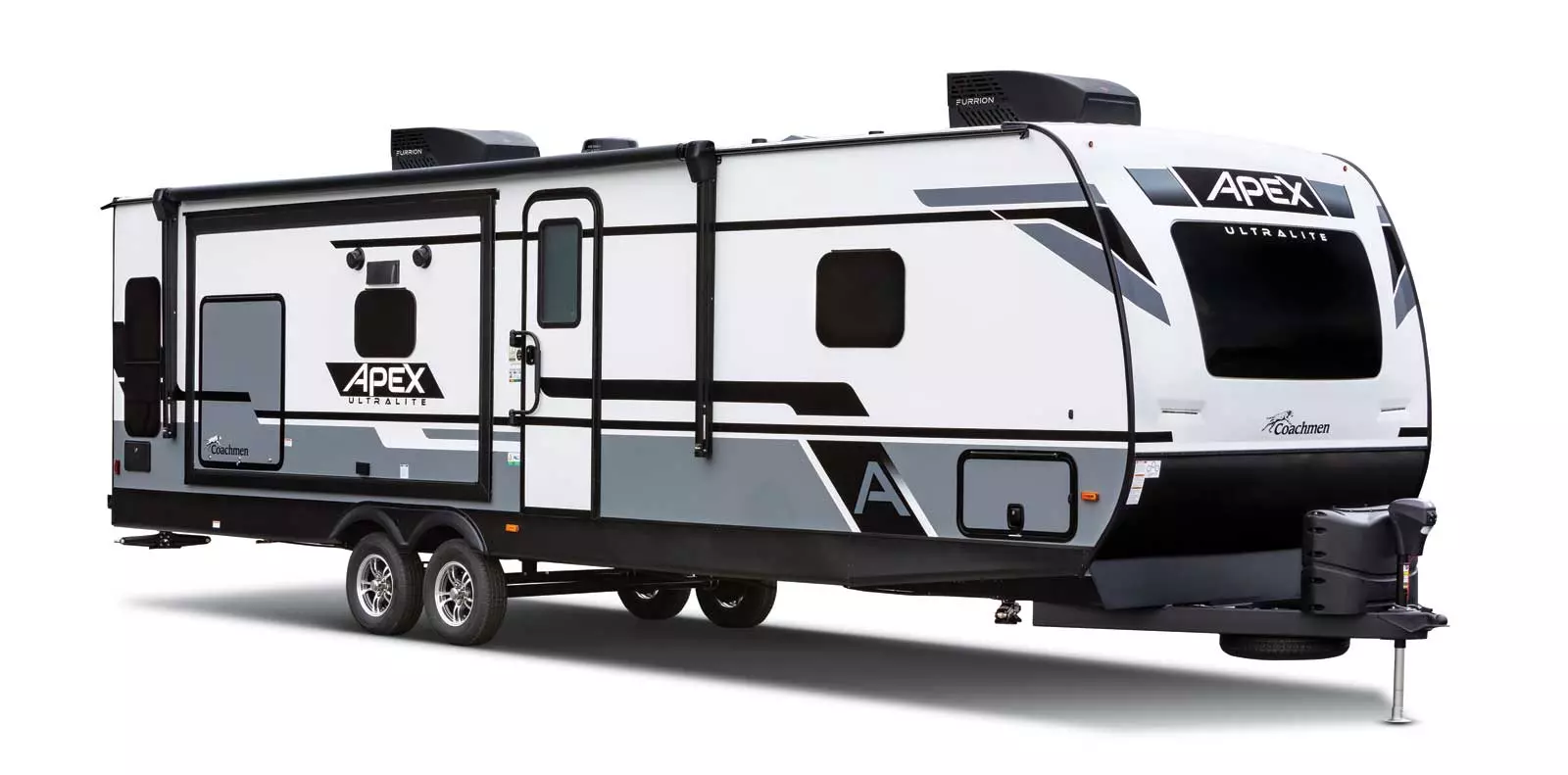

Apex Travel Trailers

An Apex Travel Trailer does not just start off as a frame, walls and roofs… it begins with an idea! Our belief is that getting the little things right is a BIG THING! The Apex is not like other lightweight trailers… it is much smarter because we set new, higher standards for this innovative, truly lightweight trailer.

What makes an Apex smarter? Quality – Lightweight – Innovation – Eco-friendly – Design.

Each and every Apex model must achieve high scores in each of these standards in order to earn the Apex seal of approval. Our rating system is gathered and driven by the end user… you the customer… in order to produce a quality and most customer friendly lightweight trailer on the market!

Apex 293RLDS named "Best of Show" for 2019 by RV News!

Filter

Select filters below and then click the Filter Results button to remove non-matching Floorplans and their Specifications




Yes   No   No Preference


Yes   No   No Preference


Yes   No   No Preference


to

to




Specifications

Print


Hitch Weight:
GVWR:
UVW:
CCC:
Exterior Length:
Exterior Height:
Exterior Width:
Fresh Water:
Gray Water:
Black Water:
Awning Size:
446 lb.
6500 lb.
4365 lb.
2135 lb.
25' 4"
10' 3"
90"
30 gal.
30 gal.
30 gal.
13'
578 lb.
6500 lb.
4586 lb.
1914 lb.
27' 6"
10' 3"
90"
30 gal.
30 gal.
30 gal.
18'
480 lb.
6500 lb.
4436 lb.
2064 lb.
25' 11"
10' 3"
96"
50 gal.
35 gal.
35 gal.
18'
480 lb.
7000 lb.
4770 lb.
2230 lb.
28' 3"
10' 3"
96"
50 gal.
35 gal.
35 gal.
16'
570 lb.
7000 lb.
4984 lb.
2016 lb.
28' 11"
10' 3"
96"
50 gal.
35 gal.
35 gal.
16'
734 lb.
7600 lb.
5652 lb.
1948 lb.
30' 4"
10' 3"
96"
50 gal.
70 gal.
70 gal.
18'
620 lb.
7600 lb.
5490 lb.
2110 lb.
31' 0"
10' 3"
96"
50 gal.
35 gal.
35 gal.
18'
792 lb.
7600 lb.
5946 lb.
1654 lb.
32' 5"
10' 3"
96"
50 gal.
35 gal.
35 gal.
18'
585 lb.
7000 lb.
4882 lb.
2118 lb.
31' 2"
10' 3"
96"
50 gal.
35 gal.
35 gal.
16'
715 lb.
7600 lb.
5720 lb.
1880 lb.
32' 4"
10' 3"
96"
50 gal.
35 gal.
35 gal.
18'
832 lb.
7800 lb.
6440 lb.
1360 lb.
33' 11"
10' 3"
96"
50 gal.
70 gal.
70 gal.
18'
672 lb.
7600 lb.
5977 lb.
1623 lb.
34' 3"
10' 3"
96"
50 gal.
35 gal.
35 gal.
18'
501 lb.
7000 lb.
4861 lb.
2139 lb.
26' 9"
10' 8"
96"
50 gal.
30 gal.
35 gal.
18'
563 lb.
6500 lb.
4472 lb.
2028 lb.
25' 6"
10' 2"
96"
50 gal.
35 gal.
35 gal.
15'
575 lb.
6500 lb.
4392 lb.
2108 lb.
27' 6"
10' 2"
90"
30 gal.
30 gal.
30 gal.
18'
550 lb.
7000 lb.
5208 lb.
1792 lb.
29' 5"
10' 8"
96"
50 gal.
35 gal.
35 gal.
18'
680 lb.
7500 lb.
5368 lb.
2132 lb.
28' 0"
10' 8"
96"
50 gal.
35 gal.
35 gal.
18'
644 lb.
7500 lb.
5336 lb.
2164 lb.
28' 0"
10' 8"
96"
30 gal.
30 gal.
30 gal.
TBD
500 lb.
7000 lb.
4960 lb.
2040 lb.
29' 5"
10' 6"
96"
50 gal.
35 gal.
35 gal.
18'
732 lb.
7600 lb.
5415 lb.
2185 lb.
30' 6"
10' 3"
96"
50 gal.
70 gal.
70 gal.
18'
636 lb.
7600 lb.
5835 lb.
1765 lb.
29' 10"
10' 8"
96"
50 gal.
35 gal.
35 gal.
16'
TBD
TBD
TBD
TBD
32' 5"
10' 8"
96"
50 gal.
35 gal.
35 gal.
TBD
720 lb.
7600 lb.
5654 lb.
1946 lb.
32' 4"
10' 6"
96"
50 gal.
35 gal.
35 gal.
18'
570 lb.
7000 lb.
5048 lb.
1952 lb.
31' 2"
10' 2"
96"
50 gal.
35 gal.
35 gal.
16'
640 lb.
7600 lb.
5950 lb.
1650 lb.
34' 3"
10' 4"
96"
50 gal.
35 gal.
35 gal.
TBD

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Coachmen RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Coachmen RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Features & Options

Print
  • Vacuum Bond Azdel Fiberglass Walls
  • Vacuum Bond Laminated Crowned Roof
  • Laminated Floor
  • Aluma-cage Construction
  • Spare Tire
  • Outside Speakers w/LED Lights
  • Stabilizer Jacks (4)
  • TV Antenna w/Cable Hook-ups
  • Enclosed Underbelly w/Forced Air Heat (N/A 7.5’ models)
  • 13.5 BTU A/C
  • Stainless SteeMicrowave
  • Stainless SteeDouble Door Refrigerator
  • Lighted Stainless Stee3 Burner High Output Range w/Oven
  • AM/FM/CD/DVD Stereo w/Bluetooth
  • Skylight in Bath
  • BalBearing Drawer Guides
  • Evergreen Sleep Mattress
  • Two-Tone Grey Fiberglass Exterior Sidewalls
  • Dark Grey Exterior Front & Rear Walls
  • LED Interior Lighting Throughout
  • Power Awning w/LED lights
  • LP Port
  • Exterior Cable Connection
  • Interior Convenience Center
  • Solar Prep
  • LED Motion Sensor Light in Exterior Storage Area
  • Back-up Camera Mount
  • Hard Valances
  • Night Shades
  • LED TV
  • Access Doors Under Dinette
  • Ground Effects (Metaskirting and ABS fender skirts)
  • Magnetic Door Catches
  • Diamond Plate Stone Guard

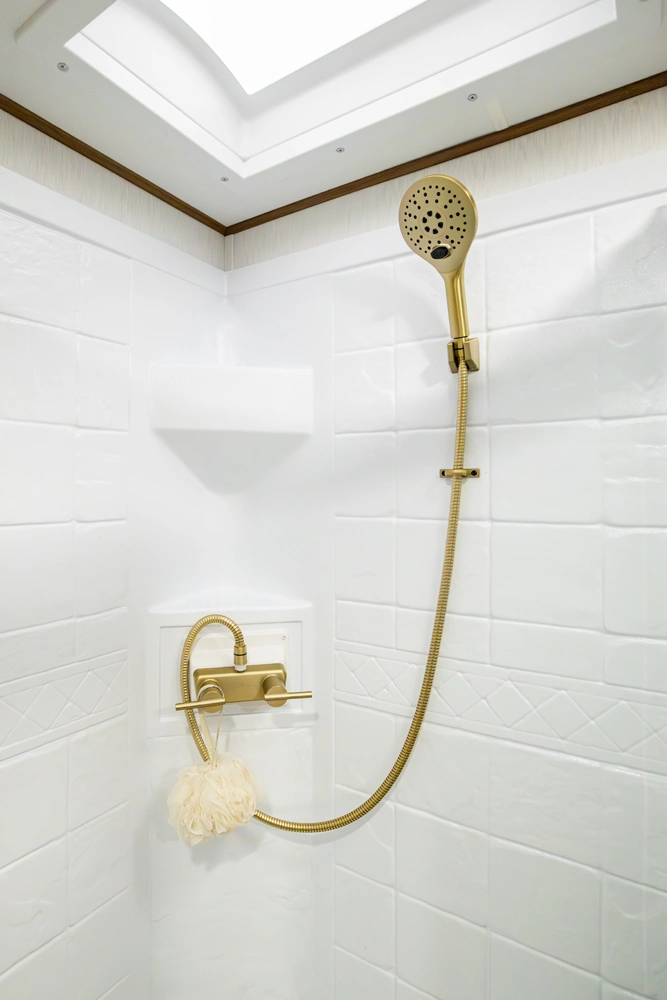

  • Hot/Cold Outside Shower
  • Bottle Covers
  • Black Tank Flush Kit
  • USB Charging Station
  • Swing Away Assist Handle
  • Pewter Maple Cabinetry
  • Overhead Bedroom Cabinets w/Side Wardrobes
  • Seamless Edge Countertops
  • Congoleum Diamond Flooring
  • Grey Night Shades Throughout
  • PedestaDinette Table
  • Large Oversized Booth w/Sliding Door Storage Access
  • U-shaped Dinette w/Sliding Door Storage Access
  • 68” ResidentiaSofa (Most models)
  • Hardwood Mortise and Tenon Cabinet Door Frames
  • Stile and RaiCabinet Front Construction
  • 32” LED TV (40” – 265RBSS, 287BHSS, 293RLDS)
  • LP Leak Alarm
  • Fire Extinguisher
  • Smoke Alarm
  • Carbon Monoxide Detector
  • Furnace – Forced Air/Ducts Per Floorplan
  • 55 Amp Power Center
  • Outside Receptacle GFI
  • Ducted Air Conditioner (8’ Wides)
  • Detachable Marine Style Power Cord
  • Power LED Lighted Range Hood
  • Matte Black Hardware
  • Power Bath Vent
  • 6 Gal. Gas/Elec. DSI Hot Water Heater
  • Water Heater Bypass Valve
  • Demand Water Pump
  • Medicine Cabinet
  • Below Floor Low Point Drains
  • Foot Flush Toilet
  • Tub Surround
  • Glass Shower Door – 34” Neo-angle Showers
  • Bunk Shelves – Double Over Double
  • Bedroom Vent (28’ and up)

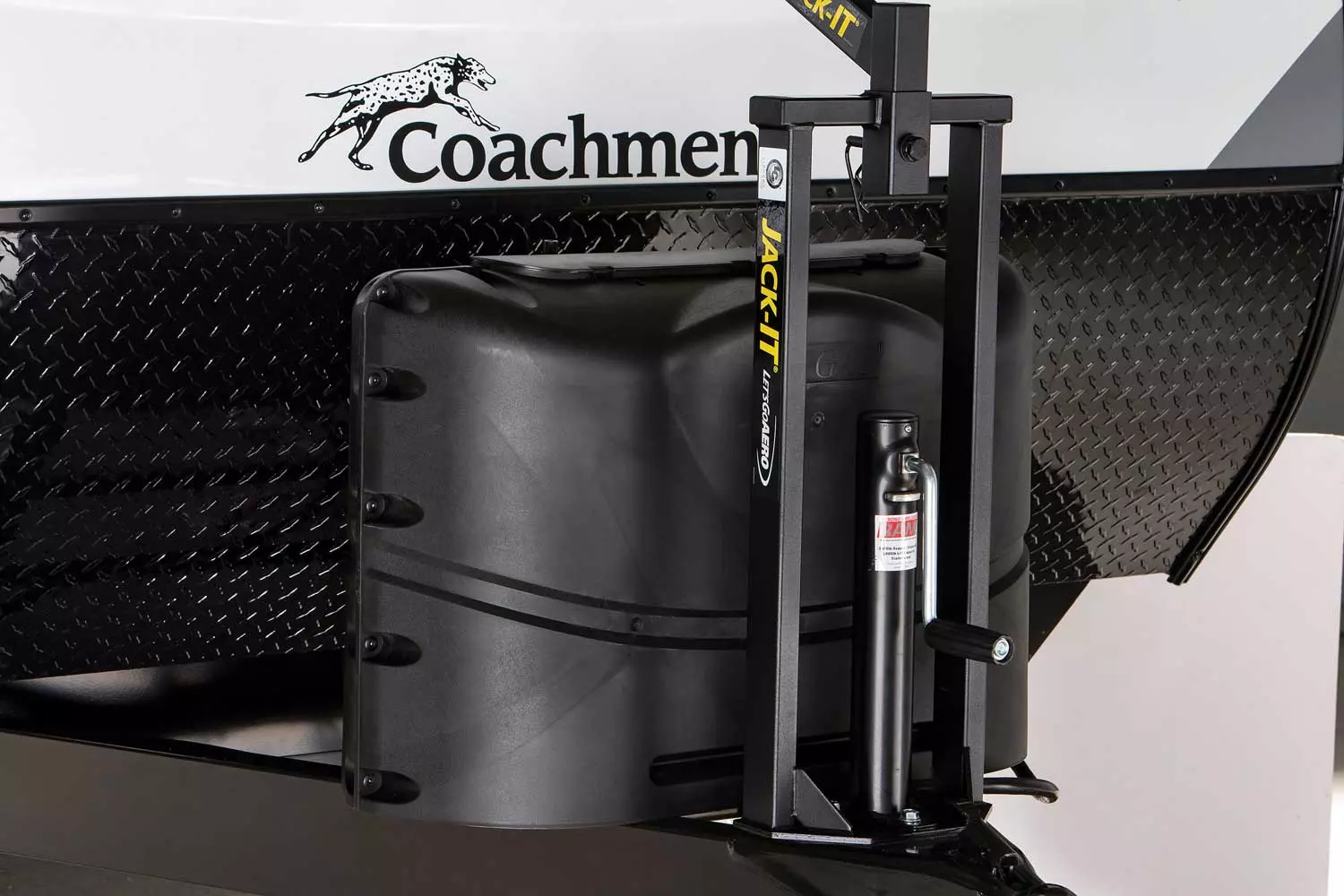

  • Double 20# LP Tanks

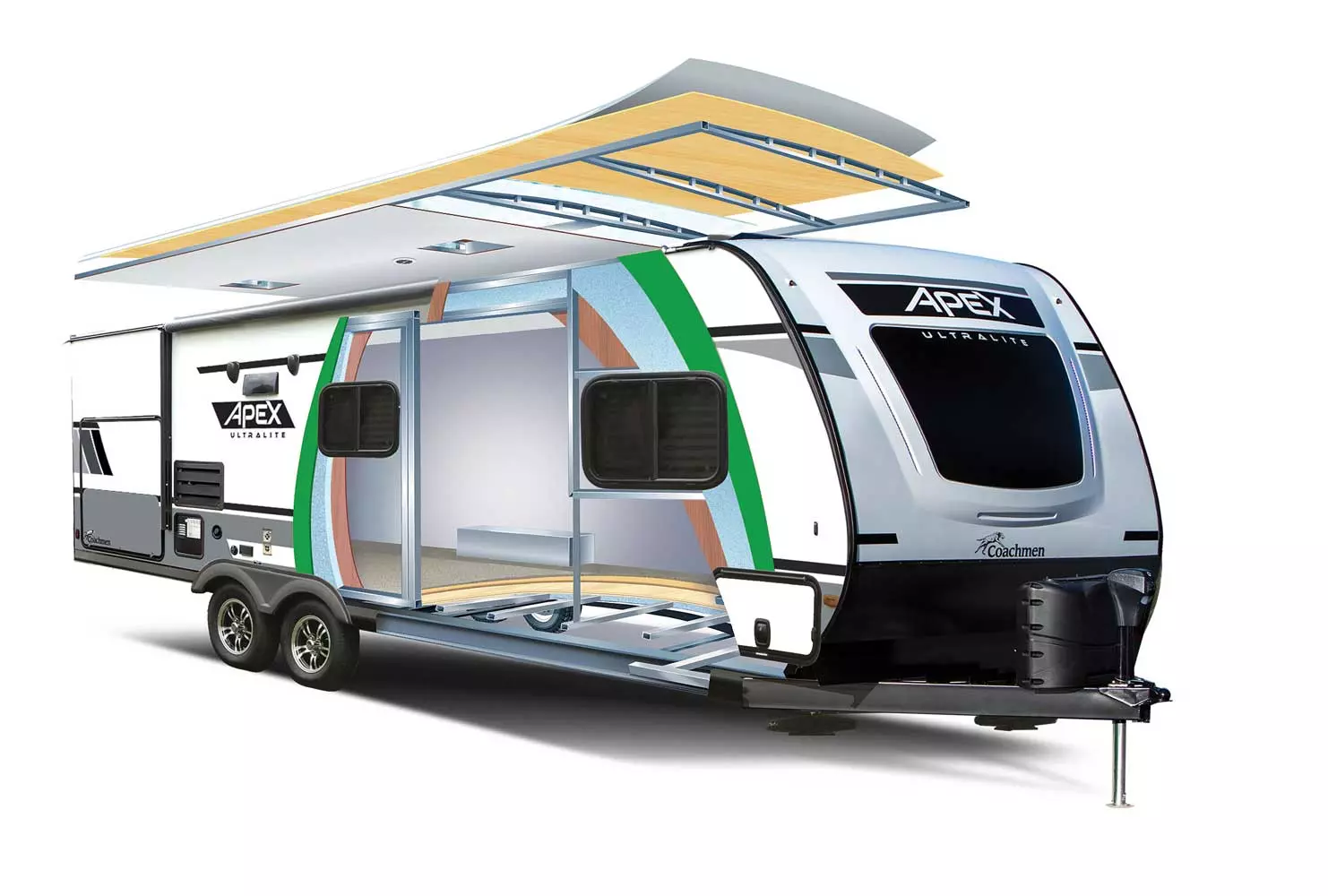

  • Aluma-Cage Construction
  • Fully Laminated Aluminum Framed, Aluminum Truss, Dicor Crossflex Roof (R-11 – 7 ½’ wide, R-14 – 8’ wide)
  • Vacuum Bond Laminated AzdeFiberglass Sidewalls (R-9)
  • Laminated Aluminum Framed Floor (R-11)
  • Gutter Rail
  • Dead Bolt Lock
  • Tinted Safety Glass Radius Windows
  • Radius Entrance Door
  • Radius Thumb Latch Baggage Doors
  • I-beam Chassis Construction
  • Corrosion Resistant Powder Coated Frame
  • DuaBattery Tray
  • Heated/Enclosed Underbelly and Holding Tanks (8’ Wides)
  • Break Away Switch
  • Schwintek Slide Room System (N/A Deep slides)
  • Double/Triple Entry Step
  • Dexter® E-Z Lube® Axles
  • Nitro Filled RadiaTires

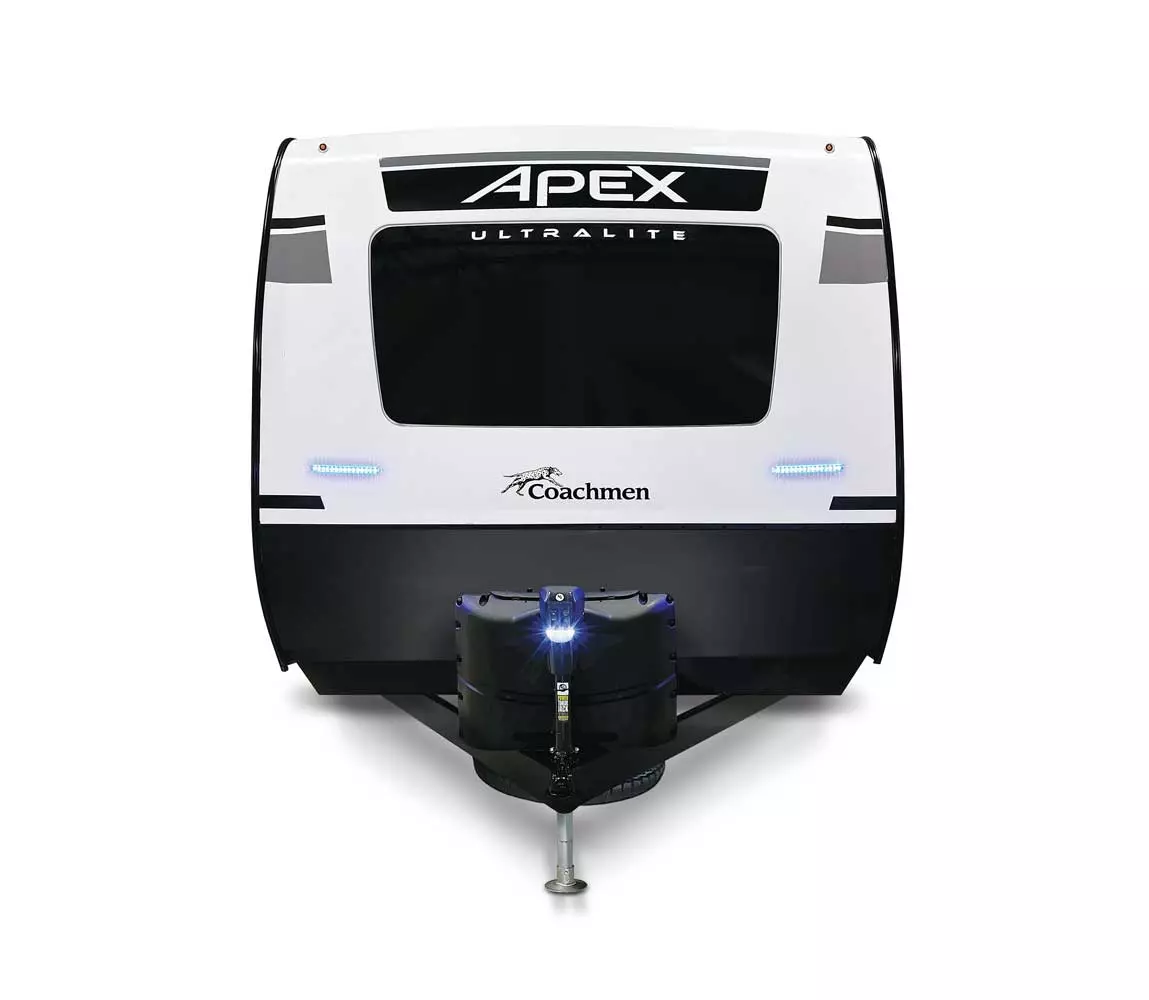

  • Fiberglass Front Cap w/LED Lighting and Front Window
  • Power Tongue Jack
  • High Rise Flex PulKitchen Faucet
  • LED Accent Lighting
  • Backsplash Along Kitchen Countertop
  • Stonecast Sink
  • Aluminum Wheels
  • Flush Mount Sink Covers
  • Slam Latch Baggage Doors at Pass-thru
  • LED Step Light
  • Frameless Windows
  • Hide-A-Bed Sofa (Deep Slides Only – STD on 293RLDS)
  • 15K BTU A/C Upgrade
  • 50 Amp Service w/Second (Forced) 13.5K BTU A/C
  • Murphy Bed (226BH ONLY)


Virtual Tours

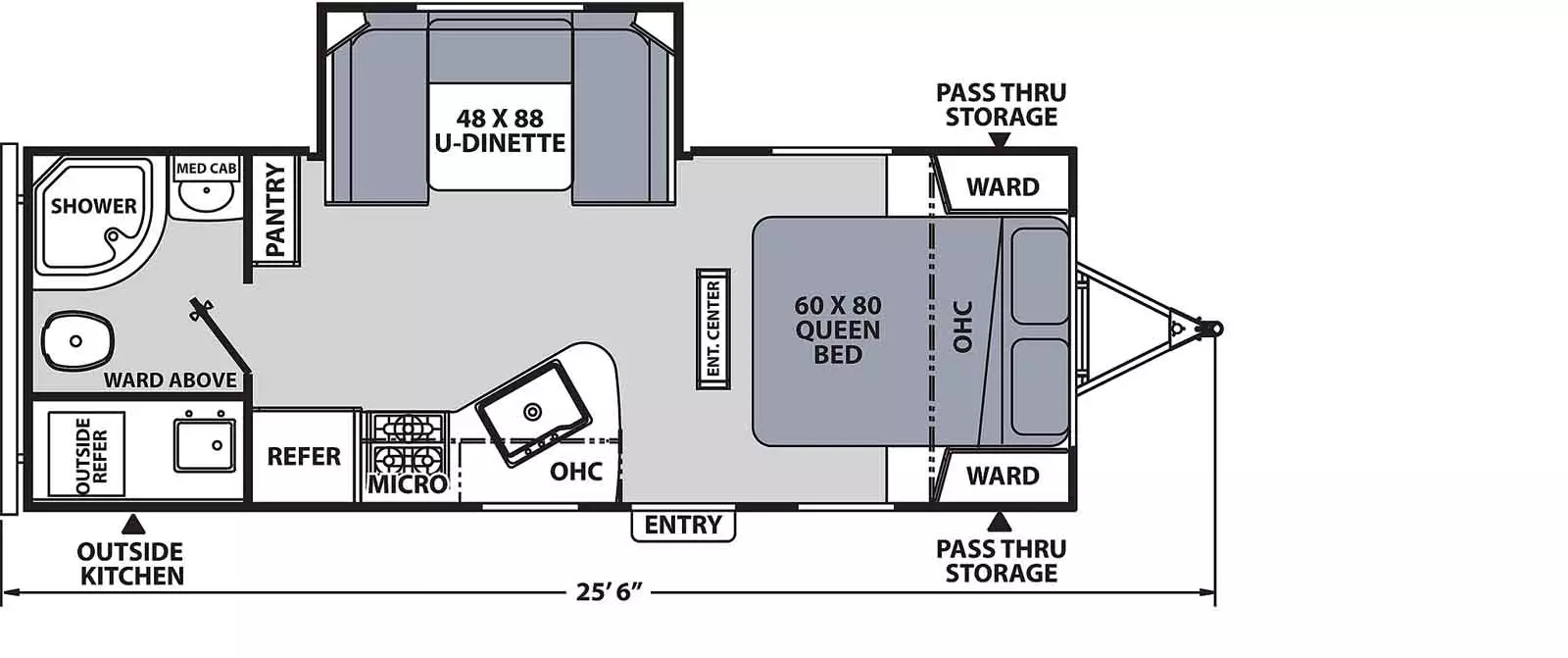

215RBK

226BH

238MBS

245BHS

249RBS

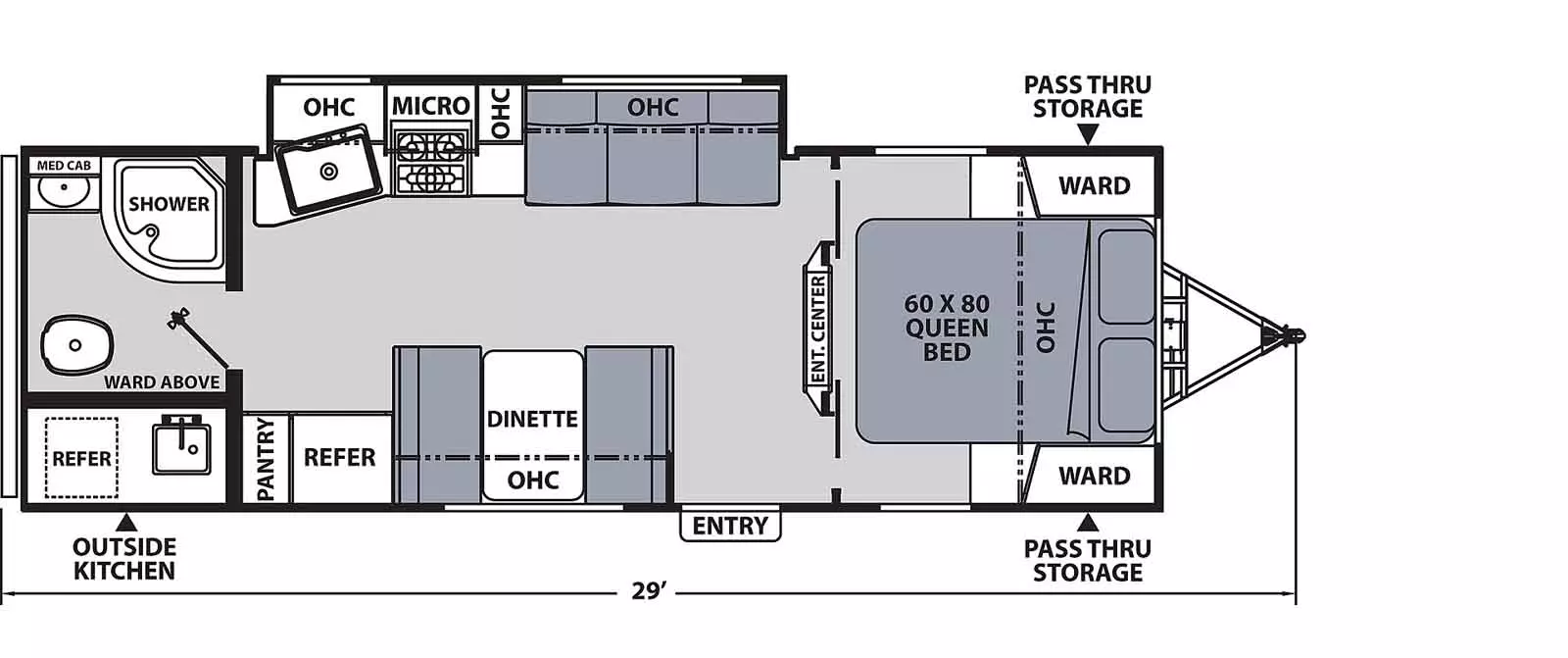

251RBK
