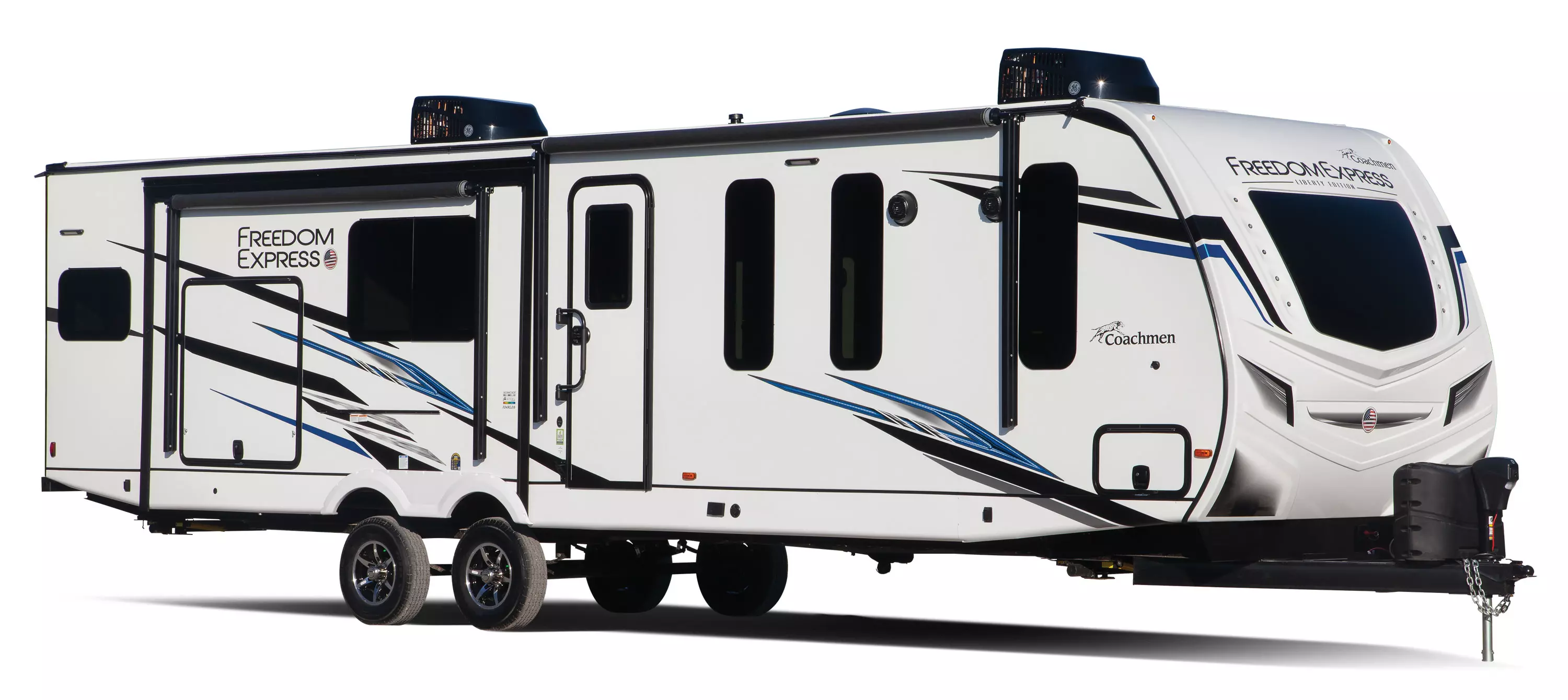

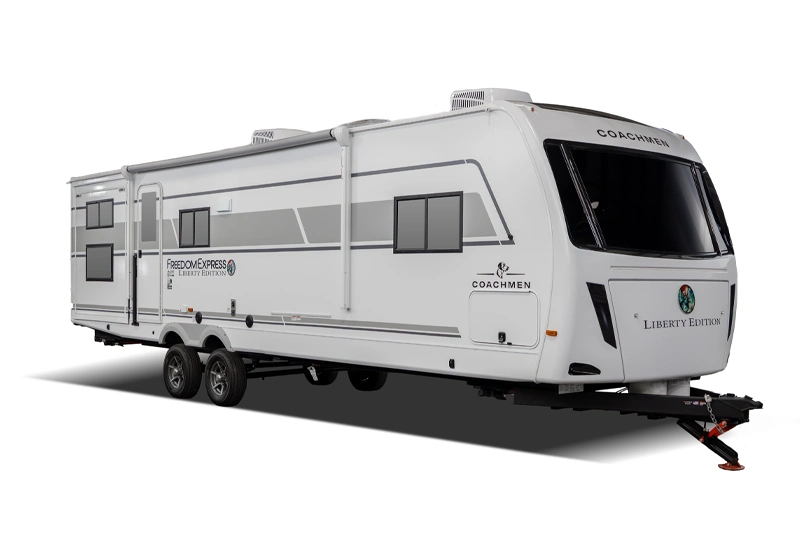

Freedom Express Liberty Edition Travel Trailers

Freedom Express Liberty Edition Travel Trailers deliver ultra-lite luxury combined with top selling floorplans in an affordable value added package designed to be towed by today’s midsize SUVs and half-ton vehicles.

Our full Freedom Express Liberty Edition models range from 28’ to 35’, and sport a full range of consumer inspired conveniences, from our complete push button setup Power Package to a Coleman® Perfect Flow camp grill. And towing the Freedom Express is made simple and safe with an unsurpassed aerodynamic design and our exclusive Stable-Ryd™ spread axle design.

Freedom Express conventional and hybrid travel trailers boast vacuum bond laminated sidewalls with durable Lami-Lux 1000® fiberglass exteriors. Available in models from 18’ to 28’, you are sure to find a model that suits your style, whether you are going it alone or taking the whole family.

Check out the Toy Haulers from Freedom Express. Our Toy Haulers combine lightweight design with payload capacities to handle your toy hauling needs. Fold up sofas, power vertical glide beds, and numerous tie down points give you practical dual purpose space for your needs.


Filter

Select filters below and then click the Filter Results button to remove non-matching Floorplans and their Specifications












to

to




Specifications

Print


Hitch Weight:
GVWR:
UVW:
CCC:
Exterior Length:
Exterior Height:
Exterior Width:
Fresh Water:
Gray Water:
Black Water:
Awning Size:
791 lb.
7600 lb.
6363 lb.
1237 lb.
31' 6"
10' 9"
96"
49 gal.
66 gal.
33 gal.
20'
741 lb.
7600 lb.
5927 lb.
1673 lb.
31' 11"
10' 9"
96"
49 gal.
33 gal.
33 gal.
20'
848 lb.
7800 lb.
6622 lb.
1178 lb.
33' 5"
10' 7"
96"
49 gal.
33 gal.
33 gal.
18'
937 lb.
9900 lb.
7452 lb.
2448 lb.
35' 7"
11' 0"
96"
49 gal.
33 gal.
33 gal.
18'
879 lb.
10500 lb.
7952 lb.
2548 lb.
36' 11"
11' 2"
96"
49 gal.
66 gal.
33 gal.
20'
1071 lb.
10500 lb.
7906 lb.
2594 lb.
36' 11"
11' 2"
96"
49 gal.
66 gal.
33 gal.
17'
1126 lb.
10500 lb.
7878 lb.
2622 lb.
36' 11"
11' 2"
96"
49 gal.
66 gal.
33 gal.
15'
1222 lb.
10500 lb.
8328 lb.
2172 lb.
36' 11"
11' 0"
96"
49 gal.
33 gal.
33 gal.
10' & 12'
645 lb.
7500 lb.
5268 lb.
2232 lb.
26' 10"
10' 9"
96"
49 gal.
33 gal.
33 gal.
14'
821 lb.
7600 lb.
6367 lb.
1233 lb.
31' 8"
10' 9"
96"
49 gal.
33 gal.
33 gal.
18'
985 lb.
9900 lb.
7849 lb.
2051 lb.
35' 11"
11' 2"
96"
49 gal.
33 gal.
33 gal.
12' & 10'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Coachmen RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Coachmen RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Features & Options

Print
  • Stable-Ryd® Suspension
  • - Spread axle improves weight distribution.
  • - Wide track axles provide a wider, more secure stance on the road.
  • - Spread axle design allows us to reduce the tongue weight for optimum performance.
  • - Spread axle design reduces sway caused by crosswinds.
  • Lightweight
  • - Laminated sidewalls and floor
  • - Azdel behind the fiberglass
  • - Bow trusses aluminum and wood
  • - Rod and angle crossmembers in frame
  • - All tanks mounted under floor to lower center of gravity and improve interior storage.
  • Aerodynamic
  • - Aerodynamic front profile (Cuts through the air)
  • - Enclosed underbelly reduces turbulence/drag. (Select models)
  • 3M breathable graphics
  • Tinted, safety glass windows
  • Crowned trusses
  • Aluminum reinforced with 3/8” roof decking
  • EPDM bright white rubber roofing
  • Azdel composite panels
  • Aerodynamic front profile
  • Dual 20 lb. LP gas tanks
  • Welded aluminum structure, vacuumbonded sidewalls and flooring
  • Smooth exterior fiberglass skin
  • Aluminum framed openings

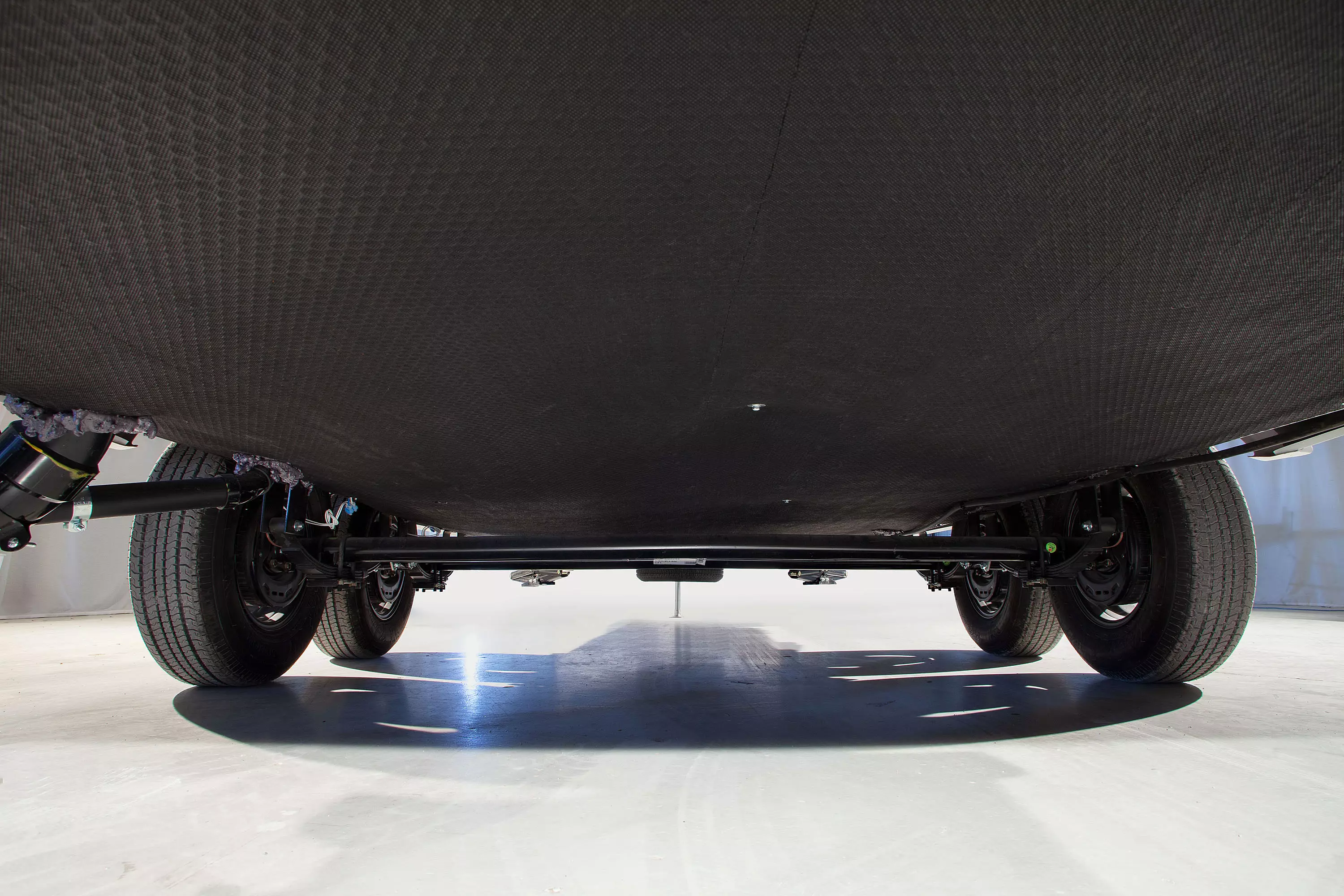

  • Fully enclosed, heated underbelly
  • Fully welded tubular aluminum floor structure
  • Happijac SureTrac™, rack and pinion, and Schwintek slide systems
  • Congoleum Designer Carefree Resilient Flooring
  • Powder E-coated, welded I-beam frame
  • Super-Lube® axle hubs
  • Stable-Ryd® spread axle design (25’ and above)
  • Nitrogen filled radial tires
  • Two Exclusive Liberty Décors - Walnut & Teak
  • Exclusive Liberty/Maple Leaf Edition Graphics
  • Gel Coated Fiberglass Cap with LED Hitch and Marker Lights
  • Front Rock Guard on Cap
  • Five Point Electric Stabilizer System
  • Adjustable Aluminum Solid Steps (N/A 321FEDSLE)

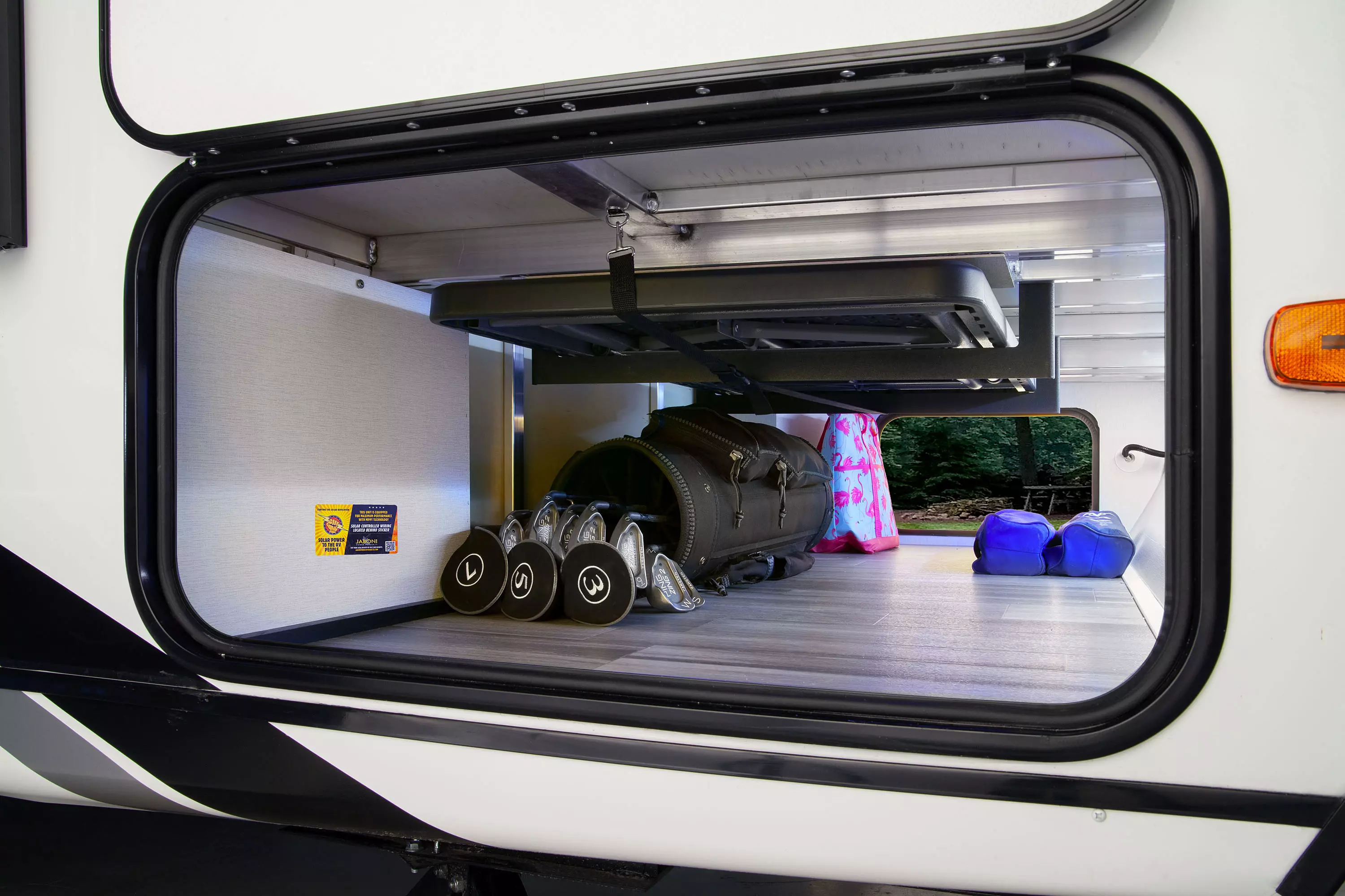

  • Slam Latch Baggage Doors on Pass through Storage
  • Enclosed and Heated Gate Valves
  • Enclosed Central Control Panel for Switches and Gauges
  • Raised Panel Glazed Mesa Maple Upper Cabinet Doors
  • Solid Surface Kitchen Countertop

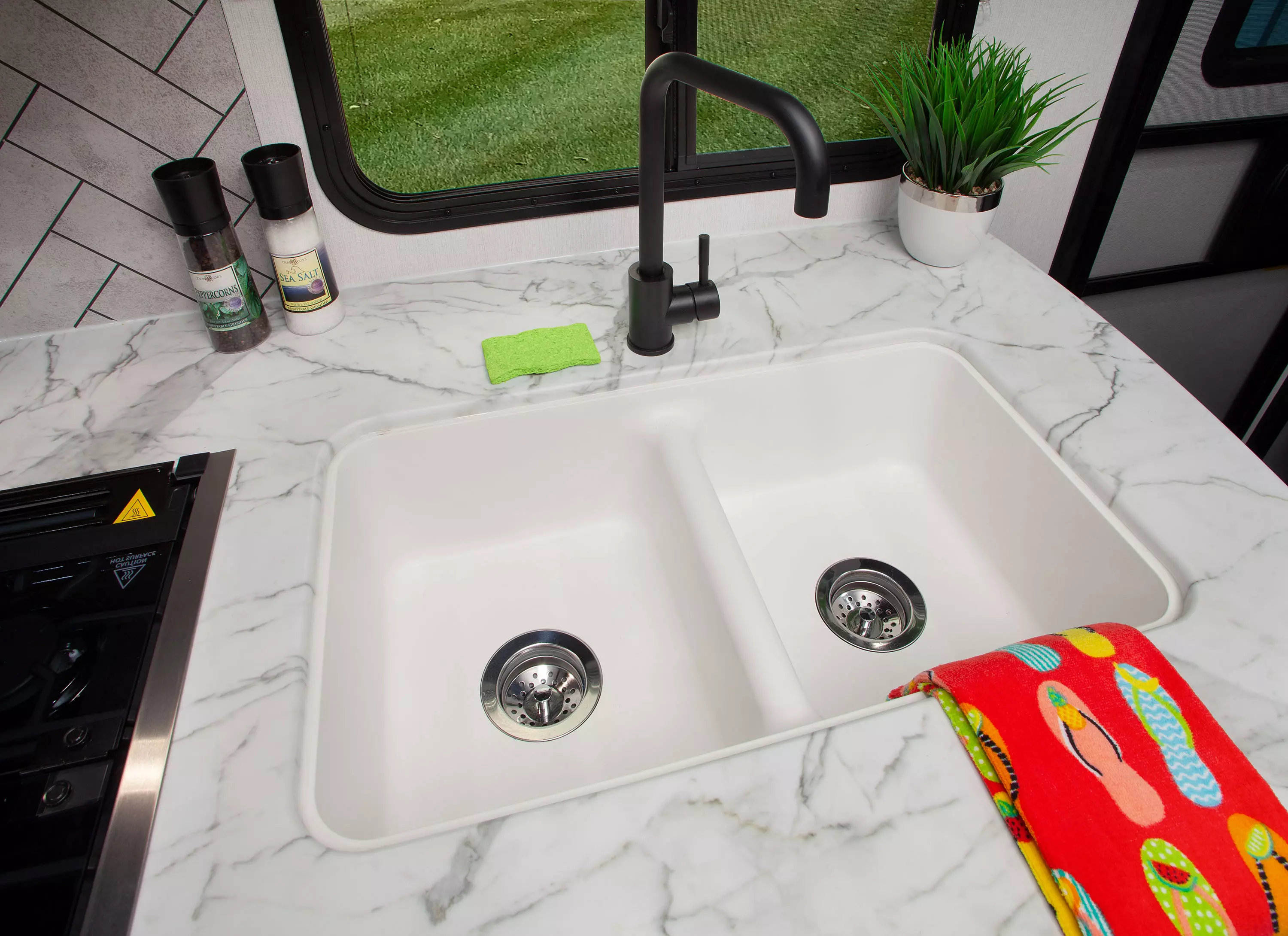

  • Undermount Stonecast Sink
  • Solid Surface Sink Covers
  • Subway Tile Backsplash
  • Residential Pull-Out Faucet
  • Decorative Light Over Dinette & Matching WallSconce
  • Hide-A-Bed Sofa
  • Pull-out Drawers Under Dinette
  • Designer Bedspread
  • Electric Fireplace (NA 276 RKDSLE)
  • Larger 8 Cu. Ft. Refrigerator
  • Winegard WiFi & 4G LTE Extender
  • 10.7 Cu. Ft. 12 Volt Refrigerator
  • Radiant/Thermal Barrier Package
  • Ladder

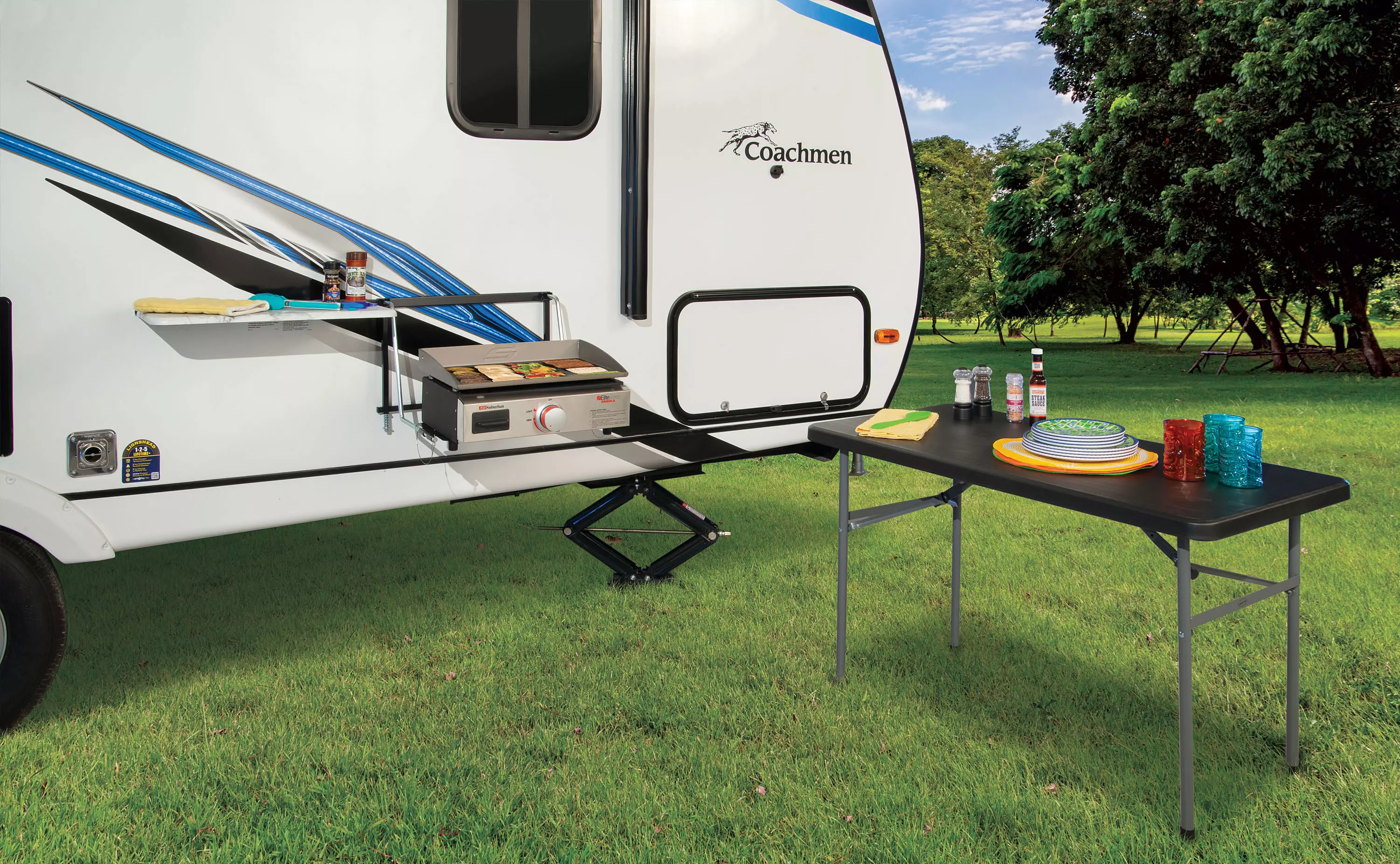

  • Outdoor Grill Station (Standard on Camp Kitchen & 293RLDSLE)
  • 15,000 BTU Roof Air Conditioner
  • 50 AMP Service w/ 2nd A/C Prep
  • Second 15K Roof A/C (Requires 50 AMP Prep)
  • Frameless Windows
  • Free Standing Table w/4 Chairs
  • Canadian Compliance


Virtual Tours

310BHDSLE

320BHDS

321FEDSLE

323BHDSLE

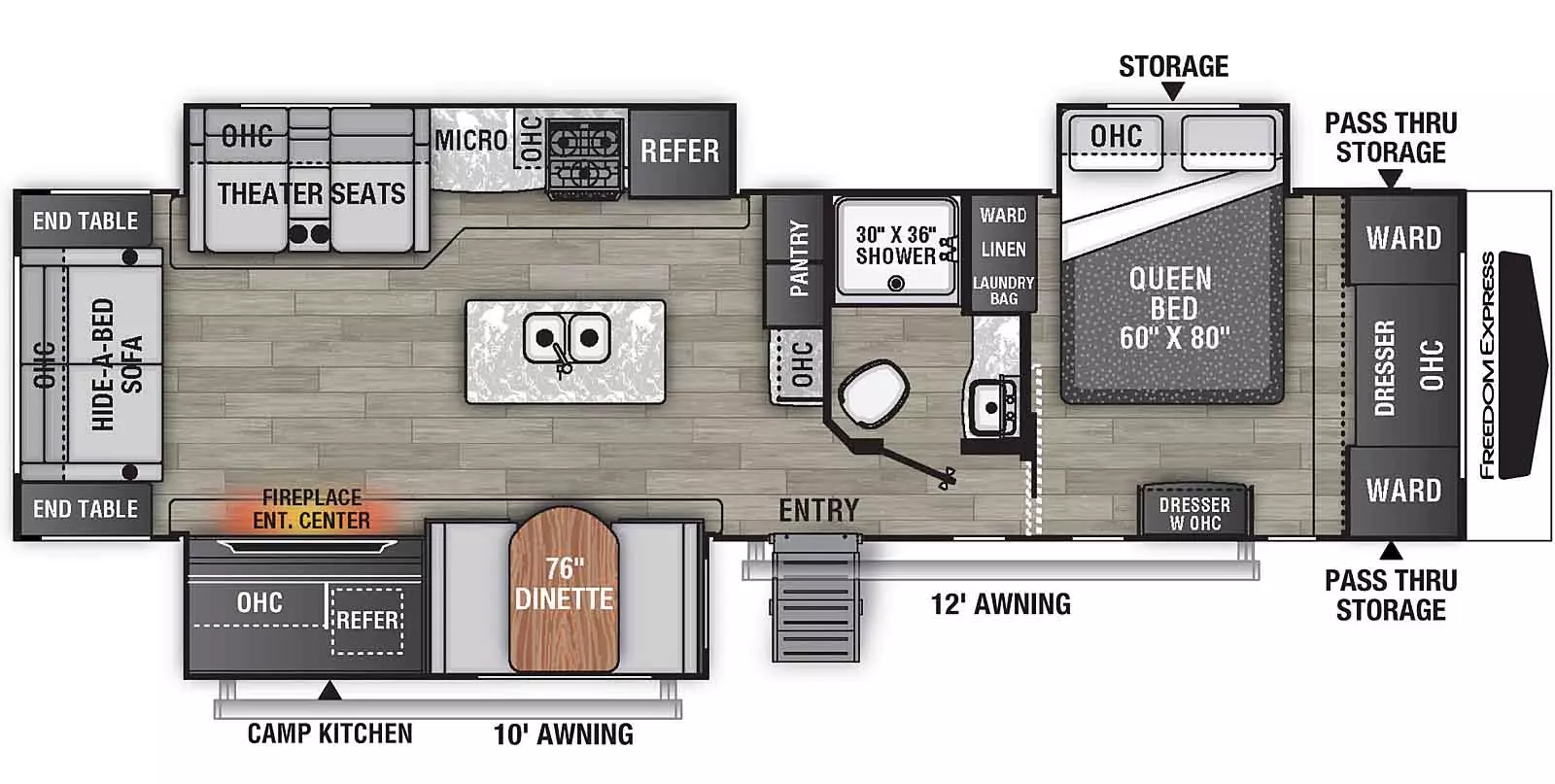

324RLDSLE
