29FW Floorplan

Mirada

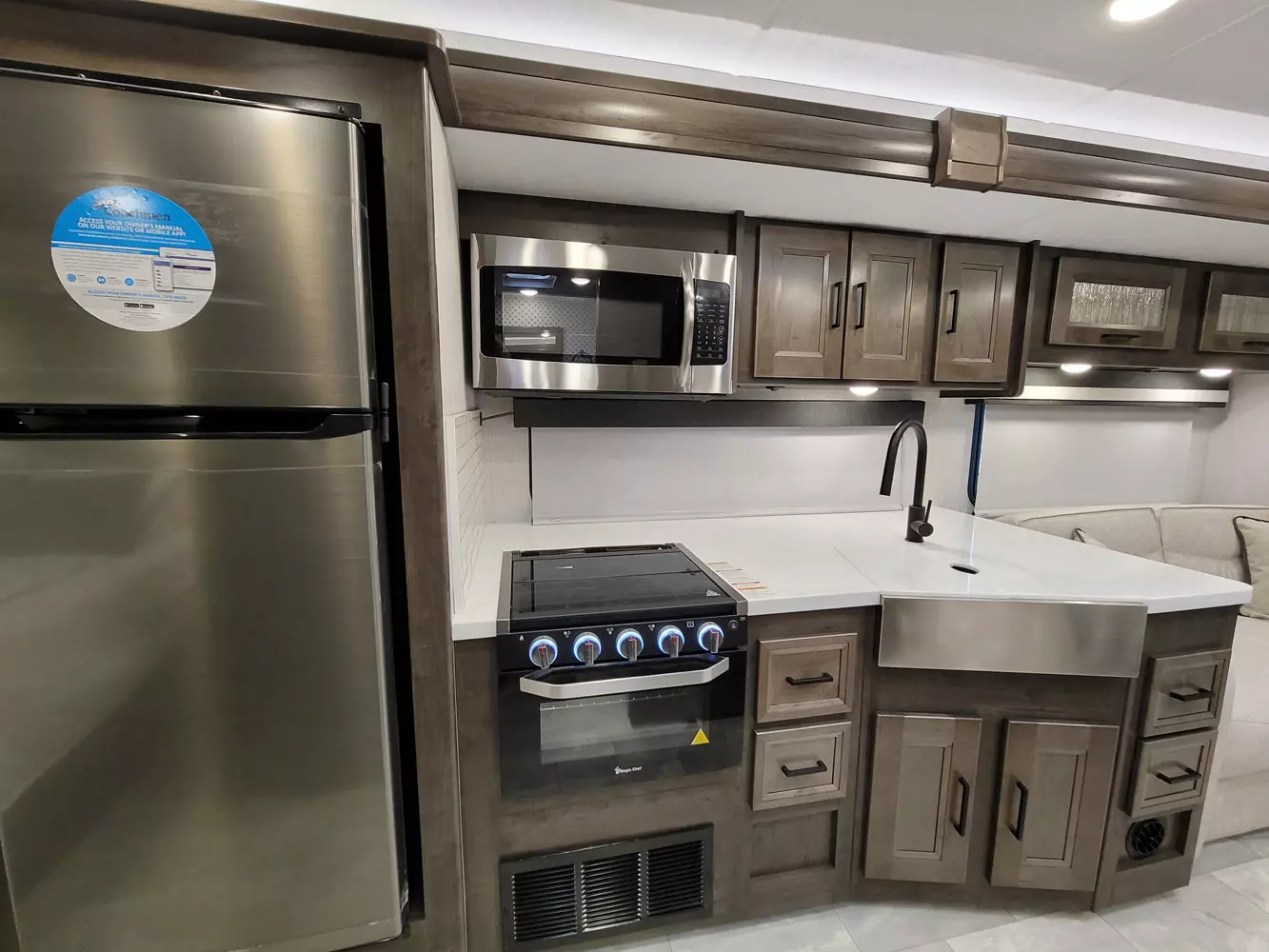

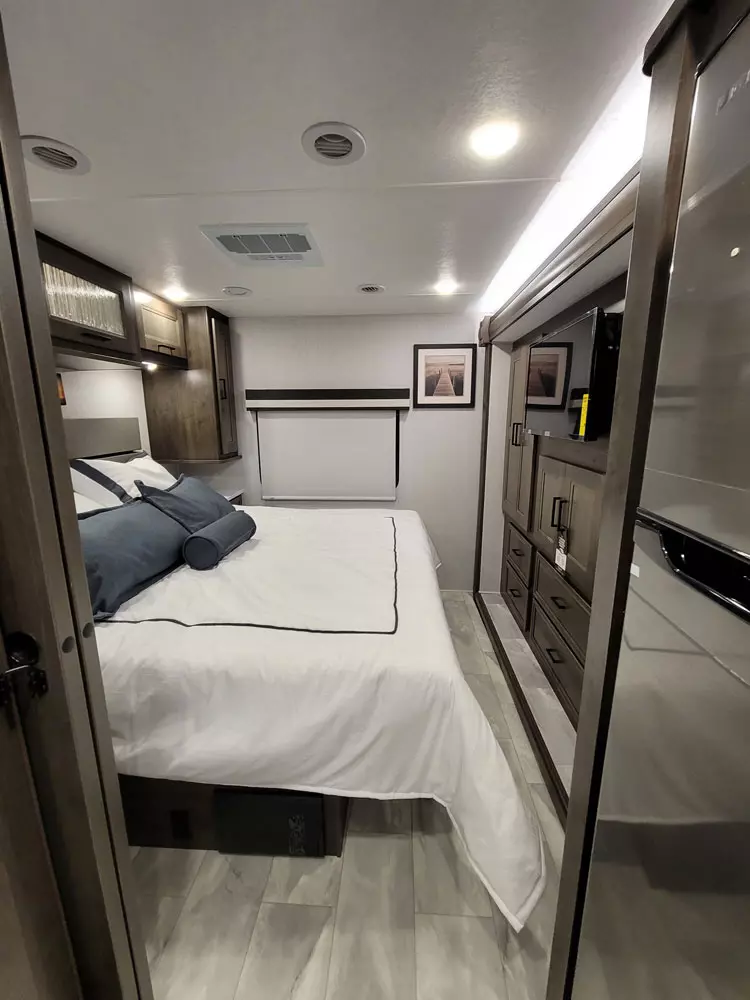

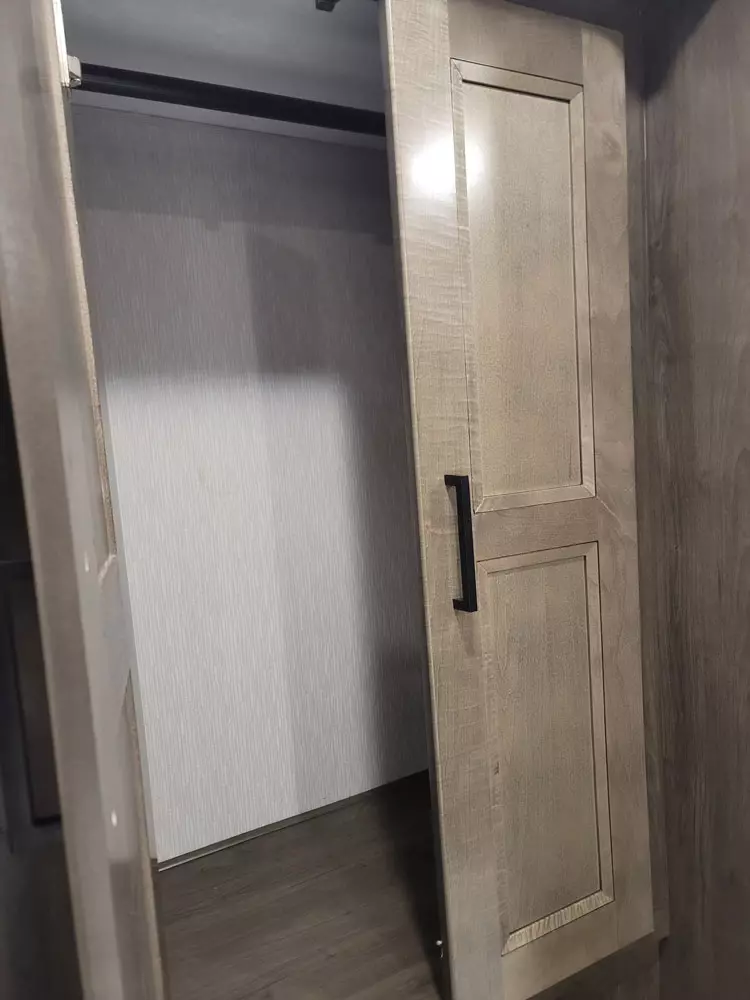

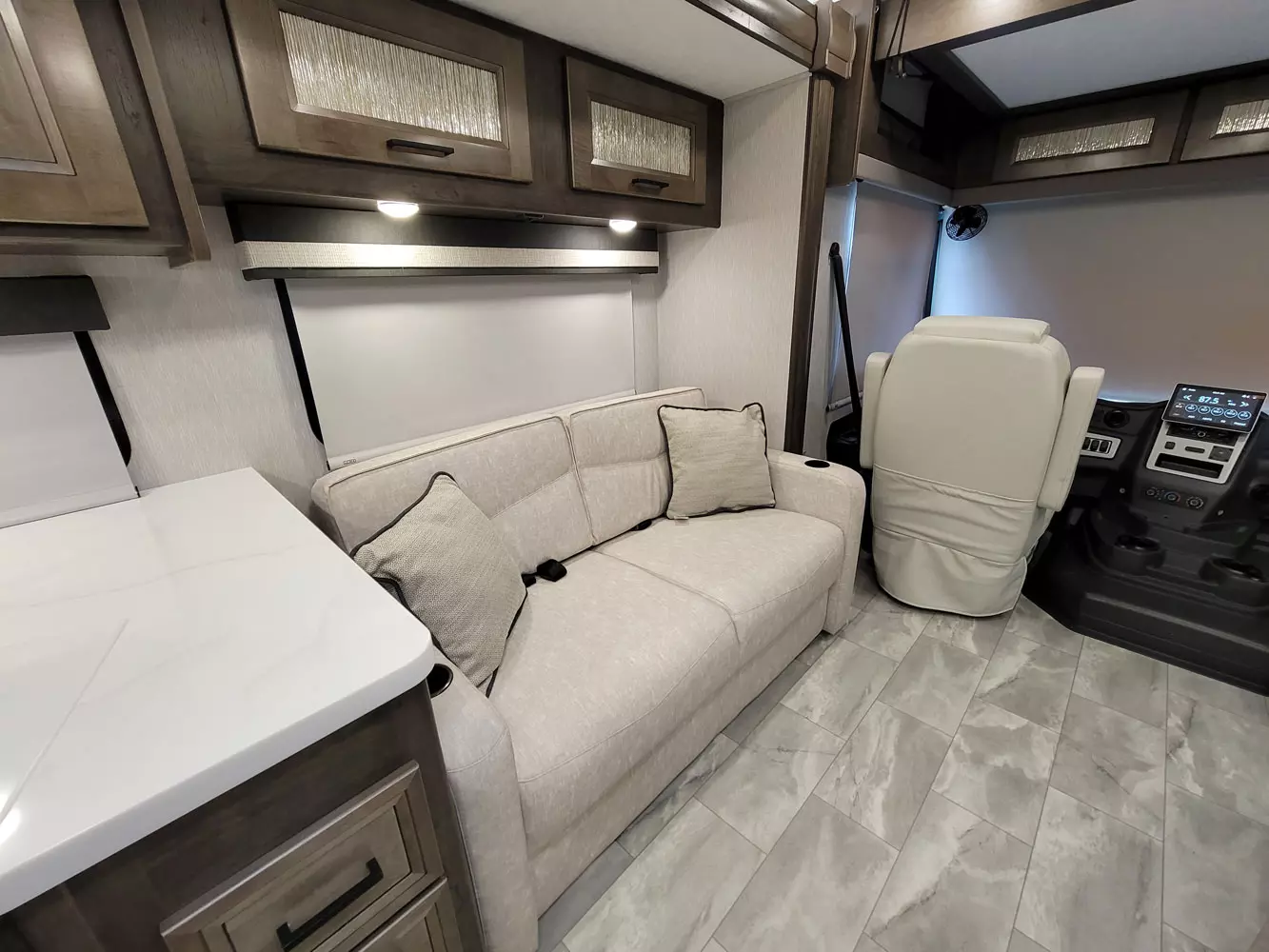

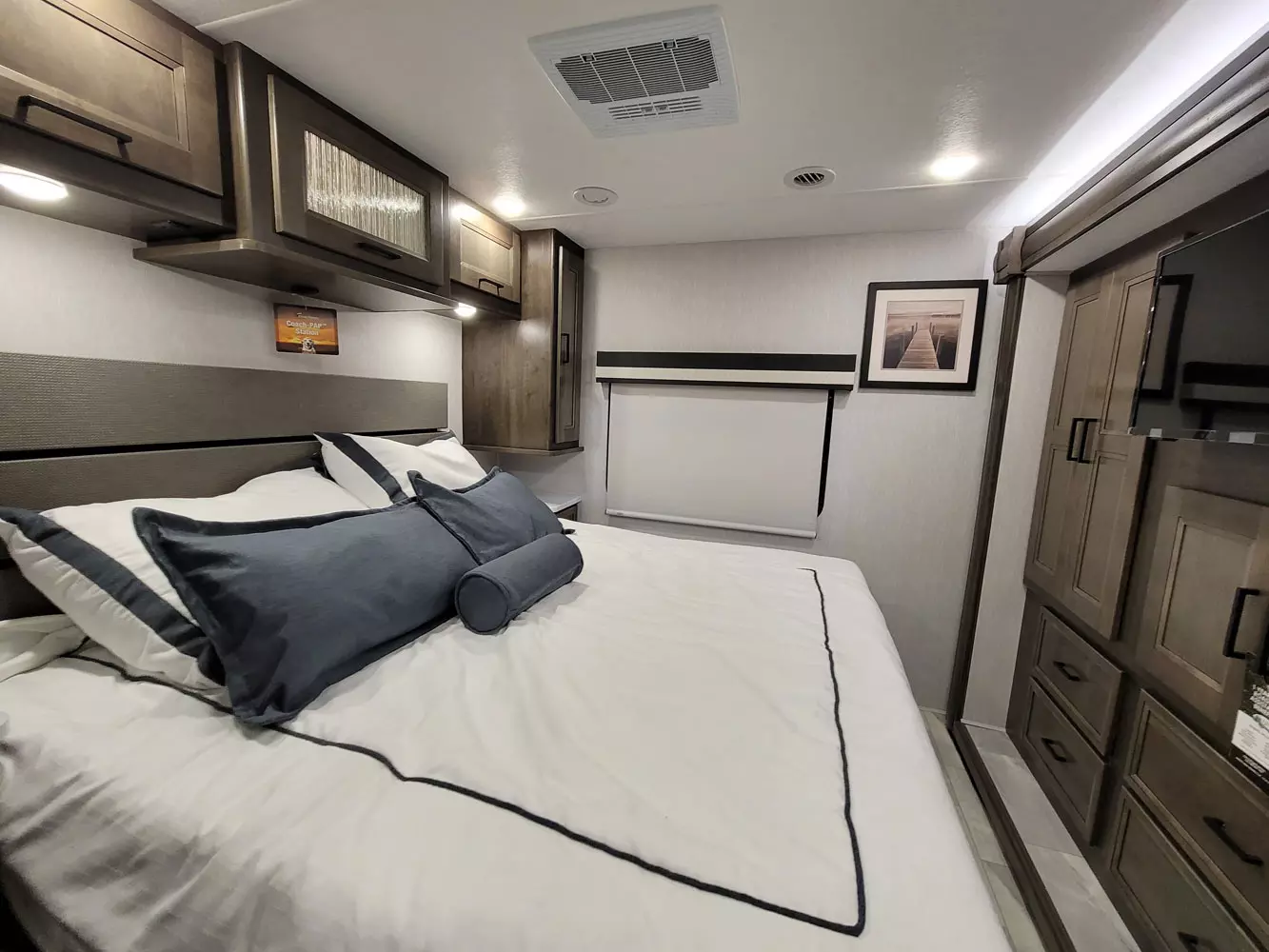

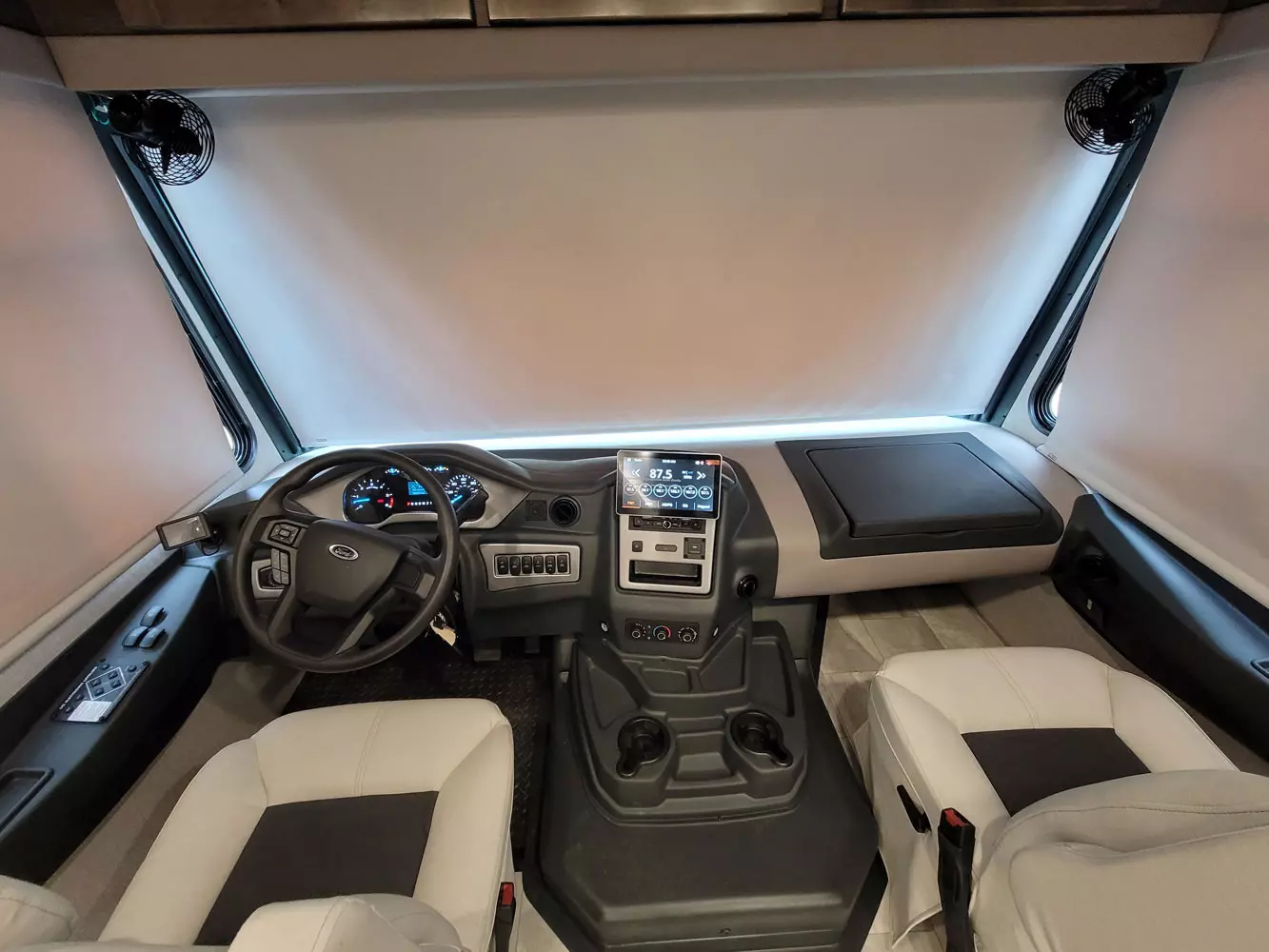

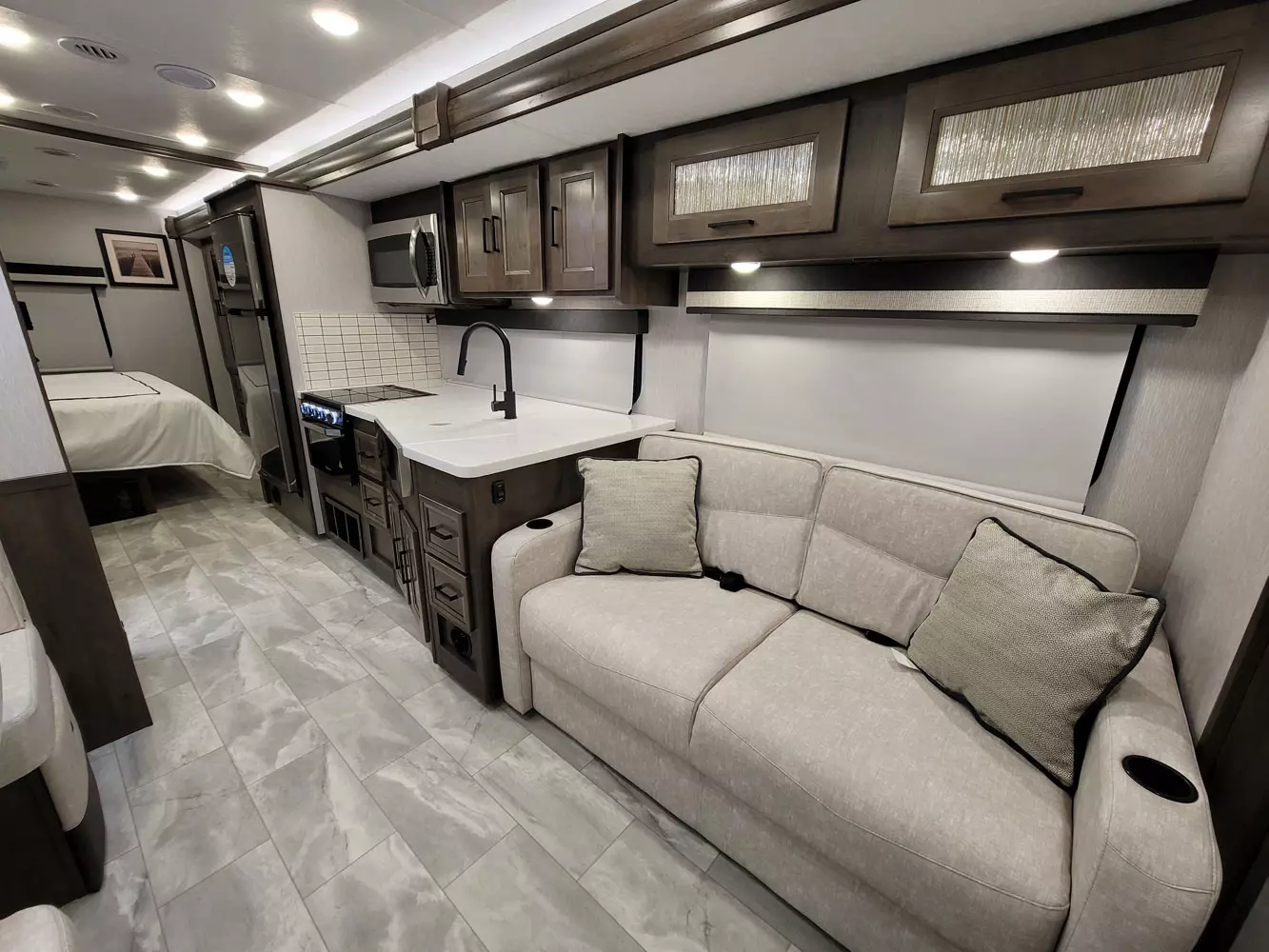

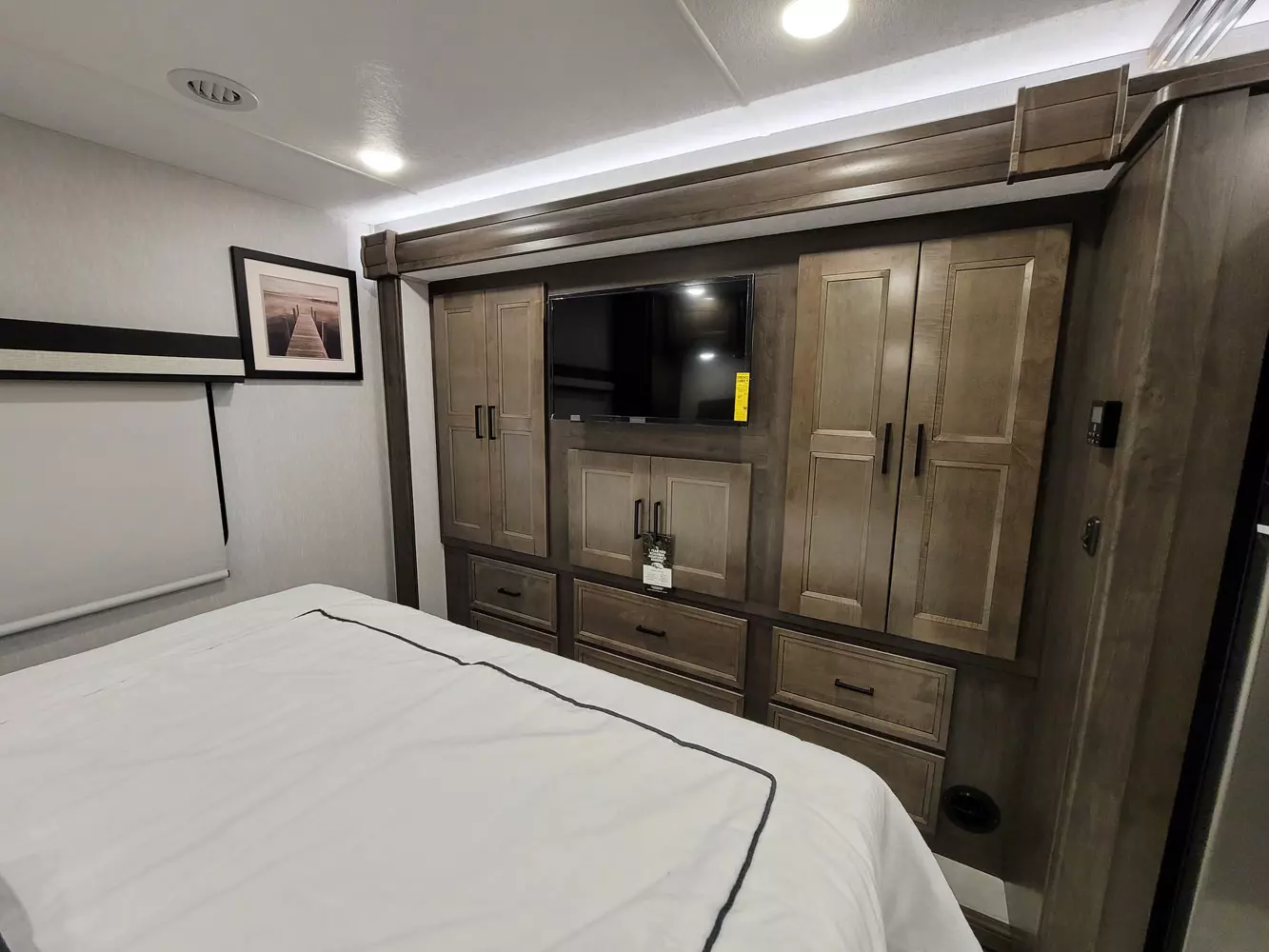

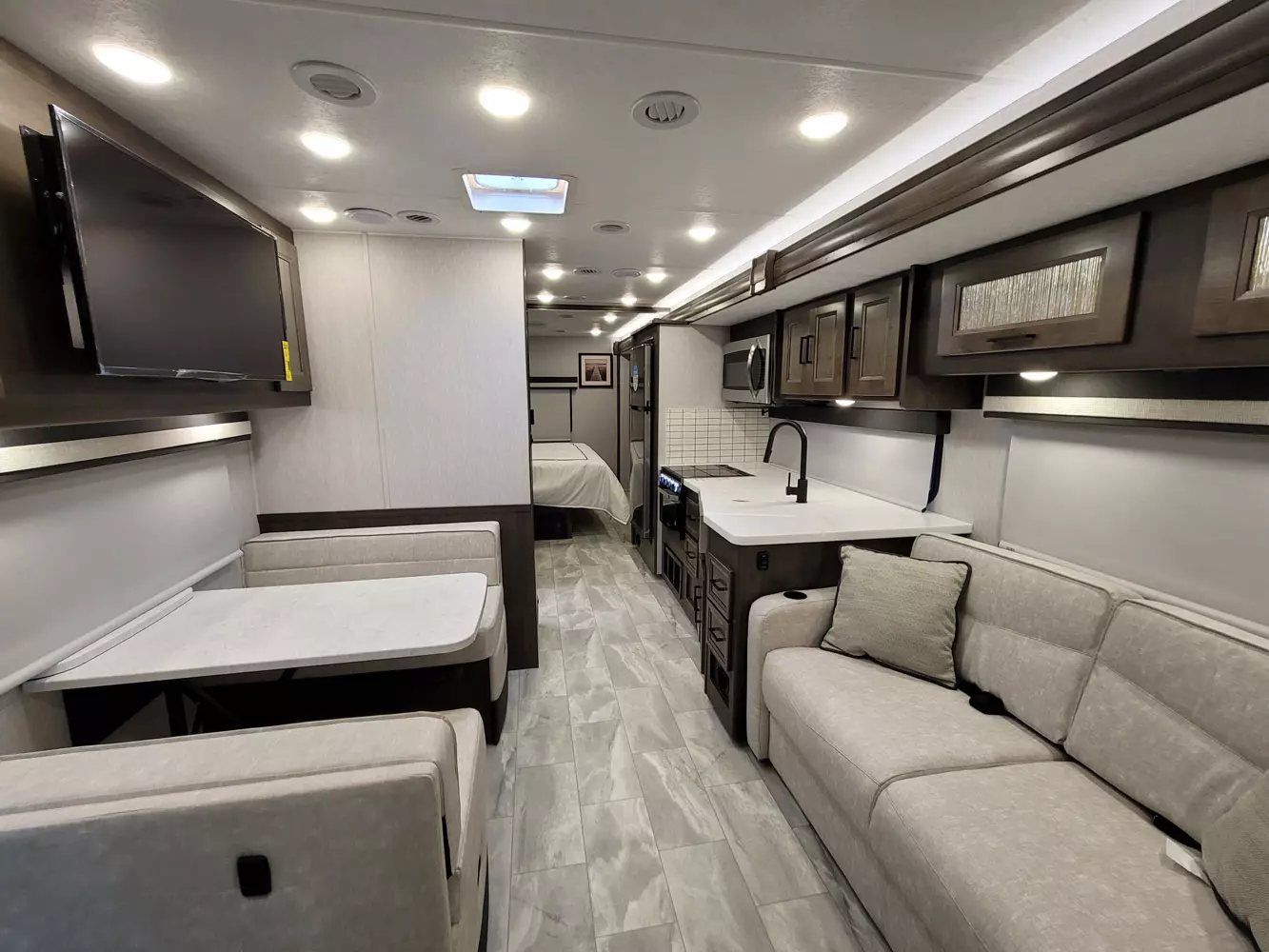

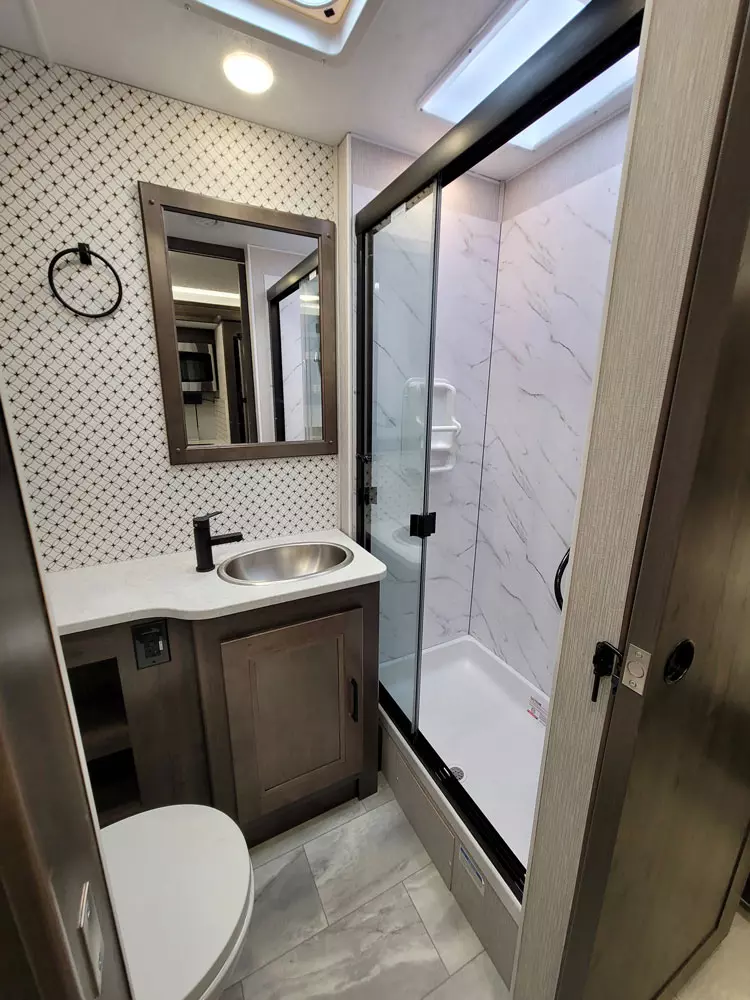

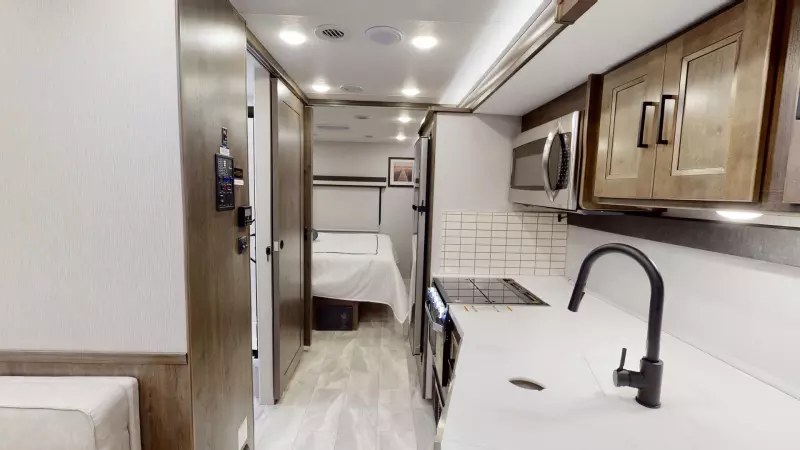

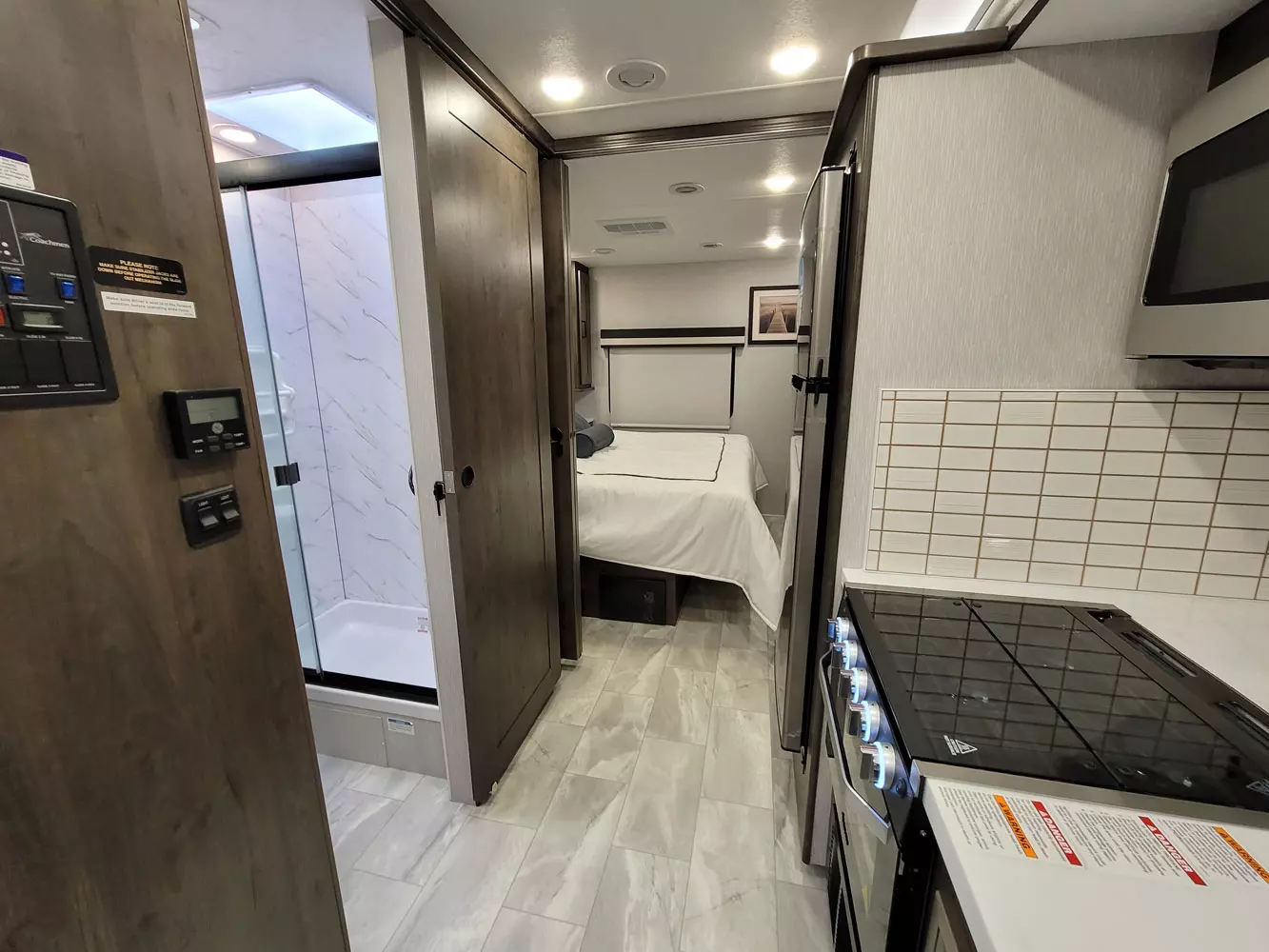

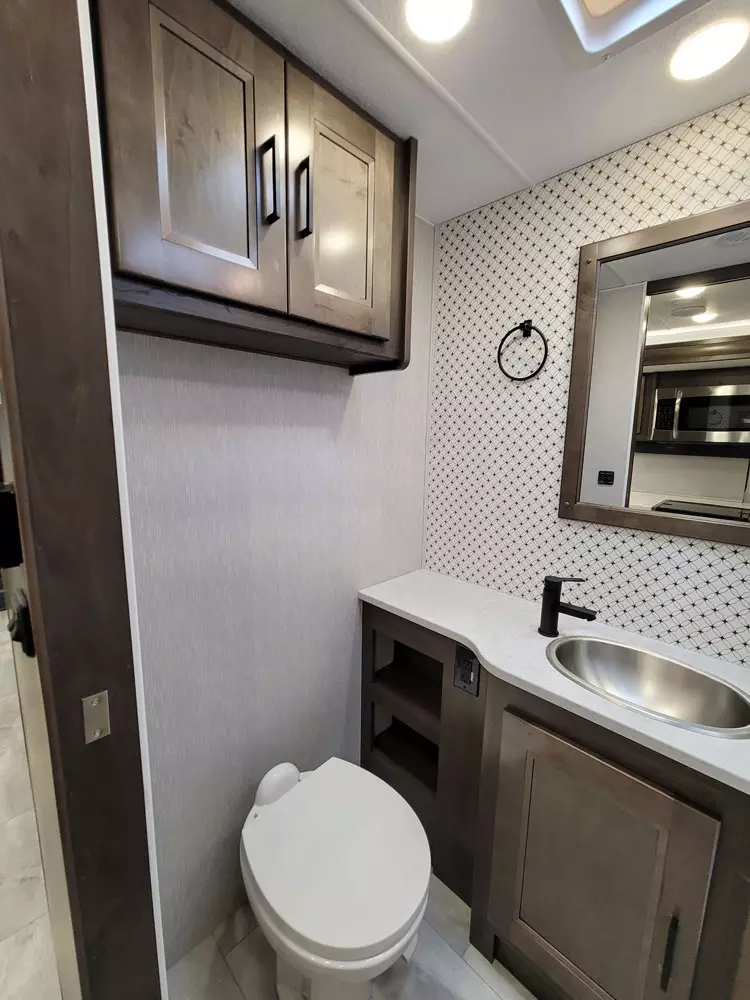

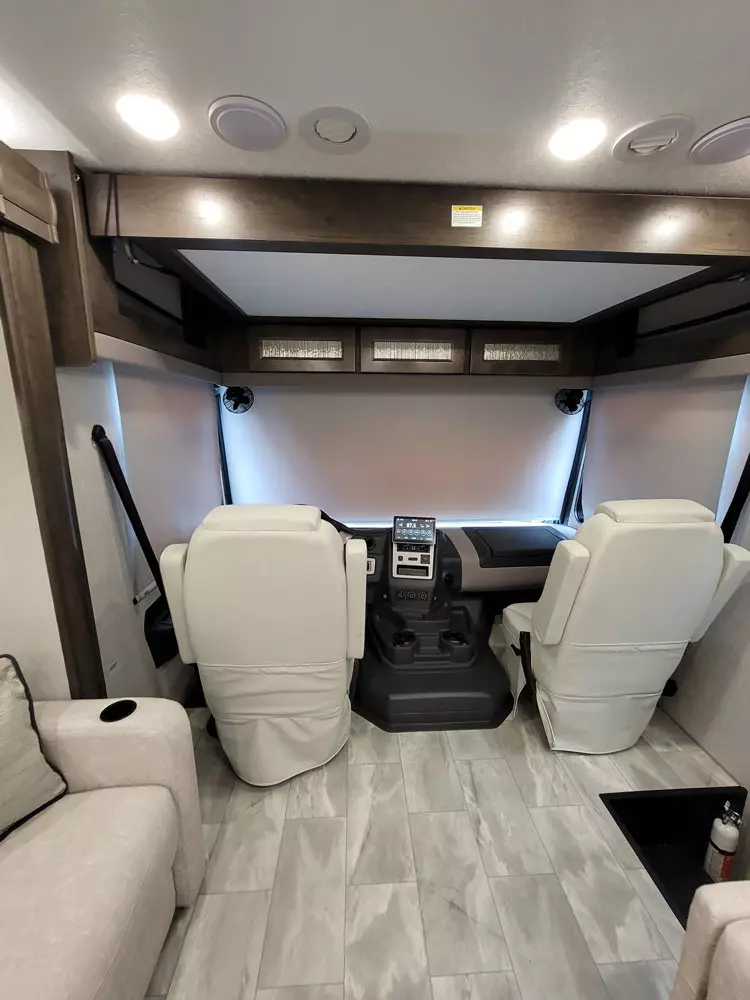

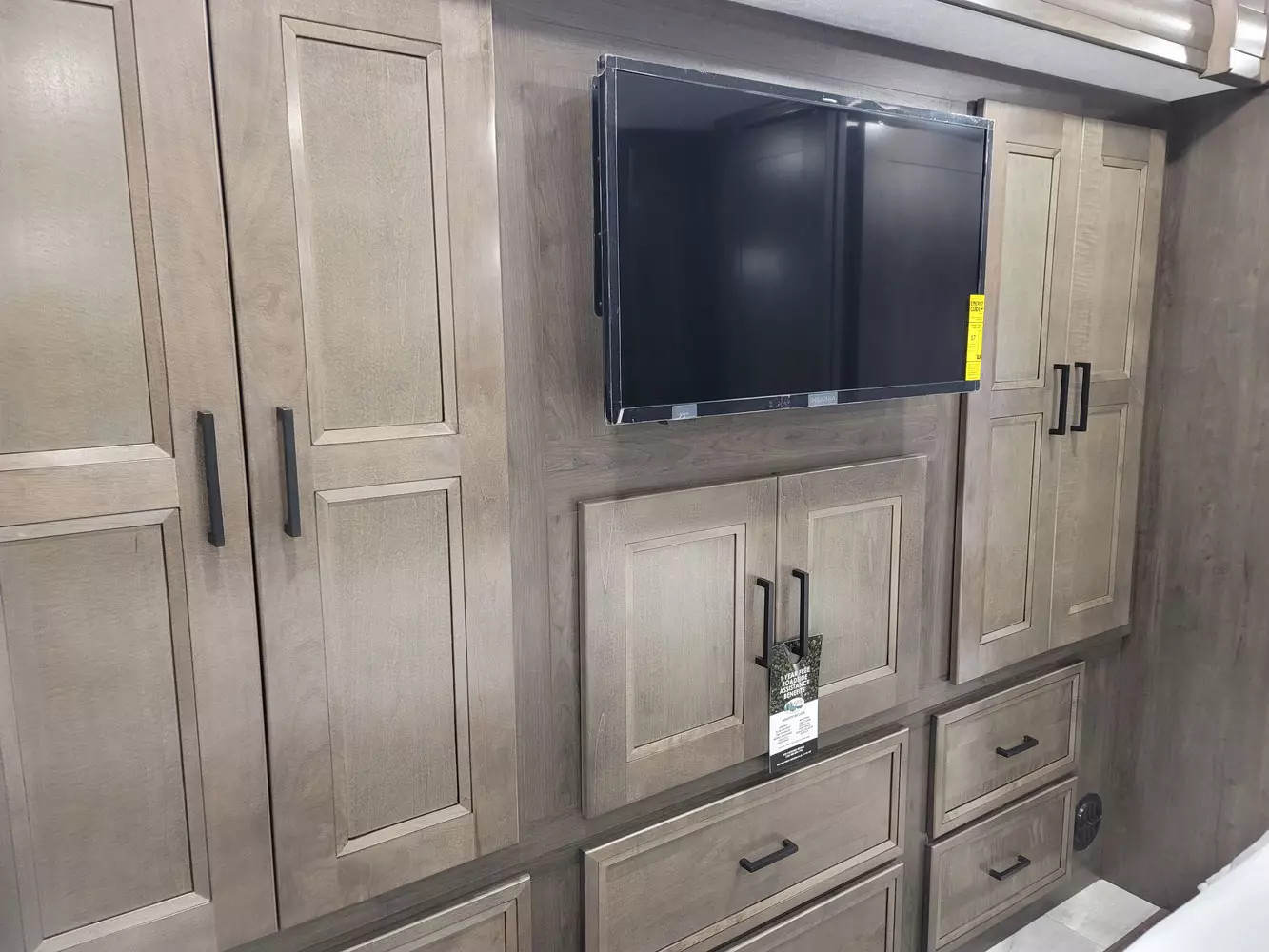

The Mirada 29FW has 1 slide out located on the off-door side and 1 entry door. Interior layout from front to back; front cockpit with drop down front bunk and computer work station on the door side; door side 42 in by 70 inch dinette with LED TV and overhead cabinet; off-door side 63 inch sofa with storage and overhead cabinet; off door side kitchen with microwave above stovetop, farm sink and overhead cabinets and refrigerator; door side bathroom with toilet, sink and 38 inch by 24 inch shower, rear bedroom with 70  inch by 74 inch foot facing King bed with overhead cabinet and CPAP station, off-door side wardrobe on either side of LED TV and storage. Optional Theater seating. Exterior door side LED TV and kitchen.
Enlarge

Specifications

Wheelbase:
190"
GVWR:
18,000 lb.
GCWR:
23,000 lb.
GAWR Rear:
12,000 lb.
GAWR Front:
7,000 lb.
Fuel Capacity:
80 gal.
Exterior Length:
30' 7"
Exterior Height:
12' 5"
Exterior Width:
102"
Fresh Water:
50.00 gal.
Gray Water:
46.00 gal.
Black Water:
46.00 gal.
Awning Size:
20'



GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) - Is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) - is the maximum permissible weight, including cargo, fl uids, optional equipment and accessories that can be safely supported by each axle.

UVW (Unloaded Vehicle Weight)* - is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s), including full fuel, all fl uids and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, passengers, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before fi lling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Coachmen RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Coachmen RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.




Features & Options


  • Solid Surface Kitchen Countertop
  • Premium Linoleum Throughout
  • Hardwood Cabinet Doors/Flat Panel
  • Self-Closing Ball Bearing Drawer Guides Throughout
  • Frameless Tinted Windows with Safety Glass
  • Reclining/Swivel Pilot Seats
  • Sofa with Hide-A-Bed (Where Applicable)
  • Solar Privacy Shades Throughout
  • Easy Clean Cockpit Floor
  • Power Windshield Shade with Manual Side Shade
  • 10" Touch Screen Radio AM/FM Radio with Bluetooth Apple CarPlay and Android Auto Link Enabled
  • Pre-Wired for Satellite Dish
  • Ex terior Cable TV Jack and Tailgater Satellite Jack
  • LP Leak Alarm and Smoke Detector
  • Carbon Monoxide Detector
  • Fire Extinguisher
  • King Jack TV - Radio Antenna
  • 40" LCD TV Main Coach (29FW, 32LS, 35ES)
  • Charging Station for Electronic Devices
  • High Rise Kitchen Faucet

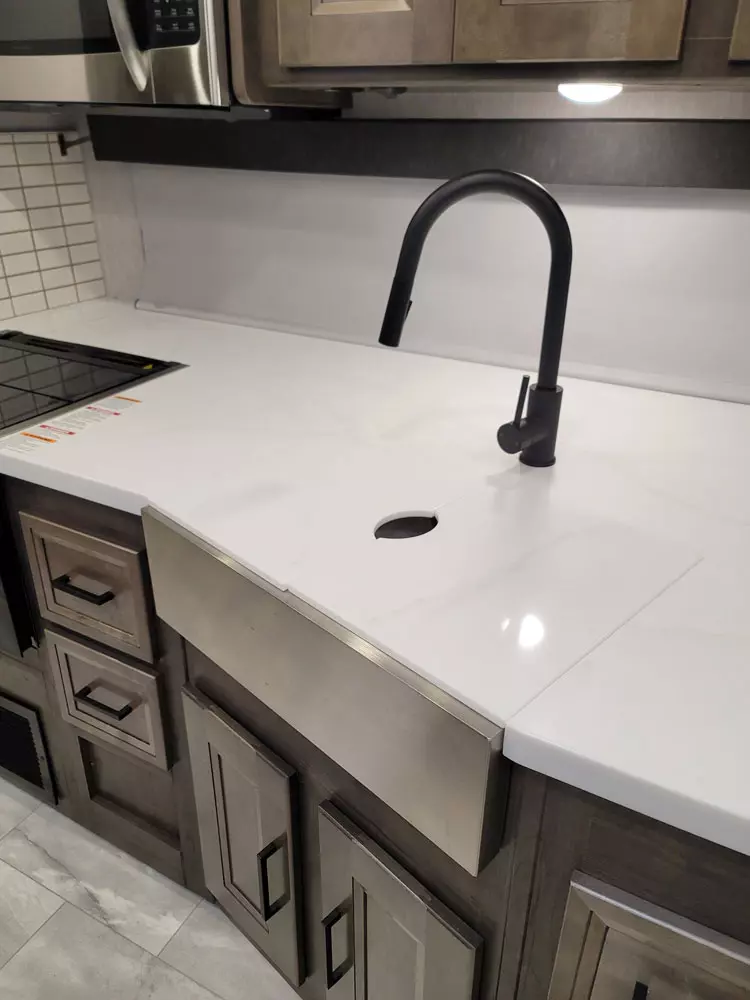

  • Stainless Steel Farmhouse Sink
  • Solid Surface Sink Covers
  • Stainless Residential Refrigerator

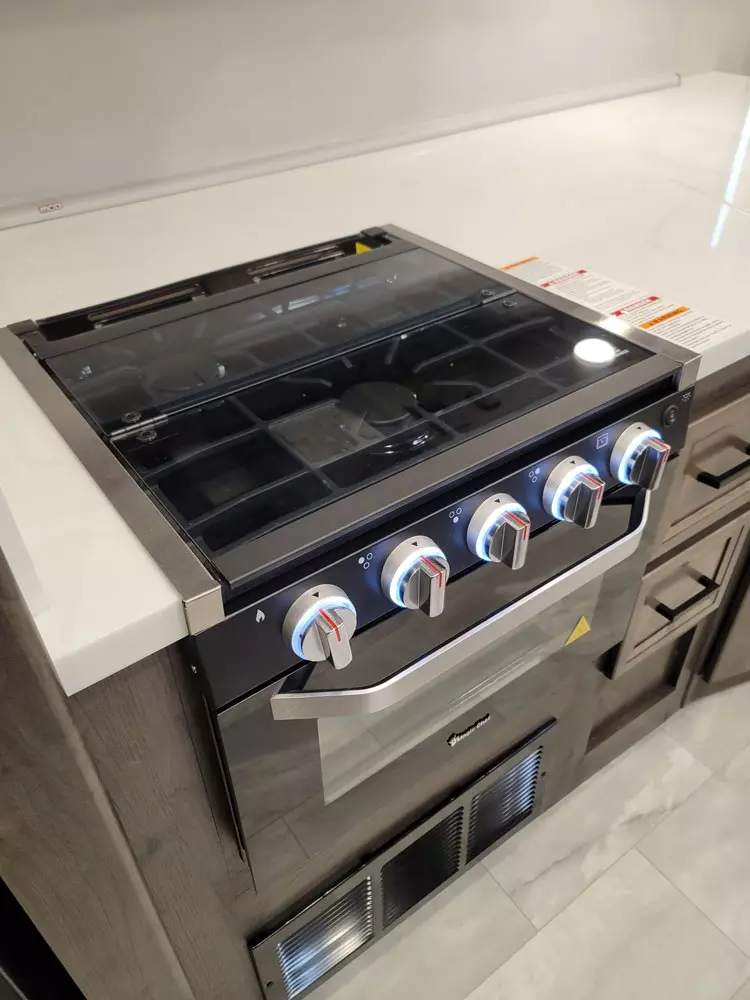

  • Stainless Steel 3-Burner Range with Glass Cover

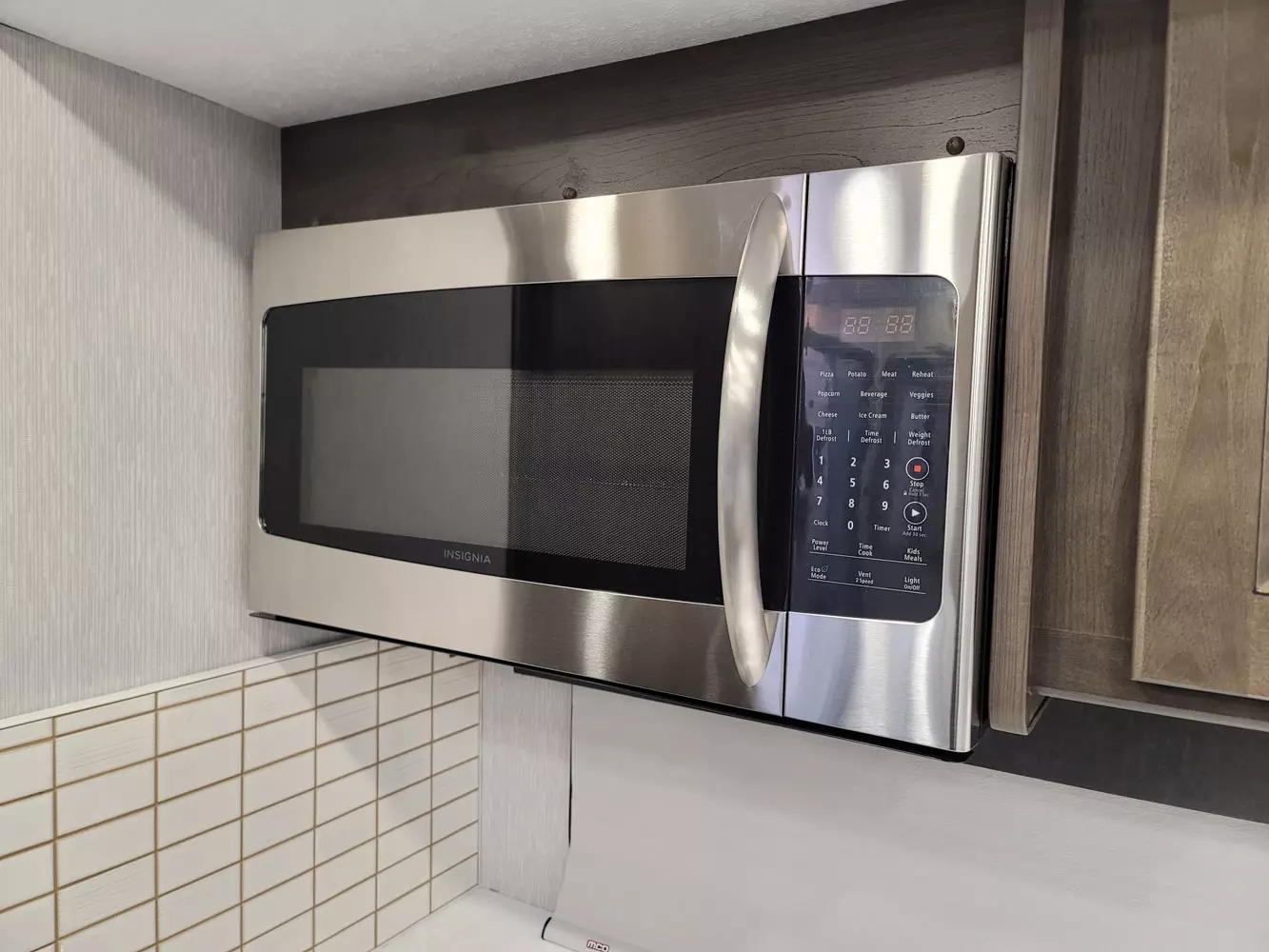

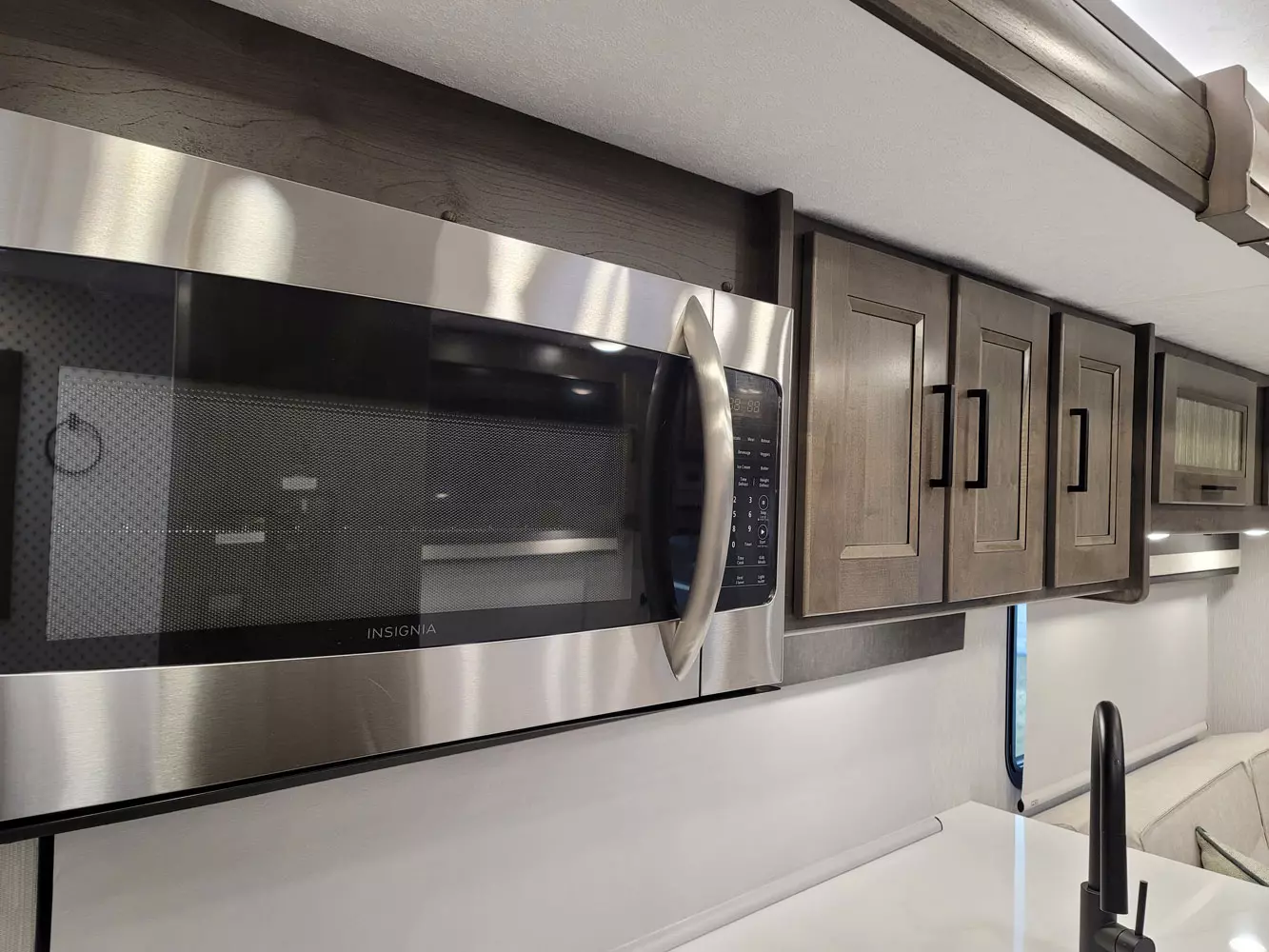

  • Stainless OTR Microwave
  • Tile Backsplash
  • Stainless Lavatory Sink
  • Porcelain Toilet with Foot Flush
  • One Piece ABS Shower Surround

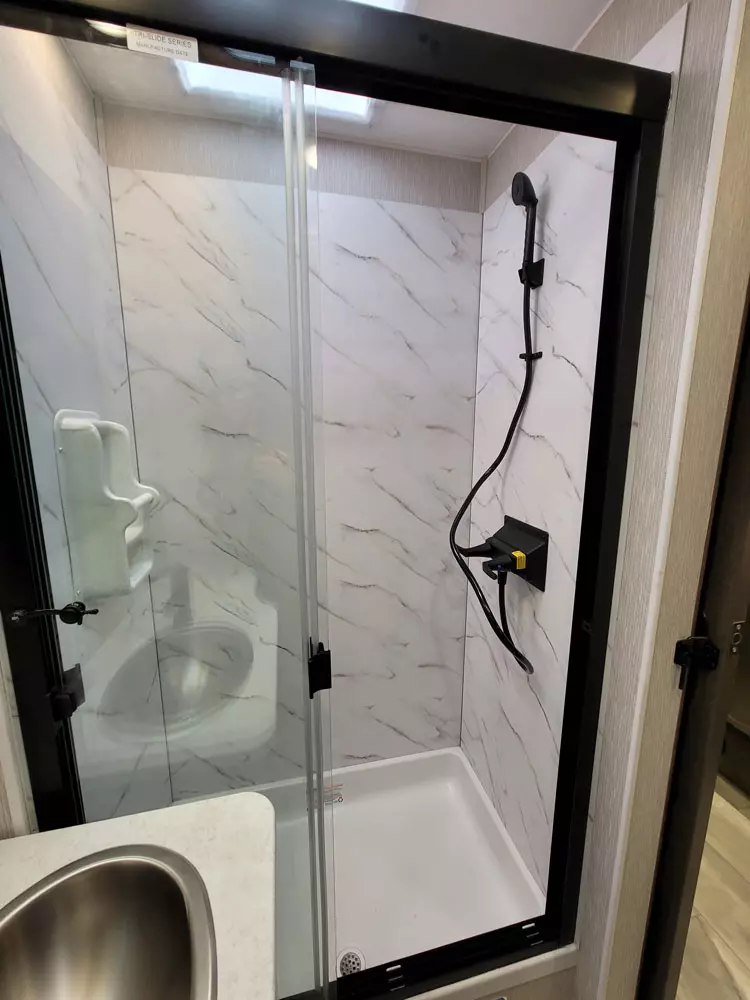

  • Glass Shower Door
  • Power Bath Vent
  • 6-Gallon Gas/Electric D.S.I. Water Heater
  • Demand Water Pump

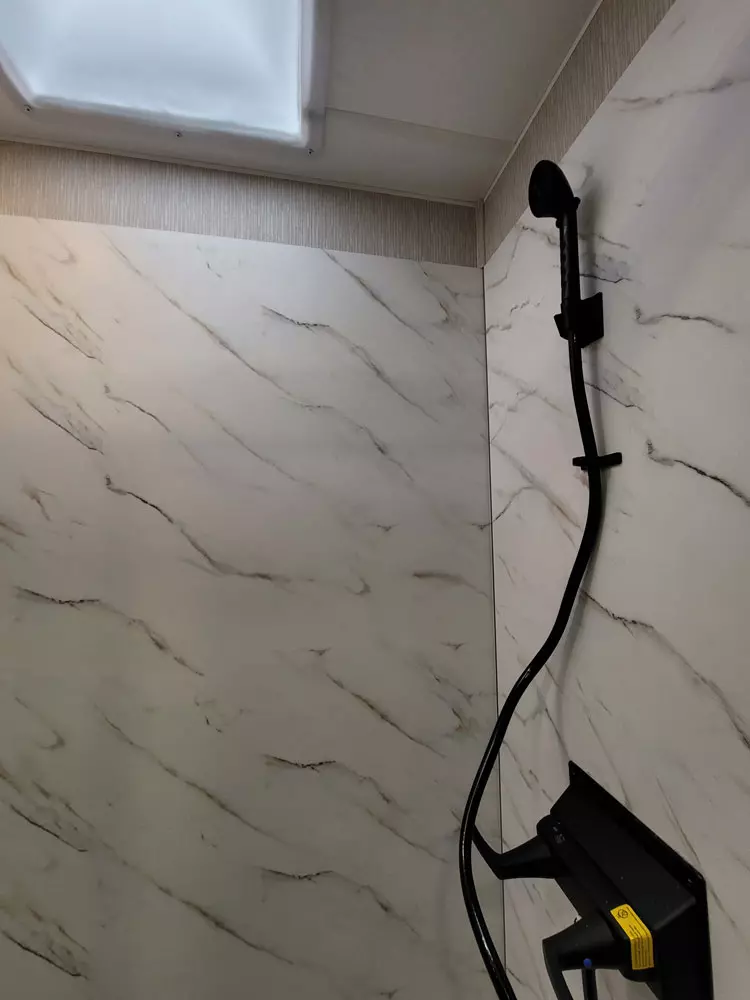

  • Skylight Over Shower
  • Whole Coach Water Filter (Exc. CSA)

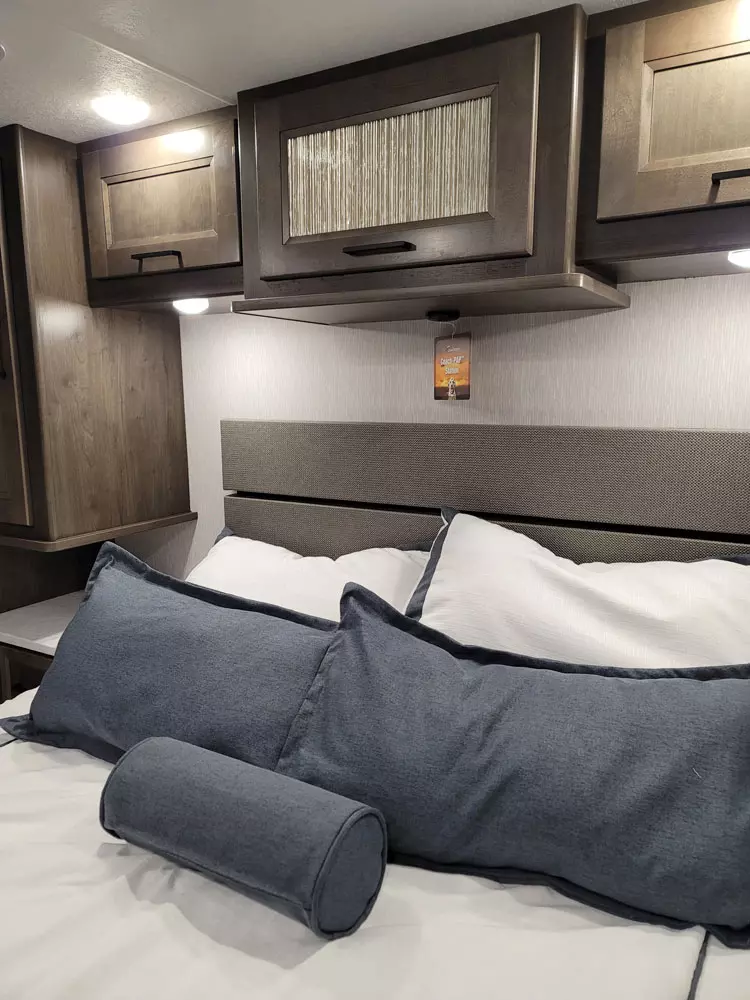

  • King Bed

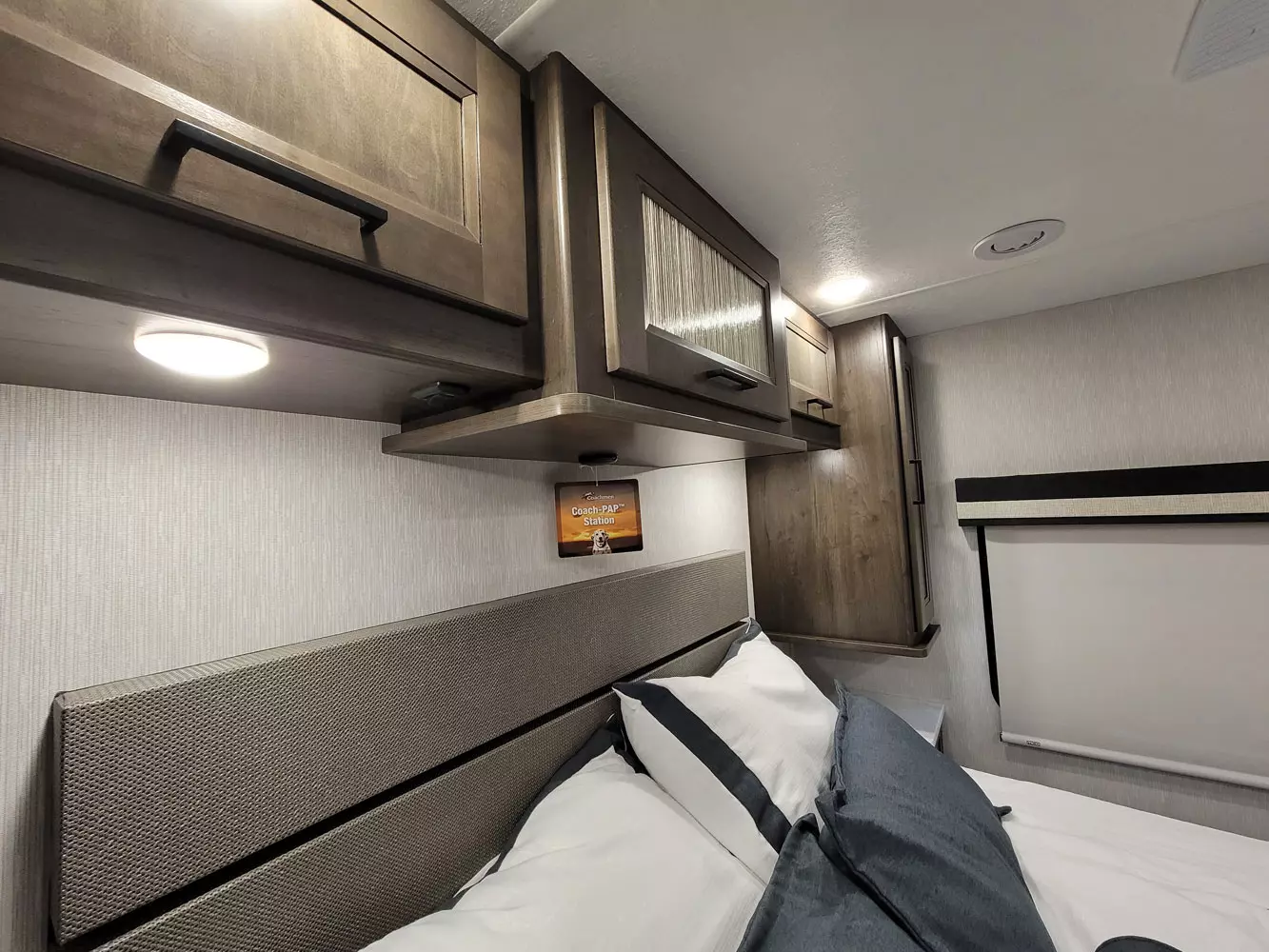

  • CPAP Cabinet
  • Designer Headboard
  • 32" LCD TV Bedroom
  • Drop-Down Front Bunk Bed
  • LED Interior Lighting
  • 30'-50-Amp Power Cord
  • 55-Amp, 110/12-Volt Power Converter
  • GFI Circuit
  • Outside Receptacle (DS)
  • Emergency Start Switch
  • Lighted Trunk Boxes
  • Exterior LED Strip Light
  • 30,000 BTU E.I. Furnace
  • Dual 15,000 BTU A/C with Heat Pump
  • Dual Coach Batteries
  • 5.5 KW Gas Generator
  • Coach Command Center
  • Automatic Transfer Switch
  • 1200W Inverter
  • Auto Generator Start
  • 100W Solar Panel with Controller (Aftermarket Upgradeable to 300W)
  • Ford F53 Chassis 7.3L V8
  • Tilt and Telescoping Steering Wheel
  • Cruise Control
  • Traction Control
  • Sunload Sensor with Auto Dimming Dash Lighting
  • Intermittent Wipers
  • Dash Air Conditioning
  • 19.5 Radial Tires (N/A 315KS)
  • Rear Mud Flaps Only

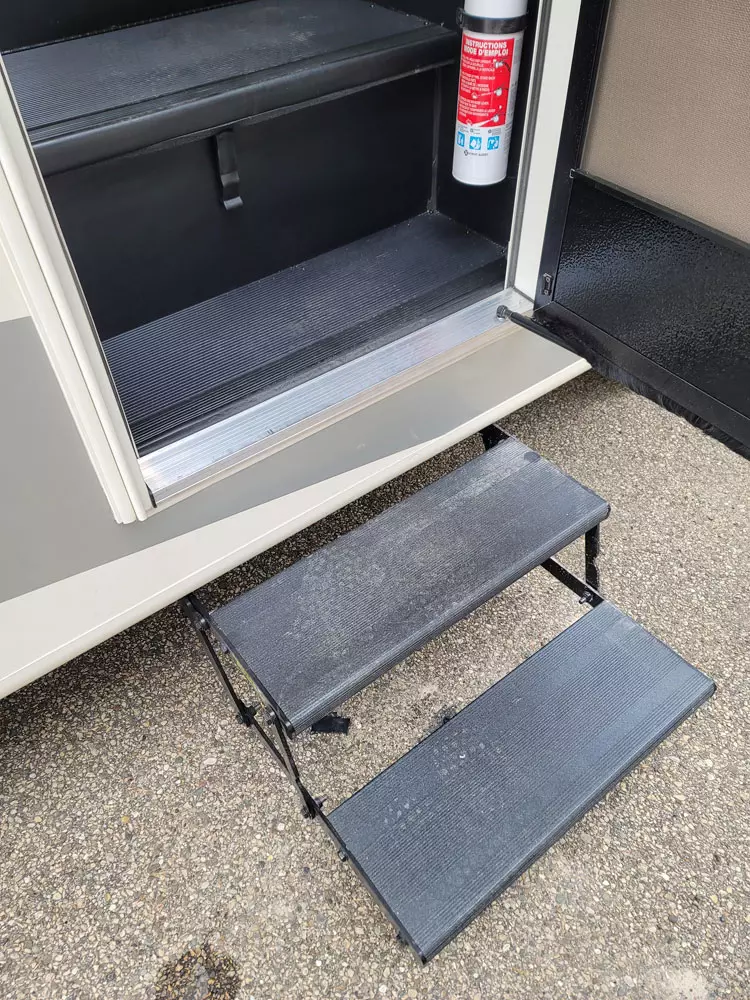

  • Power Entrance Step-Double
  • Full Basement with Pass Thru Storage
  • Radius Trunk Doors with Slam Latch
  • Fiberglass Front Cap and Rear Cap
  • Dead Bolt Lock-Entrance Door
  • 26" Radius Entry Door
  • Power Patio Awning
  • 5,000 Towing Hitch with 7-Way Plug (29FW)
  • High Definition Back Up and Side Cameras
  • Power Heated Mirrors
  • Automatic Leveling Jacks
  • Slide-Out Room Awning(s)
  • 20-Gallon LP Tank
  • Valve Stem Extenders
  • Exterior Kitchen (29FW, 32LS)
  • Computer Work Station at Passenger Seat

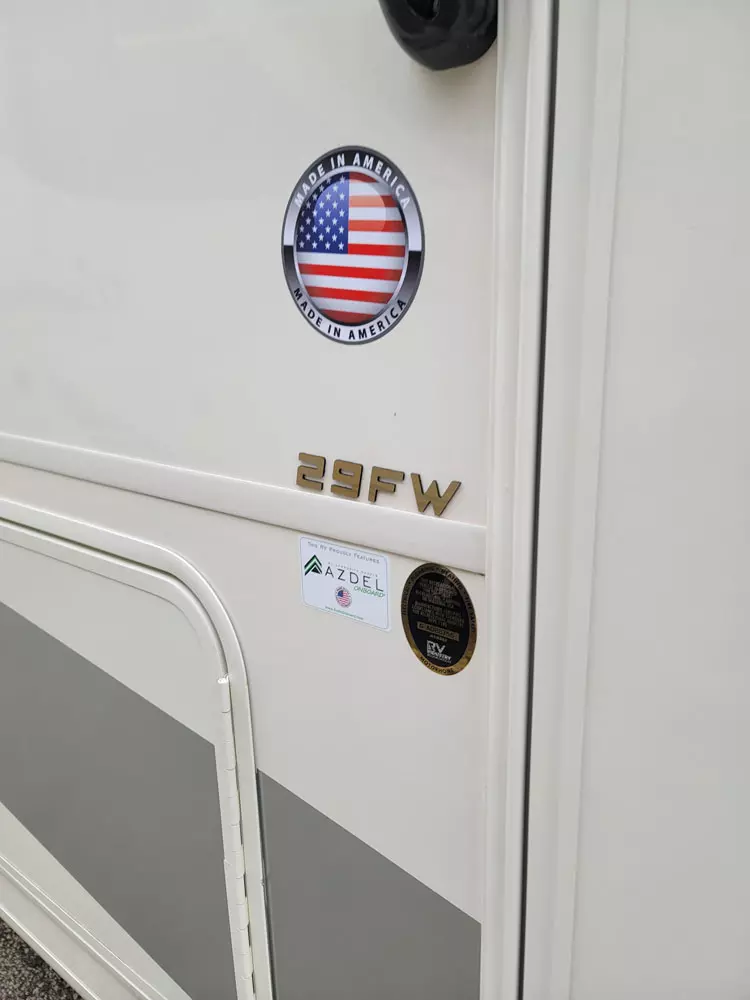

  • High Gloss “Oyster” Gelcoat Sidewalls (with Azdel™ Superlite Composite)
  • Crowned, Laminated Fiberglass Roof (with Azdel™ Superlite Composite)
  • Exterior Propane Hook-Up
  • Outside Entertainment Center with TV
  • Auxiliary Dash Fans
  • Auxiliary Driving Lights
  • Linen
  • Onyx
  • White Velvet
  • Chocolate Cherry
  • Partial Paint (Standard)
  • Full Body Paint - Glaucous (Optional)
  • Full Body Paint - Graphite (Optional)
  • Full Body Paint - Scarlet (Optional)
  • Power Driver Seat
  • Manual Theater Seating (29FW)
  • Diamond Shield Paint Protection - (Required with Full Paint)
  • CSA Up-Fit
  • CD-MVSA (Canadian Motor Vehicle Safety Act) (Mandatory for All Canadian Provinces)
