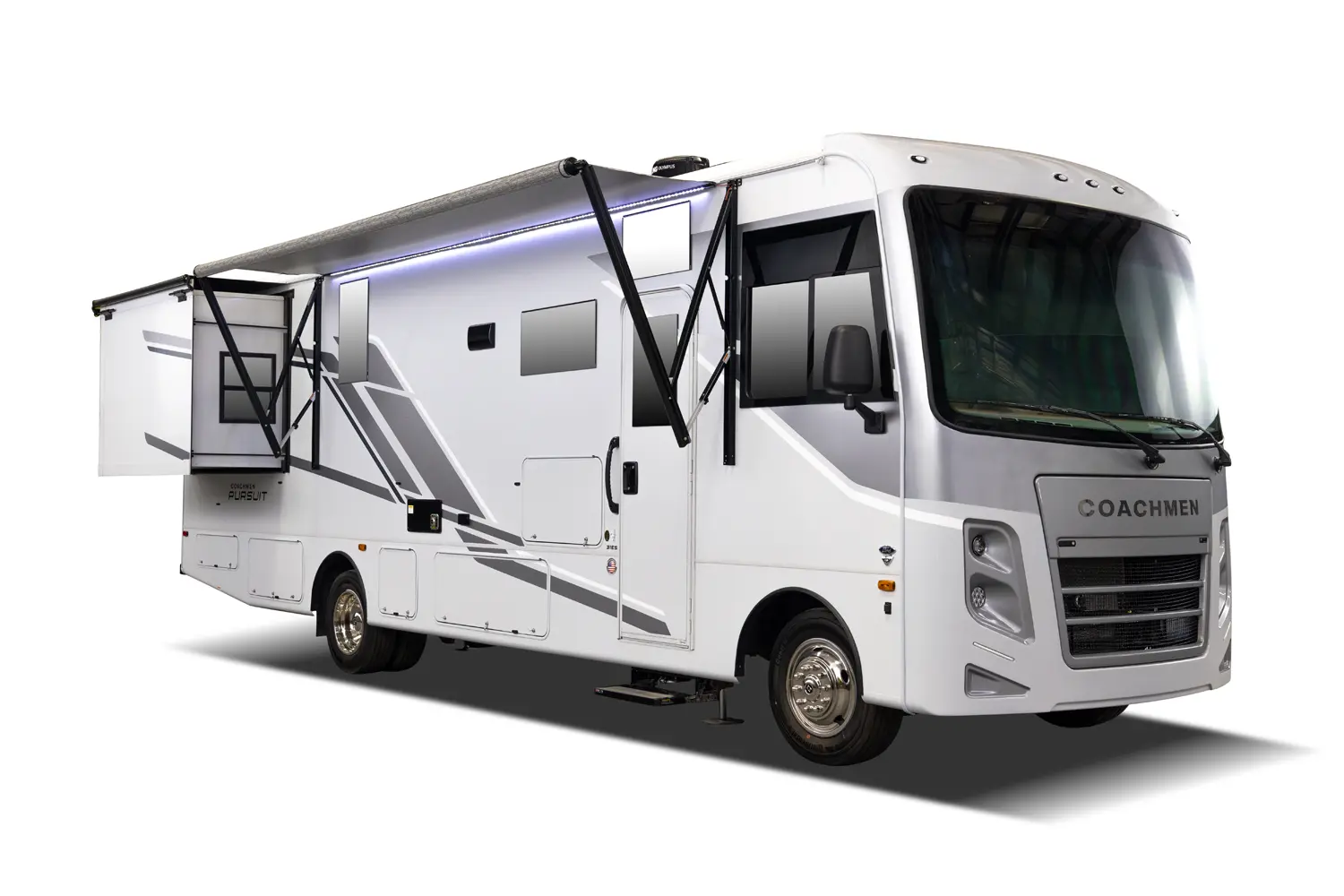

Pursuit Class A Motorhomes

Setting out to see the world doesn’t mean you have to leave tranquility behind. Instead, we think there’s plenty of room to bring along all your favorite domestic comforts. And thanks to the Pursuit’s new standard upgrades and additional features, there’s more now than ever to make you feel right at home.


Azdel Onboard™, RV Composite PanelsLink opens in a new tab/window Care Camps, fighting cancer and making memoriesLink opens in a new tab/window

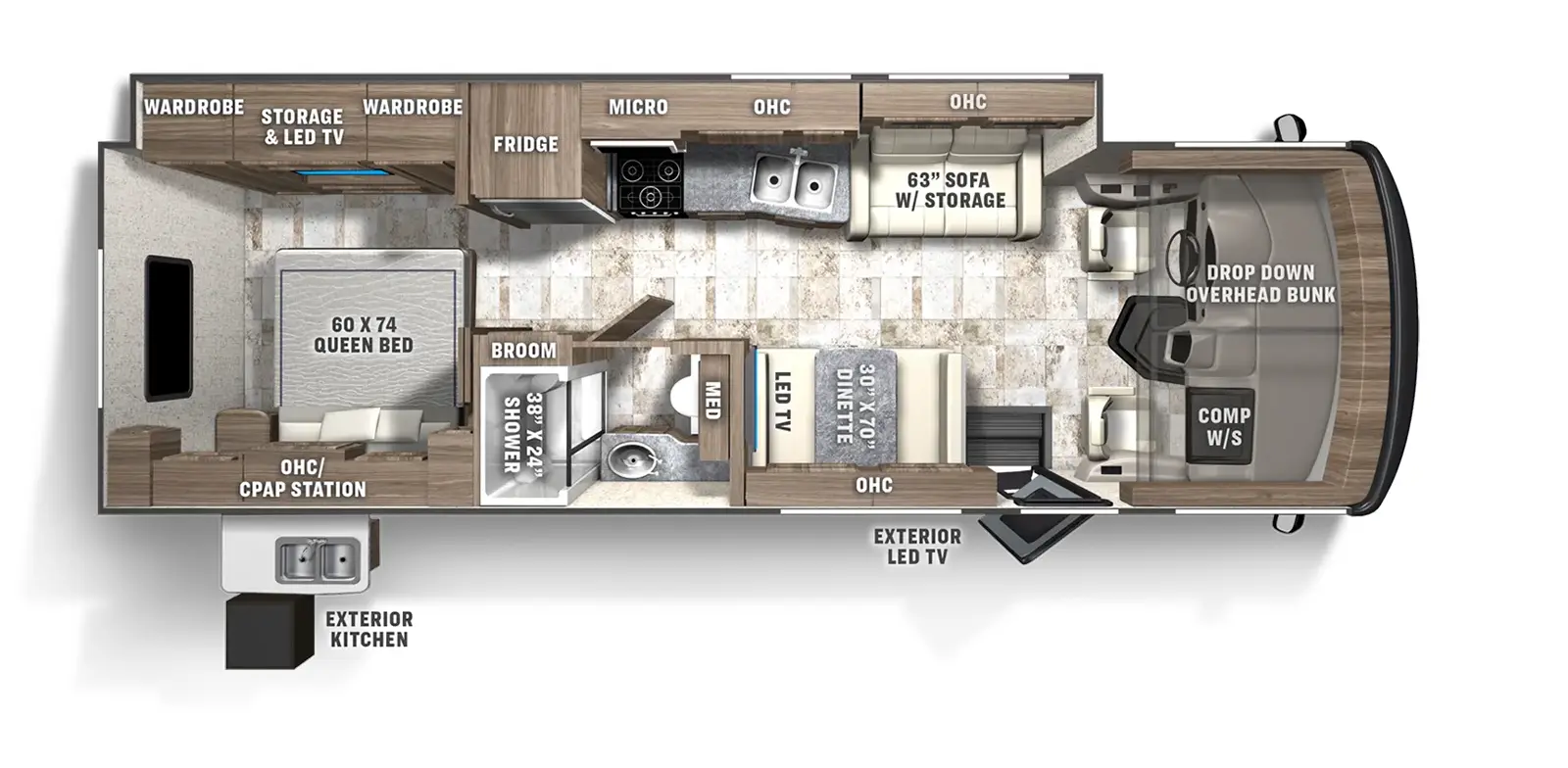

Floorplans

Print

Pursuit


Specifications

Print

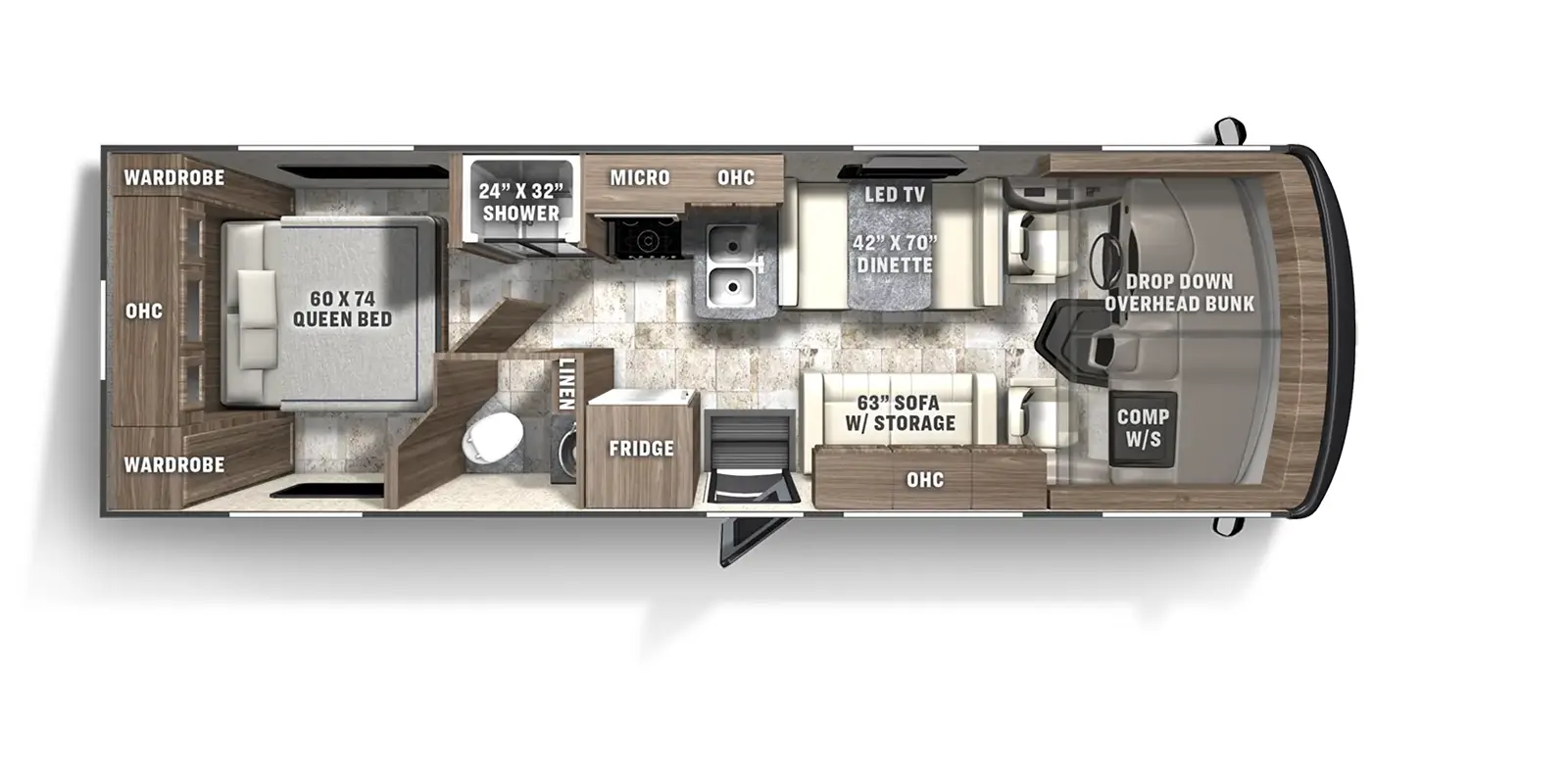

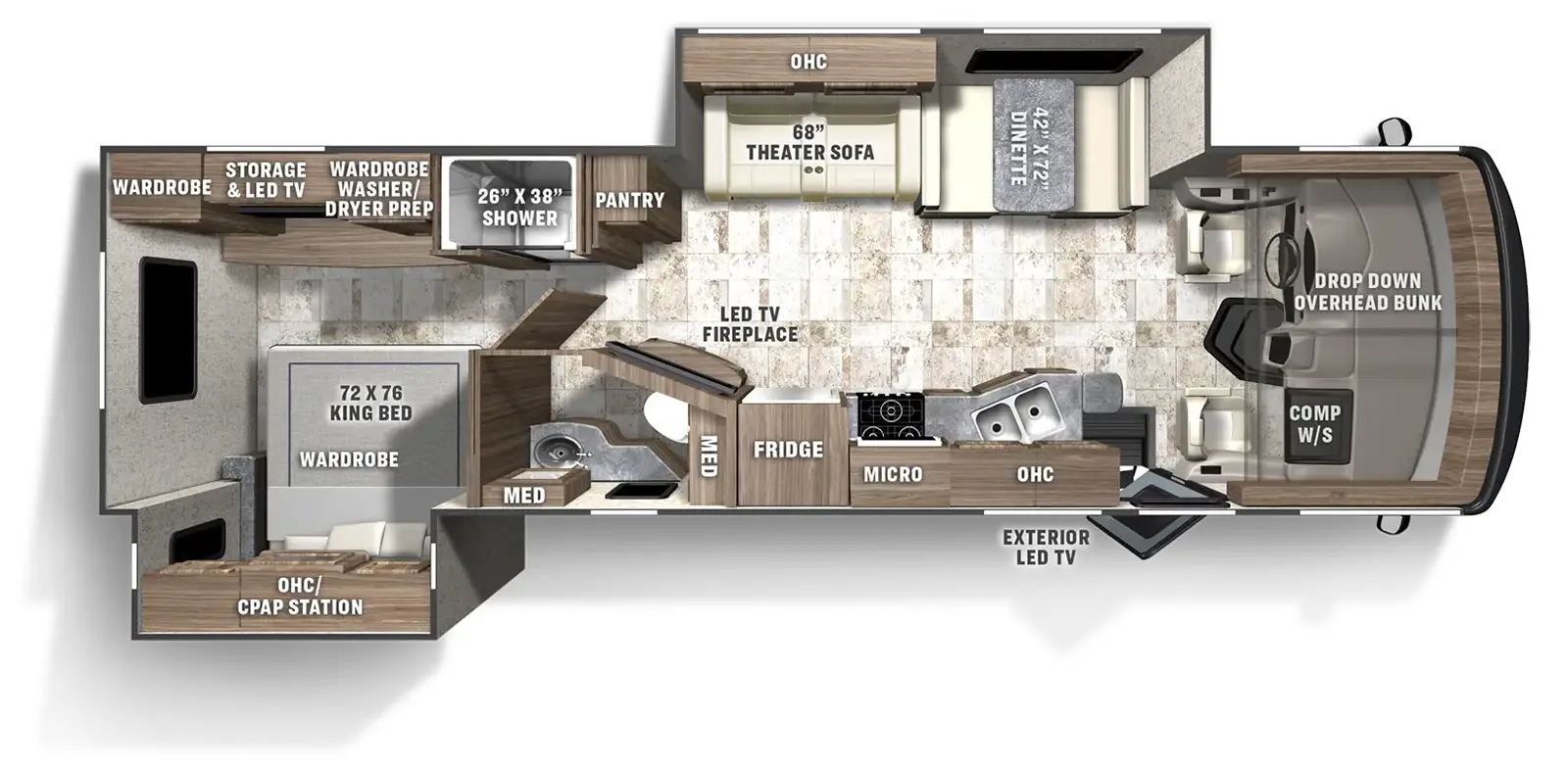

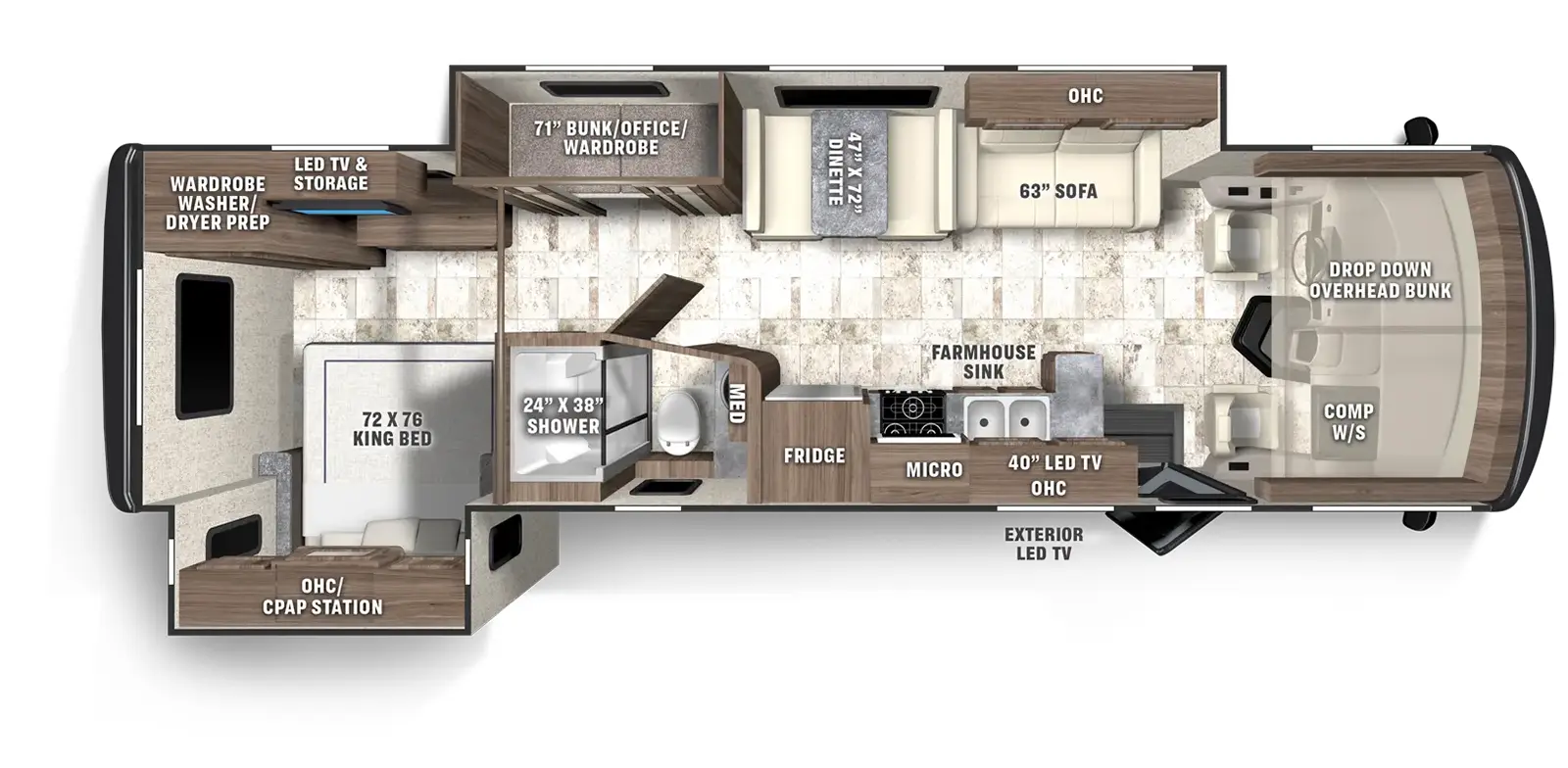

Floorplan: 27XPS : Pursuit 29SS : Pursuit 29XPS : Pursuit 31BH : Pursuit 31TS : Pursuit
Wheelbase:178"190"190"190"208"
GVWR:16,000 lb.18,000 lb.16,000 lb.18,000 lb.18,000 lb.
GCWR:23,000 lb.23,000 lb.23,000 lb.23,000 lb.23,000 lb.
GAWR Front:6,500 lb.7,000 lb.6,500 lb.7,000 lb.7,000 lb.
GAWR Rear:11,000 lb.12,000 lb.11,000 lb.12,000 lb.12,000 lb.
Fuel Capacity:80 gal.80 gal.80 gal.80 gal.80 gal.
Exterior Length:29' 0"30' 3"31' 0"31' 9"33' 0"
Exterior Height:12' 0"12' 0"12' 0"12' 0"12' 0"
Exterior Width:102"102"102"102"102"
Fresh Water:50.00 gal.50.00 gal.50.00 gal.50.00 gal.50.00 gal.
Gray Water:31.00 gal.35.00 gal.31.00 gal.38.00 gal.38.00 gal.
Black Water:31.00 gal.35.00 gal.31.00 gal.38.00 gal.38.00 gal.
Awning Size:16'20'16'20'17'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) - Is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) - is the maximum permissible weight, including cargo, fl uids, optional equipment and accessories that can be safely supported by each axle.

UVW (Unloaded Vehicle Weight)* - is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s), including full fuel, all fl uids and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, passengers, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before fi lling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Coachmen RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Coachmen RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Features & Options

Print

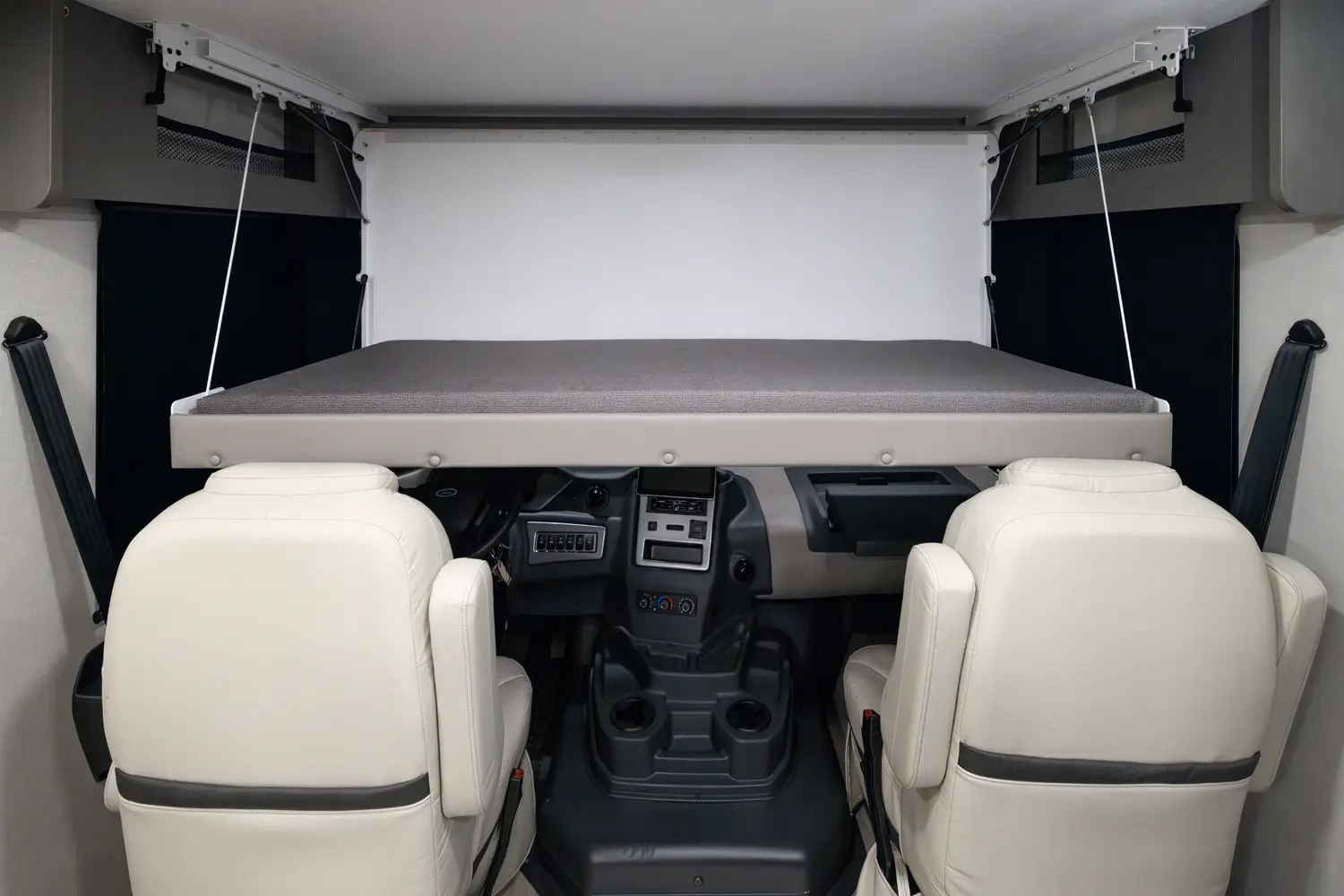

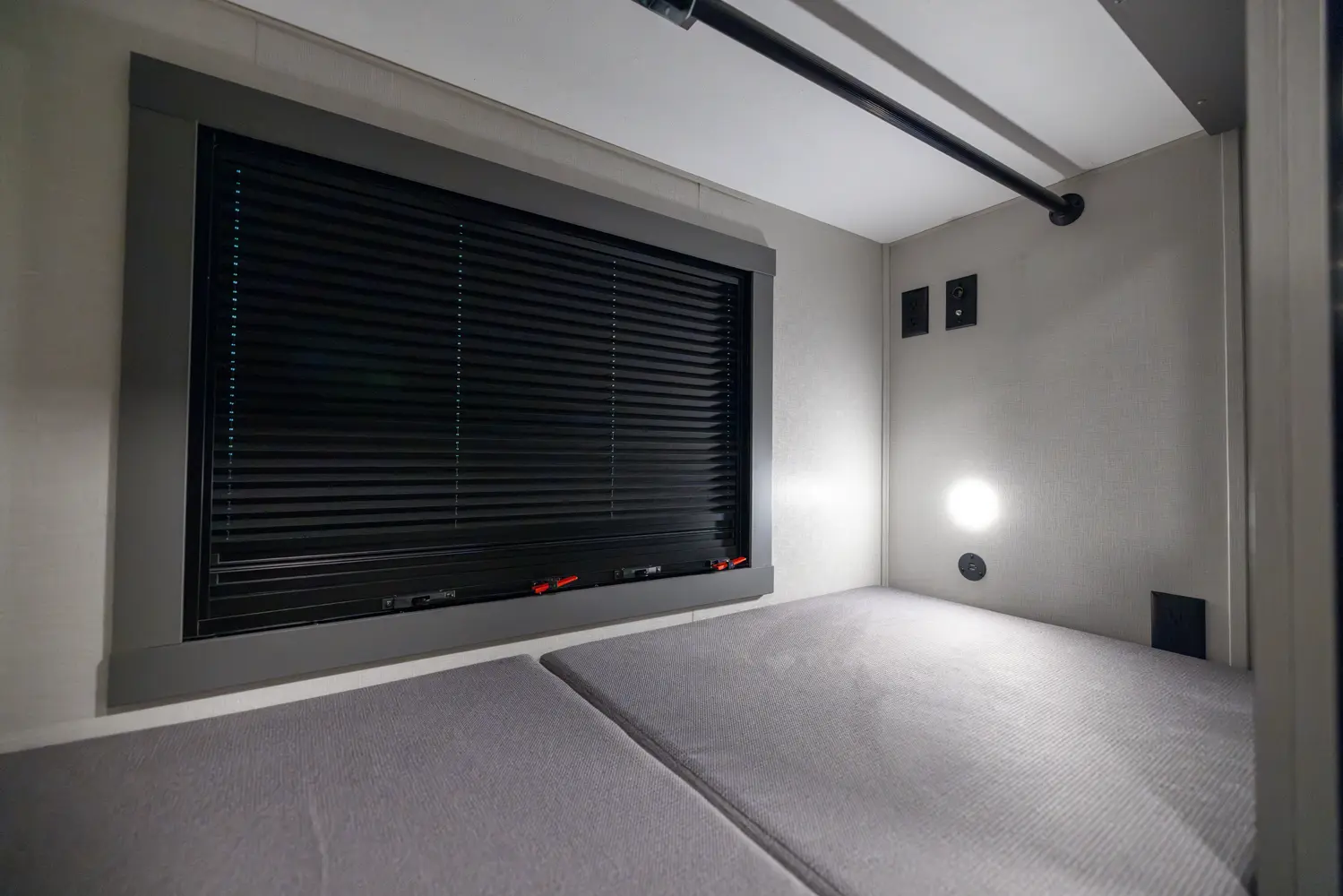

  • Manual Drop-Down Front Bunk
  • Self-Closing Ball Bearing Drawer Guides Throughout
  • Premium Linoleum Throughout
  • Radius Slider Windows with Safety Glass
  • Reclining/Swivel Pilot Seats

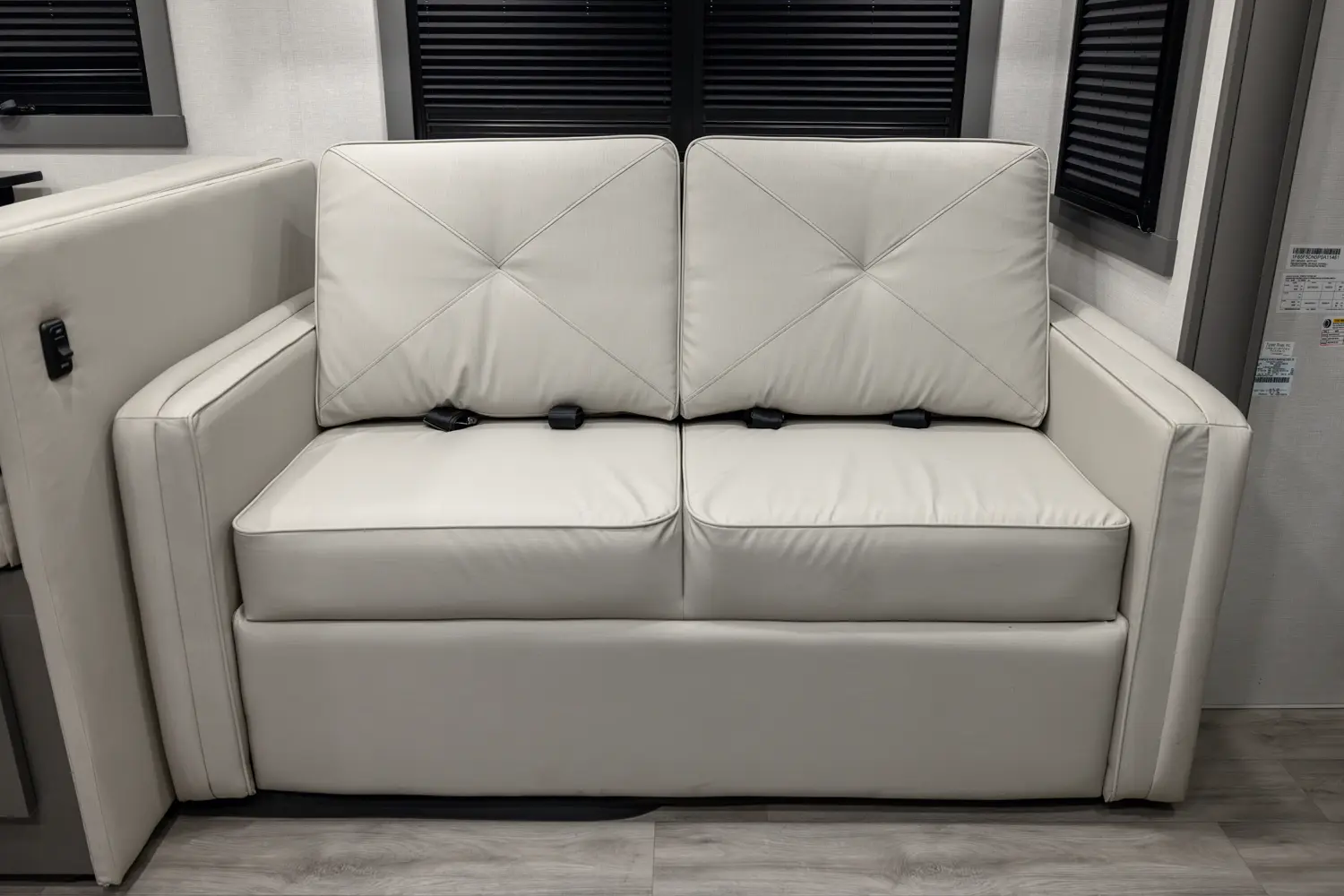

  • Sofa (27XPS, 29XPS, 29SS, 31BH, 31ES)
  • Theater Seating (31TS)
  • Privacy Pleated Shades Coach

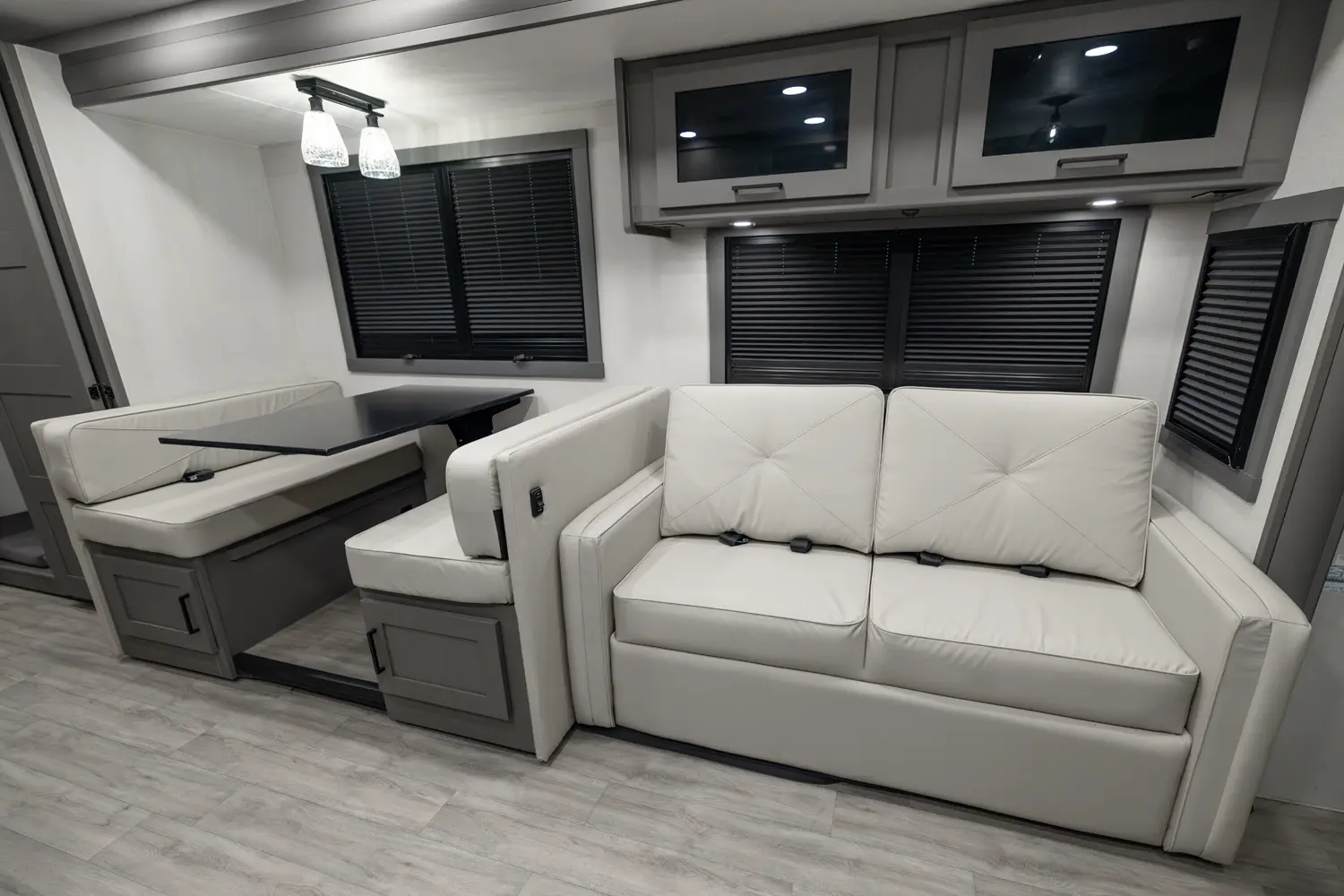

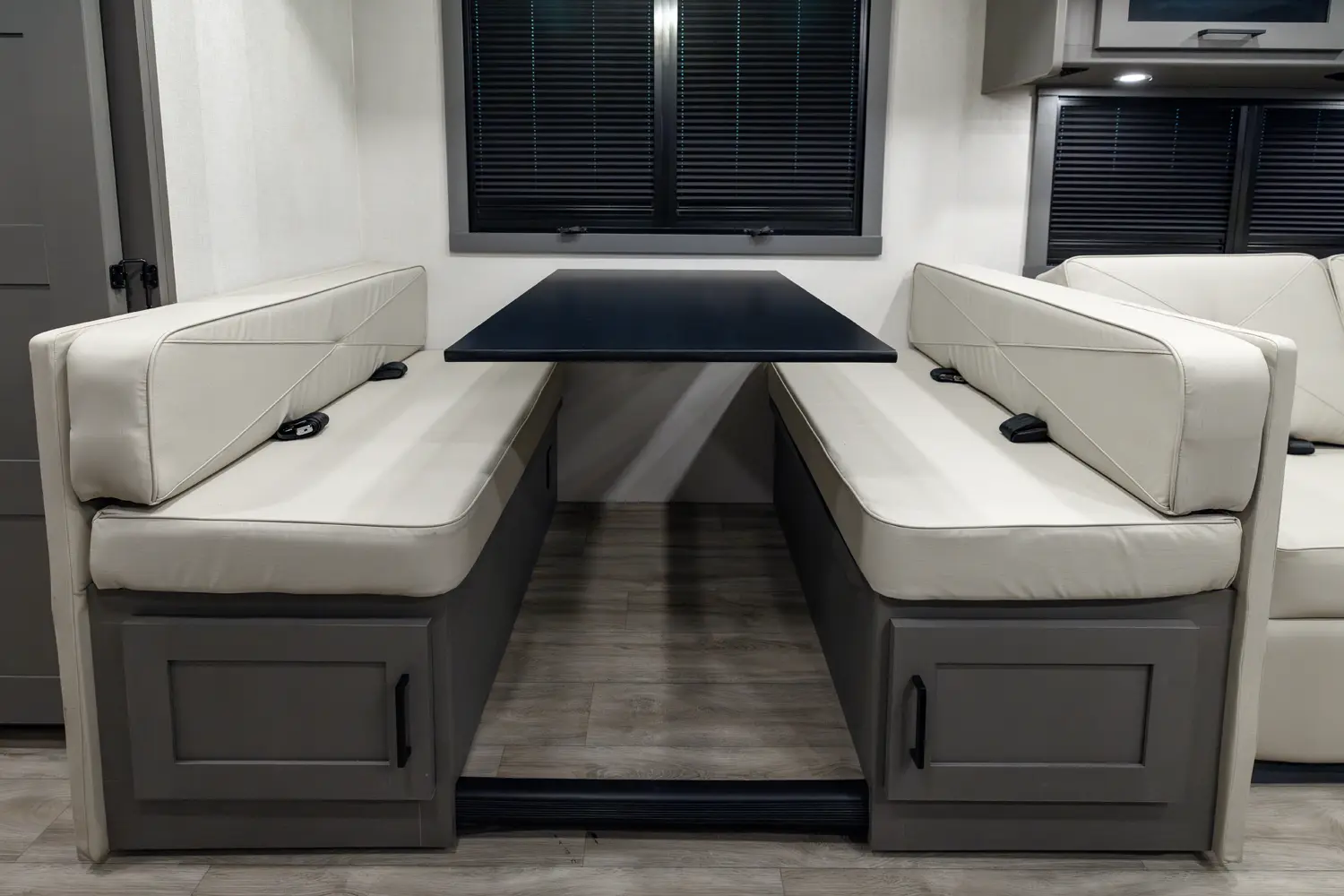

  • Dream Booth Dinette
  • Easy Clean Cockpit floor

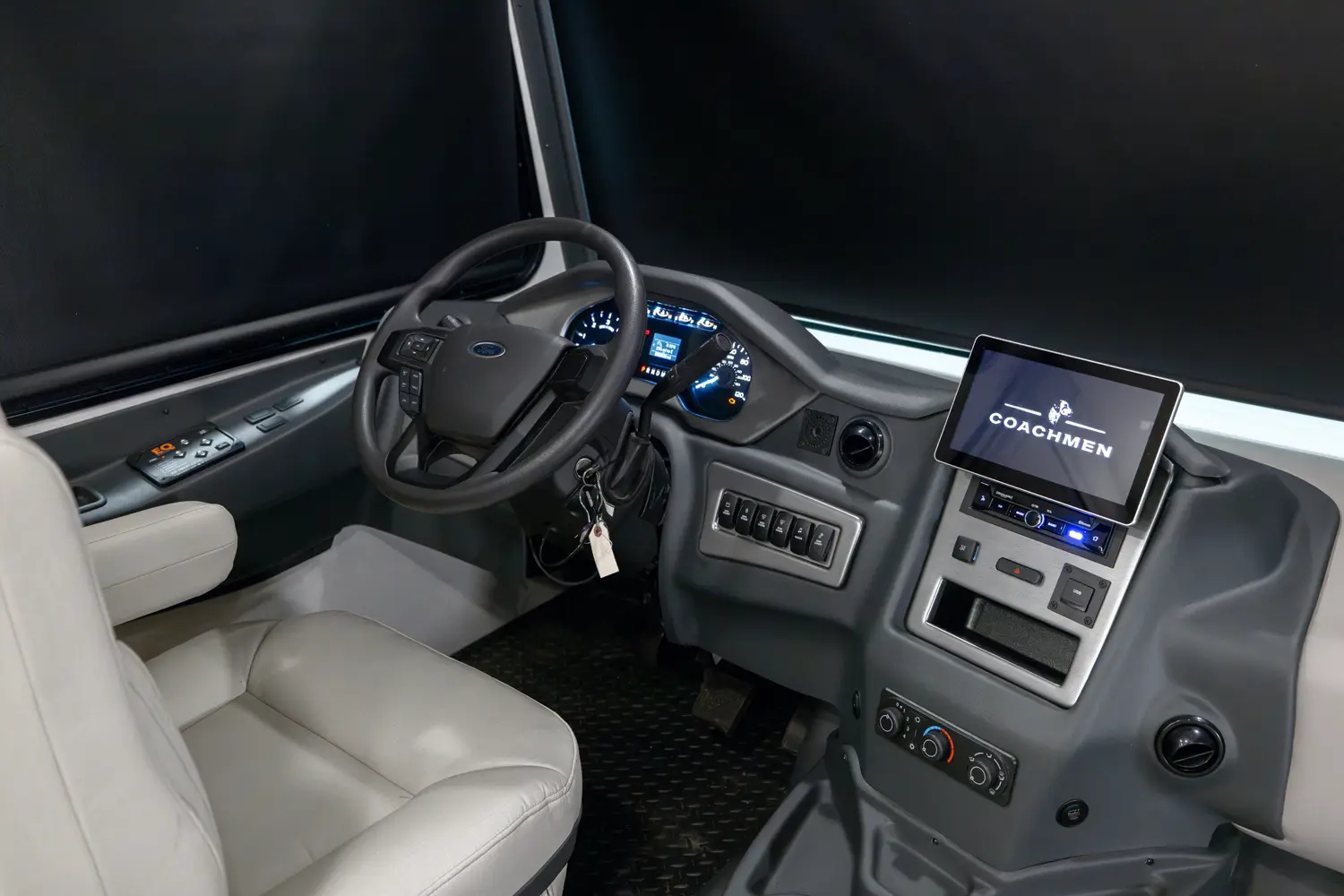

  • 10" Touch Screen Radio AM/FM Radio with Bluetooth Apple CarPlay and Android Auto Link Enabled
  • LP Leak Alarm and Smoke Detector
  • Carbon Monoxide Detector
  • Fire Extinguisher
  • King Jack TV and Radio Antenna
  • LED TV Coach
  • Pre-Wired for Satellite Dish
  • Charging Station for Electronic Devices
  • Stainless Steel Range Hood with Light

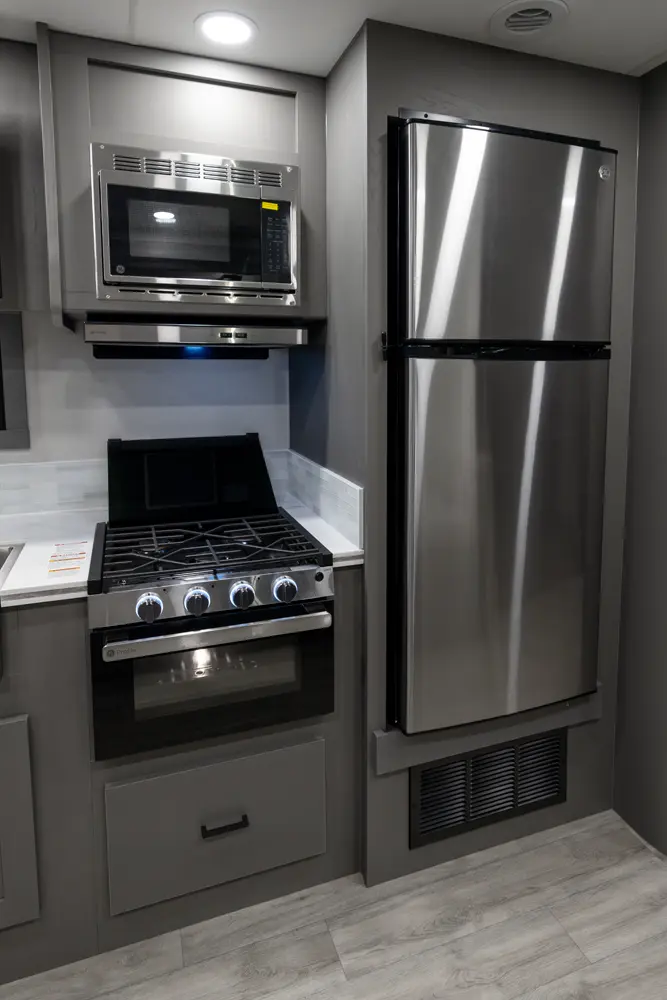

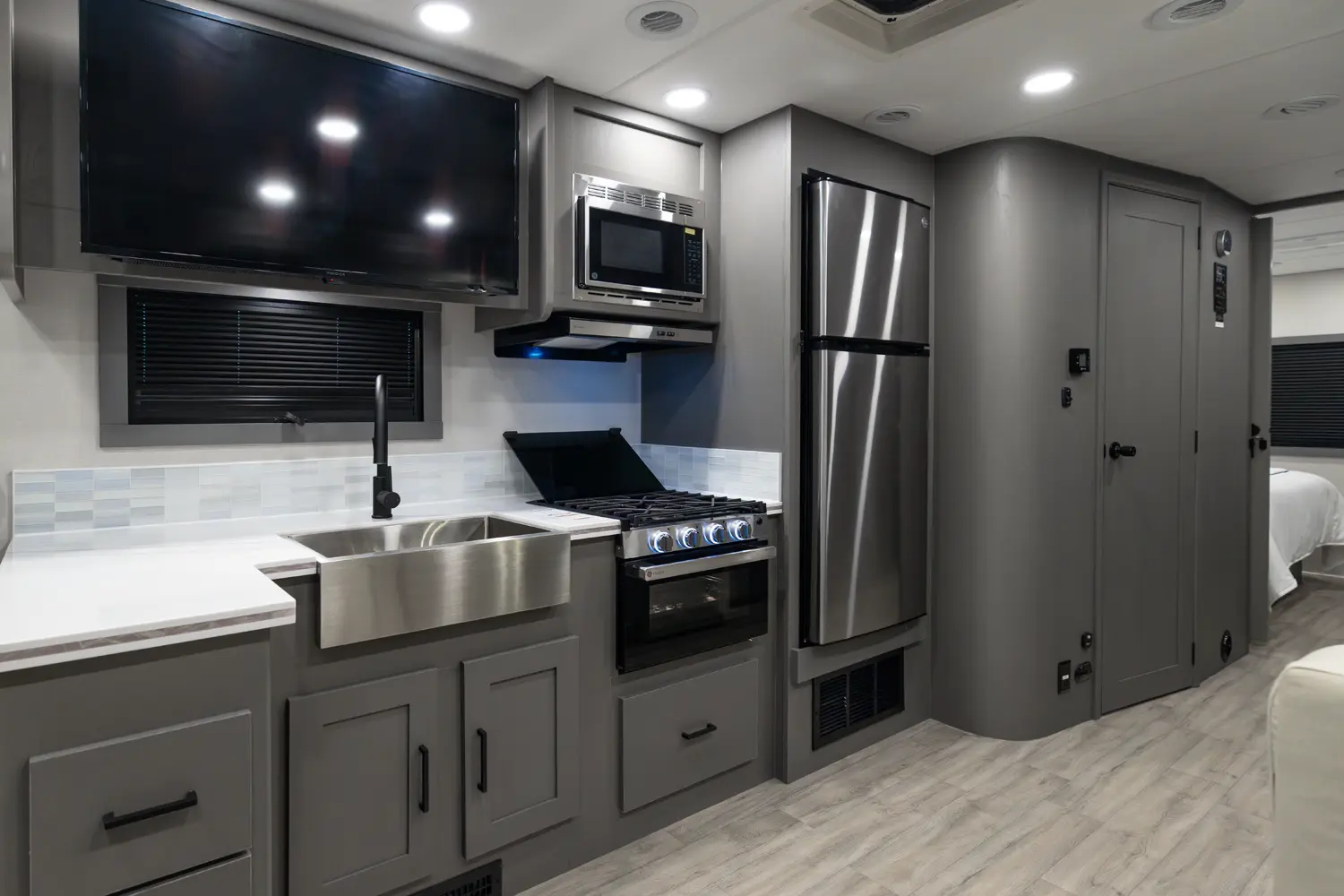

  • Stainless Steel Double Door Refrigerator 12V 10 Cu. Ft.
  • High Rise Kitchen Faucet

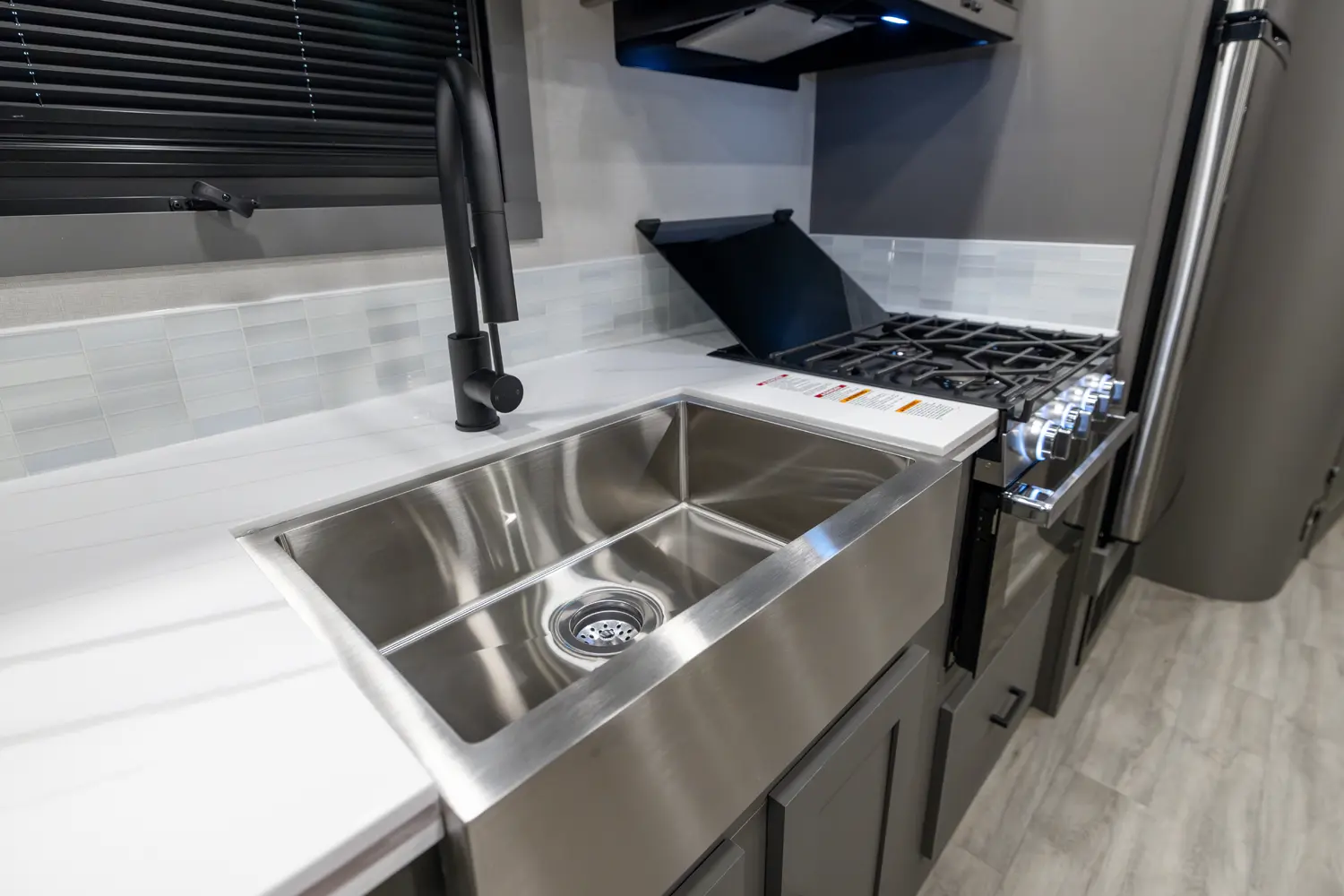

  • Stainless Steel Sink

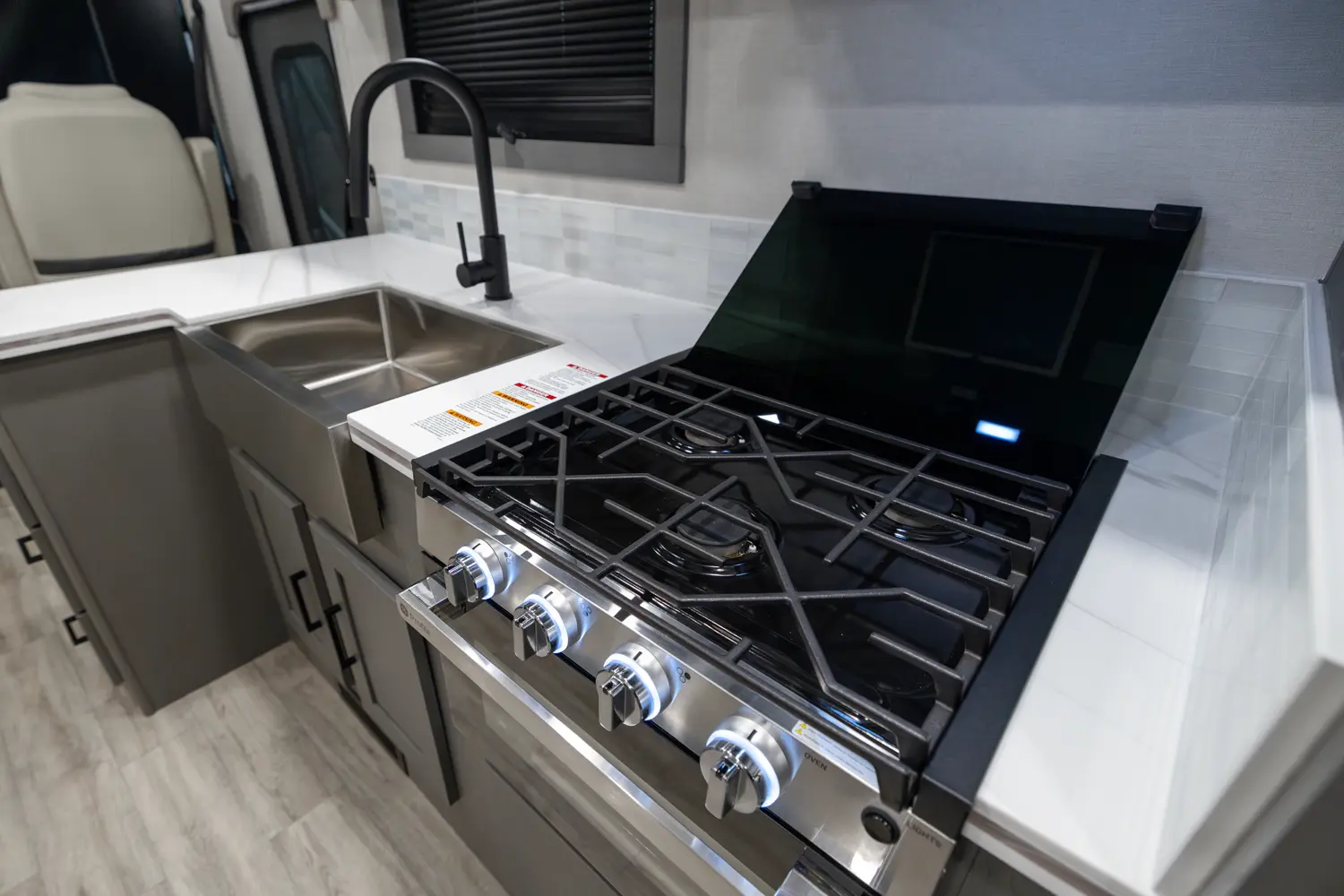

  • Stainless Steel 3-Burner Range with Glass Cover
  • Stainless Steel Microwave Oven
  • Solid Surface Kitchen Counter Top

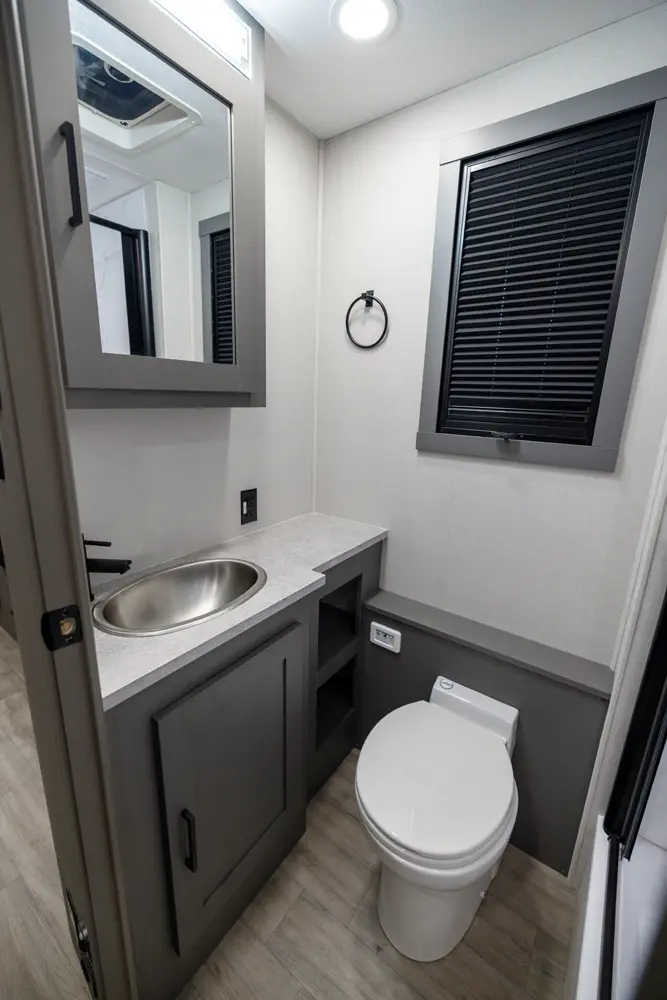

  • Porcelain Toilet with Foot Flush

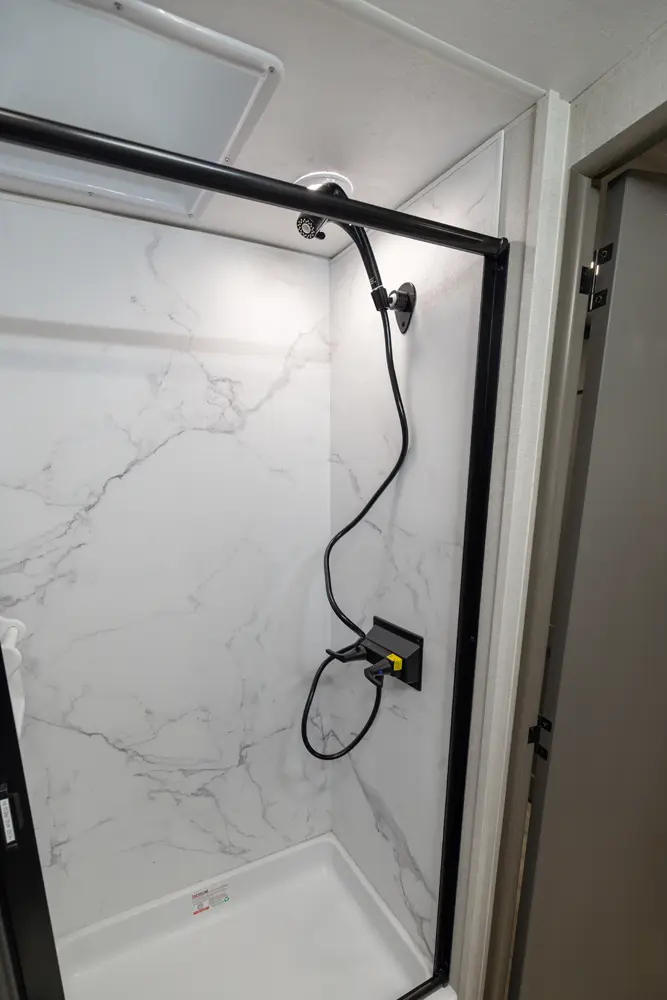

  • One Piece ABS Shower Surround
  • Retractable Shower Door
  • Power Bath Vent
  • 6-Gallon Gas/Electric D.S.I. Water Heater
  • Demand Water Pump
  • Skylight Over Shower
  • Stainless Lavatory Sink
  • Black Tank Flush
  • Bedroom TV (N/A 27XPS, 29XPS)
  • CPAP Cabinet
  • Power Outlets Both Sides of Bed
  • 50-Amp Power Cord (29SS, 31TS, 31BH, 31ES)
  • 30-Amp Power Cord (27XPS, 29XPS)
  • 100W Solar Panel with Controller
  • Automatic Transfer Switch
  • 55-Amp Converter with Distribution Panel
  • GFI Circuit
  • Outside Receptacle
  • Emergency Start Switch
  • 30,000 BTU E.I. Furnace
  • Dual 15,000 BTU A/C with Heat Pump (29SS, 31TS, 31BH, 31ES)
  • Single 15,000 BTU A/C with Heat Pump (27XPS, 29XPS)
  • Coach Command Center
  • LED Interior Lights
  • 5.5 kW Gas Generator (29SS, 31TS, 31BH, 31ES)
  • 4.0 kW Gas Generator (27XPS, 29XPS)
  • Ford F53 7.3L V8 Chassis
  • Tilt and Telescoping Steering Wheel
  • Cruise Control
  • Traction Control
  • Sunload Sensor with Auto Dimming Dash Lighting
  • Intermittent Wipers
  • Dash Air Conditioning

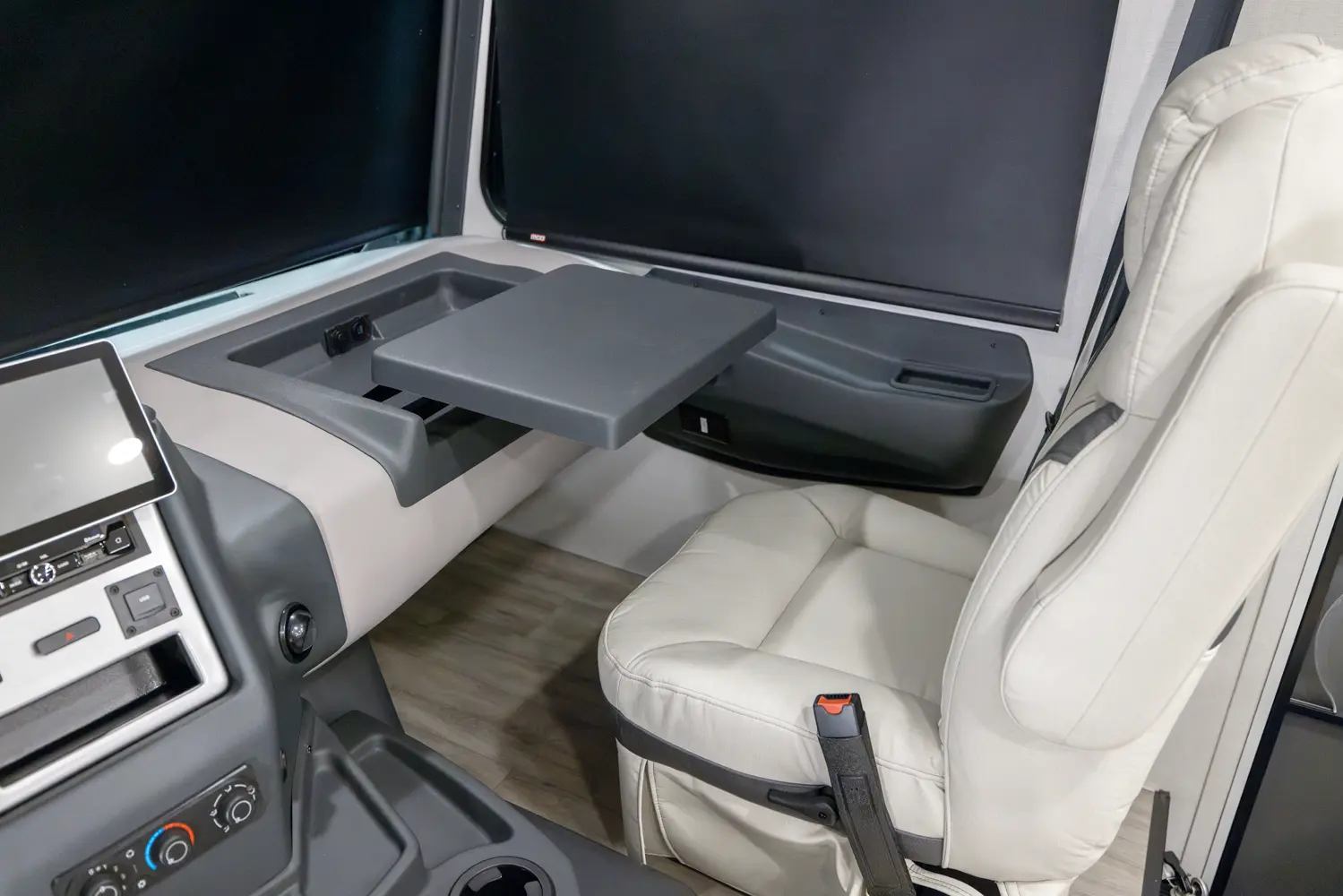

  • Computer Work Station with USB, 12V, 120V
  • Automatic Leveling Jacks (29SS, 31TS, 31BH, 31ES)
  • Back Up Monitor with Side View Cameras (29SS, 31TS, 31BH, 31ES)
  • Back Up Monitor (27XPS, 29XPS)
  • Radial Tires
  • Rear Mud Flaps Only
  • Power Entrance Step-Single
  • Crowned, Laminated TPO Roof
  • Radius Trunk Doors
  • Fiberglass Front Cap
  • High Gloss Dove Grey Sidewalls (with Azdel™ Superlite Composite)
  • Dead Bolt Lock-Entrance Door
  • 26" Radius Entry Door
  • Power Patio Awning
  • 8,000 Towing Hitch with 7-Way Plug (27XPS, 29XPS)
  • 5,000 Towing Hitch with 7-Way Plug (29SS, 31BH, 31TS, 31ES)
  • Power Heated Mirrors
  • Rear Bumper
  • Stainless Steel Wheel Liners
  • Slide-out room awning(s) (Where Applicable)
  • 20-Gallon LP Tank
  • Valve Stem Extenders
  • Outside Entertainment Center with TV (29SS, 31TS, 31BH, 31ES)
  • Exterior Propane Hook-Up
  • Linen
  • Onyx
  • White Velvet
  • Chocolate Cherry
  • Power Driver Seat (29SS, 31BH, 31TS, 31ES)
  • CSA Up-fit
  • CD-MVSA (Canadian Motor Vehicle Safety Act)(Mandatory for all Canadian Provinces)
  • Diamond Shield
