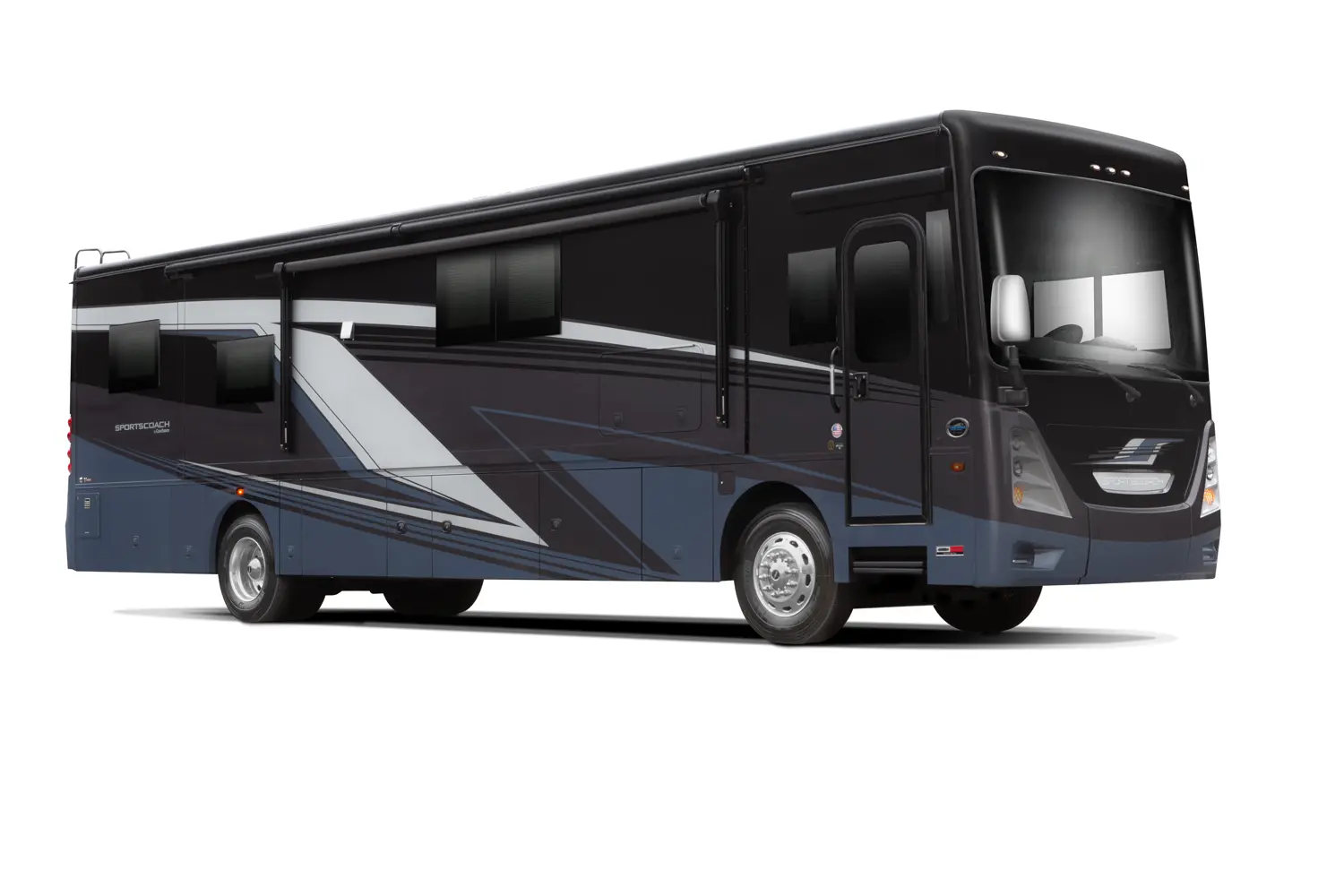

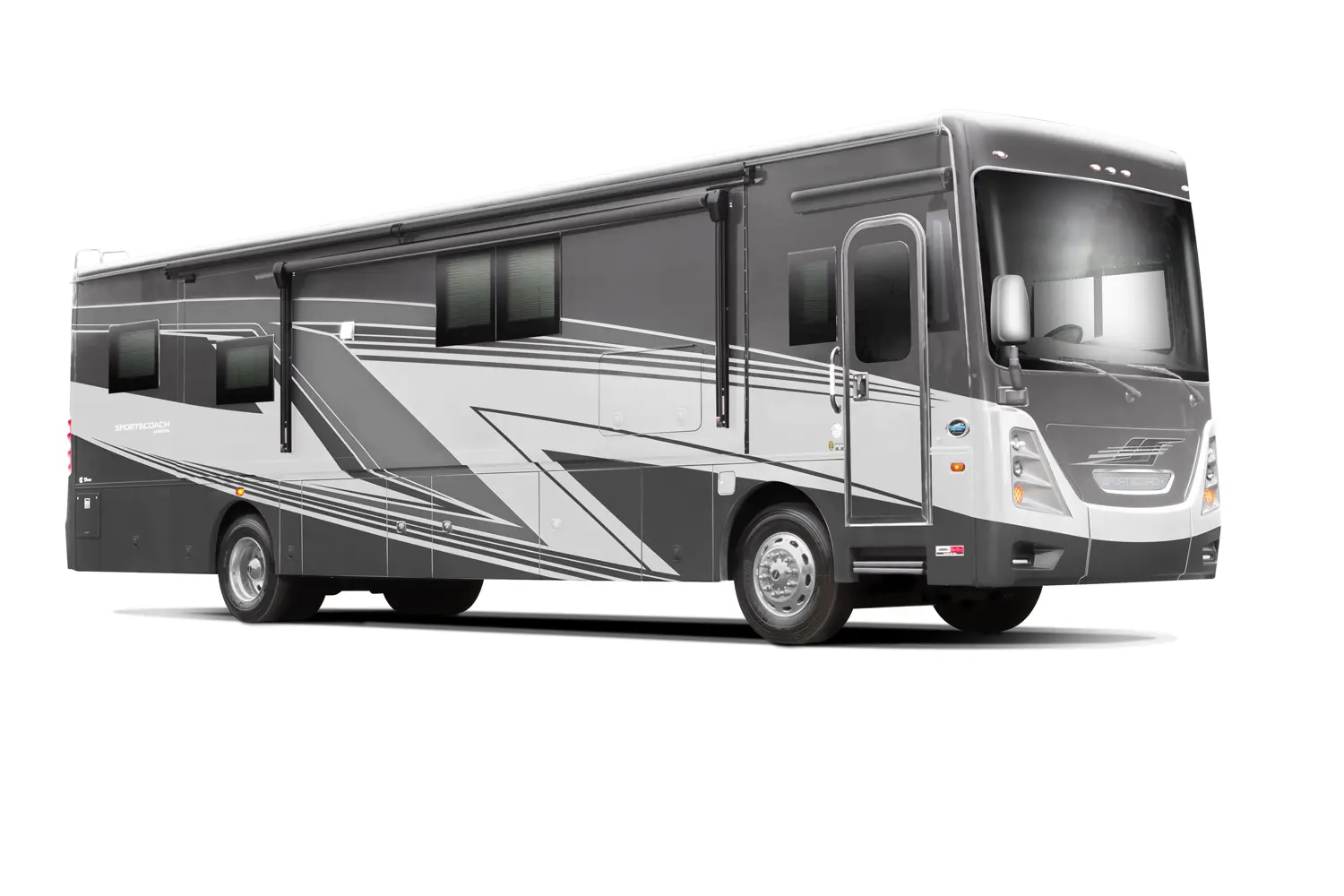

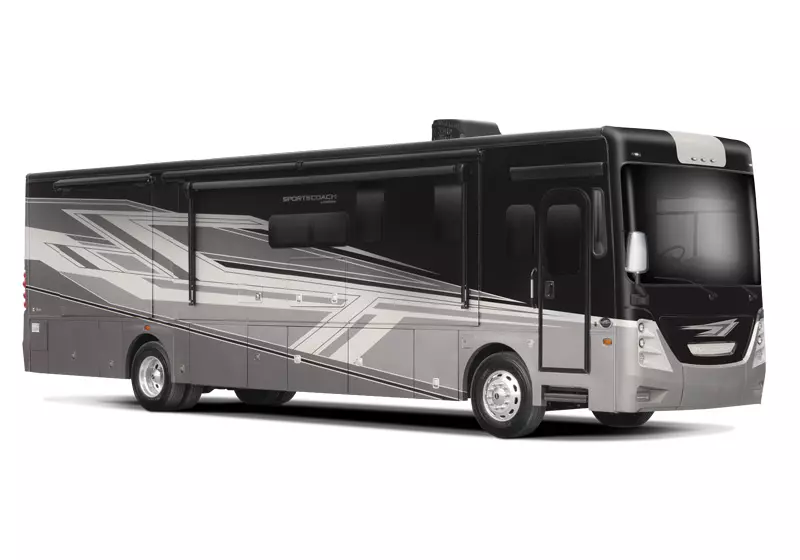

Sportscoach SRS Class A Motorhomes

The Sportscoach SRS Class A Motorhome gives you everything you’d want out of a diesel pusher. Smooth and powerful driving. Spacious floor plans. Tons of amenities. Attractive interior design. Top-quality fixtures and appliances. And if none of that gets your attention, just wait until you see the price.


RV Business 2021 Top RV Debut RV Business 2021 Top RV Debut Azdel Onboard™, RV Composite PanelsLink opens in a new tab/window Care Camps, fighting cancer and making memoriesLink opens in a new tab/window

Floorplans

Print

Class A Diesel


Specifications

Print

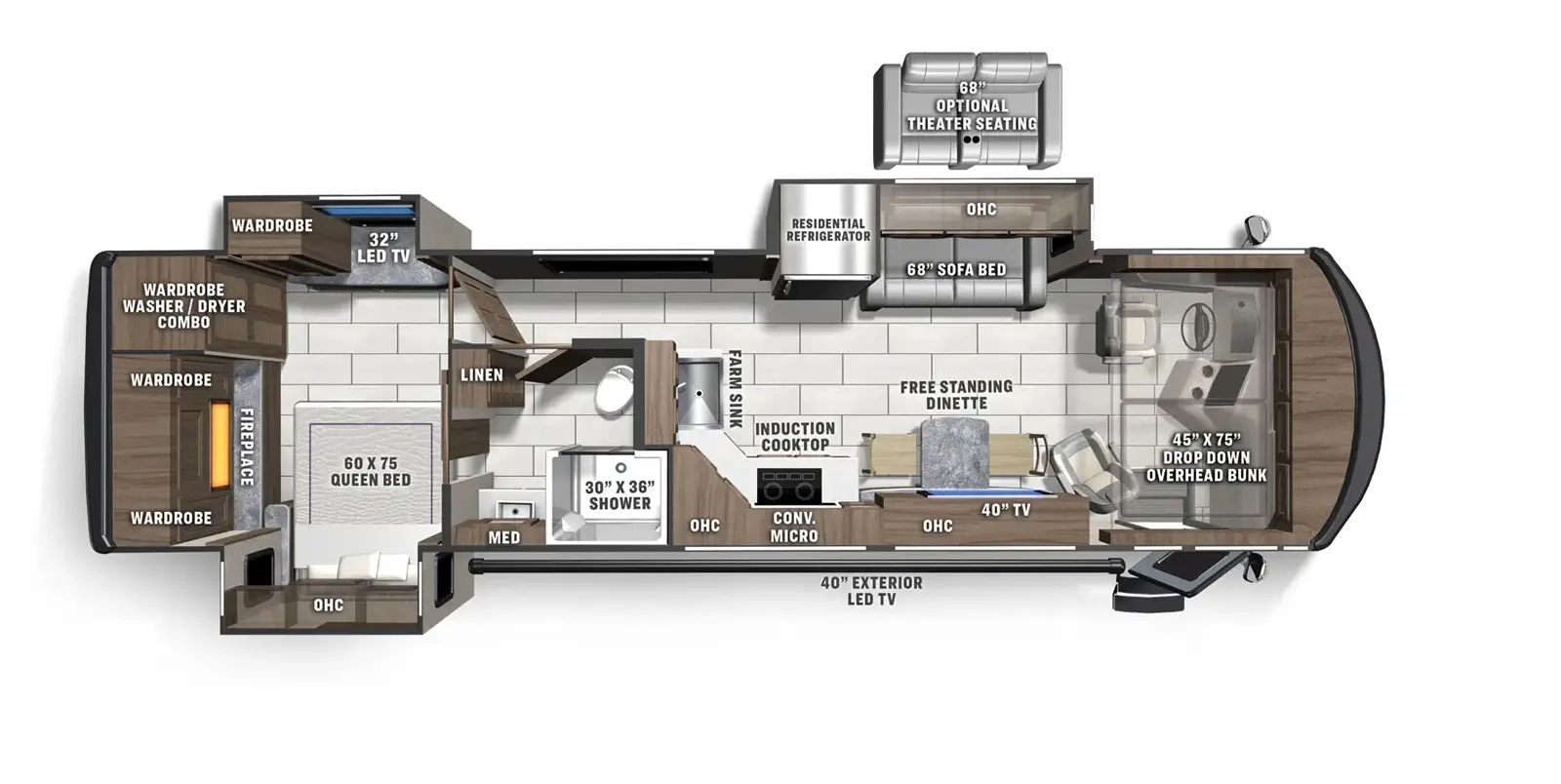

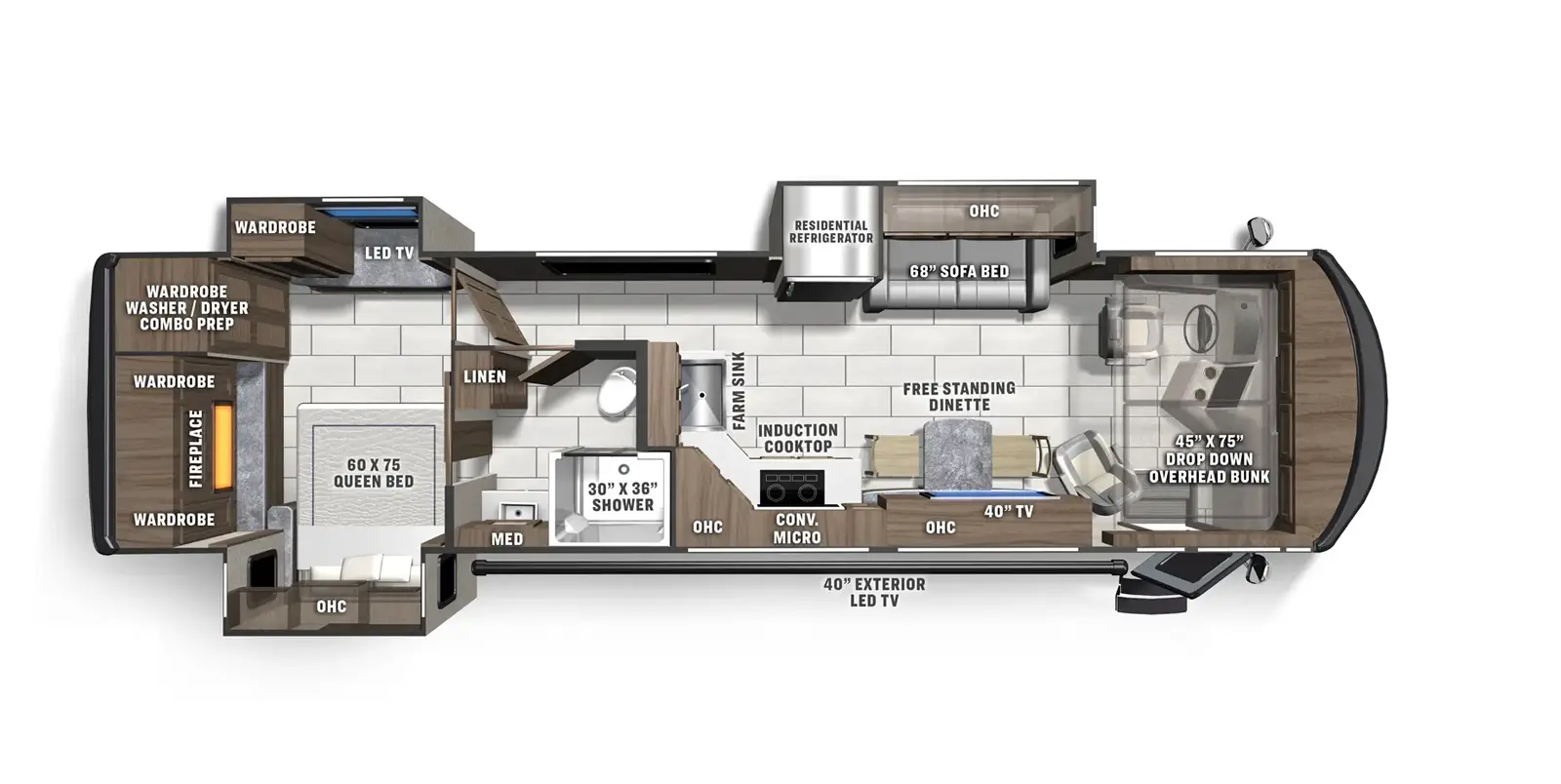

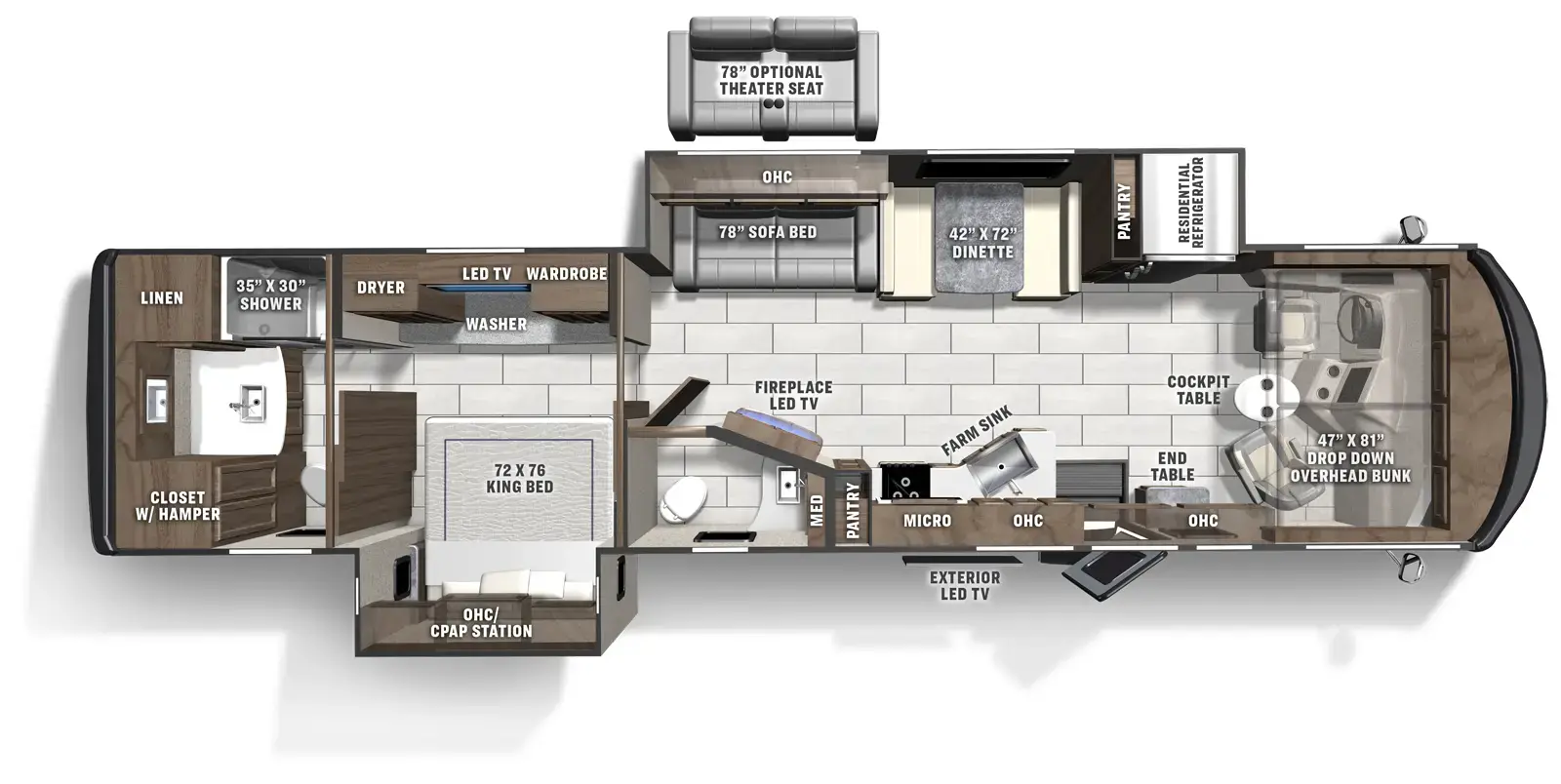

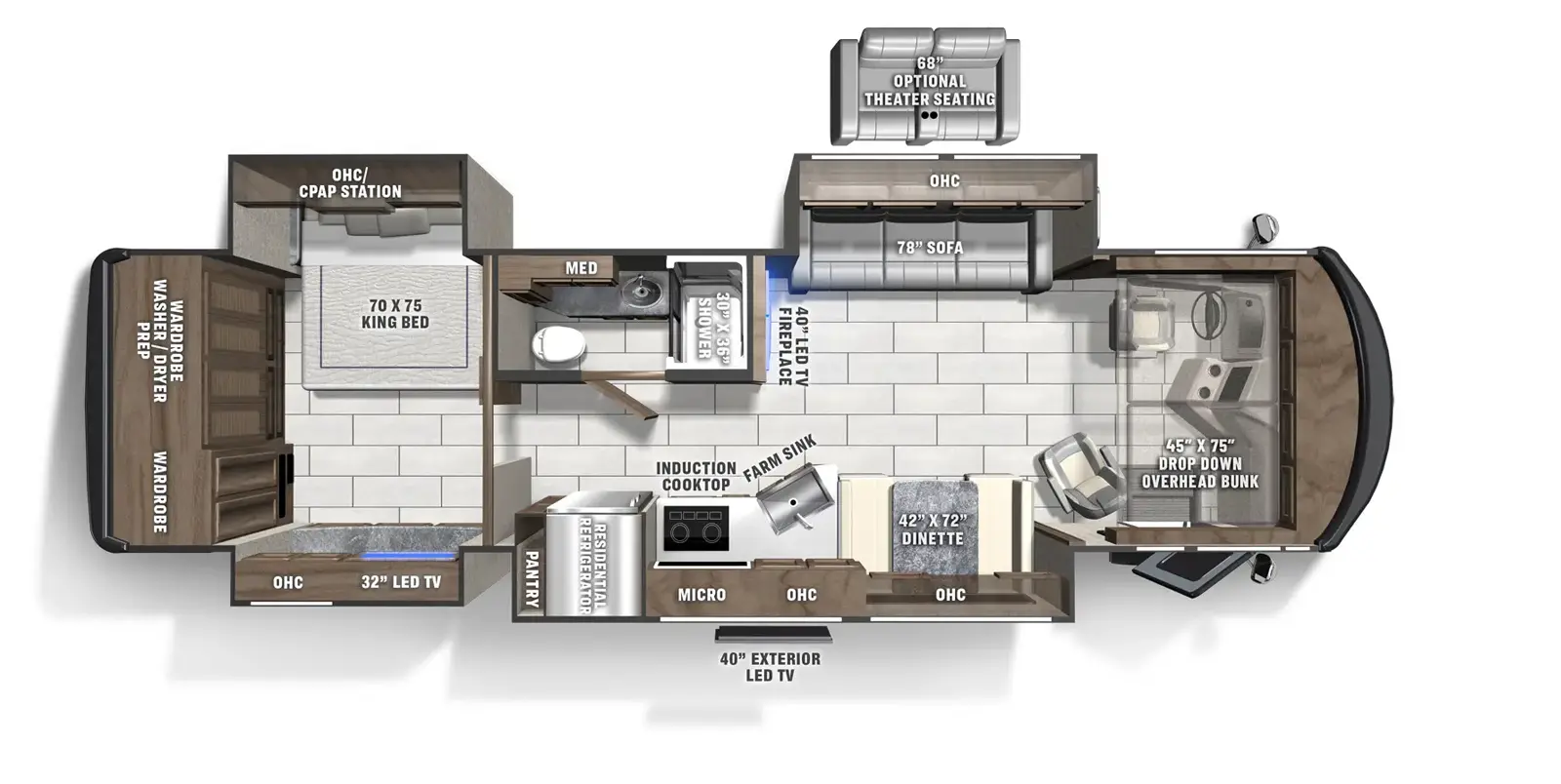

Floorplan: 339DS : Class A Diesel 341SA : Class A Diesel 354QS : Class A Diesel 365RB : Class A Diesel 376ES : Class A Diesel
Wheelbase:208"208"208"252"252"
GVWR:26,000 lb.26,000 lb.26,000 lb.29,410 lb.29,410 lb.
GCWR:30,000 lb.30,000 lb.30,000 lb.33,000 lb.33,000 lb.
GAWR Front:10,410 lb.10,410 lb.10,410 lb.10,410 lb.10,410 lb.
GAWR Rear:17,500 lb.17,500 lb.17,500 lb.19,000 lb.19,000 lb.
Fuel Capacity:90 gal.90 gal.90 gal.90 gal.90 gal.
Exterior Length:36' 3"36' 3"36' 3"40' 0"40' 0"
Exterior Height:12' 10"12' 10"12' 10"12' 10"12' 10"
Exterior Width:102"102"102"102"102"
Fresh Water:72.00 gal.72.00 gal.72.00 gal.72.00 gal.72.00 gal.
Gray Water:45.00 gal.45.00 gal.45.00 gal.45.00 gal.45.00 gal.
Black Water:45.00 gal.45.00 gal.45.00 gal.45.00 gal.45.00 gal.
Awning Size:18'18'14'17'20'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) - Is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) - is the maximum permissible weight, including cargo, fl uids, optional equipment and accessories that can be safely supported by each axle.

UVW (Unloaded Vehicle Weight)* - is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s), including full fuel, all fl uids and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, passengers, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before fi lling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Coachmen RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Coachmen RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Features & Options

Print

  • Flat Panel Hardwood Cabinet Doors Throughout
  • Self Closing Ball Bearing Drawer Guides Throughout
  • Solid Surface Countertop in Galley
  • Manual Side Shades in Driver - Passenger Area
  • Deluxe Driver/Passenger Seat with 3-Point Seat Belt
  • Solar Privacy Shades Throughout

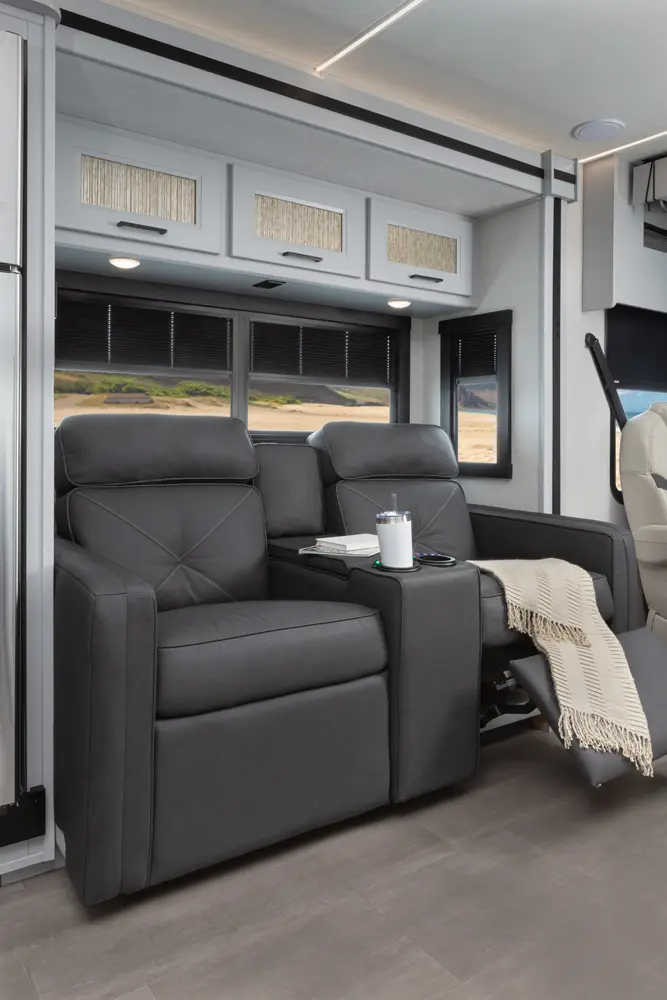

  • Theater Seating (339 DS)
  • Visionary Sofa Hide-A-Bed (376ES, 365RB, 354QS, 341SA)
  • Dream Dinette
  • Storage Drawers Under Booth Dinette
  • Power Front Solar Privacy Shade
  • Fireplace (365RB, 354QS, 341SA)
  • Free Standing Dinette (341SA)
  • LED TV Coach
  • King Jack TV - Radio Antenna
  • Pre-Wired for Satellite Dish and Blu-Ray Players

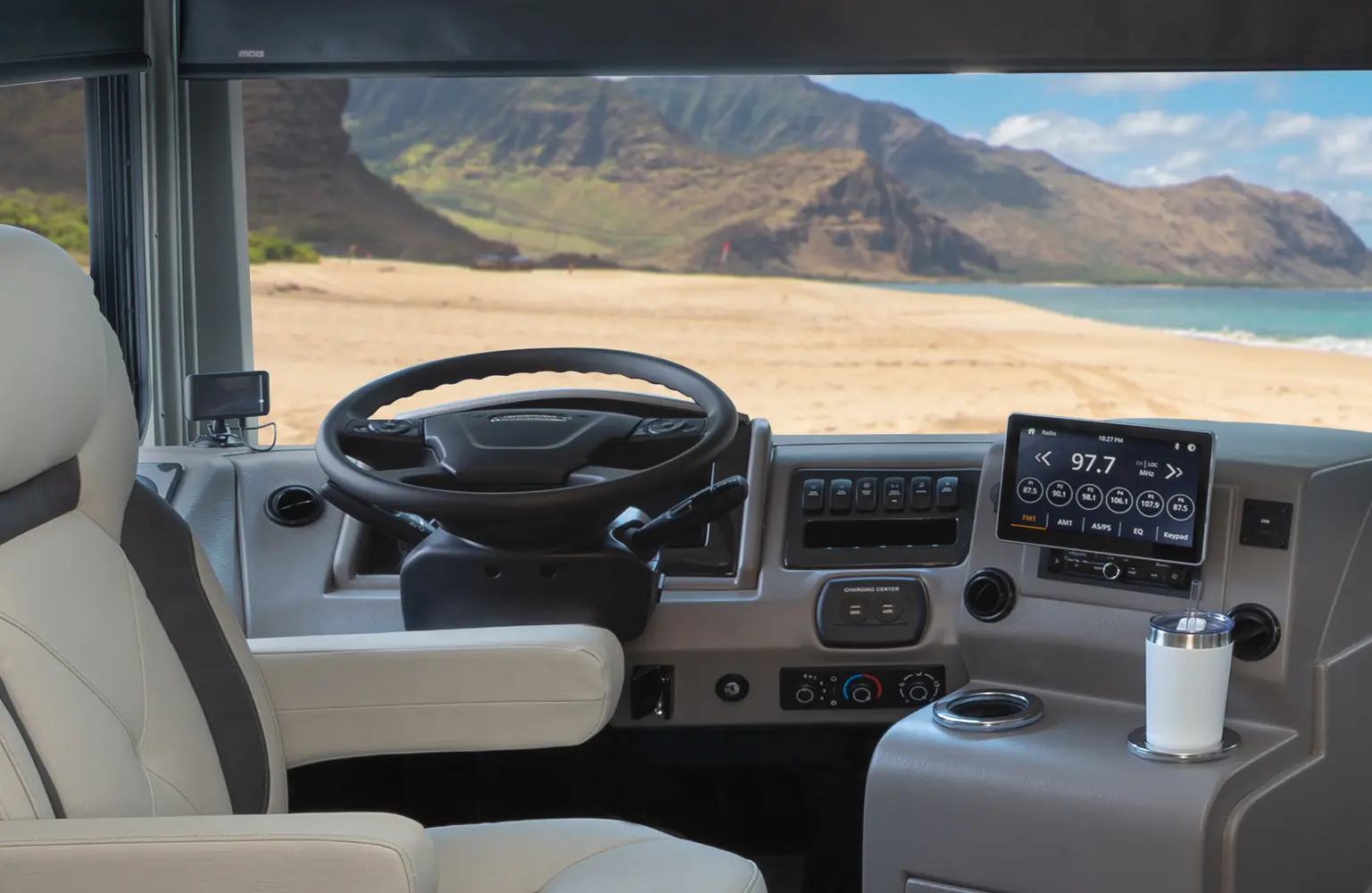

  • 10 " Touch Screen Radio AM/FM Radio with Bluetooth Apple CarPlay and Android Auto Link Enabled
  • 30" Stainless Steel OTR Microwave
  • Stainless Steel Residential Refrigerator
  • Kitchen Backsplash
  • Fantastic Power Ceiling Vent
  • Solid Surface Sink Covers

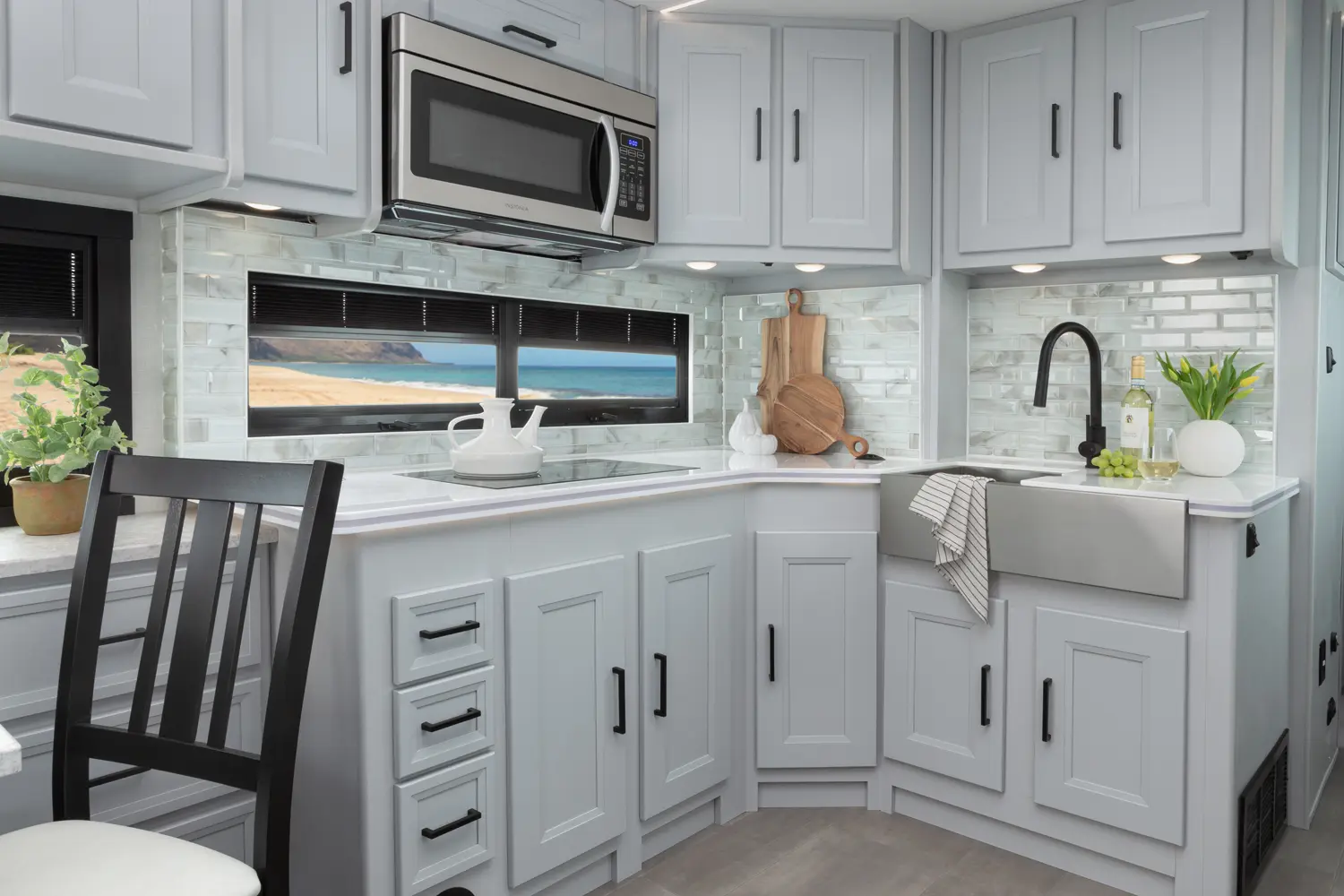

  • Stainless Steel Farmhouse Sink
  • Pop-Up Recept with USB Ports
  • Whole Coach Water Filter
  • Single Pedal Porcelain Toilet with Sprayer
  • Power Bath Vent
  • Skylight Over Shower
  • Winterization INLET at Termination Compartment
  • Water Pump Switch at Termination
  • Black Tank Flush System
  • Demand Water Pump
  • 10-Gallon Gas/Electric Water Heater
  • Systems Monitor Panel
  • Washer/Dryer Prep
  • King Bed 72 X 76 (365RB, 376ES)
  • King Bed 70 X 75 (339DS, 354QS)
  • Queen Bed 60x75 (341SA)
  • Upgraded Mattress
  • Bedspread, Pillows with Shams
  • Residential Style Headboard
  • 32" LCD TV Bedroom
  • Front Drop-Down-Bunk
  • USB Ports on Both Sides of Bed
  • C-PAP Shelf Cabinet
  • Bunk/Office/Wardrobe Room (376ES Only)
  • 50-Amp Power Cord
  • GFCI Circuit
  • Outside Receptacle (DS)
  • Emergency Start Switch
  • Coach and Chassis Battery Disconnect
  • Auxiliary Batteries (4)
  • Exterior LED Strip Patio Light
  • 100W Solar Panel with Controller (Aftermarket Upgradeable to 300W)
  • 35,000 BTU E.I. Furnace (365RB, 376ES Only)
  • (2) 20,000 BTU E.I. Furnace (339DS, 354QS, 341SA)
  • 15,000 BTU A/C with Heat Pump Front
  • 15,000 BTU A/C with Heat Pump Rear
  • 20-Gallon LP Tank
  • 6.0 KW Diesel Generator
  • 2,000W Pure Sine Wave Inverter with 80-Amp Converter
  • Automatic Transfer Switch
  • Exterior Cable TV Jack and Tailgater Satellite Jack
  • LED Interior Lighting
  • Auto Generator Start
  • Charging Station for Electronic Devices
  • Straight Rail Freightliner Chassis
  • Chassis Air Suspension and Air Brakes
  • 340 HP ISB Cummins Rear Diesel Engine, 700 ft.-lb. Torque
  • 6-Speed Alison 2100MH Automatic Transmission (339DS, 354QS, 341SA)
  • 6-Speed Alison 2500MH Automatic Transmission (365RB, 376ES)
  • High Definition Back Up and Side Cameras
  • Fully Automatic Leveling Jacks
  • Defroster Fans
  • Cruise Control
  • Manual Air Dump
  • Intermittent Wipers
  • Dash Air Conditioning
  • Frameless Tinted Windows with Safety Glass
  • Exterior Mirrors with Heat and Remote
  • Auxiliary Driving Lights
  • Fuel Fills, Both Sides
  • Auxiliary Air Supply Hook-Ups
  • 22.5 Radial Tires
  • Power Step Cover (354QS, 341SA)
  • Power Entrance Steps-Double
  • Deluxe Radius Entrance Door with Dead Bolt Lock
  • Front and Rear Fiberglass Caps
  • Air Horn
  • High Gloss Gelcoat Sidewalls (with Azdel™ Superlite Composite)
  • Aluminum Side Swing Compartment Doors
  • 8,000 lb. Towing Hitch with 7-Way Plug
  • Power Patio Awning
  • Slide-Out Awnings
  • Pass Through Basement Storage
  • Full Body Paint
  • Fire Extinguisher
  • LP Leak Alarm
  • Smoke Detector
  • Carbon Monoxide Detector
  • Outside Entertainment Center with TV
  • Interior and Exterior Assist Handles
  • Exterior Propane Hook-Up
  • Oval Cockpit Pedestal Table
  • Seal
  • Ice
  • White Velvet
  • Chocolate Cherry
  • Draper
  • Madison Avenue
  • Sterling
  • The Cooper
  • Aluminum Wheels (Required)
  • Power Theatre Seating
  • Washer / Dryer

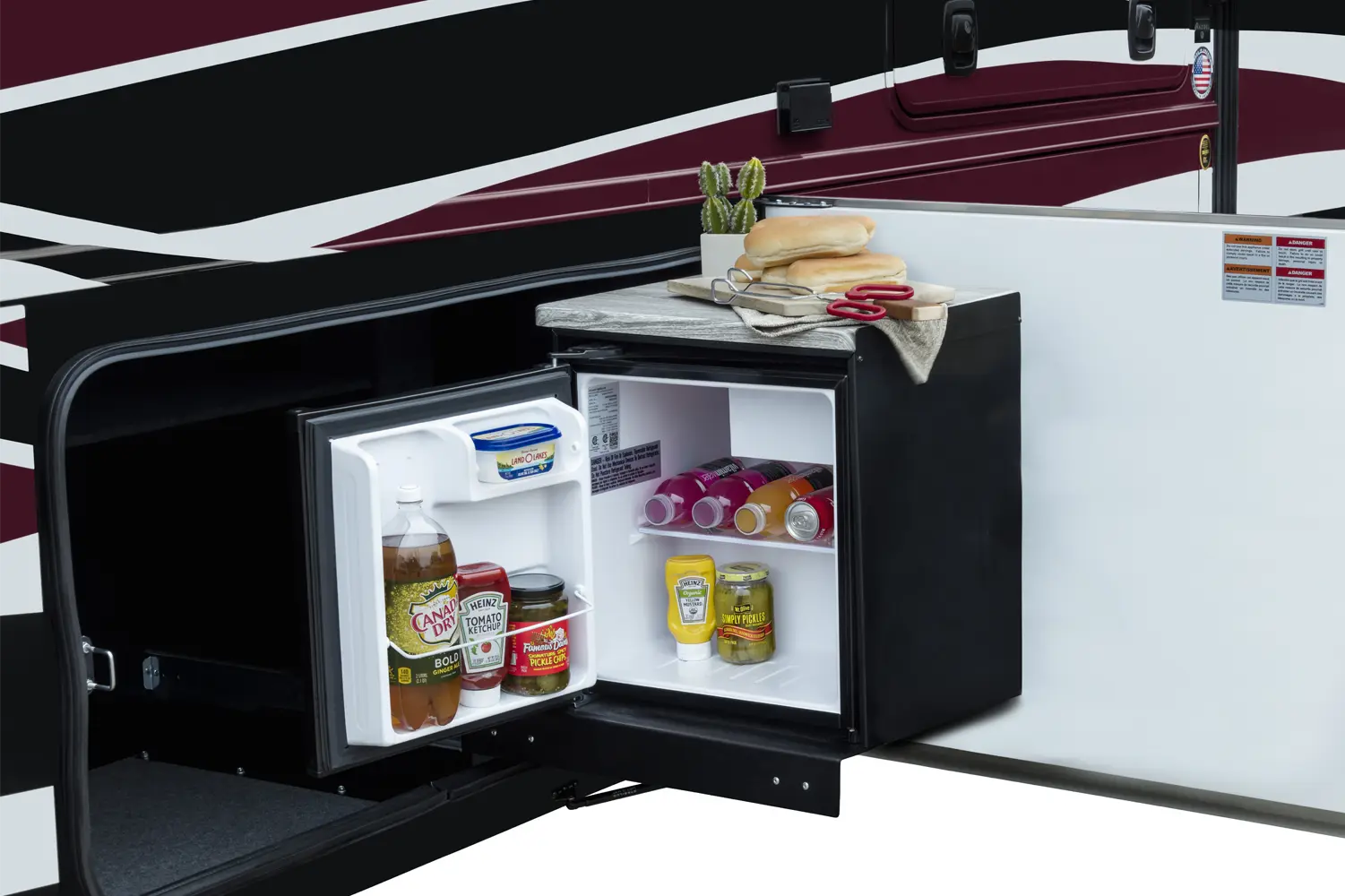

  • Outside Kitchen (339DS, 365RB, 376ES Only)
  • Power Skylight (376ES)
  • Diamond Shield Paint Protection - (Required with Full Paint)
  • Entry Door Awning (354QS, 341SA)
  • CSA Up-Fit
  • CD-MVSA (Canadian Motor Vehicle Safety Act) (Mandatory for All Canadian Provinces)
  • In-Motion Satellite
  • Double Clear Coat (Required)
  • Combo Washer/Dryer (341SA)
