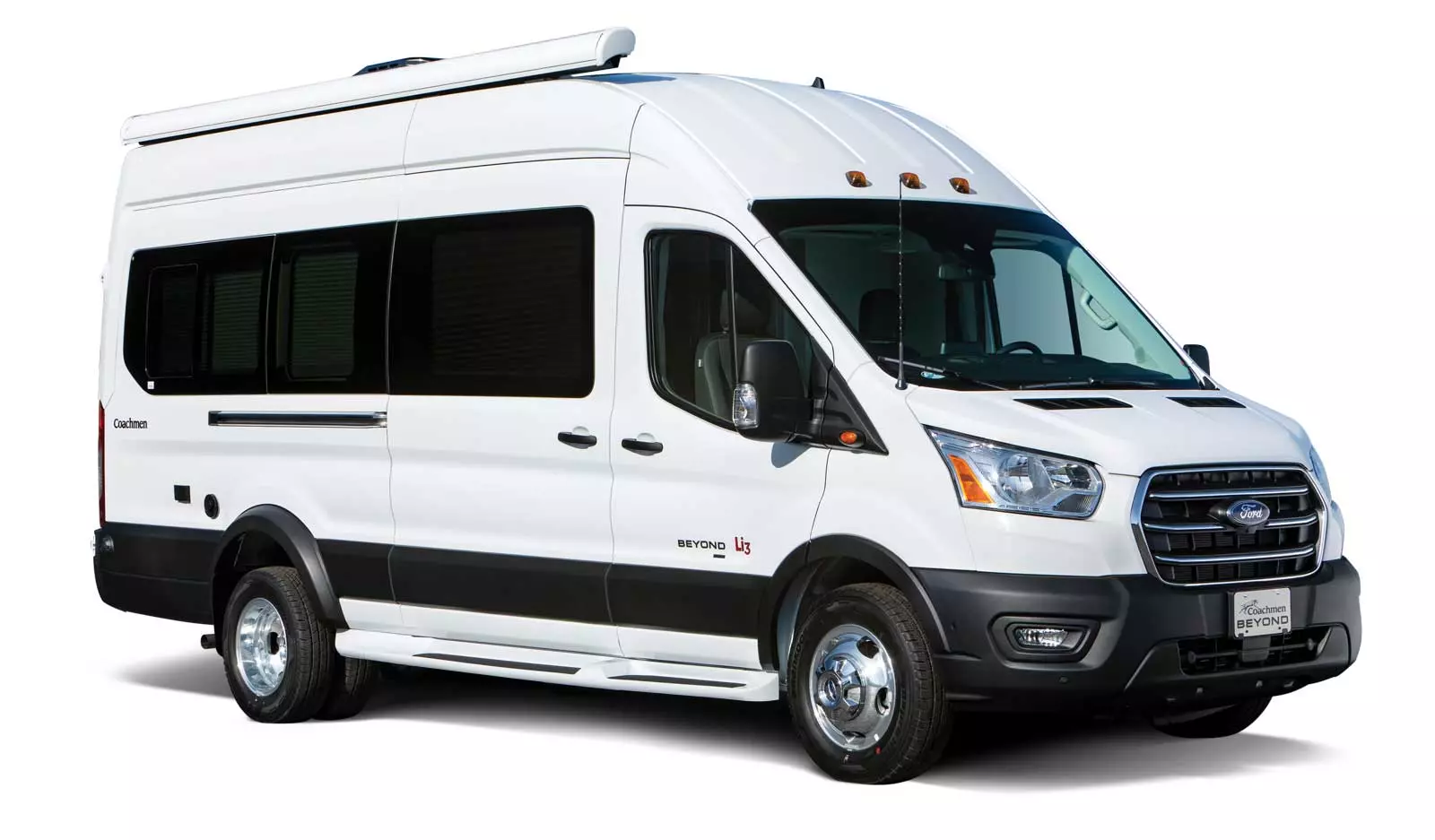

Beyond Class B Motorhomes

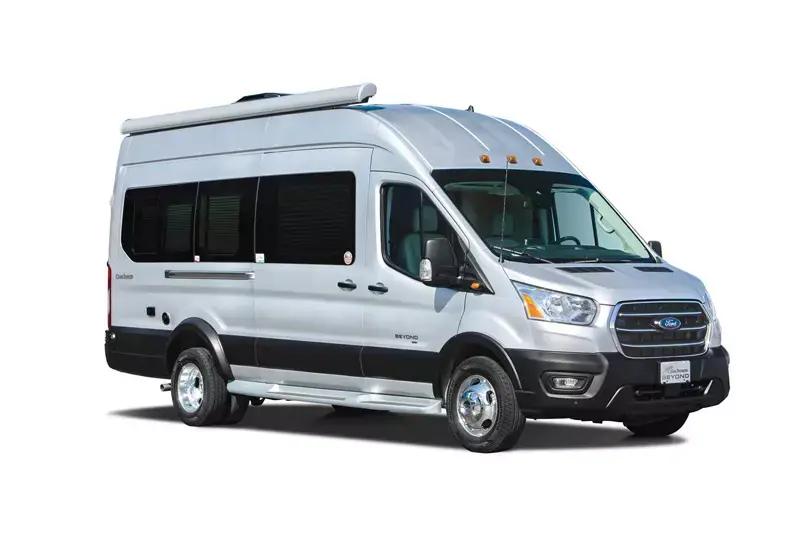

This versatile Class B Motorhome is designed for today's active lifestyles. Experience unrivaled fuel economy combined with legendary Ford® styling and reliability. Relax in luxurious captains seats while enjoying the view through large frameless windows. The interior ergonomics ensure you are as comfortable on the road as you are at home. Beyond gets you where the action is, in style!


Filter

Select filters below and then click the Filter Results button to remove non-matching Floorplans and their Specifications








to




Floorplans

Print

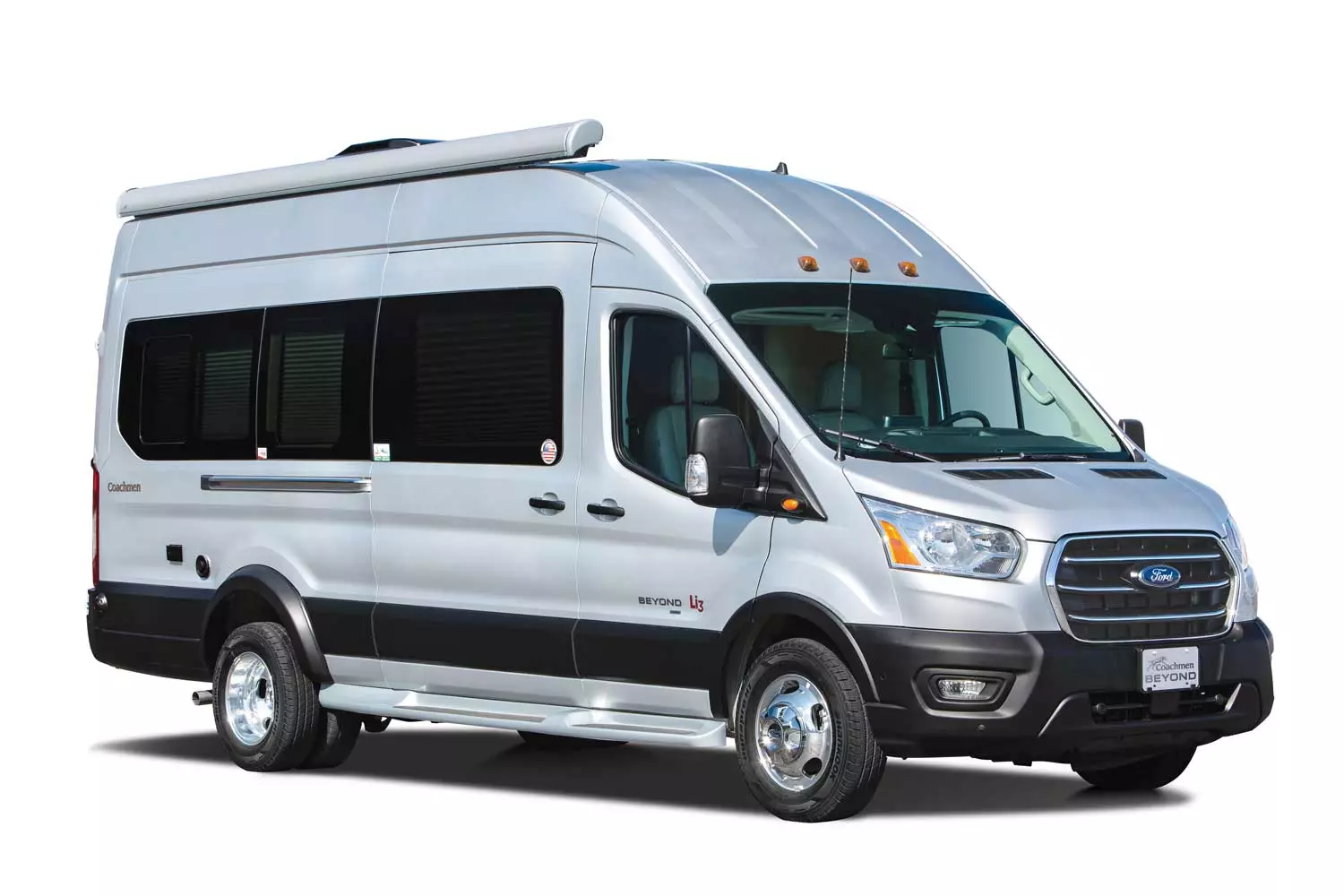

Ford Transit 350 HD

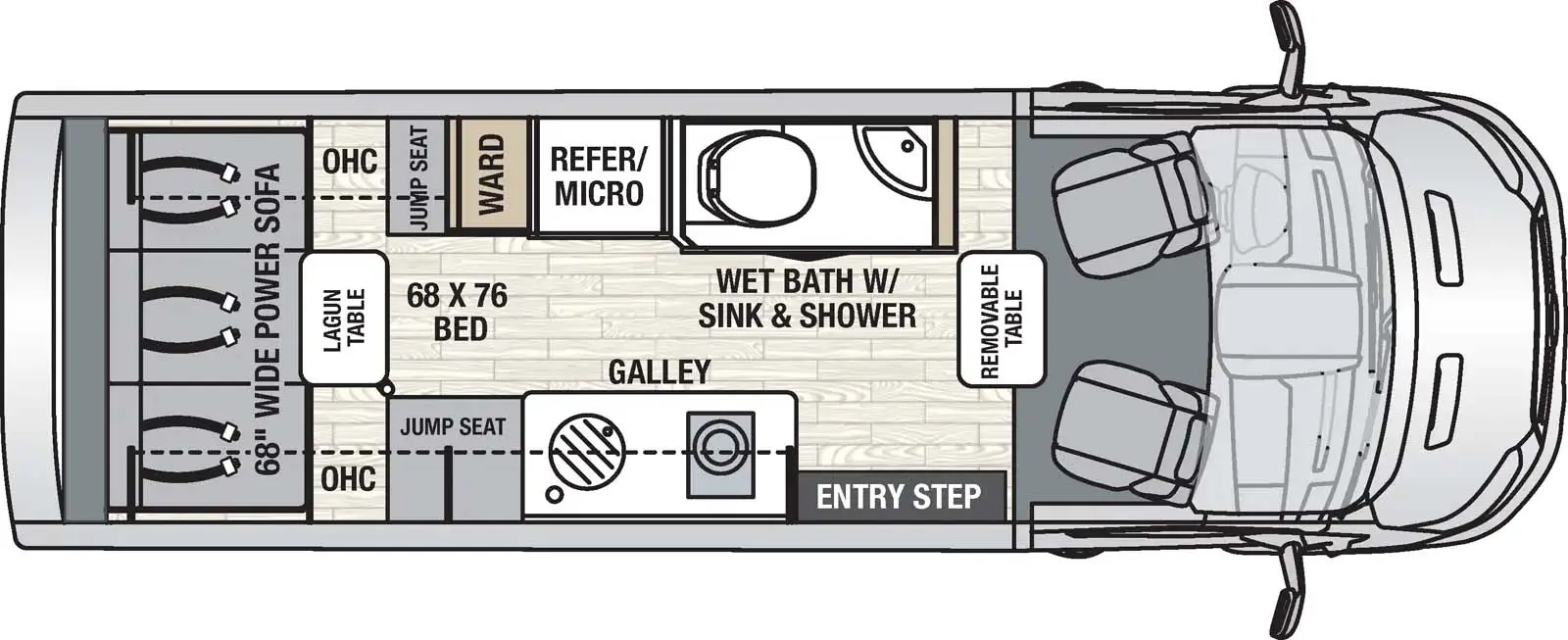

22C
Has Gallery Photos Has 360 Tour

22C


 wish list
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.

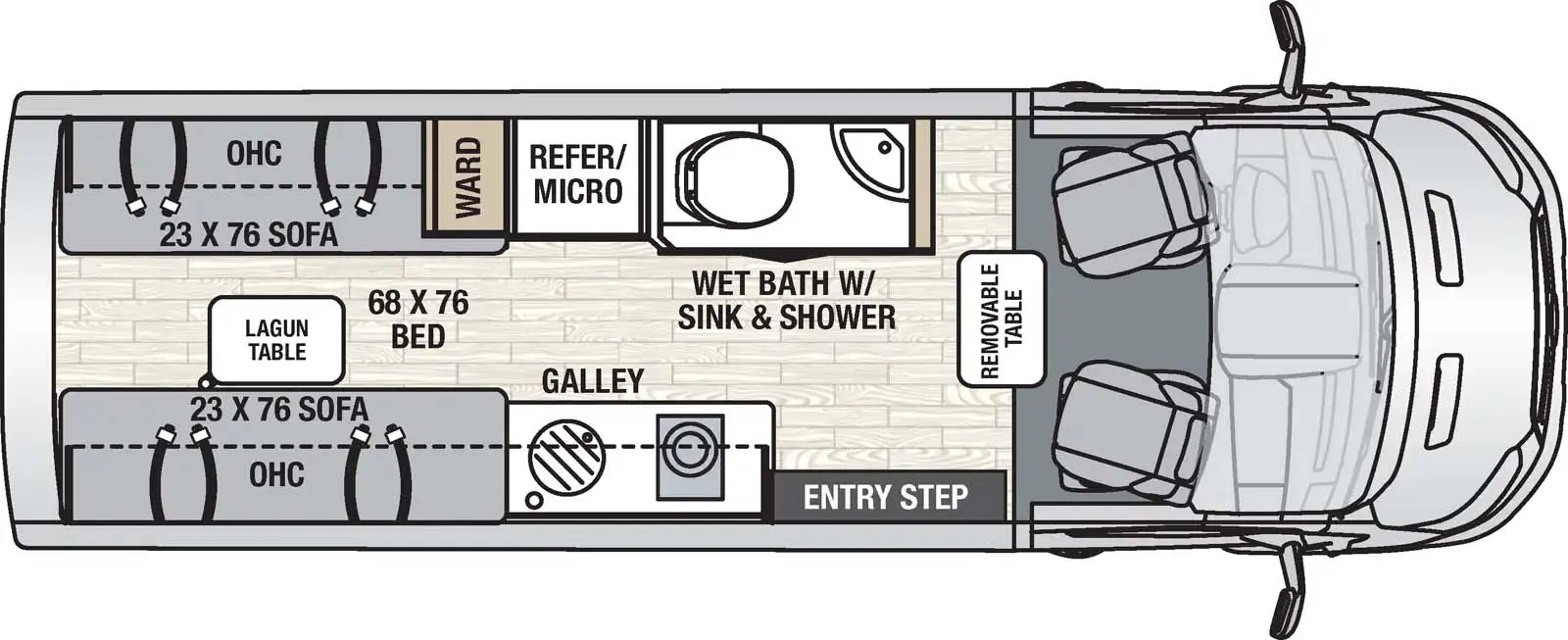

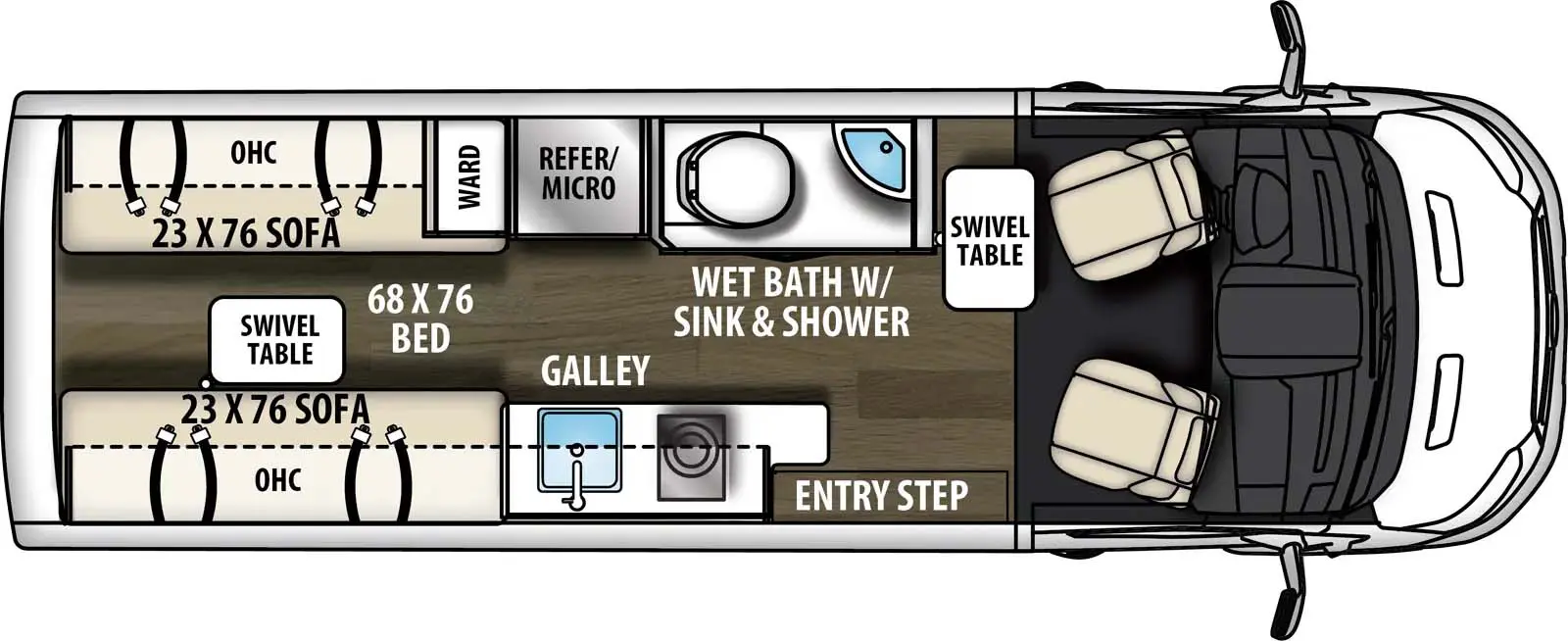

22D
Has Gallery Photos Has 360 Tour

22D


 wish list
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.

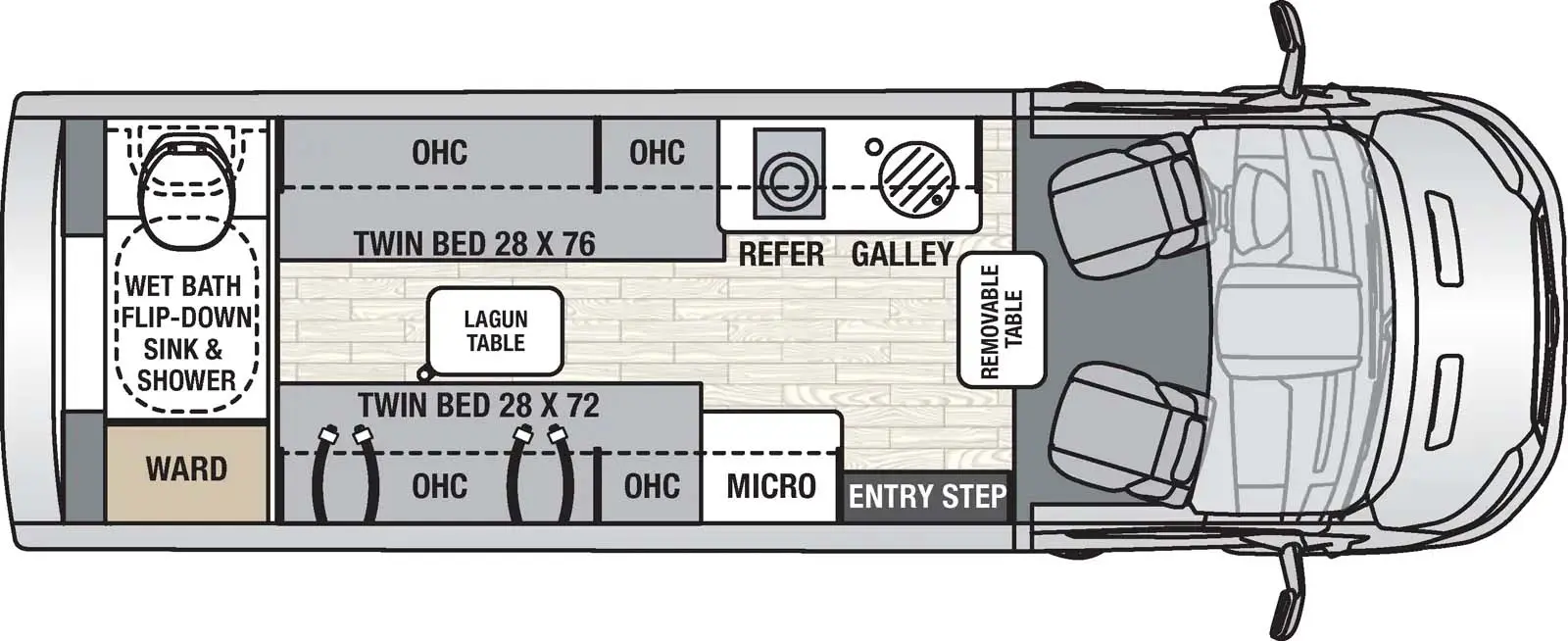

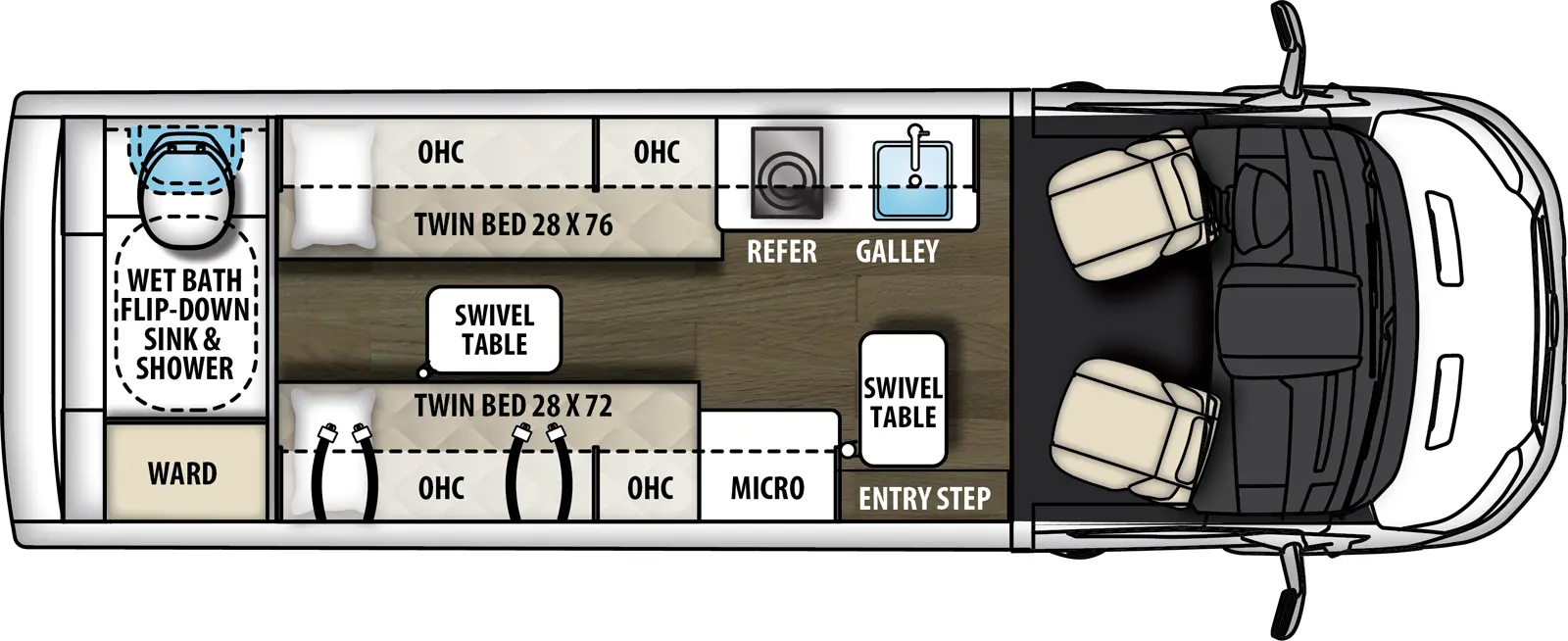

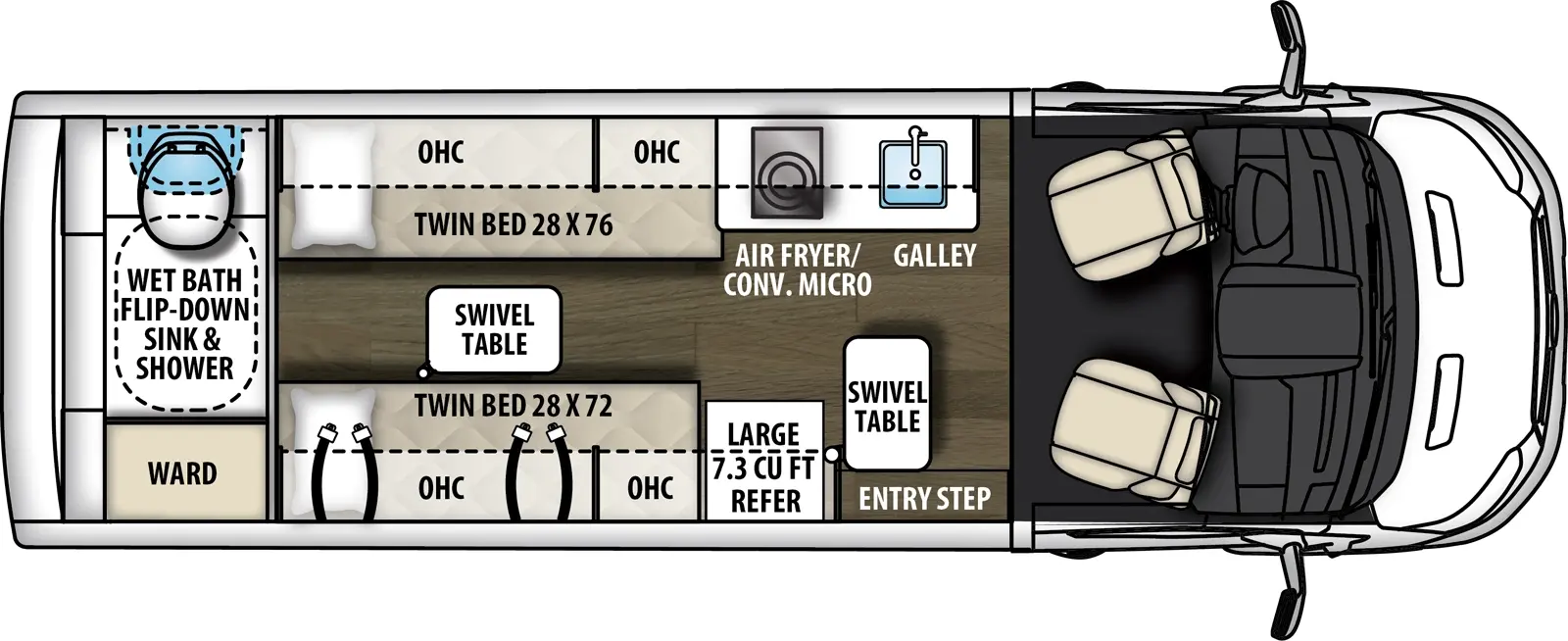

22RB
Has Gallery Photos Has 360 Tour

22RB


 wish list
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.


Specifications

Print


Wheelbase:
GVWR:
GCWR
GAWR Front:
GAWR Rear:
Fuel Capacity:
Exterior Length:
Exterior Height:
Exterior Width:
Fresh Water:
Gray Water:
Black Water:
Awning Size:
148"
10360 lb.
12600 lb.
4630 lb.
7275 lb.
25 gal.
22' 2"
9' 11"
84"
27.00 gal.
15.00 gal.
12.00 gal.
13' 1"
148"
10360 lb.
12600 lb.
4630 lb.
7275 lb.
25 gal.
22' 2"
9' 11"
84"
27.00 gal.
15.00 gal.
12.00 gal.
13' 1"
148"
10360 lb.
12600 lb.
4630 lb.
7275 lb.
25 gal.
22' 2"
9' 11"
84"
28.00 gal.
15.00 gal.
16.00 gal.
13'1"

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) - Is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) - is the maximum permissible weight, including cargo, fl uids, optional equipment and accessories that can be safely supported by each axle.

UVW (Unloaded Vehicle Weight)* - is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s), including full fuel, all fl uids and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, passengers, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before fi lling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Coachmen RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Coachmen RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Features & Options

Print
  • All three floorplans come in Rear Wheel Drive (RWD - GAWR Front 4130 lb; GAWR Rear 7275 lb) or All Wheel Drive (AWD - GAWR Front 4630 lb; GAWR Rear 7275 lb)
  • 3.5L Eco Boost engine
  • 10 Speed transmission
  • 3.73 Limited slip axle
  • Co-Pilot360 Technology including: Adaptive Cruise, BLIS – blind spot information system, side sensing system, front & rear split view camera, lane keeping system, post collision braking, pre-colli
  • Front fog lights
  • Remote start
  • Keyless entry
  • 8” Sync3 display
  • Driver & passenger swivel seats
  • FORD O.E.M forged aluminum wheels
  • HD trailer tow package
  • NEW RVQG2800i 2.8KW gasoline generator
  • NEW Coleman Mach 10 NDQ 13.5K BTU A/C
  • 2000W Xantrex inverter w/auto gen start

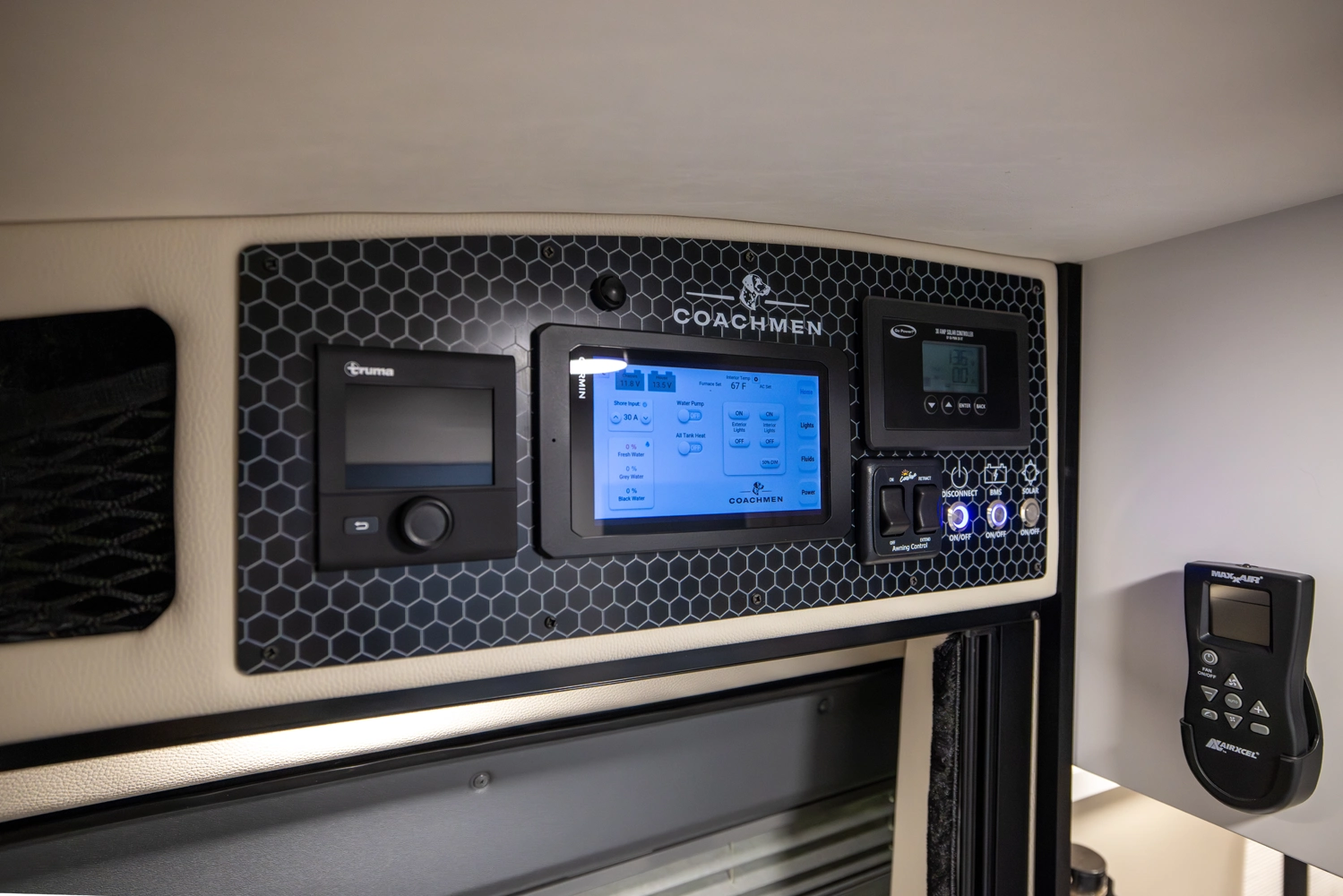

  • Firefly Multiplex w/dual screens for convenience
  • Tru Tank sensors read tank levels at 5% increments
  • Sumo Springs suspension kit
  • (2) 110W Solar panels w/dual charging capabilities
  • Carefree armless motion sensing awning

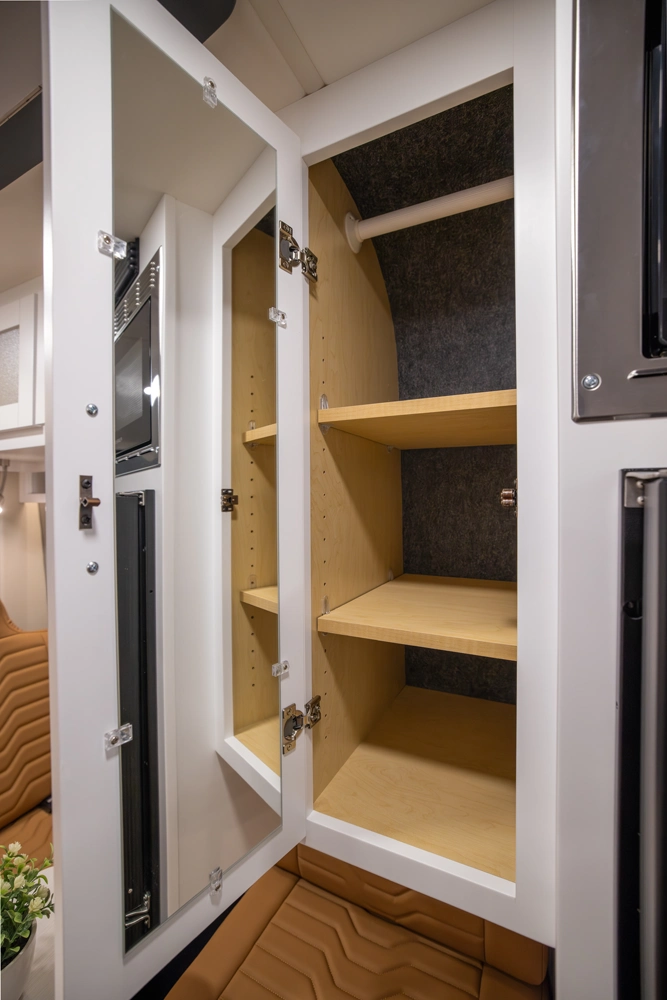

  • Hardwood cabinetry
  • Rear pull-down screen & rear window covers
  • Side screen door
  • Truma Combi Eco Plus furnace/water heater
  • Fantastic Fan w/rain sensor and remote
  • 2-Burner LP cooktop

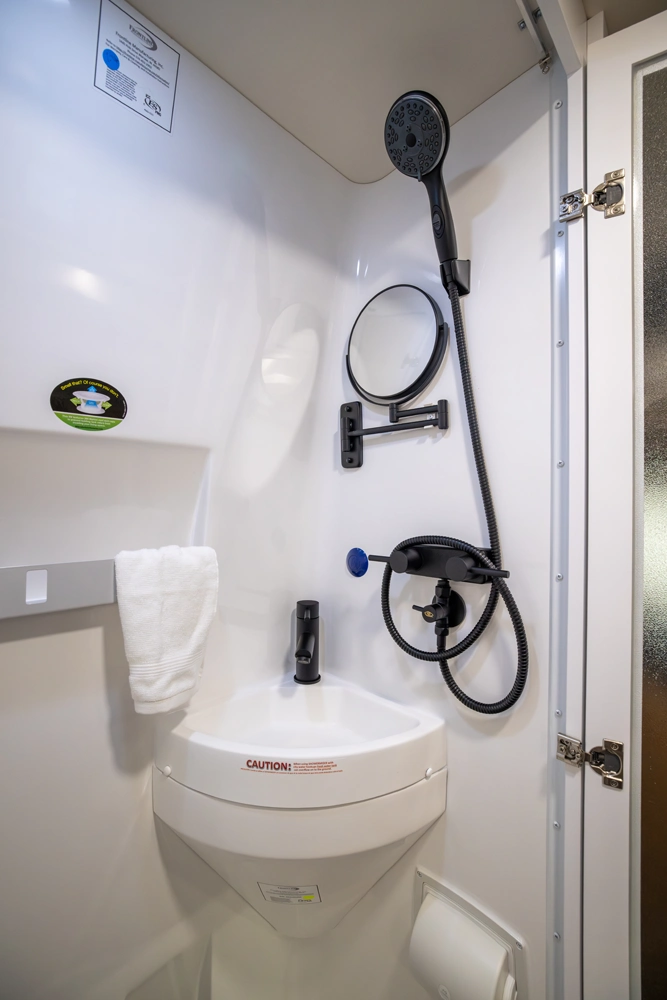

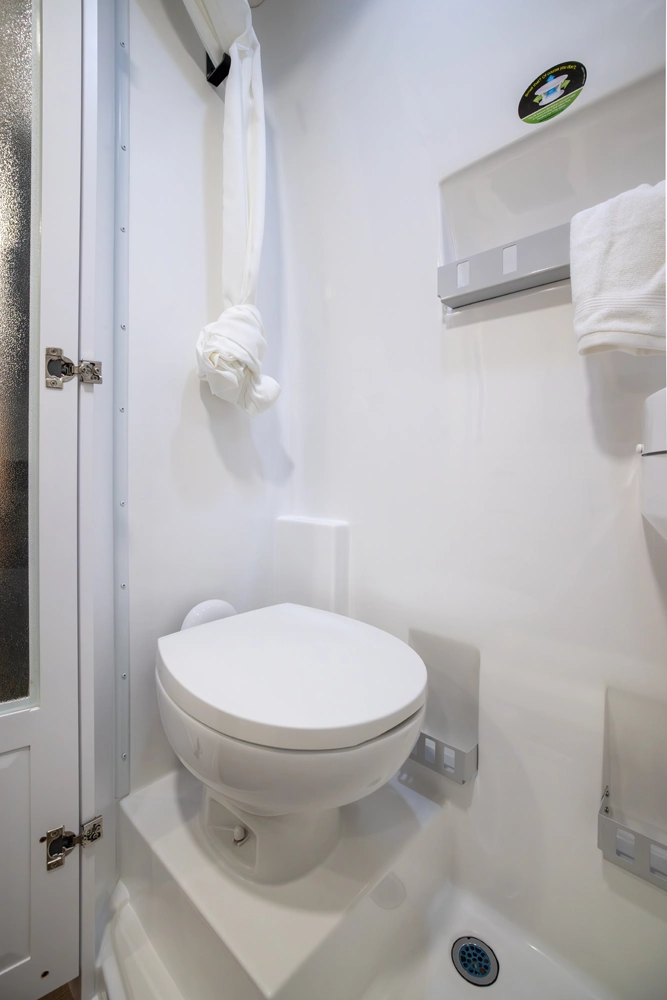

  • 1-Piece fiberglass shower

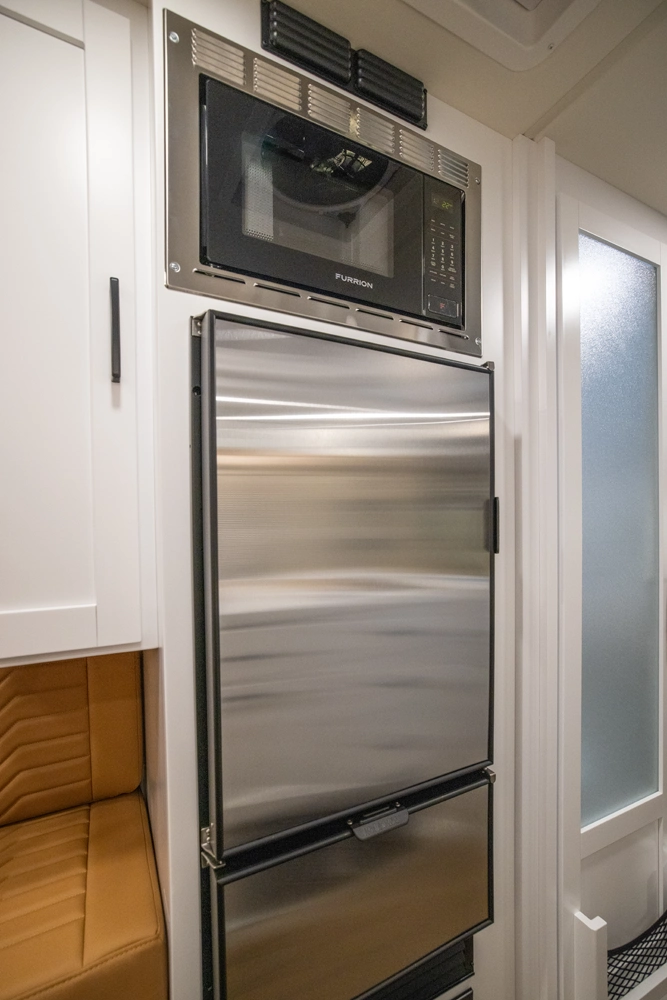

  • Nova Kool compressor refrigerator
  • WiFi Ranger
  • 22” LED TV
  • Li3 Lithium battery system
  • Pro-Air 20K BTU 12V A/C
  • Driver & passenger upgraded seat re-covers
  • Grey tank heaters
  • Phase Change upgraded insulation
  • Bike rack
  • Upgraded front window covers

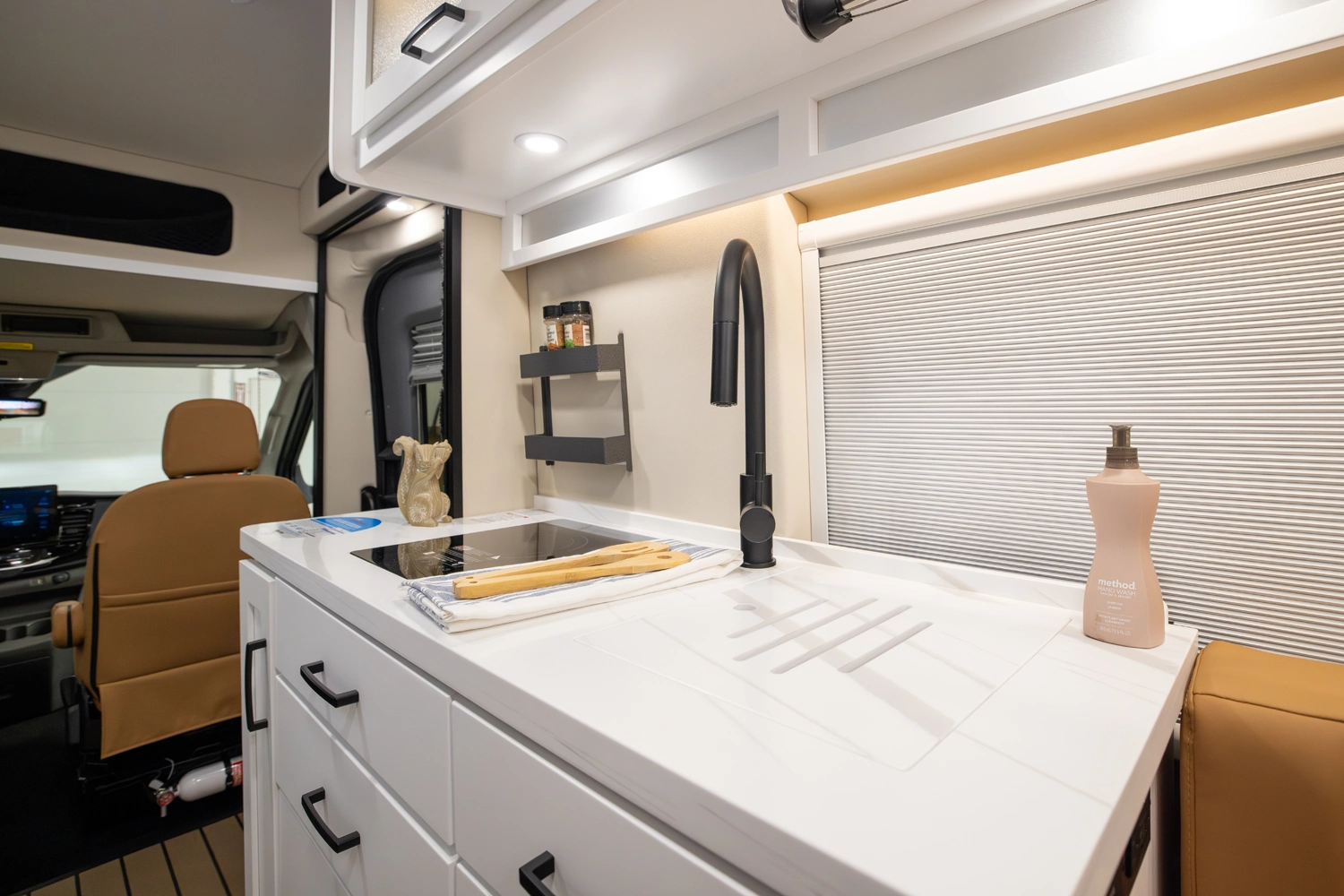

  • Induction cooktop
  • Cashmere décor (tan)
  • Fog décor (grey)
  • Solid high gloss maple
  • Solid high gloss white
  • Solid high glass cherry
  • Ingot Silver
  • Oxford White


Virtual Tours

22C

22D

22RB



Videos

Some videos may show features or options not available on all products. Contact our service representatives or your local dealer if you have questions about how your specific RV operates.


Literature


Beyond Brochure
Beyond Brochure

WiFi Ranger Sky 4 - DC Information
WiFi Ranger Sky 4 - DC Information

WiFi Ranger Sky 4 - Quick Start Guide
WiFi Ranger Sky 4 - Quick Start Guide

WiFi Ranger Sky 4 - Quick Start Guide LTE
WiFi Ranger Sky 4 - Quick Start Guide LTE
