Catalina Legacy Edition Travel Trailers

The Coachmen Catalina is a trusted name that provides a VERSATILE line up of reliable and affordable travel trailers! The Catalina Legacy Edition appeals to a broad breadth of RV lifestyles ranging from weekend use all the way to extended use and just about every use in between. With choices designed to fit almost any budget, the Coachmen Catalina Legacy Edition provides an abundance of value at one of the most aggressively priced travel trailers on the market.

That means it’s packed with Coachmen Quality, Value, Style, and Comfort!

* Due to the current environment our features and options are subject to change due to material availability


RV Business 2021 Must See RVCare Camps, fighting cancer and making memoriesLink opens in a new tab/window

We loved our Catalina Legacy so much that we traded her in for a larger Catalina Legacy. - Audrey F.

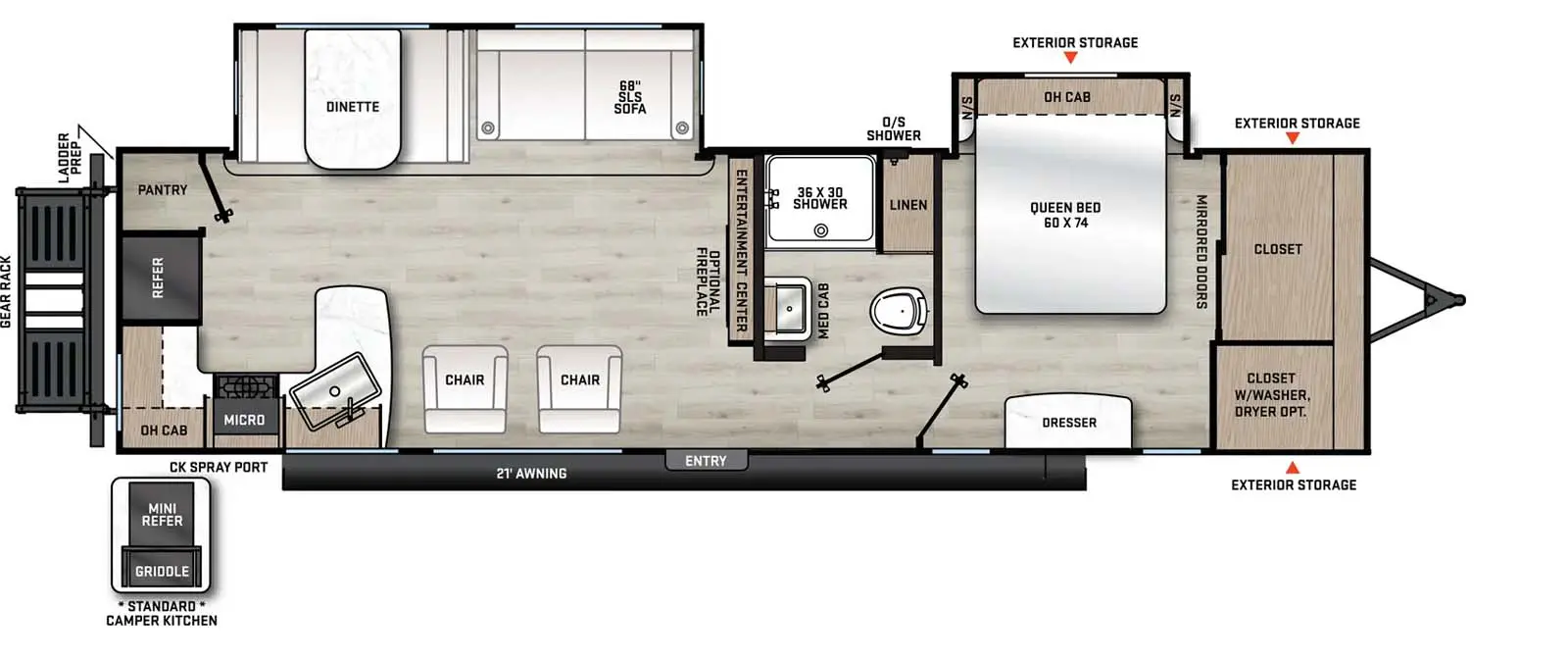

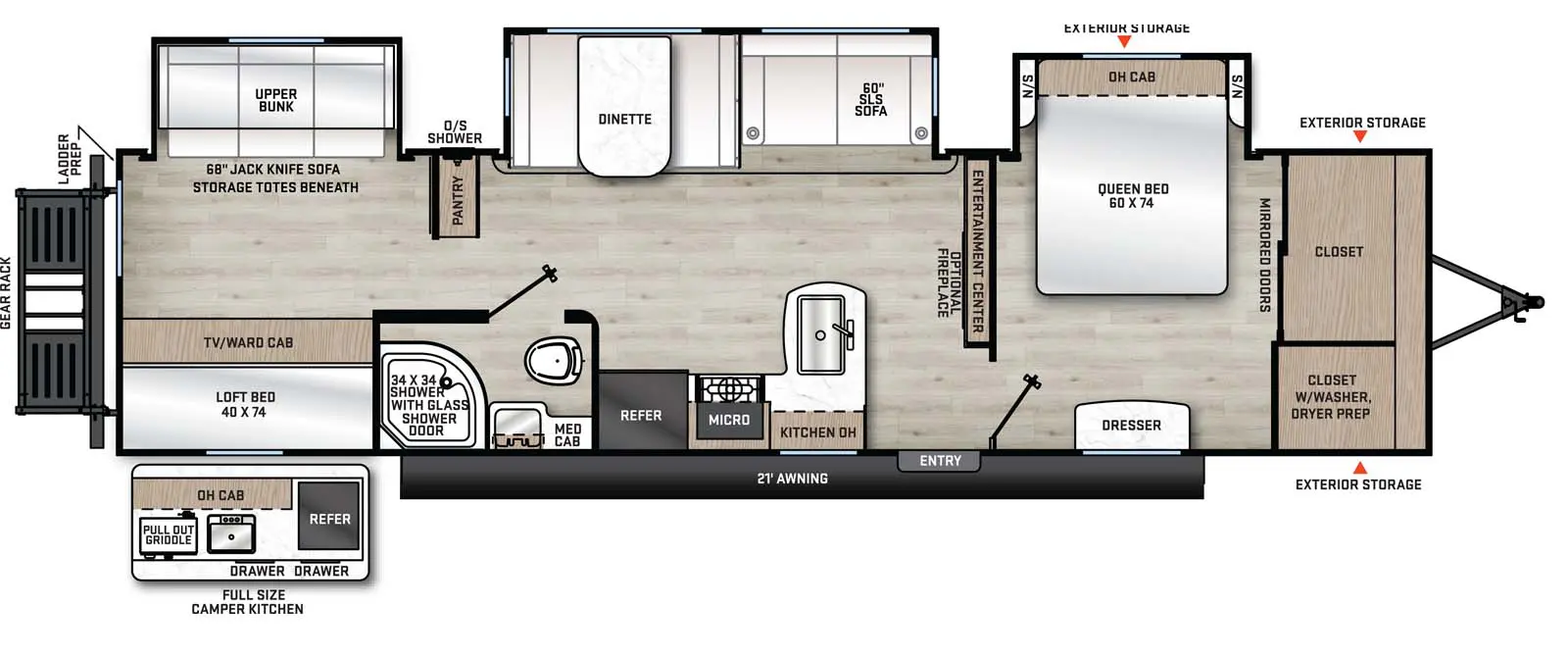

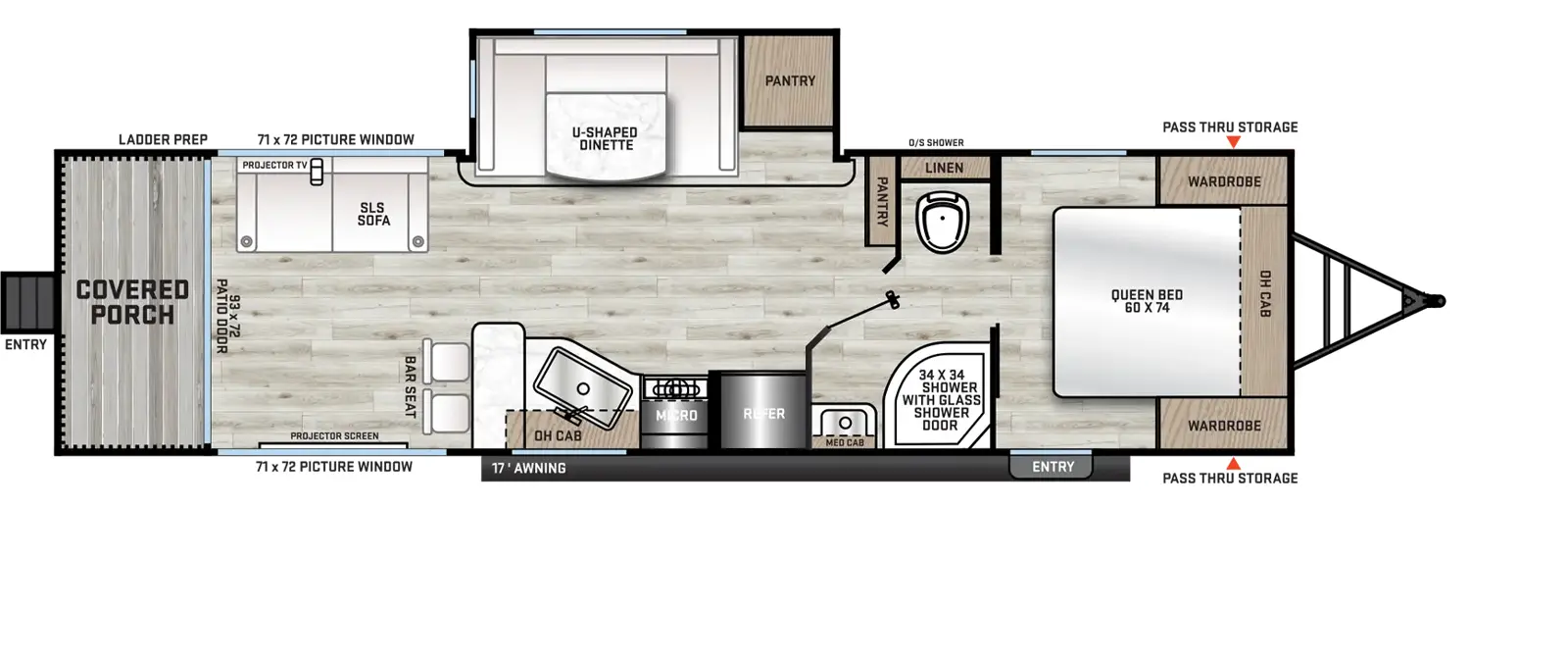

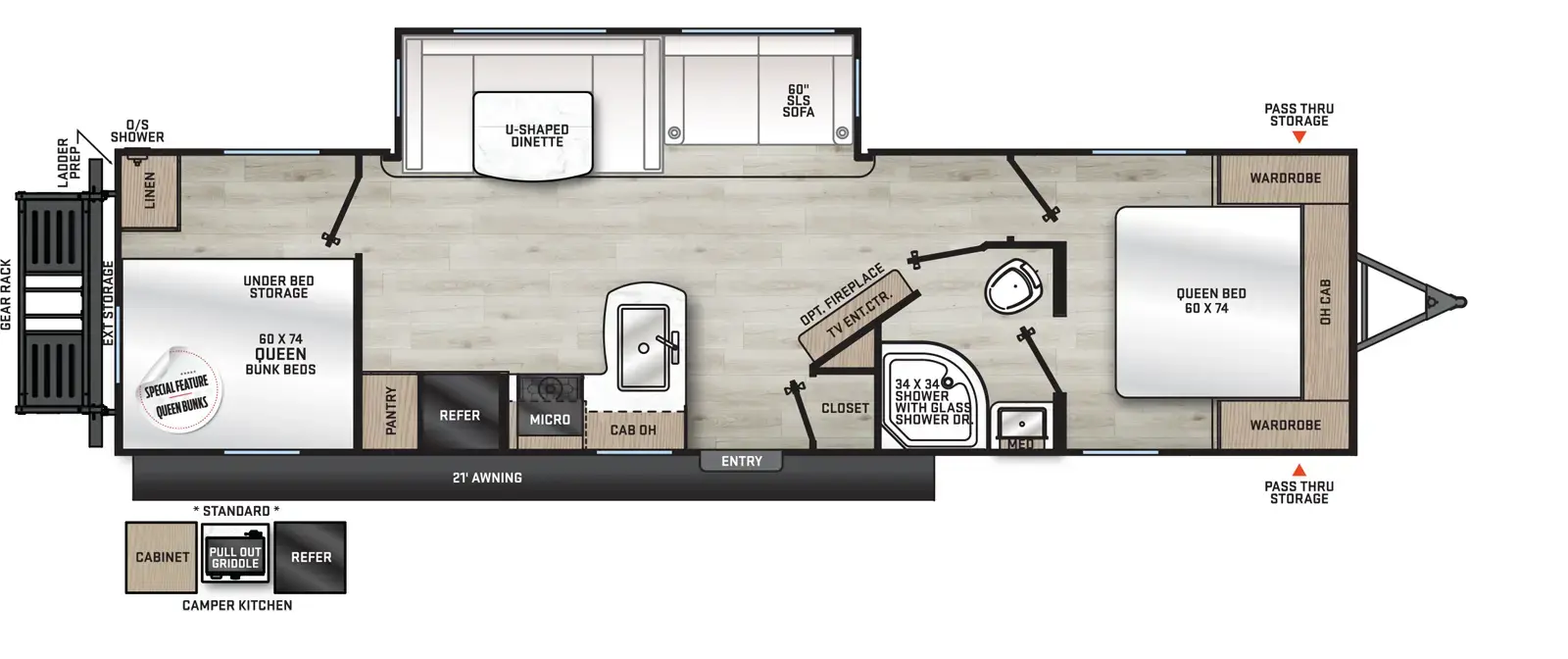

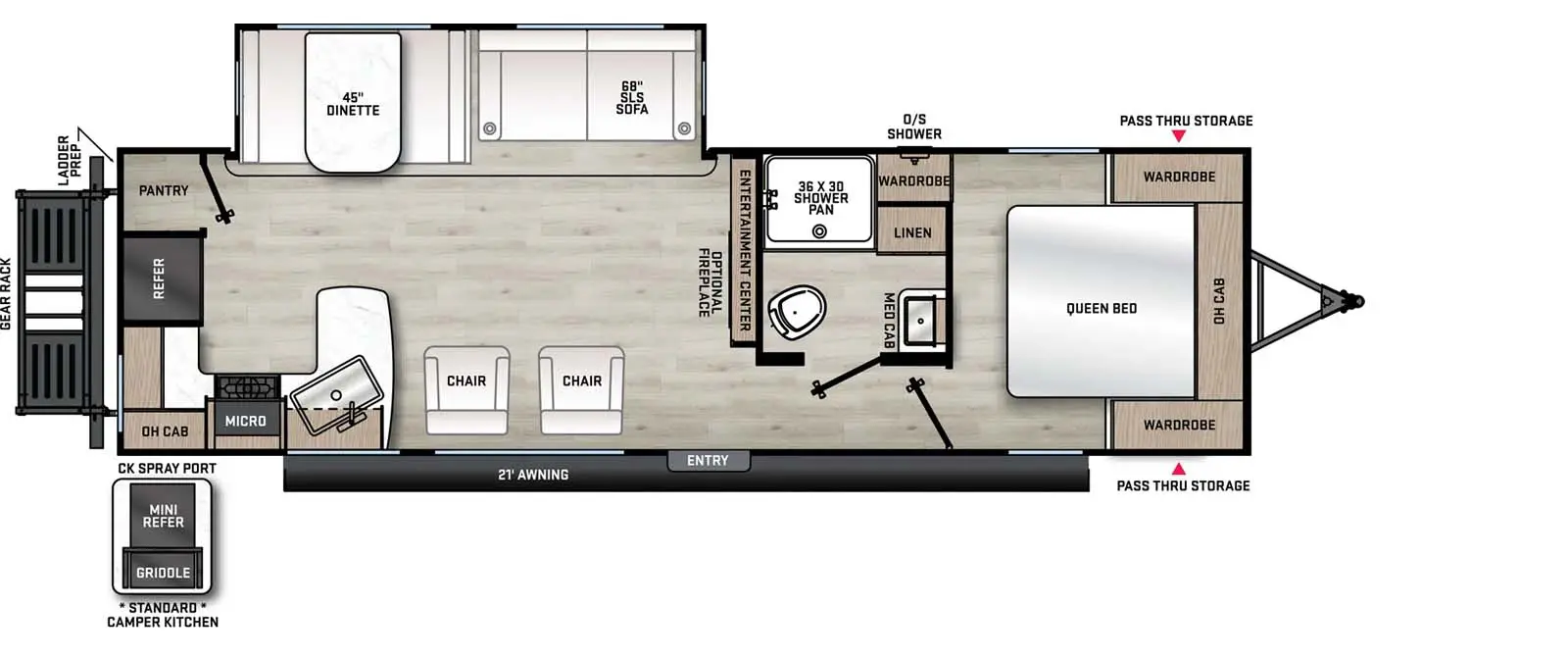

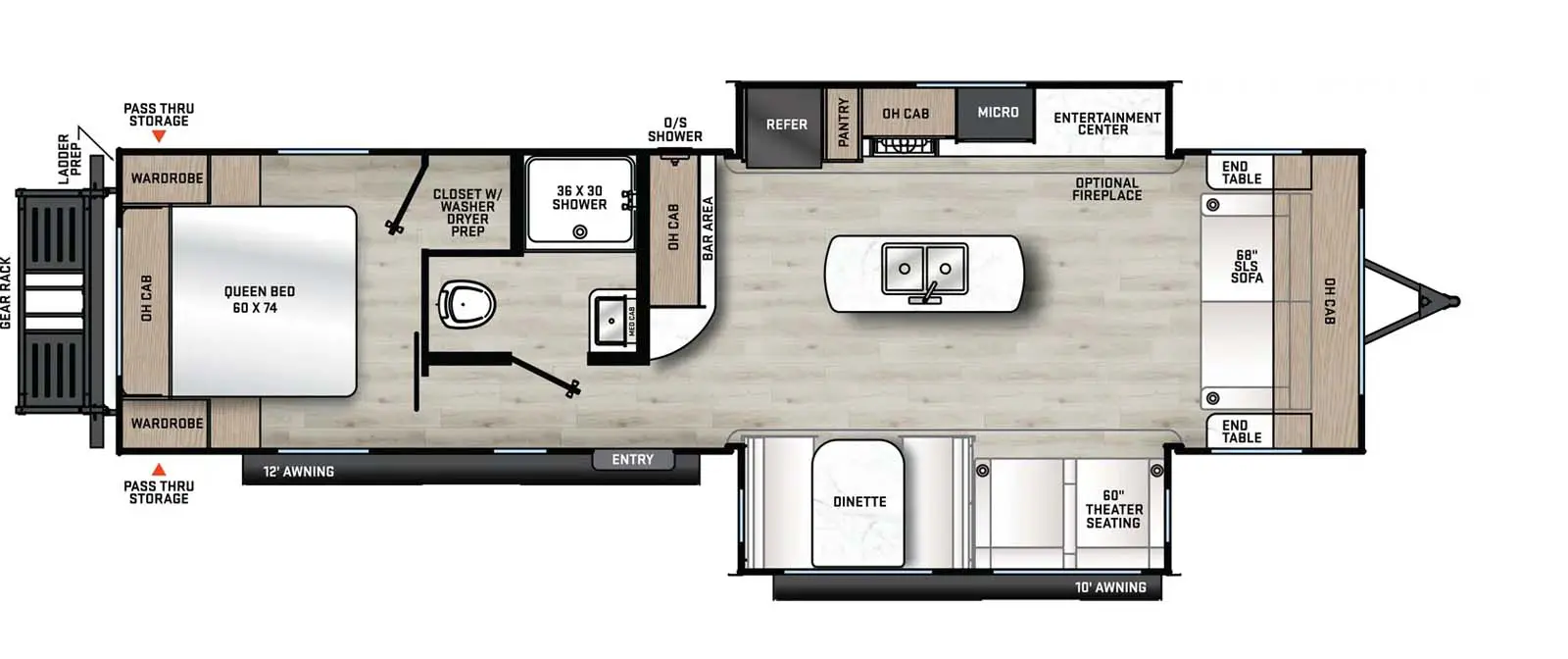

Floorplans

Print

Travel Trailers
Dealer Stock Only


Specifications

Print

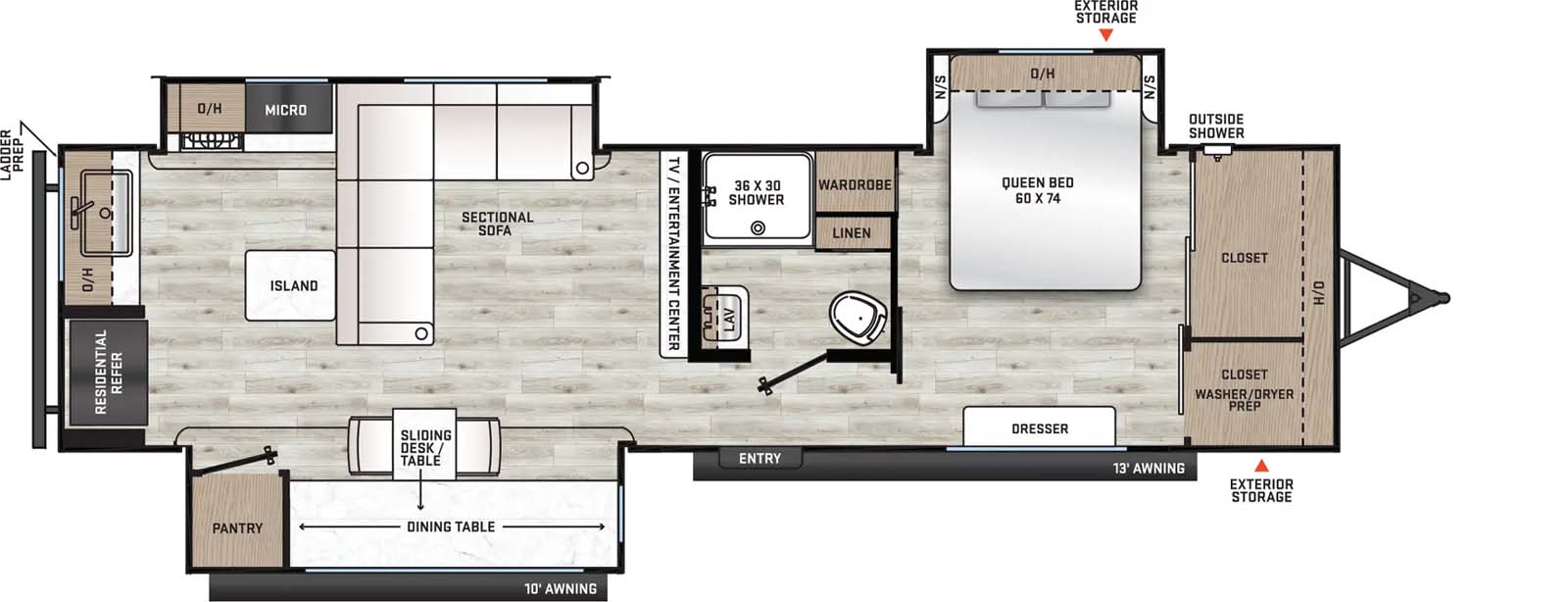

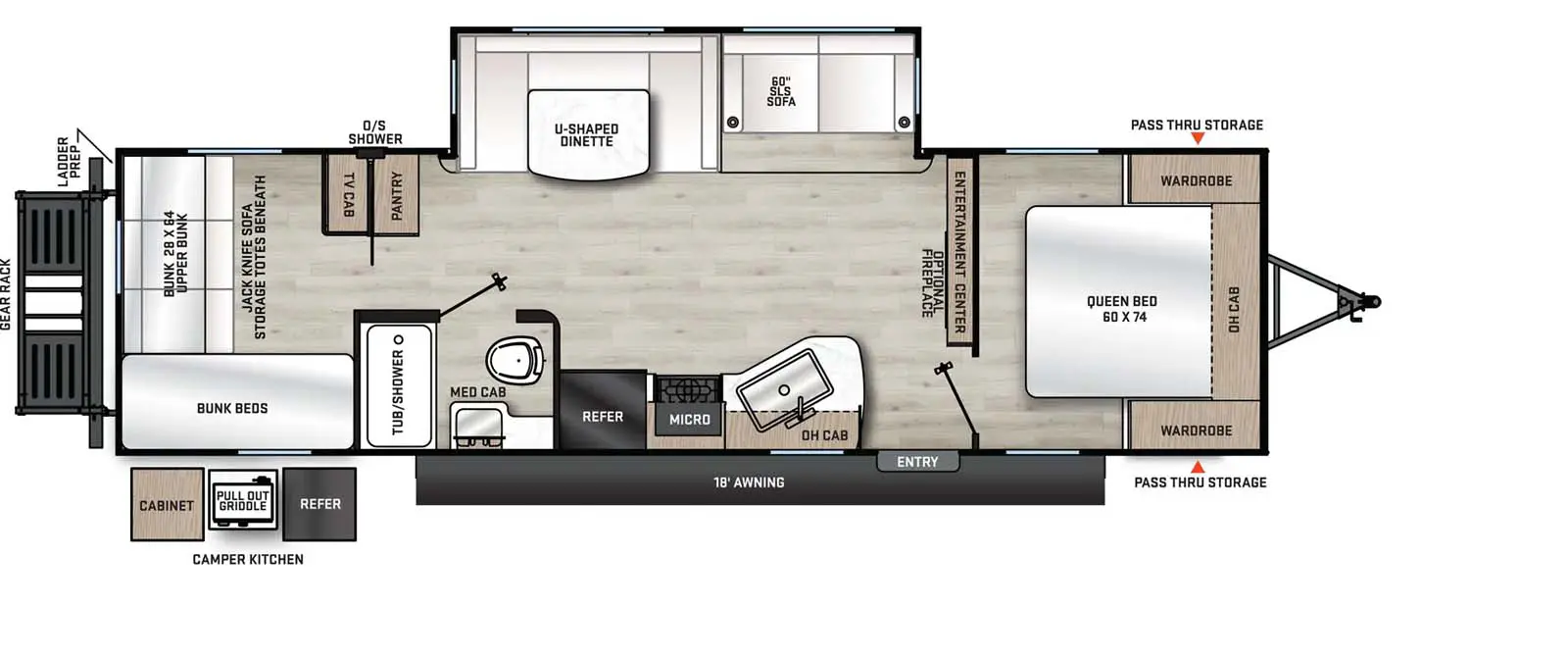

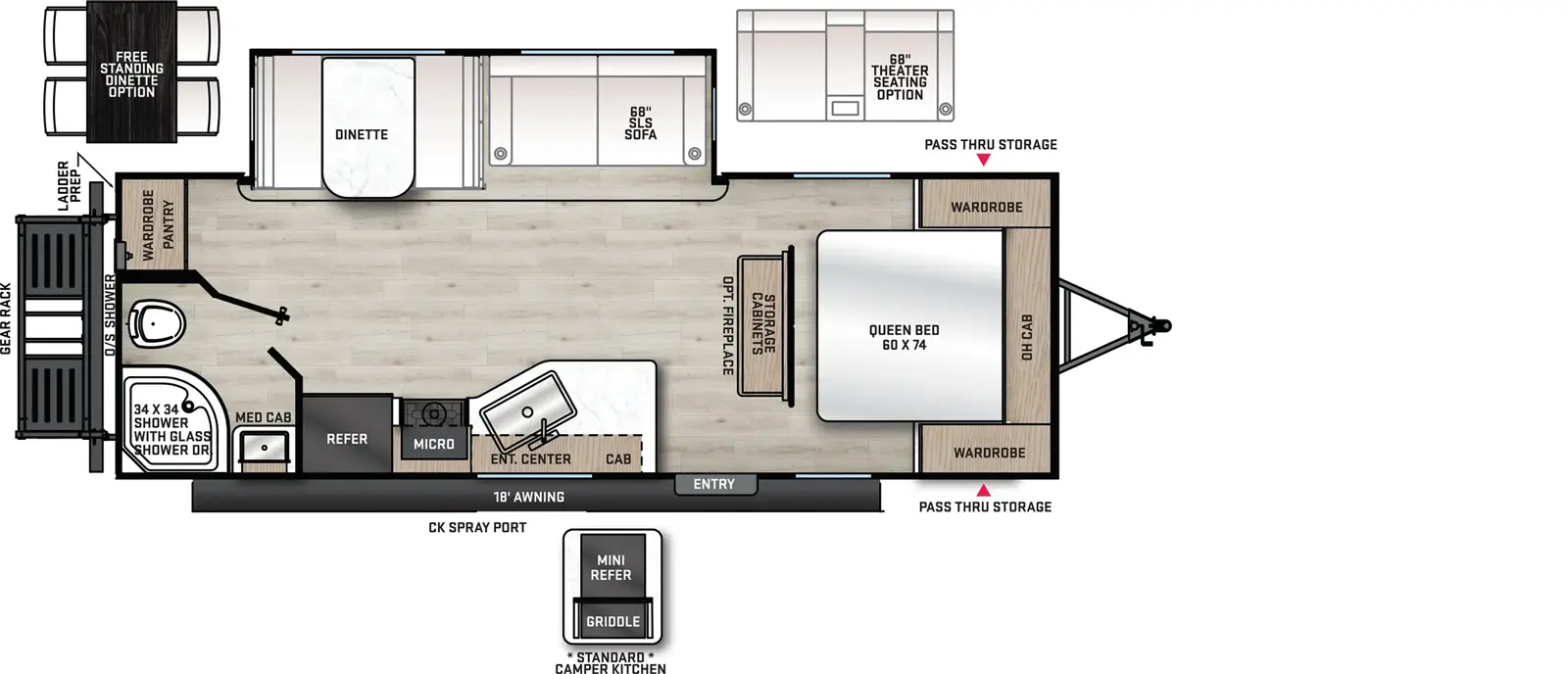

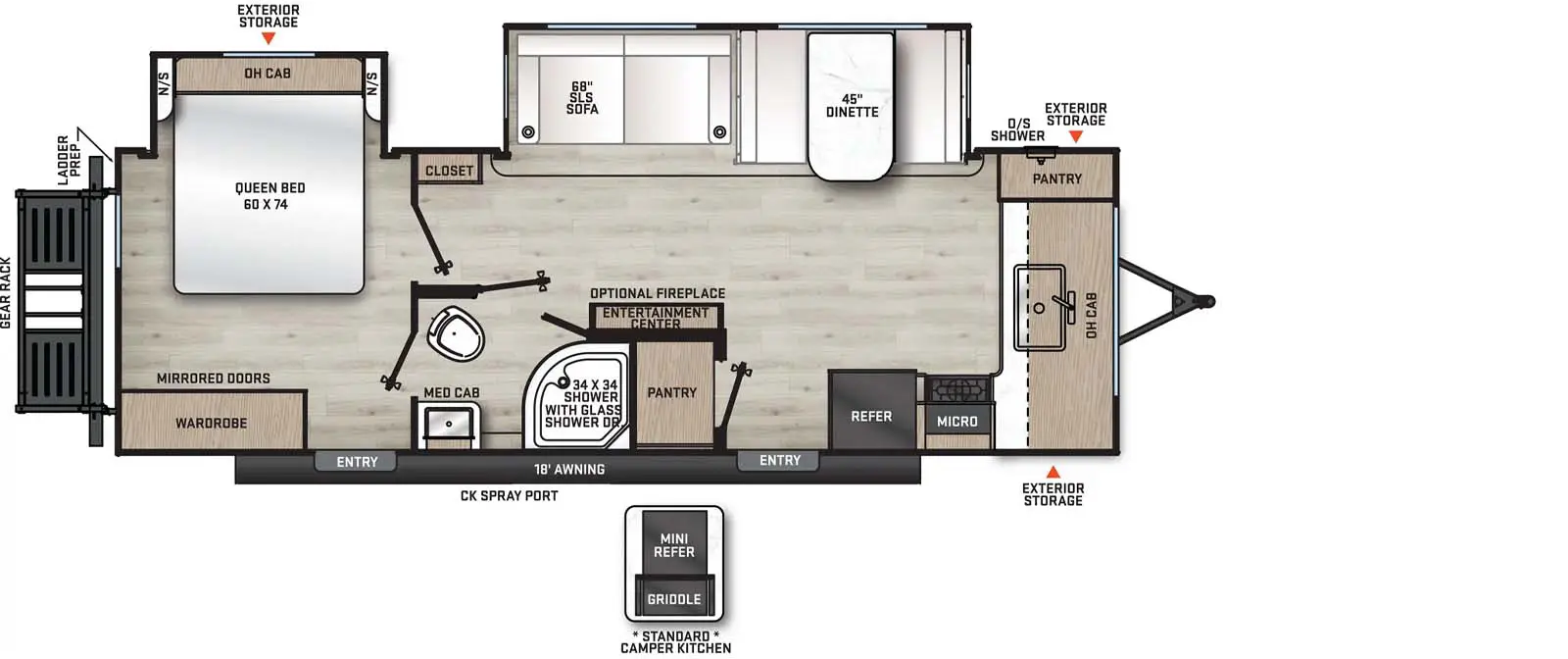

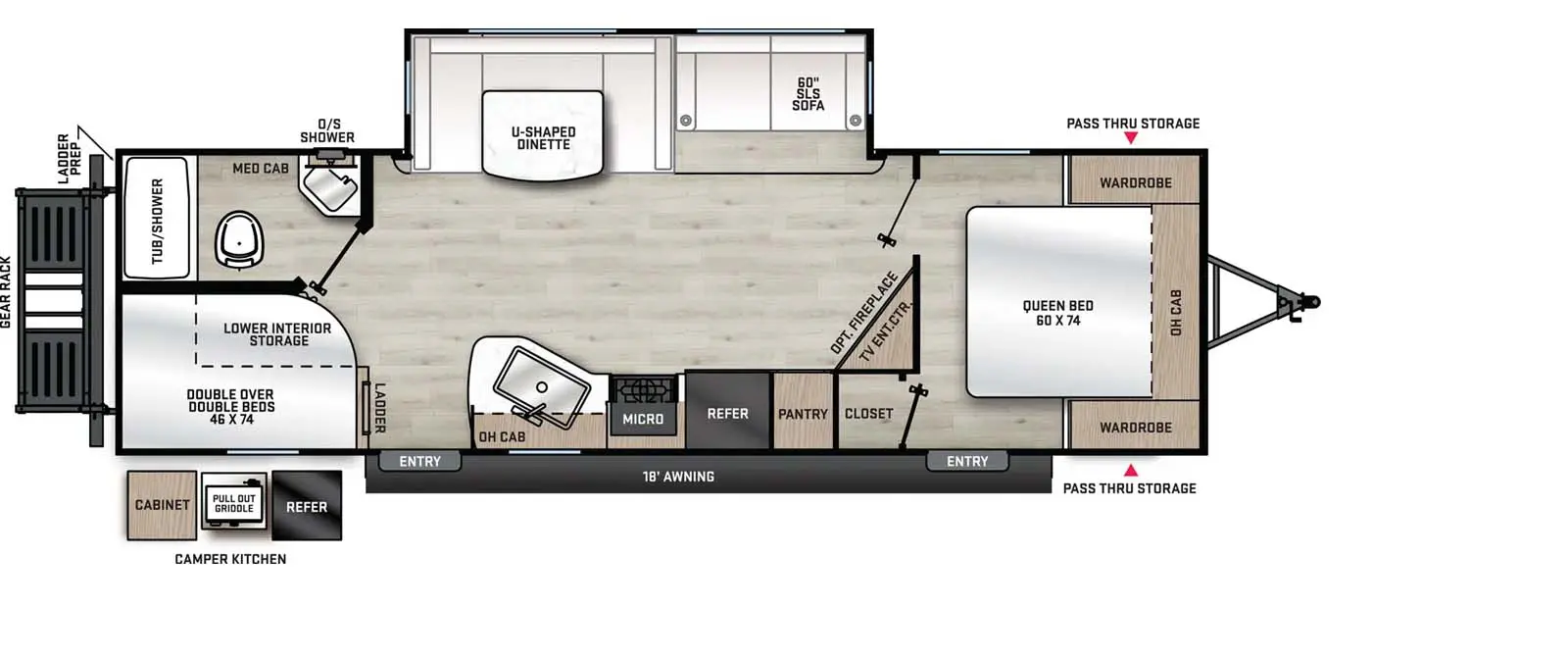

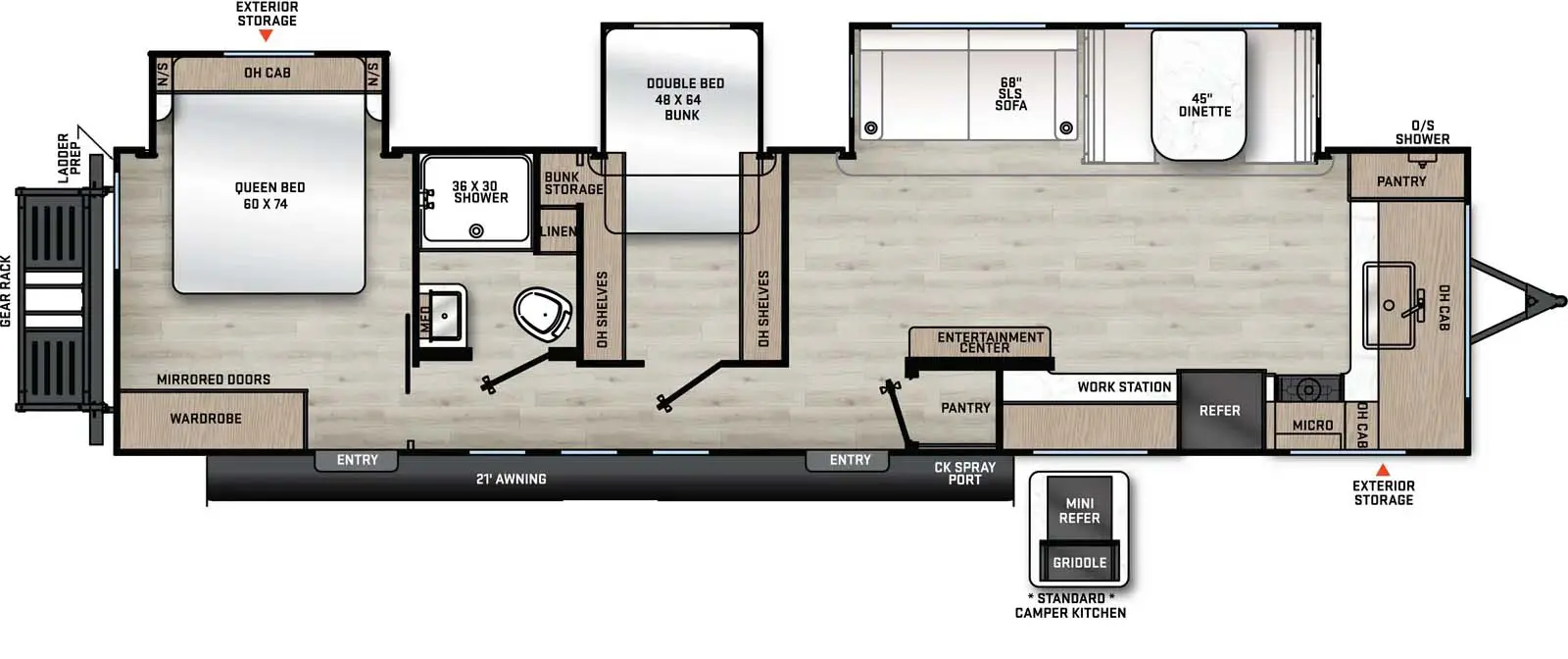

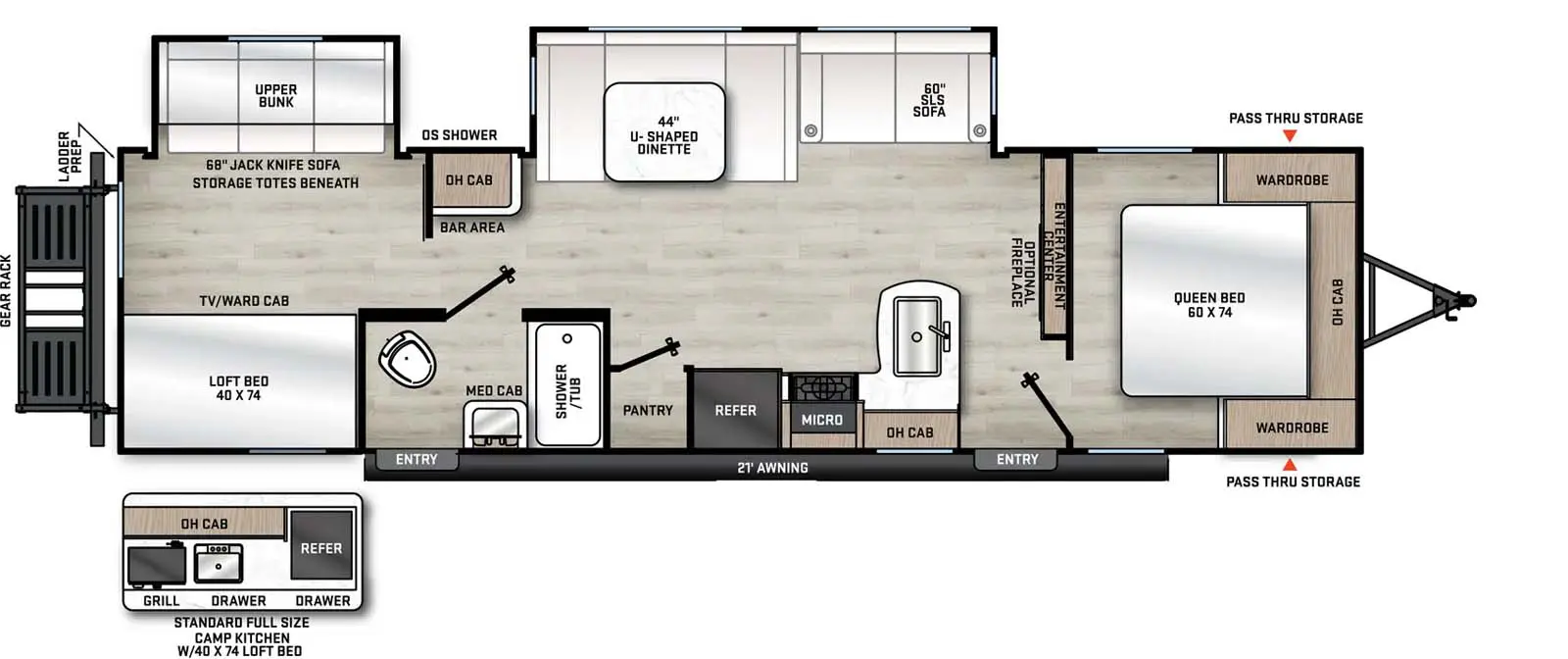

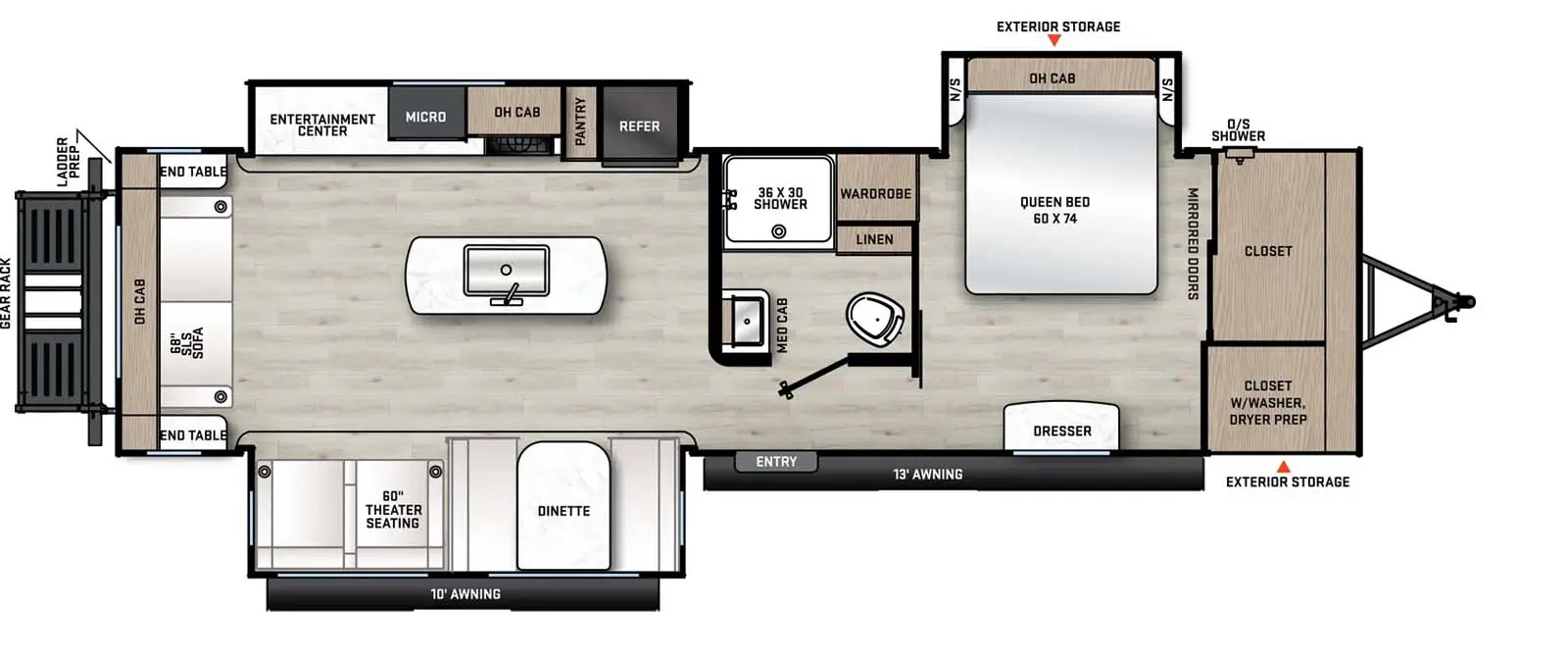

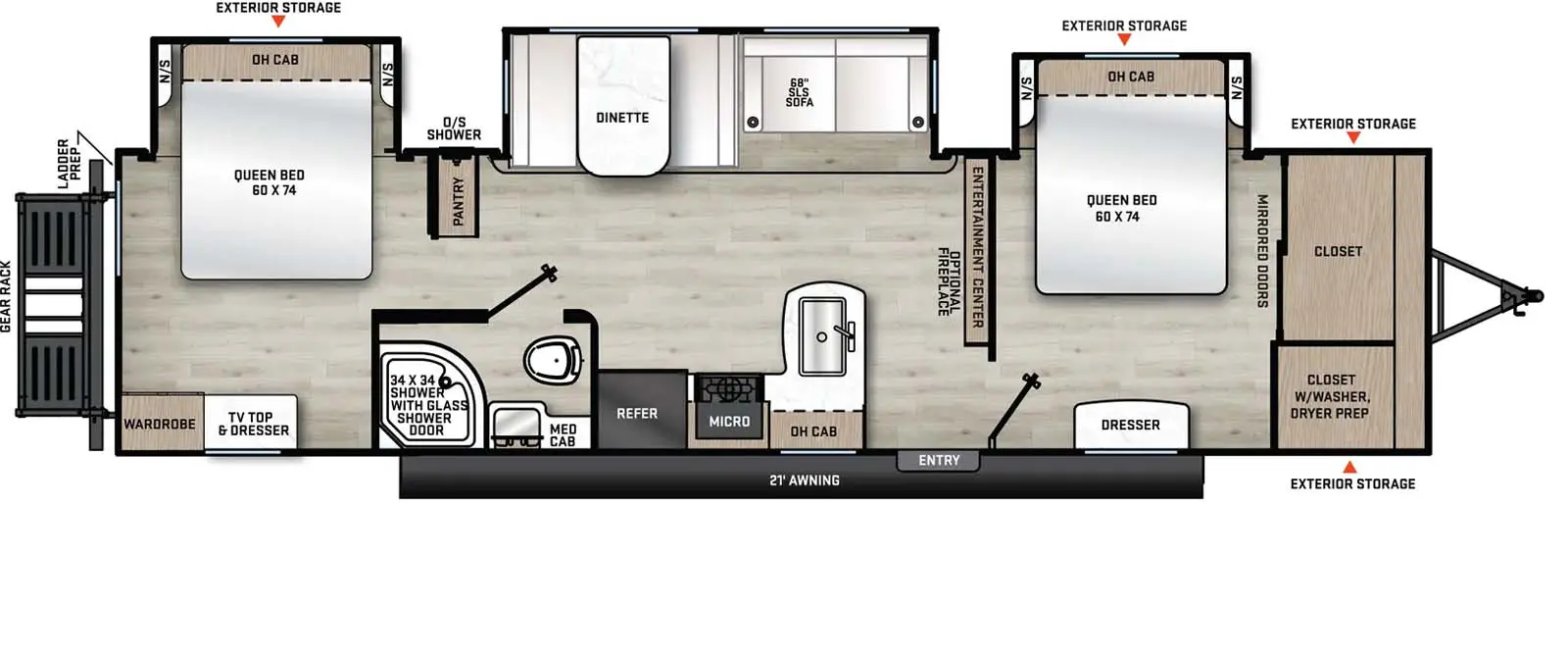

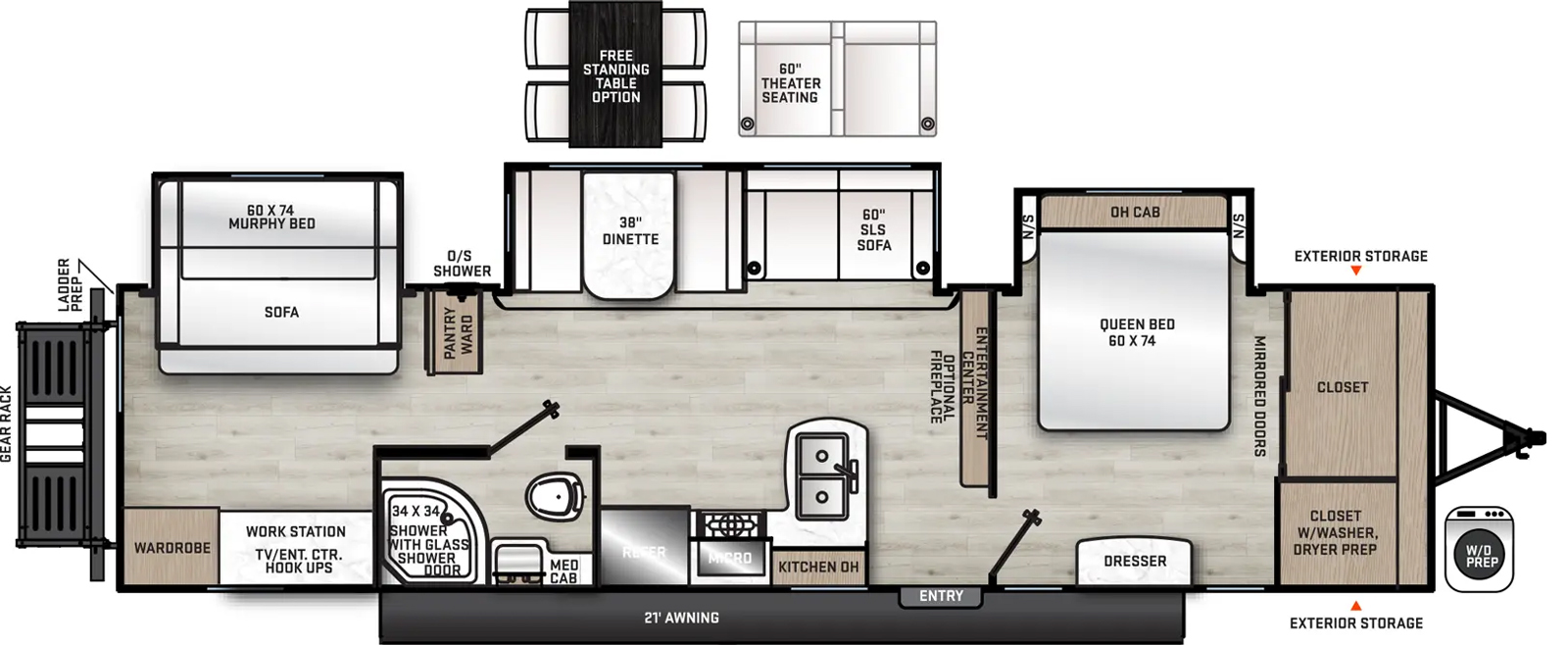

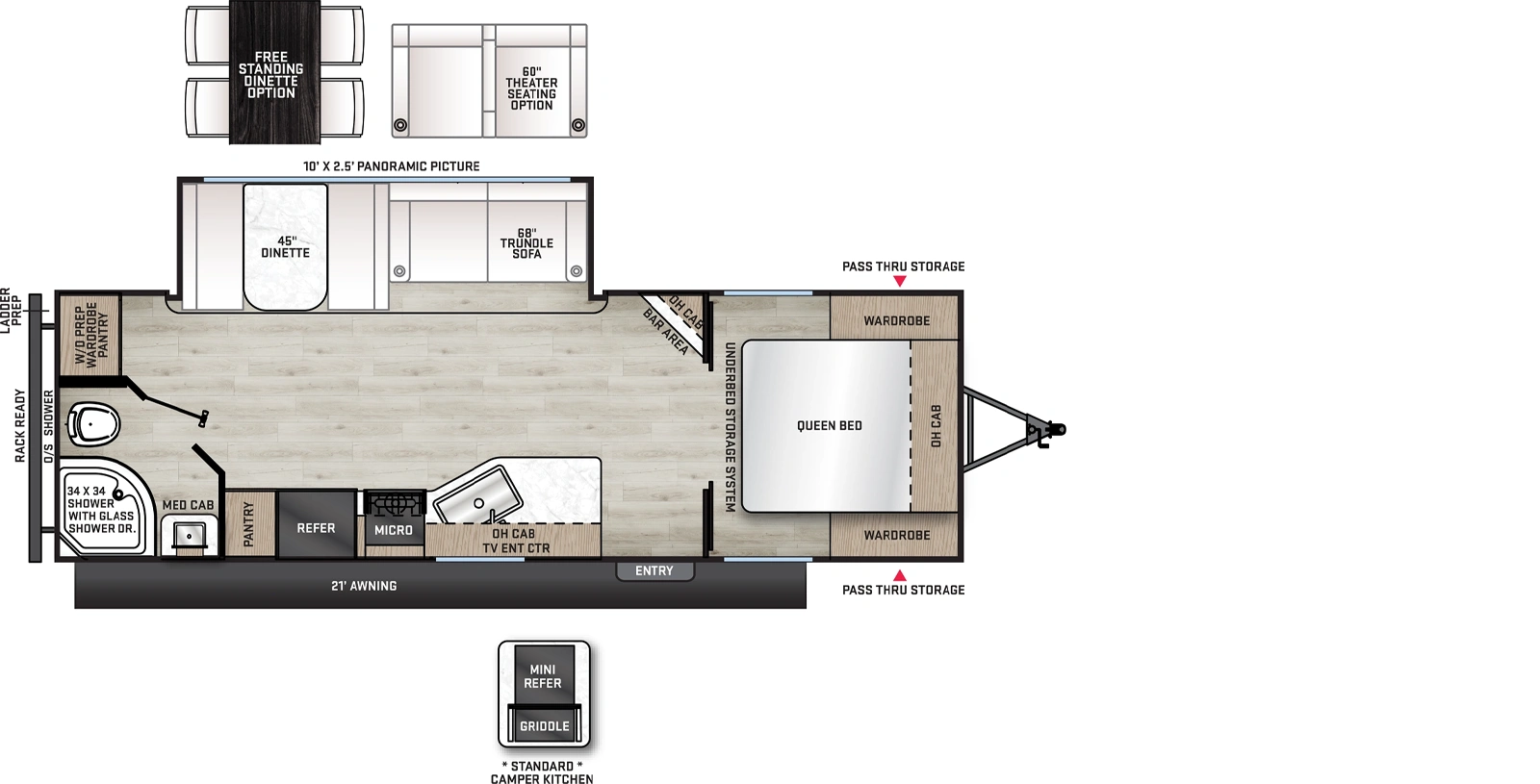

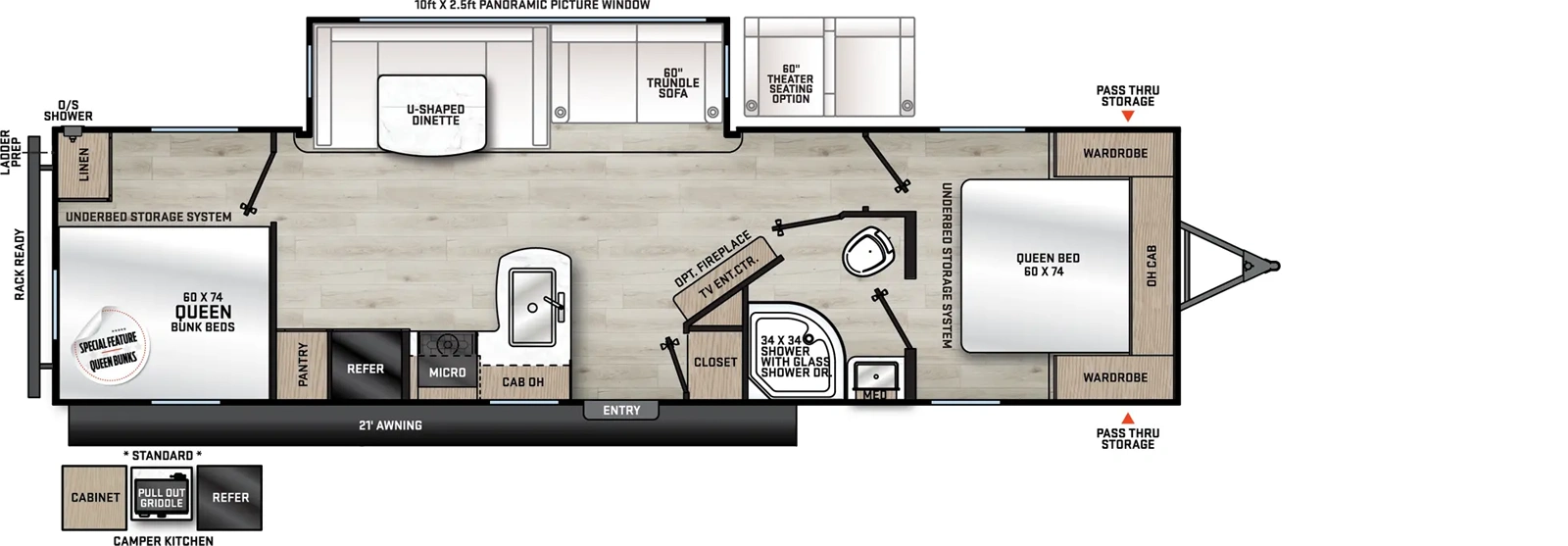

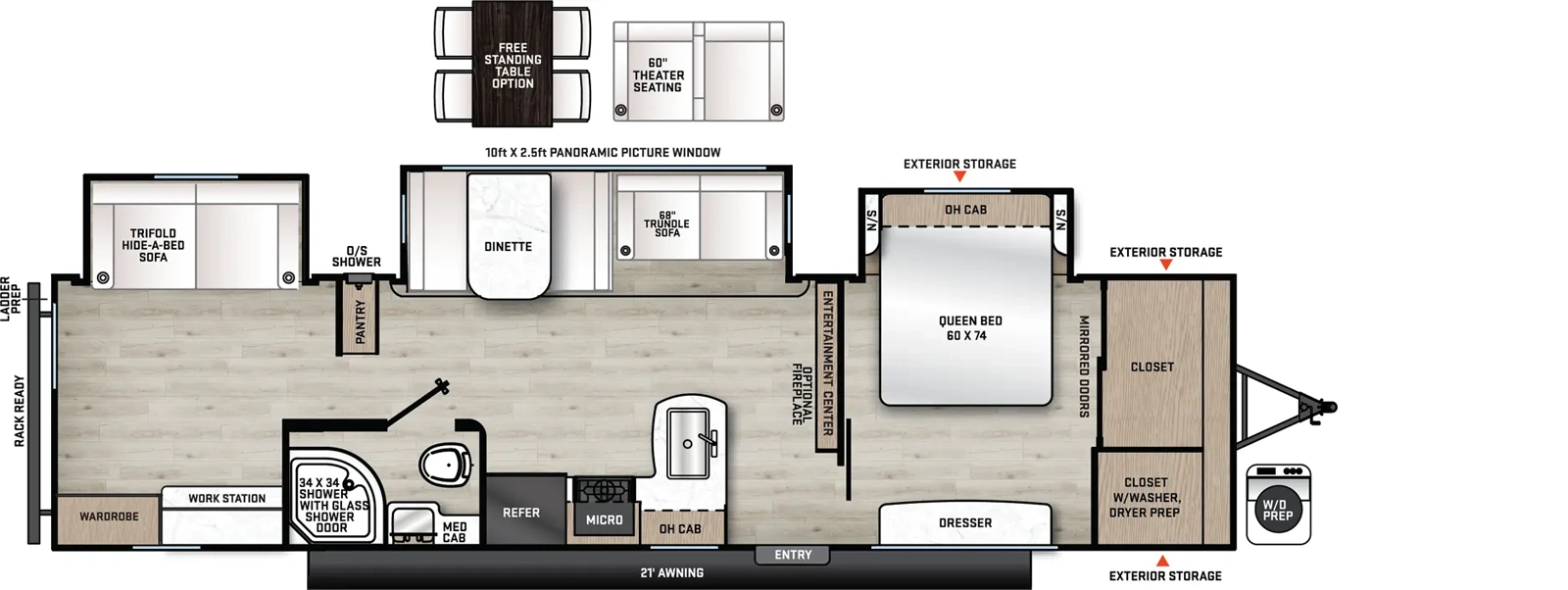

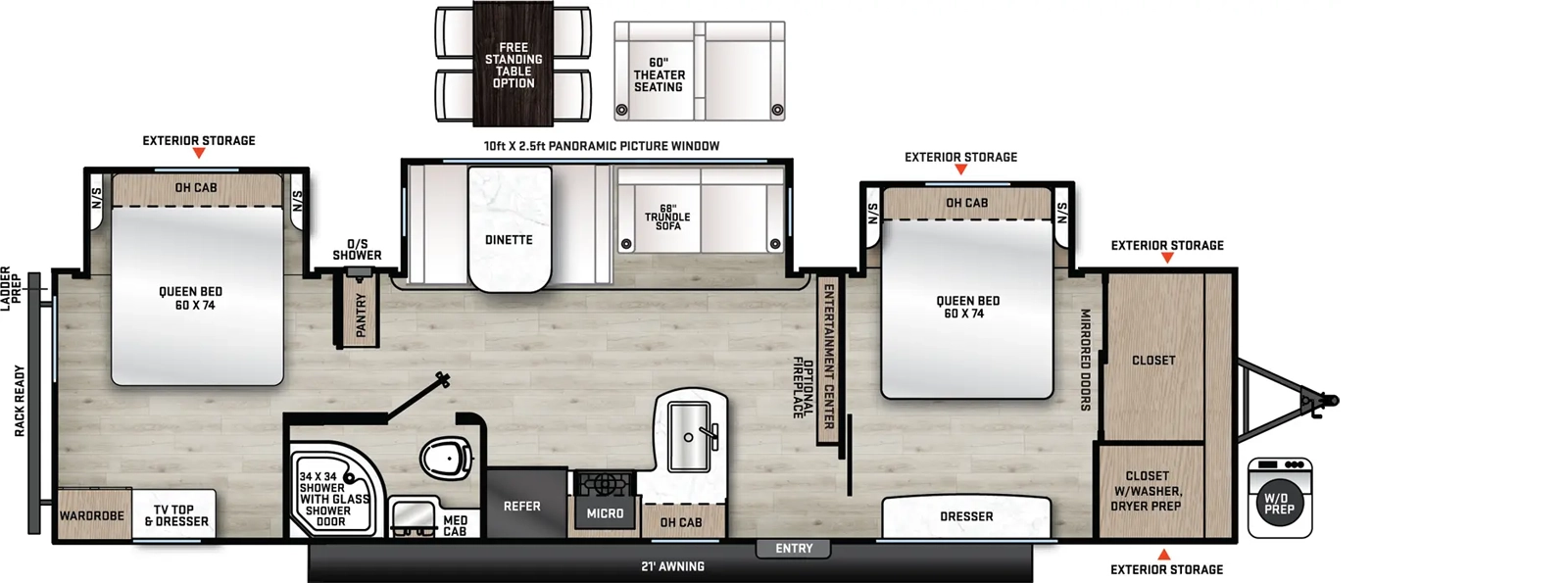

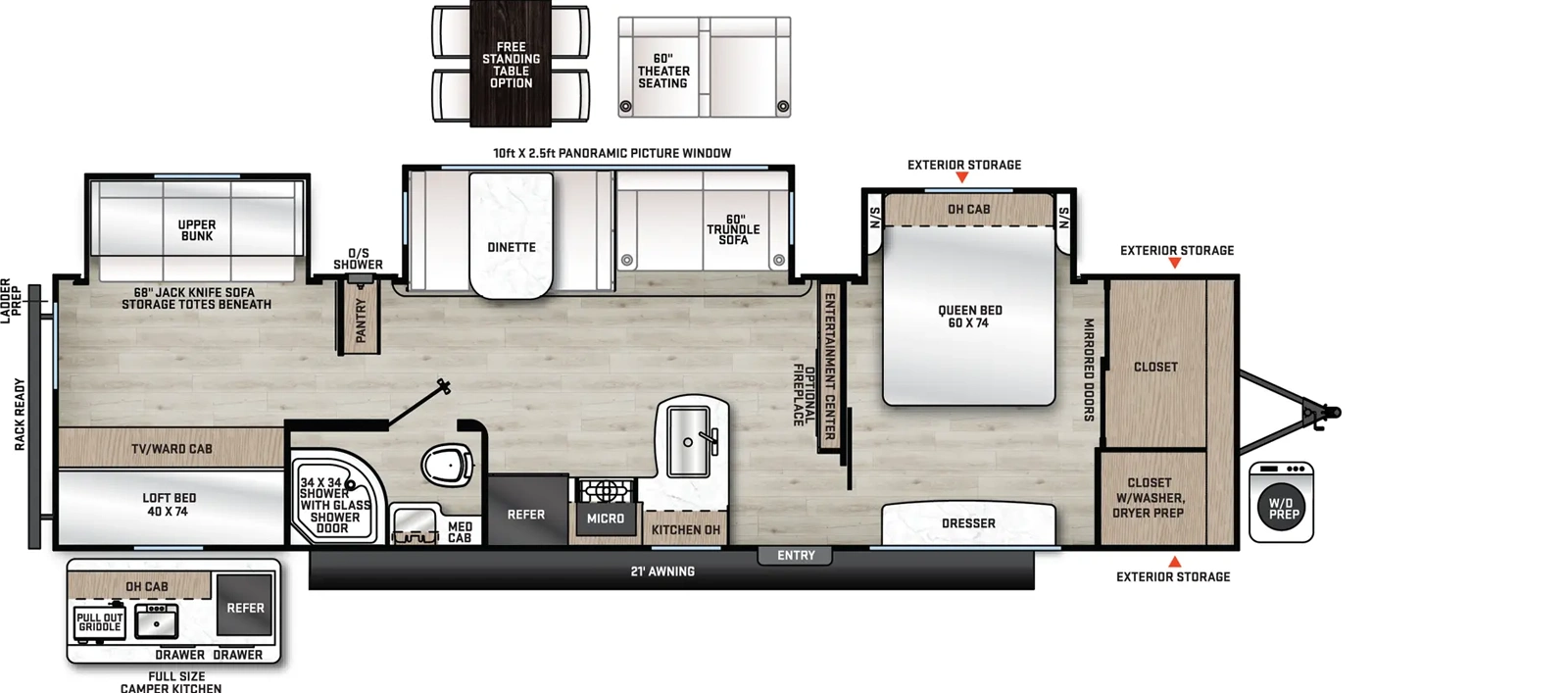

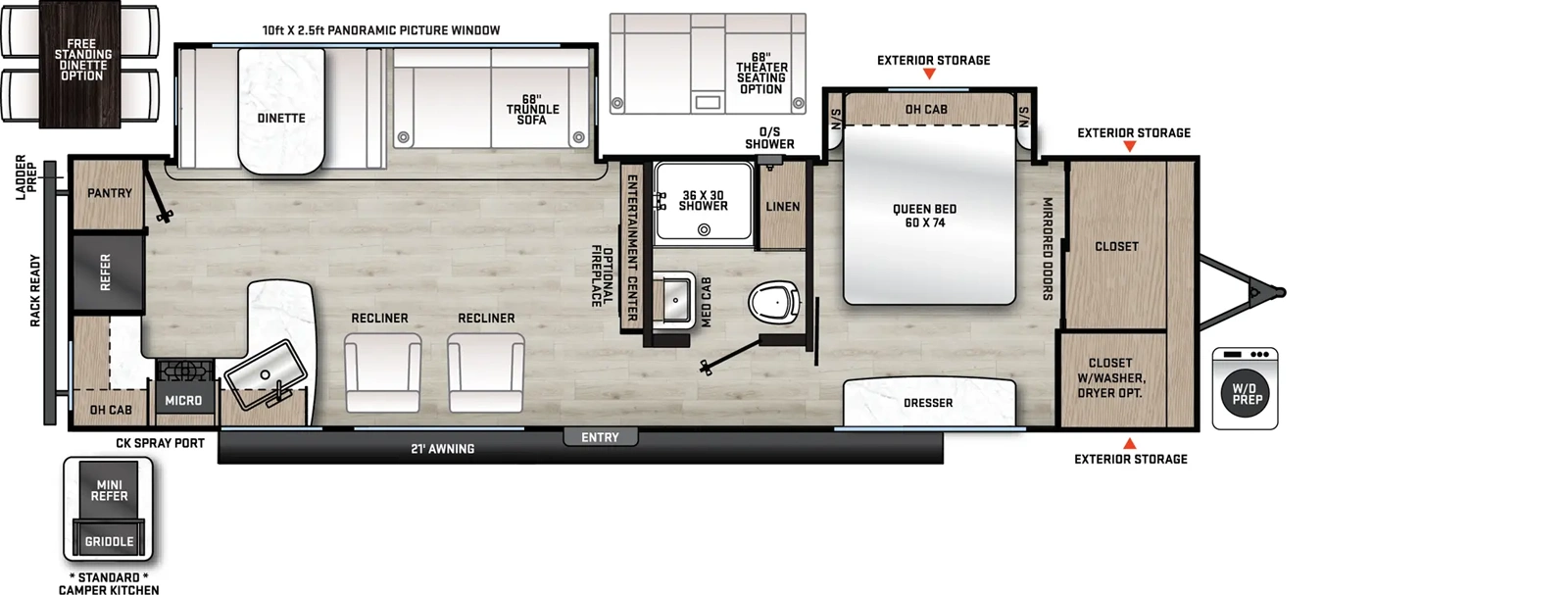

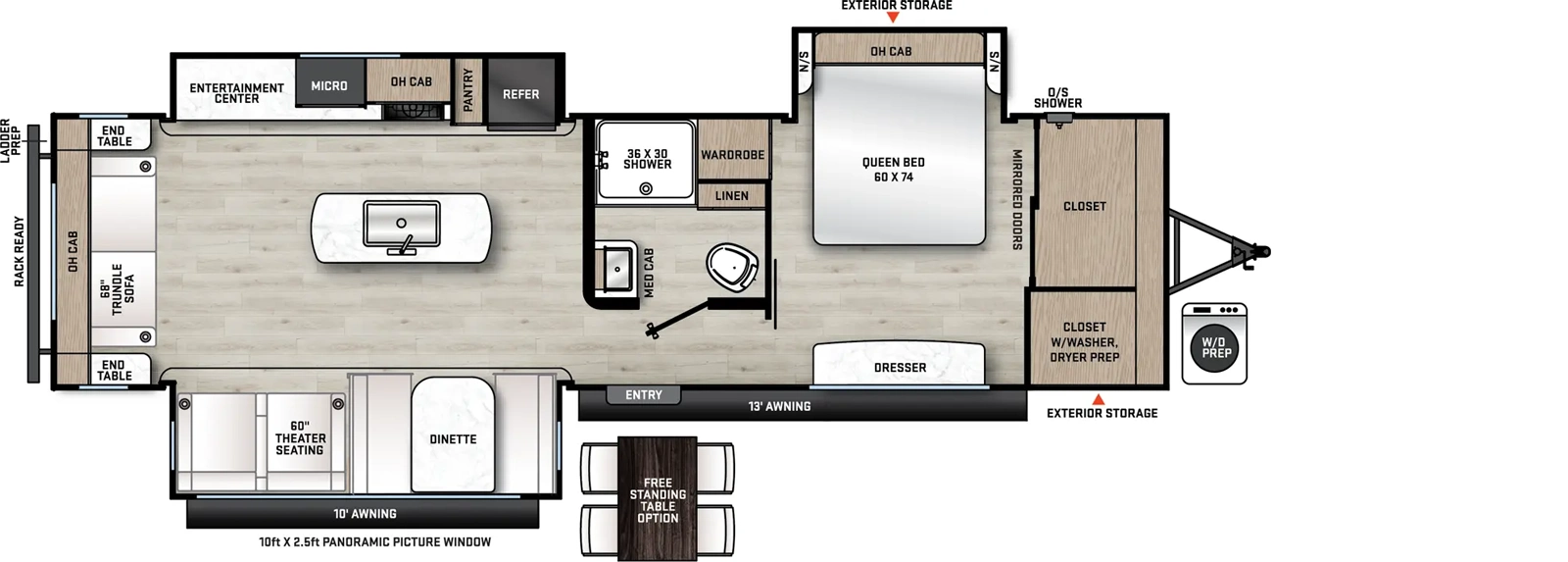

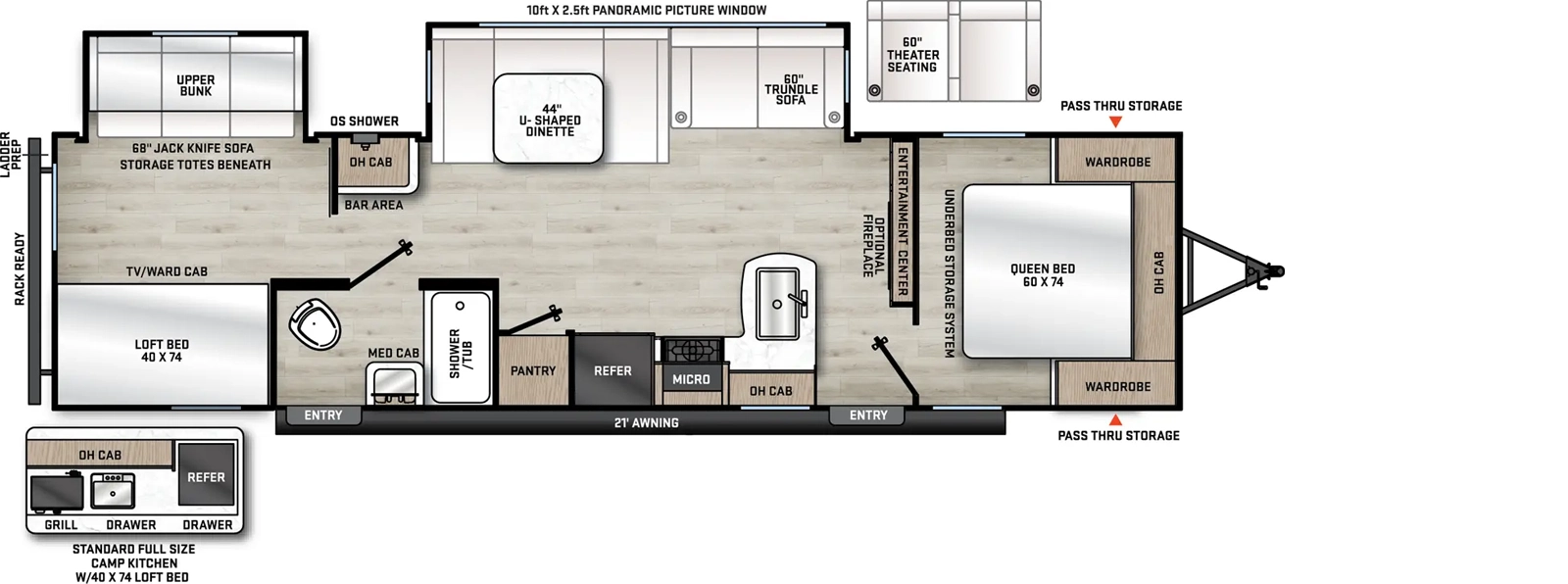

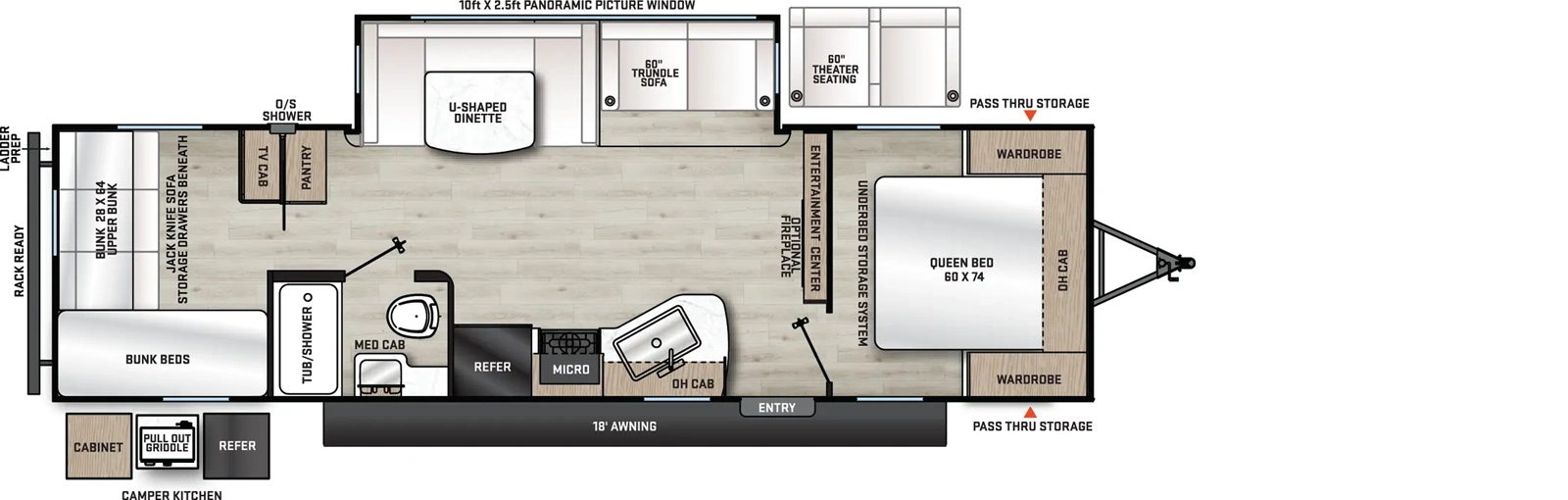

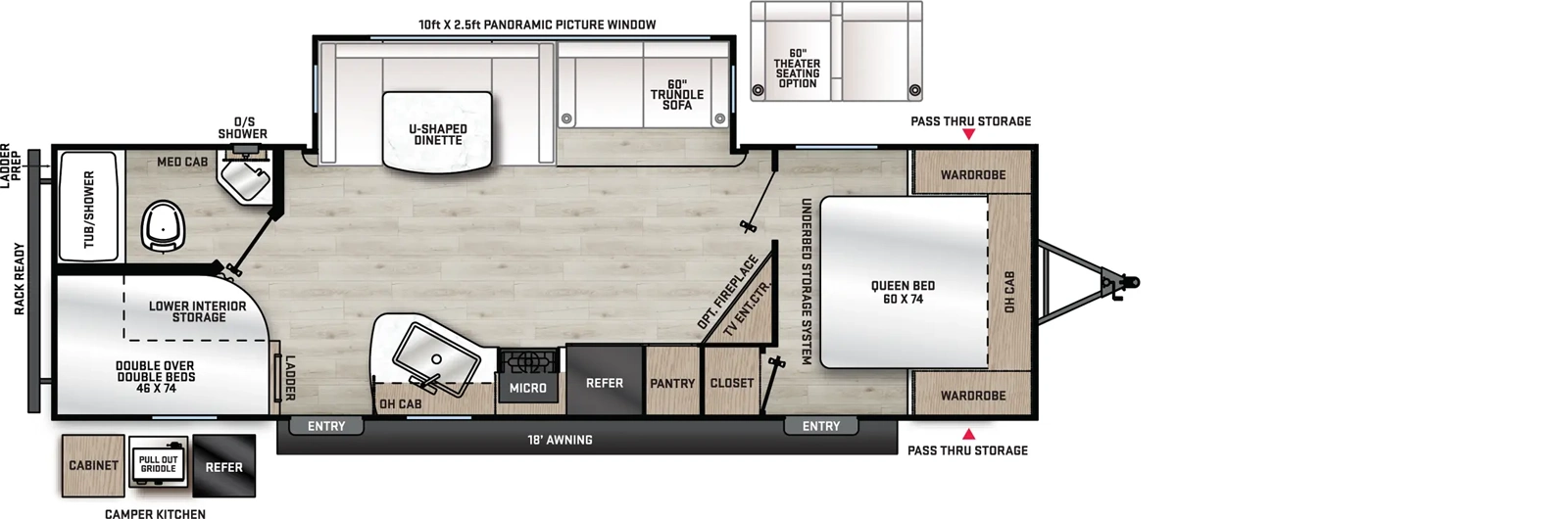

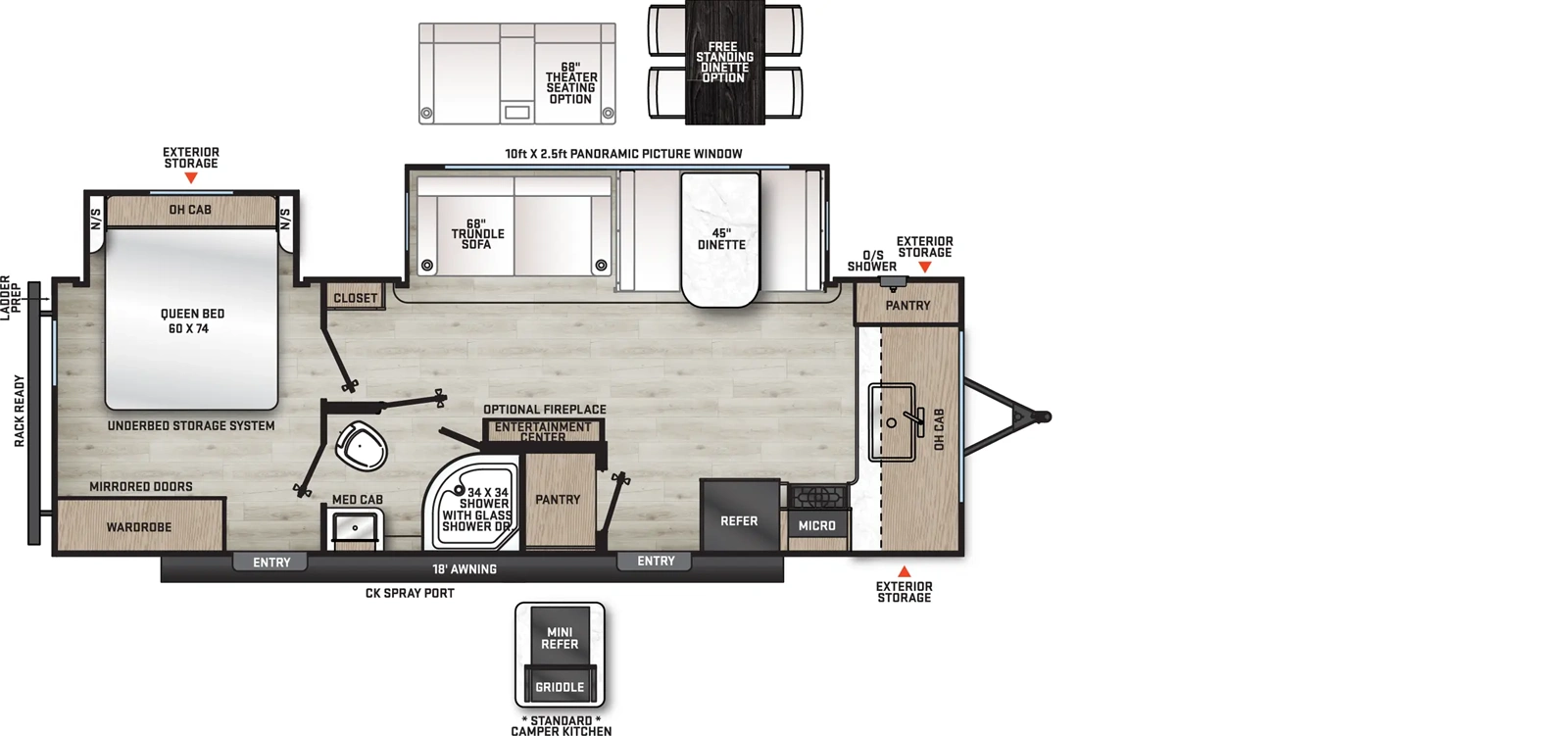

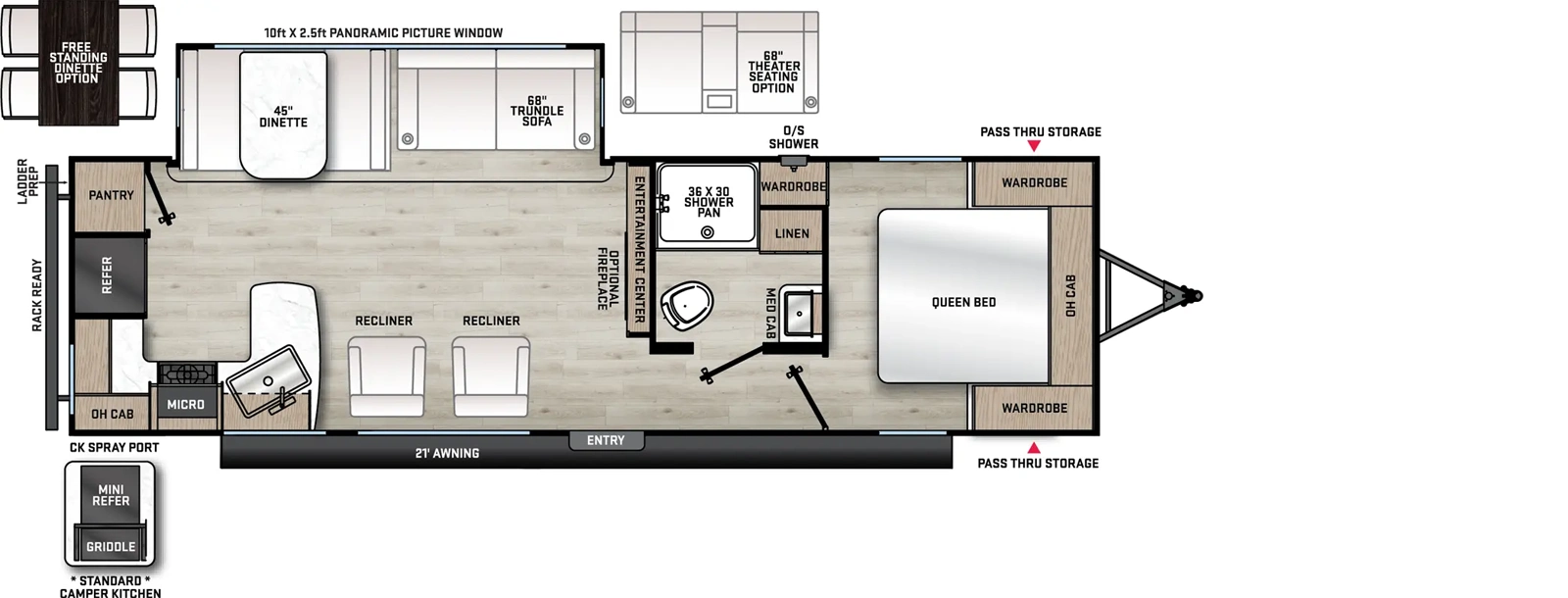

Floorplan: 243RBS : Travel Trailers 263BHSCK : Travel Trailers 263FKDS : Travel Trailers 283RKS : Travel Trailers 293QBCK : Travel Trailers 303RKDS : Travel Trailers 313RLTS : Travel Trailers 323BHDSCK : Travel Trailers 323QBTSCK : Travel Trailers 343BHTS : Travel Trailers 343BHTS (2 Queen Beds) : Travel Trailers 303QBCK - DSO : Dealer Stock Only 333RETS - DSO : Dealer Stock Only
Hitch Weight:676 lb.728 lb.918 lb.840 lb.744 lb.1,086 lb.950 lb.896 lb.1,090 lb.1,252 lb.1,220 lb.856 lb.1,096 lb.
GVWR:7,100 lb.8,300 lb.8,600 lb.8,300 lb.8,700 lb.10,000 lb.10,500 lb.9,500 lb.10,500 lb.10,800 lb.10,800 lb.9,500 lb.10,500 lb.
UVW:5,588 lb.6,532 lb.6,869 lb.6,635 lb.6,883 lb.8,042 lb.8,375 lb.7,864 lb.8,581 lb.8,620 lb.8,498 lb.7,127 lb.8,628 lb.
CCC:1,512 lb.1,768 lb.1,731 lb.1,665 lb.1,817 lb.1,958 lb.2,125 lb.1,636 lb.1,919 lb.2,180 lb.2,302 lb.2,373 lb.1,872 lb.
Exterior Length:28' 9"32' 6"30' 0"33' 8"34' 2"36' 11"36' 5"36' 8"37' 4"38' 4"38' 6"35' 10"36' 7"
Exterior Height:11' 1"11' 1"11' 1"11' 1"11' 1"11' 3"11' 3"11' 1"11' 1"11' 3"11' 3"11' 3"11' 1"
Exterior Width:96"96"96"96"96"96"96"96"96"96"96"96"96"
Fresh Water:44.00 gal.44.00 gal.44.00 gal.44.00 gal.44.00 gal.44.00 gal.44.00 gal.44.00 gal.44.00 gal.44.00 gal.44.00 gal.44.00 gal.44.00 gal.
Gray Water:40.00 gal.70.00 gal.60.00 gal.70.00 gal.40.00 gal.70.00 gal.40.00 gal.70.00 gal.40.00 gal.70.00 gal.70.00 gal.40.00 gal.40.00 gal.
Black Water:30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.
Awning Size:15'18'18'15'18'21'10' & 13'21'18'21'21'18'14'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Coachmen RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Coachmen RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Features & Options

Print

  • Flip Down Cargo Rack w/200 lb. Cap.
  • Electric Awning w/Multicolor LED Strip & Remote
  • Black Tank Flush
  • Battery Disconnect Switch
  • Siphon 360 Holding Tank Roof Vent
  • Electric Tongue Jack
  • Outside Utility Shower w/ Hands Free Holder
  • (2)20 lb. LP Tanks
  • BlackABS LP Bottle Cover
  • LP Quick Connect
  • Flush Mount Baggage Doors w/Radius Corners
  • Diamond Plate Rock Guard
  • Stabilizer Jacks
  • G20 Tinted Privacy Windows
  • Front Landscape Picture Window (263FKDS)
  • Premium JBL Exterior Speakers(s)
  • Friction Hinge Door
  • Radius Cornered Fiberglass Entry Door
  • Exterior 110V G.F.C.I Protected Receptacle
  • Exterior RG-6 Coax Cabling and Satellite Prep
  • Exterior TV Hookup
  • Rain Gutters with Drip Spouts
  • SolidStep Entrance Steps IPO Flip-Down Steps (Main Entrance Only)
  • XL Swing Arm Entry Assist Handle (Main Entrance Only)
  • Rear View Camera Prep

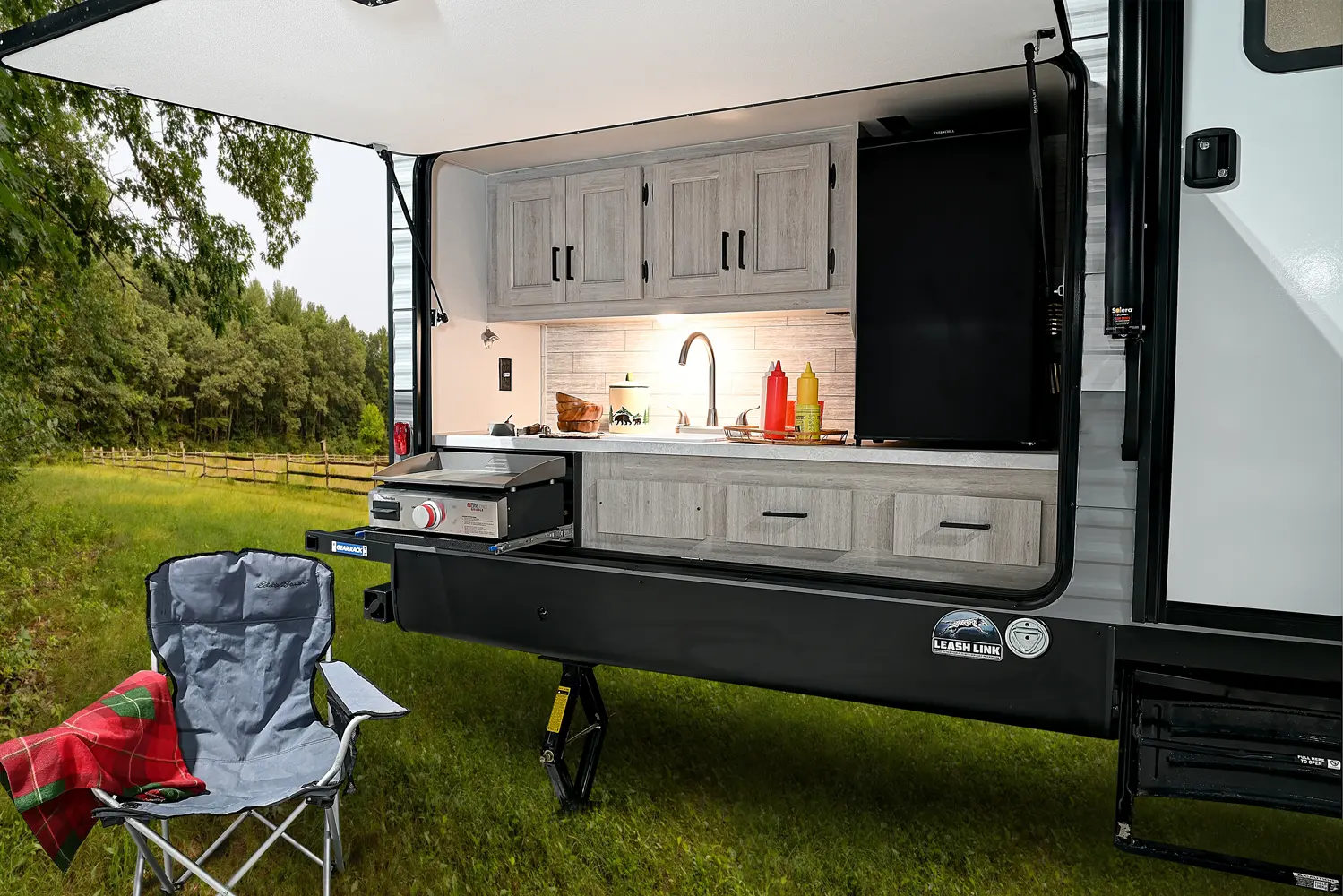

  • Full Size Exterior Camp Kitchen (323BHDSCK, 323QBTSCK, 343BHTS)
  • Exterior Camp Kitchen + Storage (263BHSCK, 293QBCK)
  • Exterior Camp Kitchen (263FKDS, 283RKS, 303RKDS)
  • Bottle Openers (Exterior Camp Kitchens)
  • Pets - "Leash Link" Quick Hookup D-Ring
  • Universal Solar Prep w/Roof & Chg. Contoller Connections & Wiring
  • One Control Smart RV Tech Monitor Panel (uses LCI OneControl - App)
  • RV-LINK 4G LTE Remote Connect, WiFi, Booster, and Extender
  • Premium Audio JBL Aura Cube Multi-Zone Function Media Center
  • Premium JBL Interior Speaker(s)

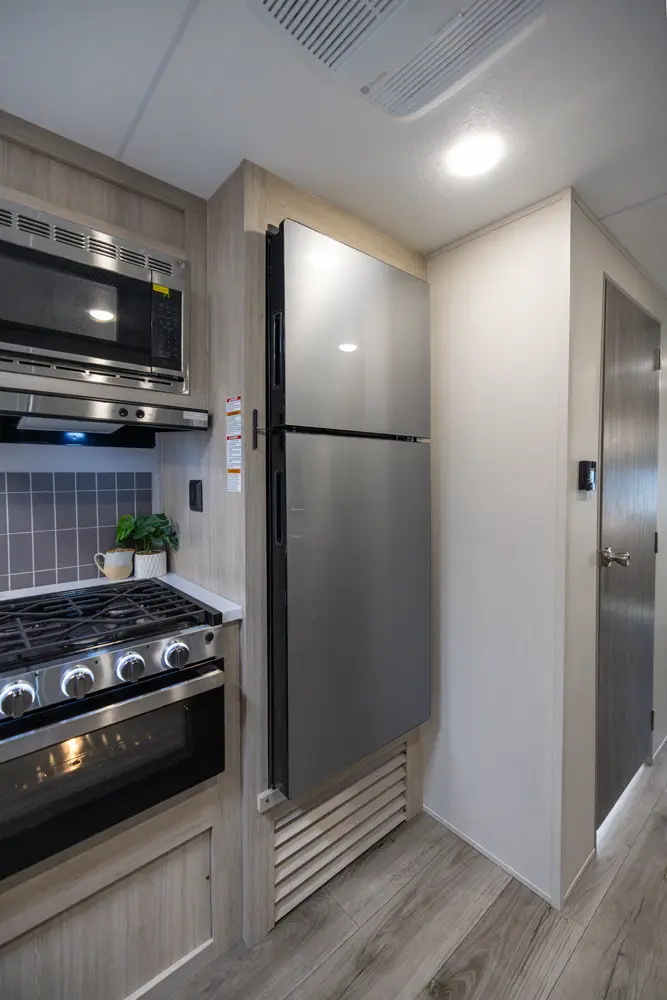

  • 10 Cu. Ft. 12V Refrigerator
  • Seamless Thermofoil Countertops Throughout
  • Under-mount Farm Style Sink
  • Residential Kitchen Faucet w/Pull Down Sprayer
  • Flush Counter Split Kitchen Sink Covers
  • 3 Burner SST Range w/Flush Glass Top & LED Accent's
  • Slim Line Range Hood
  • SST Microwave W/Glass Turn Table
  • Congoleum Woodplank Linoleum Flooring
  • 4000 Lumin LED Interior Lighting
  • Jiffy Sofa w/Flip Down Cup Holder/Arm Rest
  • Easy Access Kickboard Storage Underneath Jiffy Sofa (Per Floorplan)
  • Designer Wall Light Main Slide Room
  • Hard Valance Window Treatments

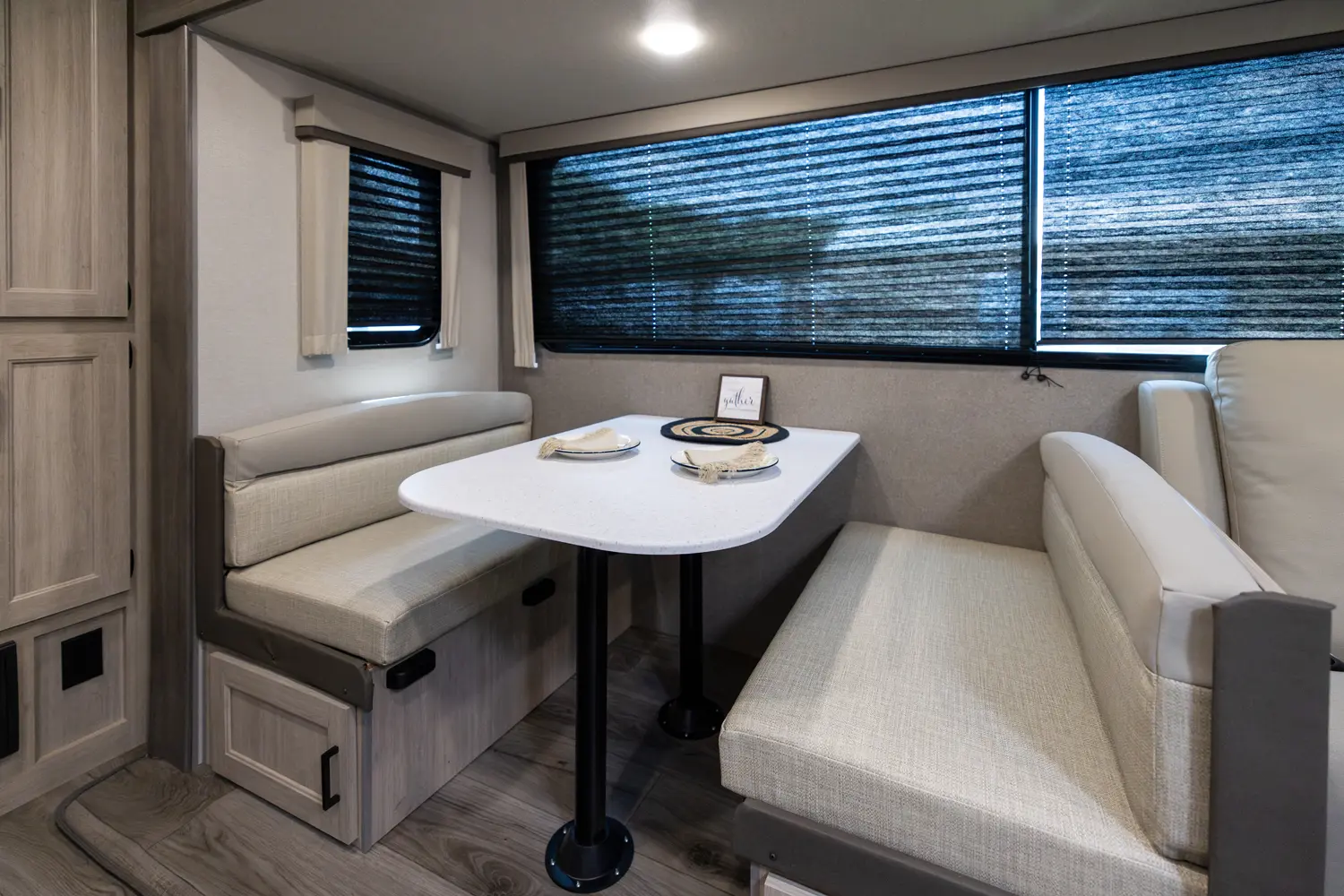

  • Pedestal Thermofoil Dinette Table
  • Under Bench Dinette Storage (Per Floorplan)
  • Easy Access Booth Dinette Storage Doors
  • 12V 14" Living Room Power Vent Fan
  • 12V 14" Bathroom Power Vent Fan
  • Marine Toilet with Foot Flush
  • ABS Tub/Shower Surround w/Shelves
  • Skylight Above Tub/Shower
  • Glass Step-In Shower w/ABS Surround (Per Floorplan)
  • Medicine Wall Cabinet with Mirror
  • Bedroom Surface Mounts USB Ports (Each Night Stand)
  • Kitchen USB's & Outlets
  • USB Surface Mounts Near Bunk Beds
  • Solid Master Bedroom Door(s) (Per Floorplan)
  • Solid Bunk Room Door (Per Floor Plan)
  • Full Length Night Stands (N/A Bed Slide-Outs)
  • Mirrored Wardrobes in Master Bedroom
  • Master Bedroom Overhead Cabinets
  • Underbed Storage w/Separation from Outside Front Storage
  • Designer Fitted Master Bed Sheet

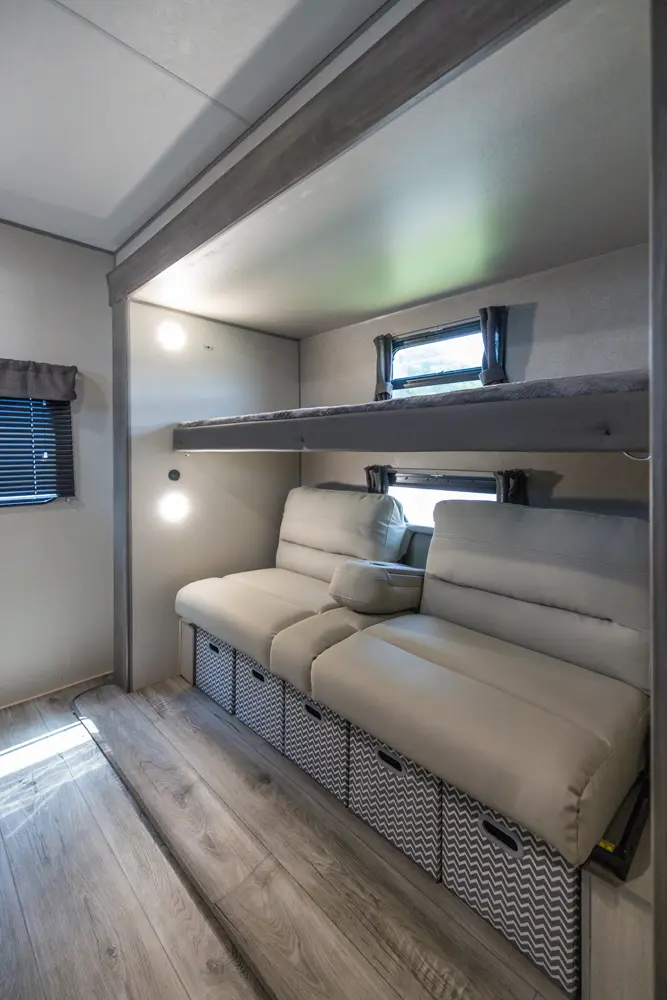

  • Teddy Bear Bunk Mats
  • Full Lino in Slide-Outs and Bedrooms (Carpetless)
  • Washer/Dryer Prep (303RKDS, 313RLTS, 343BHTS)
  • Cambered Structural Steel I-Beam Frame
  • New Road Defense Chassis Powder Coating
  • Full Length Frame Outriggers
  • 5/8" Tongue & Groove Plywood Floor Decking
  • 2"x3" Floor Joists on Approximately 12" Centers
  • 5" Floor To Frame Steel Lag Bolts
  • Enclosed, Fully Sealed Corrugated Underbelly
  • Darco Subfloor Protective Wrap/Enclosure
  • Seamless Alpha Roof Membrane with Lifetime Warranty
  • Cross-Braced Engineered Roof Trusses w/5" Crown
  • 3/8" Fully Decked Walk-On Roof
  • Screwed Cabinet Construction w/Pocket Bored Lumber Core Stiles
  • Hardwood Cabinet Doors
  • 5/8" Plywood Under Bed & Dinette Base
  • 81" Interior Height (6' 9")
  • Easy-Trac Rack and Pinion Through Frame Main Slide-Out(s)
  • R-7 Fiberglass Insulation Throughout
  • 6 Gal. Gas/Electric DSI Water Heater
  • Water Heater By-Pass Winterization Kit
  • 12V Demand Water Pump
  • Premium Exterior Graphics Package
  • Upgraded Front Graphics Design
  • Platinum .024" Aluminum Exterior w/.030 Skirt Metal
  • Smooth HD Aluminum Radius Front
  • Polished HD Aluminum Fender Skirts
  • Spare Tire, Carrier, and Cover
  • Dexter EZ Lube Axles w/Leaf Spring Suspension
  • Self Adjusting Brakes
  • Roto-Cast Holding Tanks
  • Bumper w/ Drain Hose Carrier and End Caps
  • 35,000 BTU Auto-Ignition Furnace w/Wall Thermostat (N/A 283RKS)
  • 30,000 BTU Auto-Ignition Furnace w/Wall Thermostat (283RKS Only)
  • Residential In-Floor Ducted Heat
  • 13,500 BTU Fully Ducted A/C
  • 30 Amp Elect. Service w/ 100v 45-Amp Power Covt.
  • 50 AMP Elect. Service (Standard on 303RKDS, 313RLTS, & 343BHTS) *see options
  • Upgraded Aluminum Wheels
  • Magnetic Hands Free Baggage Door Latches
  • Smoke Alarm
  • LP/CO Gas Detector
  • Fire Extinguisher
  • Fire Escape Windows
  • Entrance Door Window
  • Dead-Bolt Lock on Entry Door
  • SafeRide RV Motor Club (1 YR Roadside Assistance)
  • 7 Cu. Ft. LP Gas/Electric RV Refrigerator w/Reversable Door Inserts
  • 15,000 BTU Ducted A/C IPO 13.5 A/C
  • 50 Amp Service w/ 2nd 13.5 A/C (N/A 243RBS, 263BHSCK, 283RKS)
  • 50 Amp Service w/2nd A/C Prep (N/A 243RBS, 263BHSCK, 283RKS)
  • Peak Performance Solar Package - 30A Controller w/ 200W Panel
  • Free Standing Table w/4 Chairs (N/A U-Dinette Floorplans)
  • Tri-Fold Hide A Bed Sofa

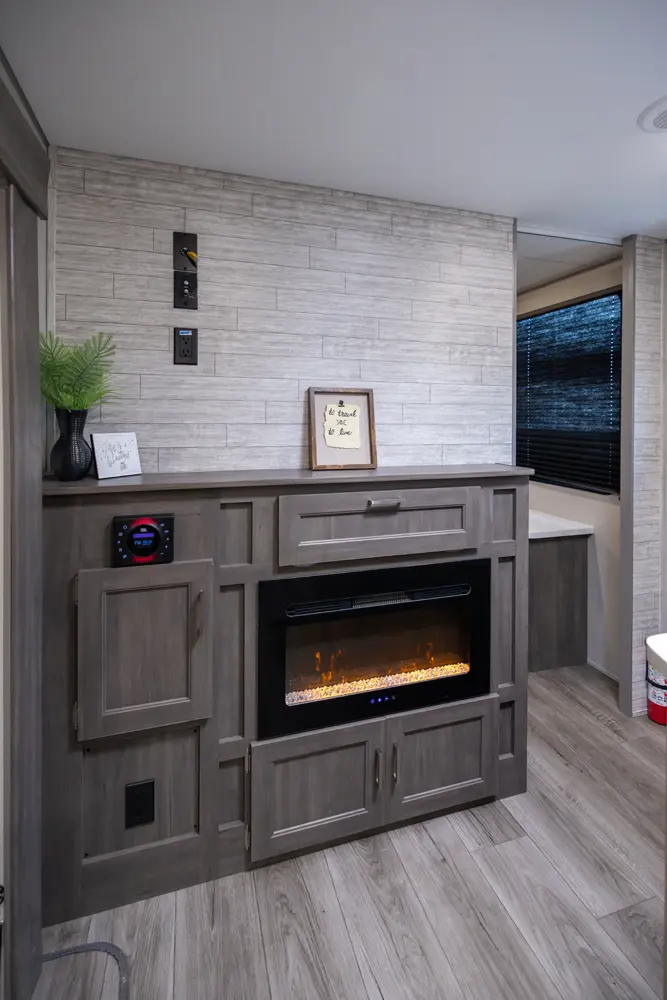

  • Fireplace w/Electric Heater in the Living Room
  • Steel Fold-Down Steps ipo SolidStep Entrance Steps
  • 2nd Queen Bed IPO Bunkroom & Camp Kitchen (343BHTS Only)
  • GE Washer/Dryer Combo Unit (Per Floorplan)
  • CSA Standards
