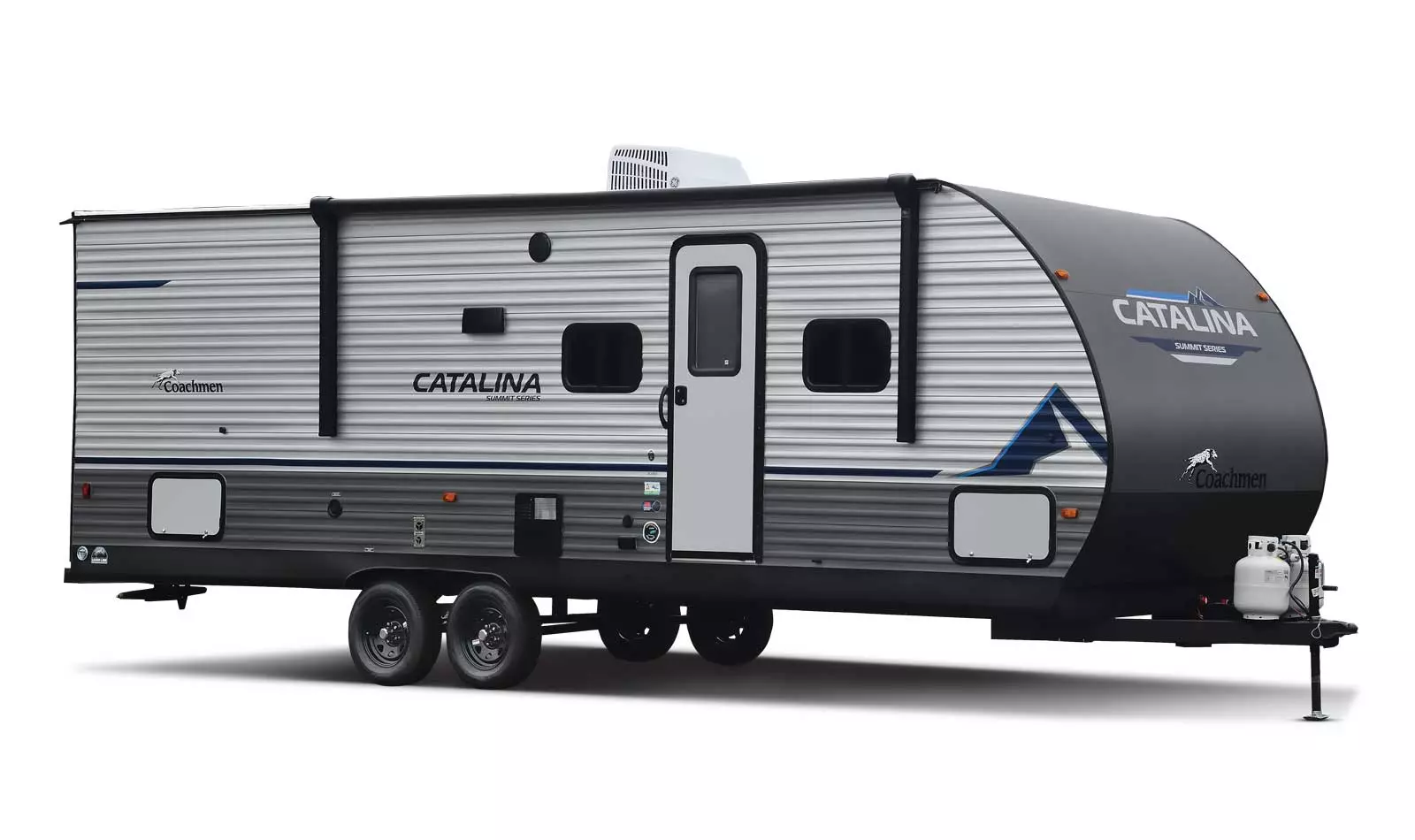

Catalina Summit Series 8' Travel Trailers

The Catalina Summit Series 8 is our second family friendly line up. With tons of features and standards packed in at a very affordable price, the Summit Series 8 is a hit across North America. Featuring 7 family friendly floorplans, the Summit Series 8 has everything that you’ll need for your next adventure!

Filter

Select filters below and then click the Filter Results button to remove non-matching Floorplans and their Specifications












to

to




Specifications

Print


Hitch Weight:
GVWR:
UVW:
CCC:
Exterior Length:
Exterior Height:
Exterior Width:
Fresh Water:
Gray Water:
Black Water:
Awning Size:
774 lb.
7600 lb.
5318 lb.
2282 lb.
26' 0"
11' 1"
96"
44 gal.
40 gal.
30 gal.
18'
732 lb.
7600 lb.
5408 lb.
2192 lb.
28' 0"
11' 1"
96"
44 gal.
40 gal.
30 gal.
18'
541 lb.
7000 lb.
4747 lb.
2253 lb.
29' 3"
10' 7"
96"
44 gal.
40 gal.
30 gal.
15'
738 lb.
7700 lb.
6198 lb.
1502 lb.
30' 3"
11' 1"
96"
44 gal.
40 gal.
30 gal.
15'
634 lb.
7600 lb.
6318 lb.
1282 lb.
31' 11"
11' 1"
96"
44 gal.
70 gal.
30 gal.
18'
680 lb.
7600 lb.
6022 lb.
1578 lb.
29' 10"
11' 1"
96"
44 gal.
70 gal.
30 gal.
18'
687 lb.
9000 lb.
6798 lb.
2202 lb.
33' 5"
11' 1"
96"
44 gal.
70 gal.
30 gal.
15'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Coachmen RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Coachmen RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Features & Options

Print
  • Cambered Structural Steel I-Beam Frame
  • Full Length Frame E-Coated Outriggers
  • 5/8" Tongue & Groove Plywood Floor Decking
  • 2"x3" Floor Joists on Approximately 12" Centers
  • 4" Floor To Frame Steel Lag Bolts
  • 3/8" Fully Decked Walk-On Roof (Tandem Axle Models)
  • Seamless Roof Membrane with 12 Year Warranty
  • Screwed Cabinet Construction w/Pocket Bored Lumber Core Stiles
  • 5/8" Plywood Under Bed & Dinette Base
  • 81" Interior Height
  • Easy-Trac Rack and Pinion Slide-Out(s)
  • R-7 Fiberglass Insulation Throughout
  • 6 Gal. Gas/Electric DSI Water Heater
  • Water Heater By-Pass Winterization Kit
  • 12V Demand Water Pump
  • Platinum .024" Aluminum Exterior w/.030 Skirt Metal
  • Smooth HD Aluminum Radius Front
  • Polished HD Aluminum Fender Skirts
  • Spare Tire, Carrier, and Cover
  • Dexter EZ Lube Axles w/Leaf Spring Suspension
  • Self Adjusting Brakes
  • Roto-Cast Holding Tanks
  • Painted Bumper w/ Drain Hose Carrier and End Caps
  • 35,000 BTU Auto-Ignition Furnace w/Wall Thermostat (N/A 261BH)
  • 13,500 BTU Ducted A/C
  • 30 Amp Elect. Service w/ 100v 45-Amp Power Converter
  • Aluminum Wheels
  • Power Awning w/12V Power Channel and Directional Light Attachment
  • Heavy Duty Standard Tongue Jack
  • Black Tank Flush
  • 20lb. LP Tank (2) Tandem Axle Models, (1) Single Axle Models
  • Flush Mount Baggage Doors w/Radius Corners
  • Diamond Plate Rock Guard
  • Four Stabilizer Jacks
  • G20 Tinted Windows
  • Two Marine Grade Exterior Speakers w/LED Lighting
  • Friction Hinge Door
  • Radius Cornered Fiberglass Entry Door
  • Exterior 110V G.F.C.I Protected Receptacle
  • Rain Gutters with Drip Spouts
  • Radius Entry Steps
  • XL Swing Arm Grab Handle
  • Rear View Camera Prep
  • Pull Out Camp Kitchen (271BHSCK)
  • Exterior Convenience Kitchen (271RKS)
  • Bottle Openers (Exterior Camp Kitchens)
  • Pets - "Leash Link" Quick Hookup D-Ring
  • Smoke Alarm
  • LP/CO Gas Detector
  • Fire Extinguisher
  • Fire Escape Windows
  • Entrance Door Window
  • Dead-Bolt Lock on Entry Door
  • Drop Edge Thermofoil Seamless Countertops
  • Kitchen Power Tower w/ 2 USB Ports & 2 110 Outlets
  • Bluetooth Stereo and DVD Player w/CD,MP3, USB and AM/FM Radio
  • Swing Arm TV Bracket
  • In-Wall Mounted Interior Speakers
  • 7 Cu. Ft. Gas/Electric RV Refrigerator
  • Deep Basin Under-mount Farm Style Sink
  • High Rise Bullet Style Kitchen Faucet
  • Flush Thermofoil Kitchen Sink Covers (2) (Tandem Axle Models)
  • Full Length Kitchen Drawer Guides
  • Salvaged Light Oak Cabinets
  • All-In-One Monitor Panel System
  • 3 Burner High Output Range (Tandem Axle Models)
  • Slim Line Furrion Range Hood
  • Silverware Kitchen Drawer
  • Microwave W/Glass Turn Table
  • Congoleum Woodplank Linoleum Flooring
  • Residential In-Floor Ducted Heat (N/A 261BH)
  • Flex Ducted Cabinet/Wall Heat (261BH Only)
  • LED Interior Lighting
  • Jiffy Sofa w/Flip Down Cup Holder/Arm Rest
  • Storage Underneath the Jiffy Sofa
  • Decorative Sofa Throw Pillows
  • Hard Valance Window Treatment w/Decorative Lambrequins
  • Pleated Night Window Shades
  • Pedestal Thermofoil Dinette Table
  • Dinette Storage Under Benches
  • Marine Toilet with Foot Flush
  • ABS Tub/Shower Surround w/Shelves
  • Skylight Above Tub/Shower
  • Power Vent Fan in Bathroom
  • Glass Step-In Shower w/ABS Surround (Per Floorplan)
  • Medicine Cabinet with Mirror
  • Bedroom USB Surface Mounts(2)
  • USB Surface Mount Near Bunk Beds
  • Solid Master Bedroom Door(s) (Per Floorplan)
  • Full Length Night Stands with Receipts
  • Mirrored Wardrobes in Master Bedroom (N/A King Bed Models)
  • Master Bedroom Overhead Cabinets
  • Master Bedroom Overhead Shelf
  • Underbed Storage w/Separation from Outside Front Storage
  • Quilted Designer Bedspread
  • Teddy Bear Bunk Mats
  • Reversible Refrigerator Front Panels (Black or Salvaged Light Oak)
  • 15,000 BTU Ducted A/C IPO 13.5 A/C
  • Enclosed, Fully Sealed Underbelly
  • SolidStep Entrance Steps IPO Flip-Down Steps (Main Entrance Only)
  • 50 Amp Service w/2nd 13.5 A/C (291BHS)
  • 50 Amp Service w/2nd A/C Prep (291BHS)
  • Two 30lb. LP Bottles w/Cover
  • Full Size Exterior Camp Kitchen (291BHS)
  • Pull Out Camp Kitchen (261BHS)
  • Full Wall w/Pocket Door & Wall Mirror (261BH Only)
  • Power Electric Awning w / 12V Power Channel and LED Light and Directional Spotlight Attachment
  • Spare Tire w/ Tire Carrier & Cover
  • CSA Standards


Virtual Tours

221DBSCK

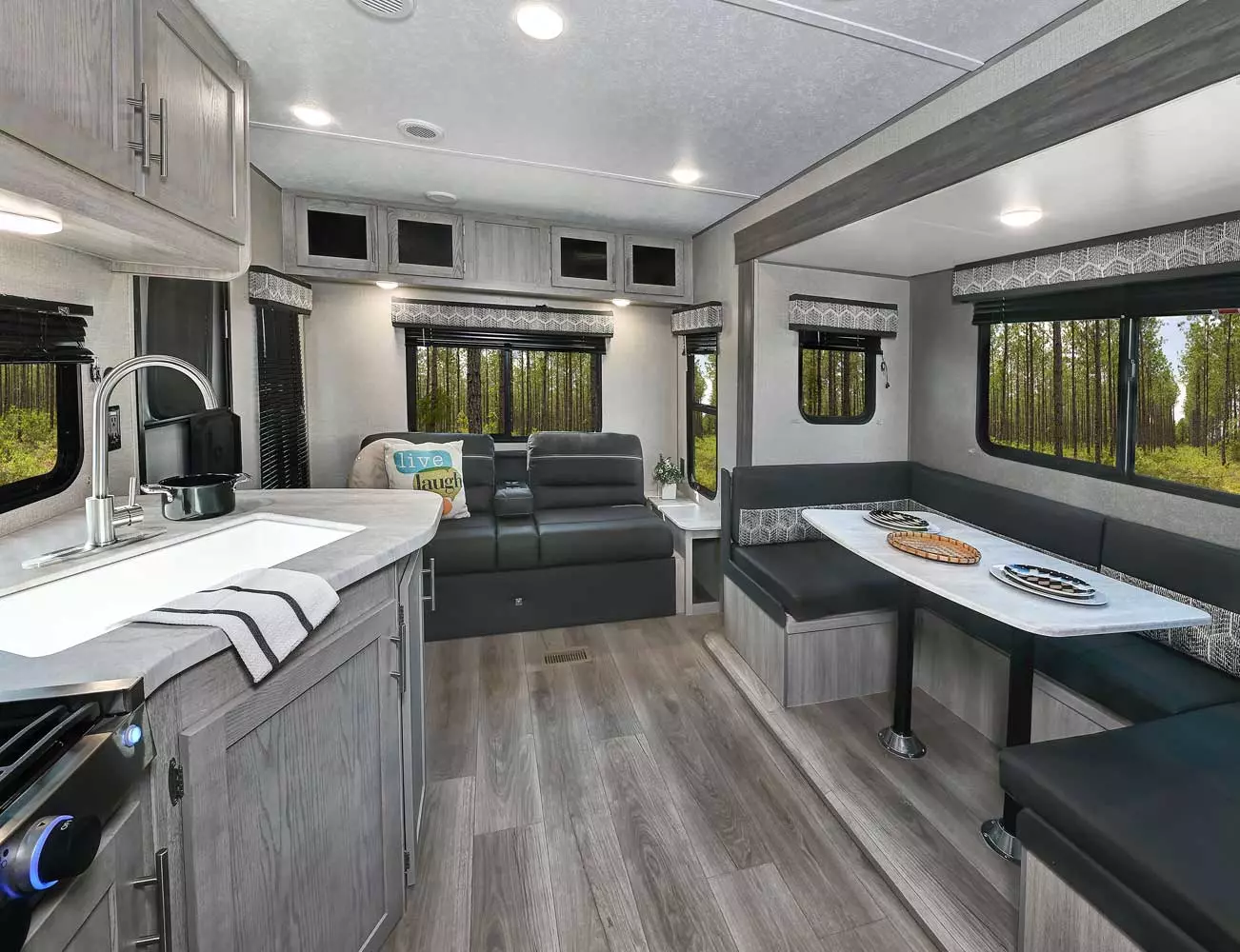

231MKS
