Clipper Travel Trailers

Out with the old and in with the new! Clipper travel trailers invites you to #CampEasy by getting out of that old tent and into a new travel trailer.

We invite you to explore the NEW Clipper travel trailer product line. Coachmen Clipper, once hailed as the top-selling single axle brand is back again as the King of the segment (11 floorplans options and 5 under 3,000 UVW). Fall of 2022 marks a new era for us, as we are now offering the most single axle floorplans in the market. Clipper is proudly known as the go-to product for first-time buyers who need a light-weight travel trailer.

New in 2022-23, Clipper is launching several product lines all designed and constructed for a specific fuel-efficient tow vehicle. Designed to match the specific retail customer’s needs, each product series offers distinction in bed configuration, bathroom features, and dinette layout. It’s easy to find the floorplan you desire in the size and weight-class you need.

Regardless of the chosen floorplan layout, our customers have peace of mind knowing they are buying the best-in-class quality package; AlphaPly TPO roof (backed by the supplier lifetime warranty), Dexter EZ lube Axels, BAL NXG frame and HUCK bolt assembly construction.

3K Series

5 single axle floorplans all under 3,000 UVW. These floorplan options consist of 3 couple’s coaches and 2 bunk models. Each trailer is 7’-wide and are SUV and mini-van towable.

4K Series

6 single axle floorplans all under 4,000 UVW. These floorplans options give future campers upgraded amenities, open-space floorplan concepts, and the industries only front-end dinette and “wall-bed” configuration. Unlike the conventional murphy-bed feature, our “wall-bed” / dinette feature is known as a space-creator by enabling our customers to have a family-room, dining-room, and bedroom all in a single location.

5K Series

Smaller tandem axle floorplans around 5,000 UVW. These floorplans are a mix of mainstay layouts and specialty builds. Launching in early 2023.

6K Series

Two tandem axle top-selling floorplans. One large rear-living bunk house and one large real-living couples coach (includes the largest non-slide master bedroom). These floorplans are offered by dealers who carry our full trailer lineup.

#CampEasy


Certified Green by TRA Certification™Link opens in a new tab/windowCare Camps, fighting cancer and making memoriesLink opens in a new tab/window

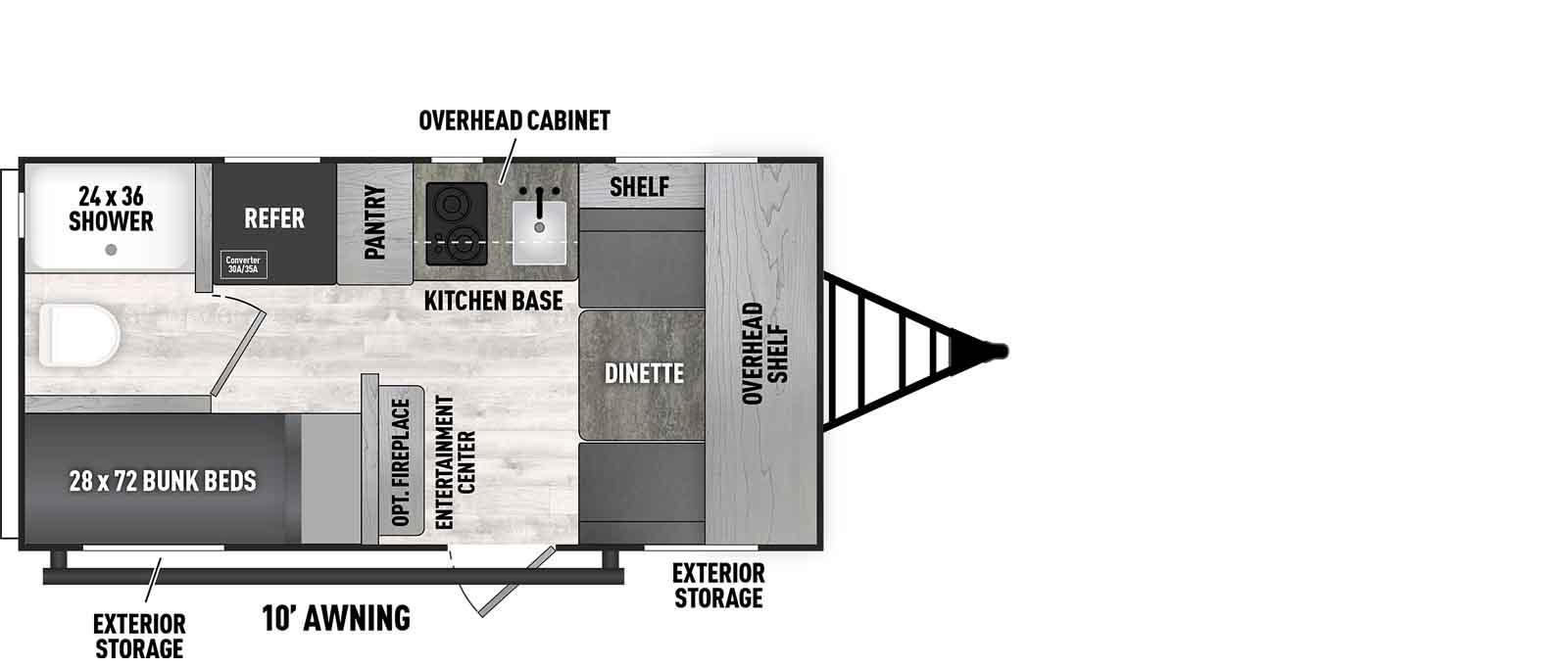

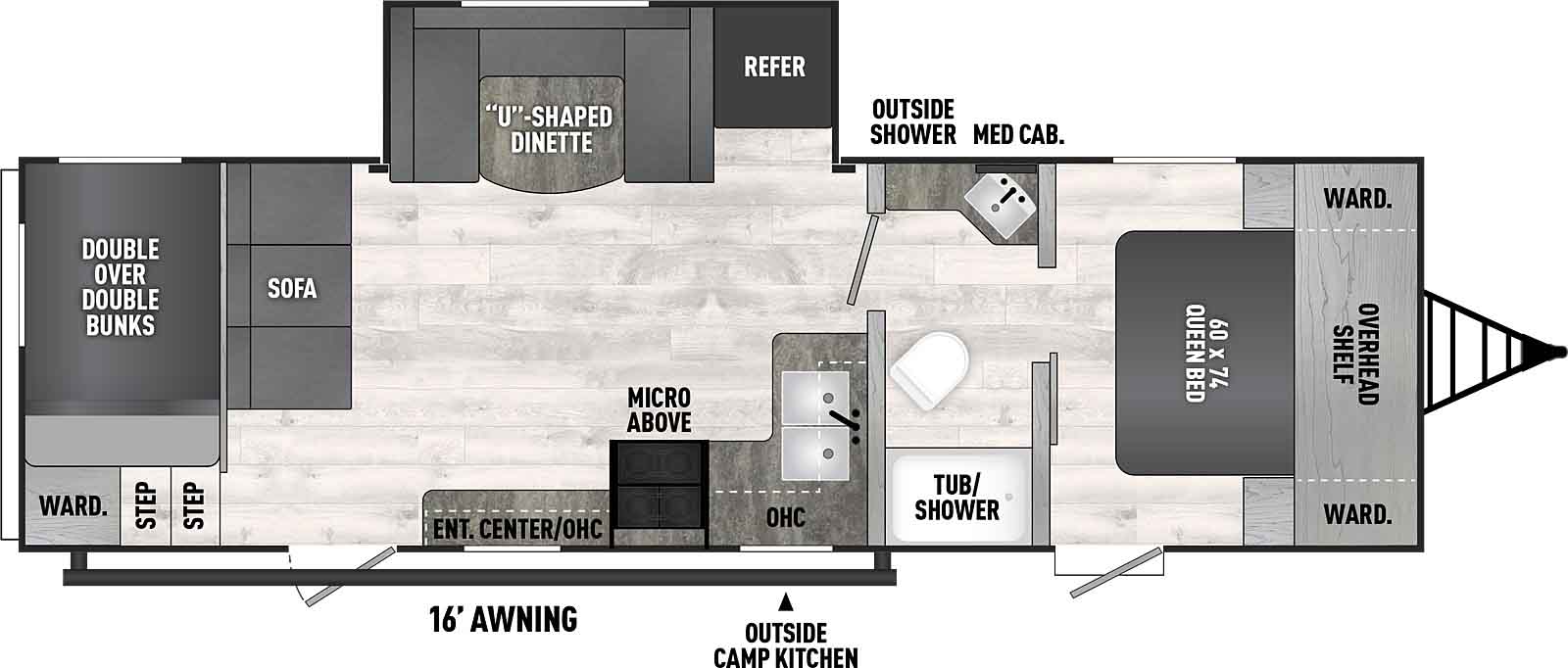

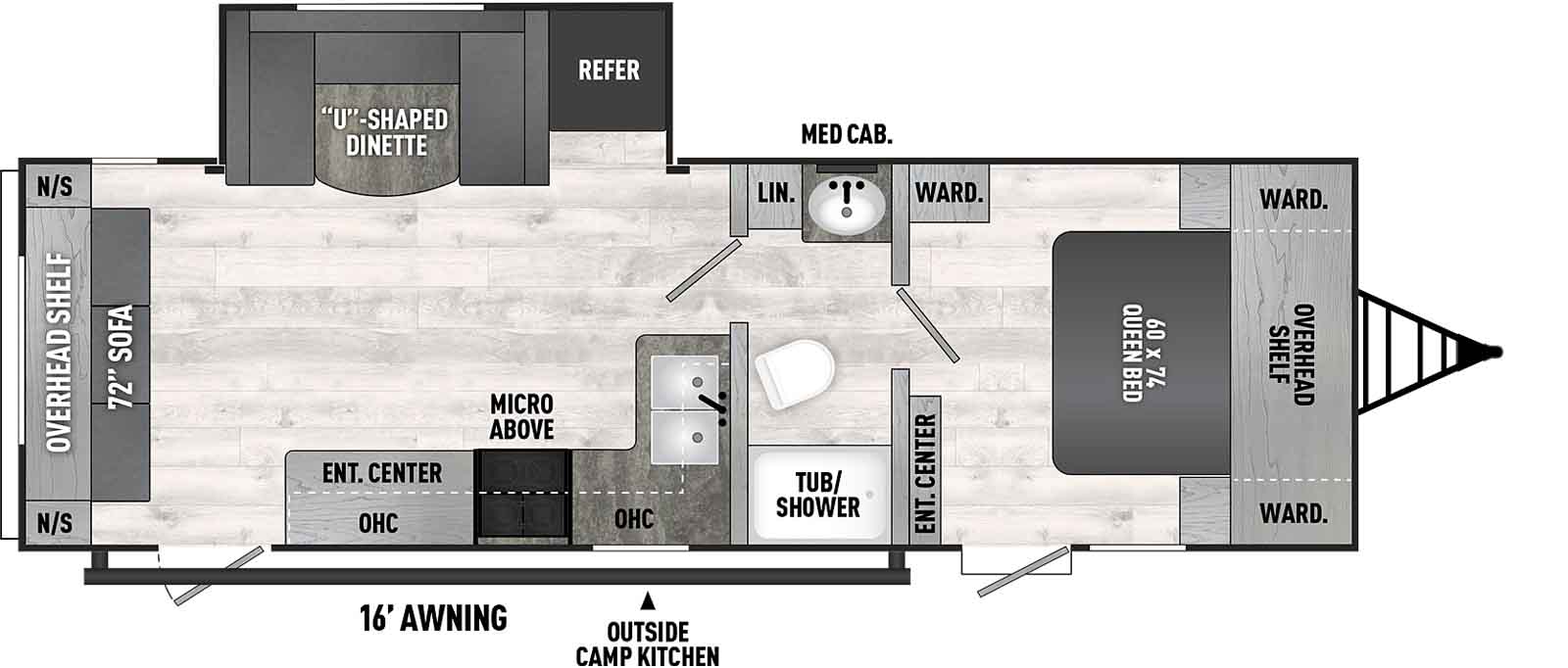

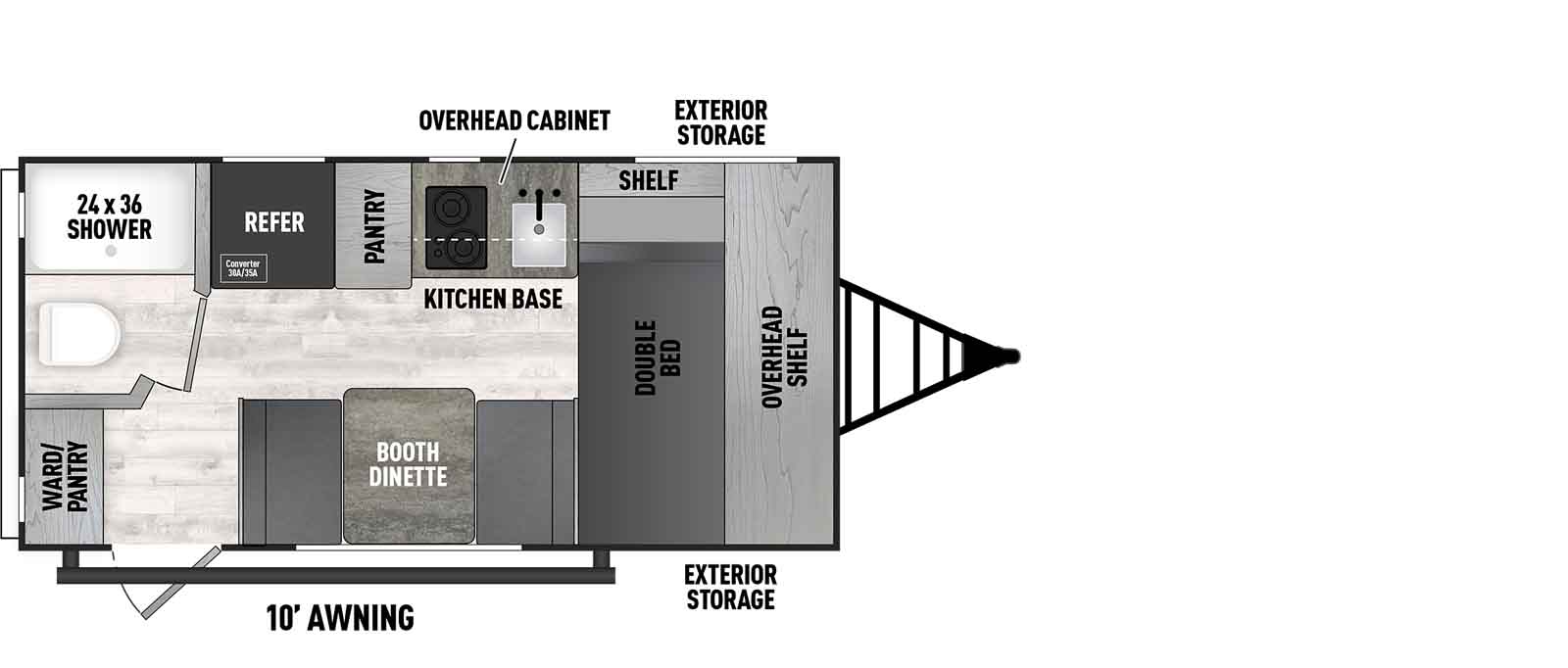

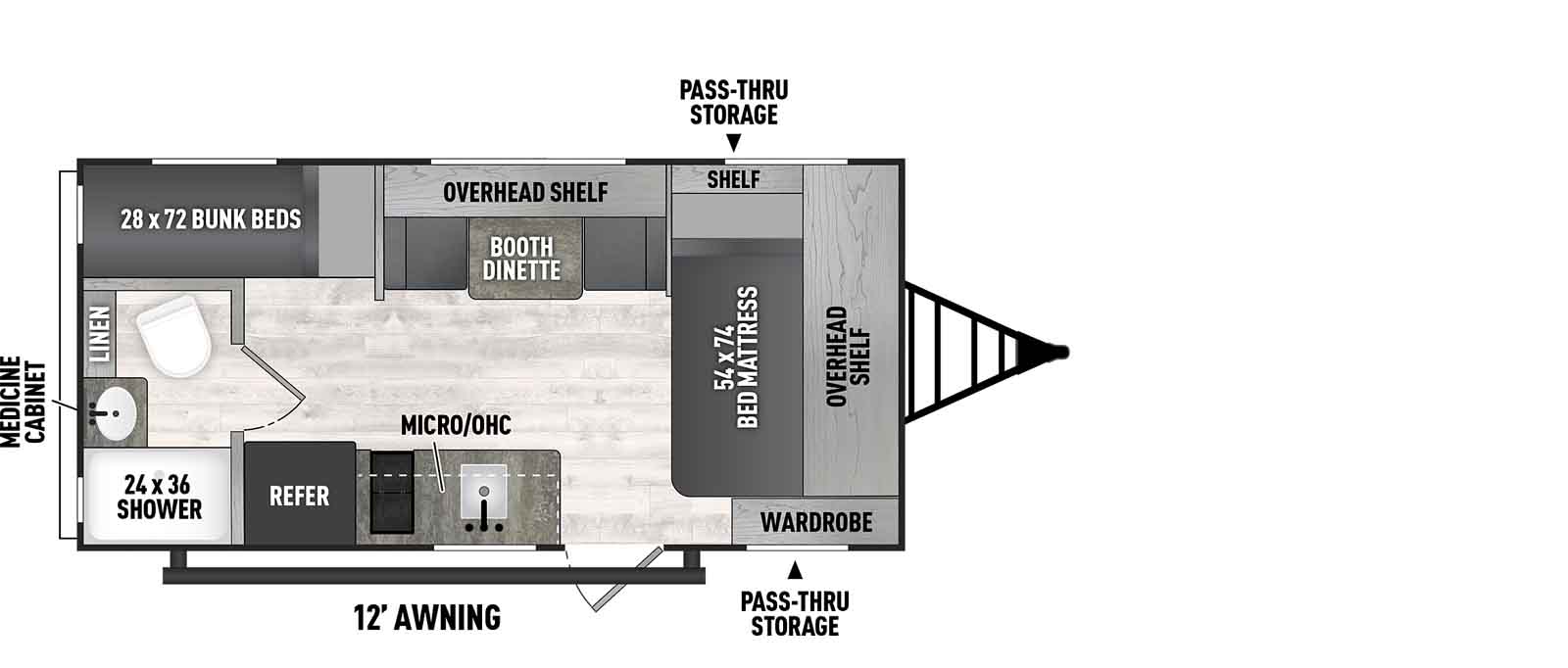

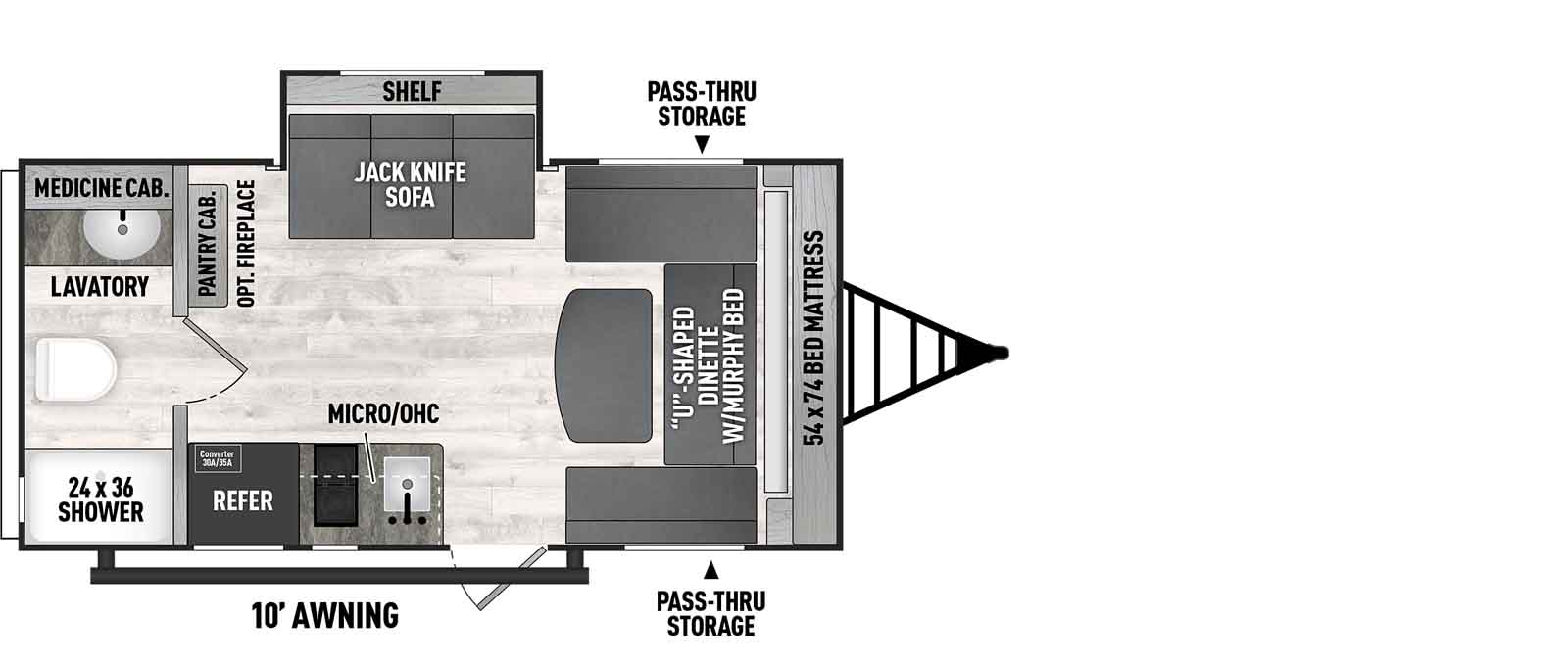

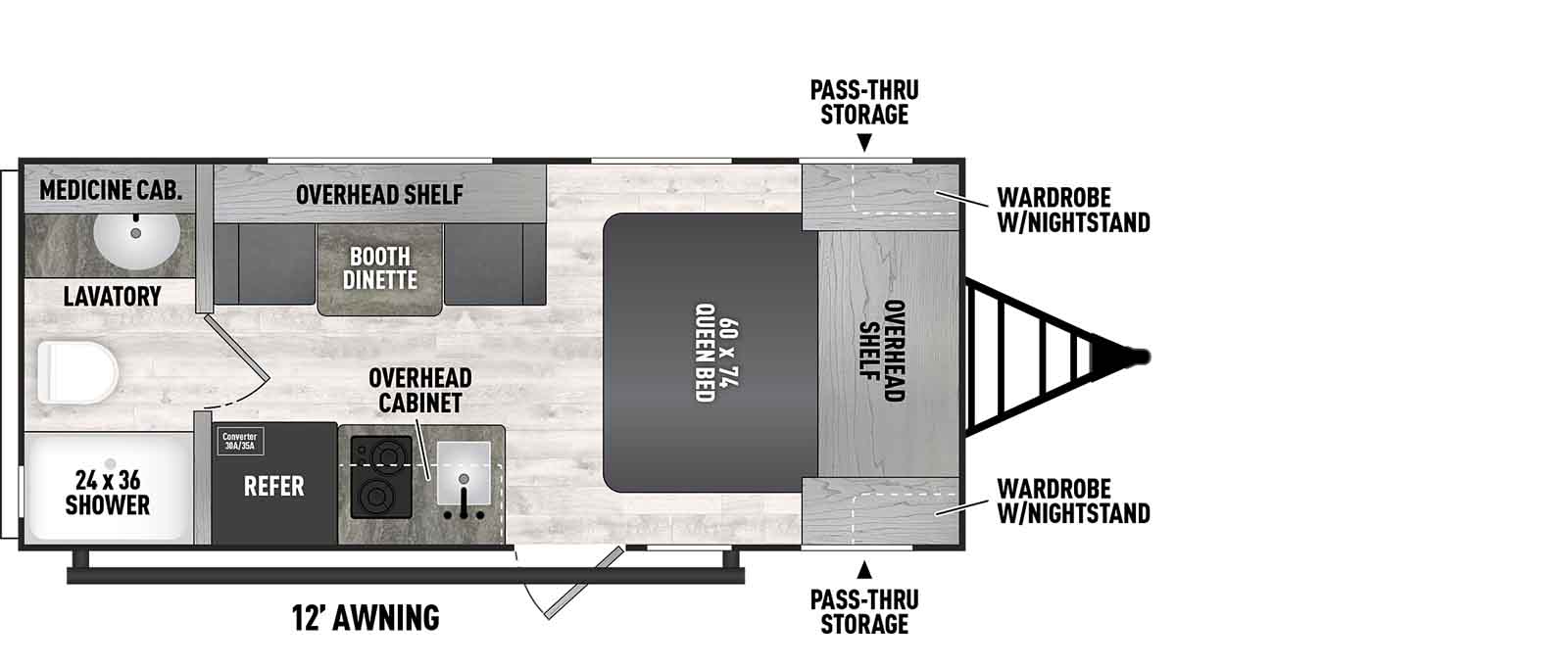

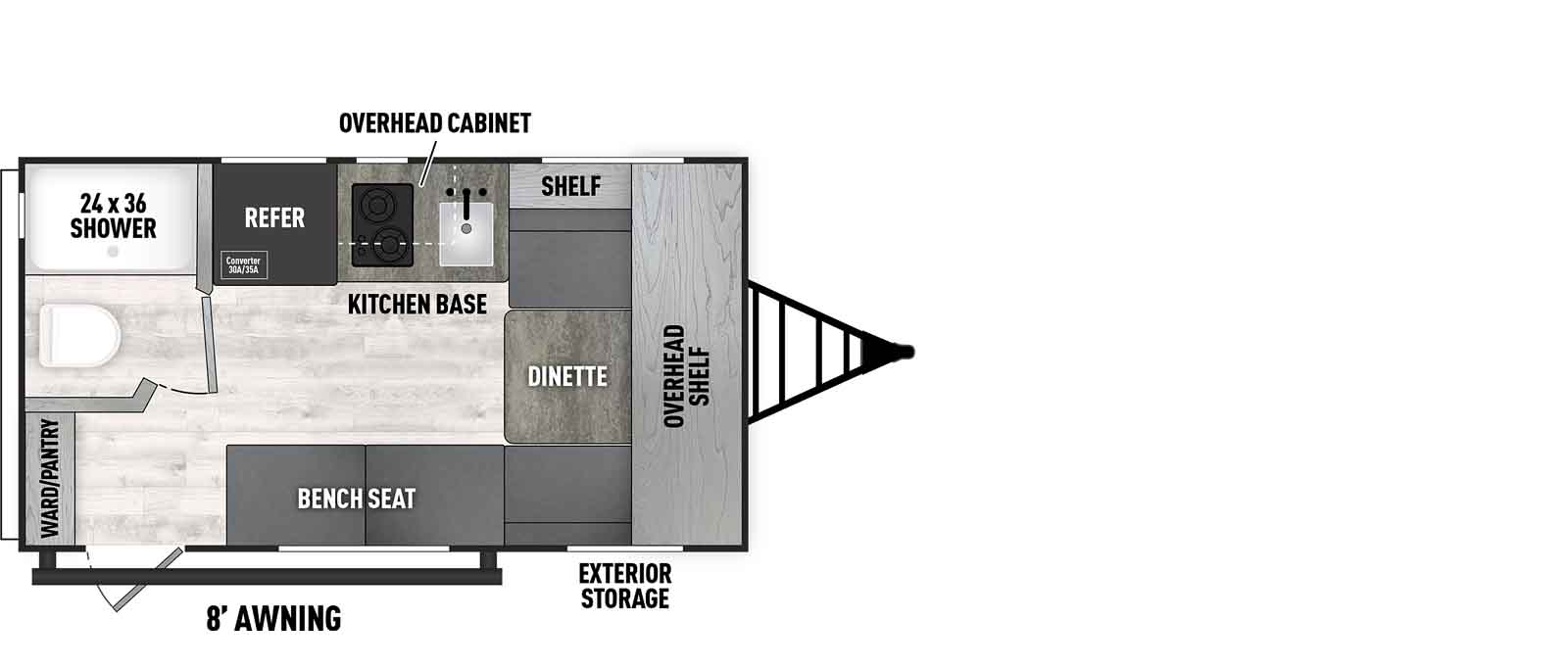

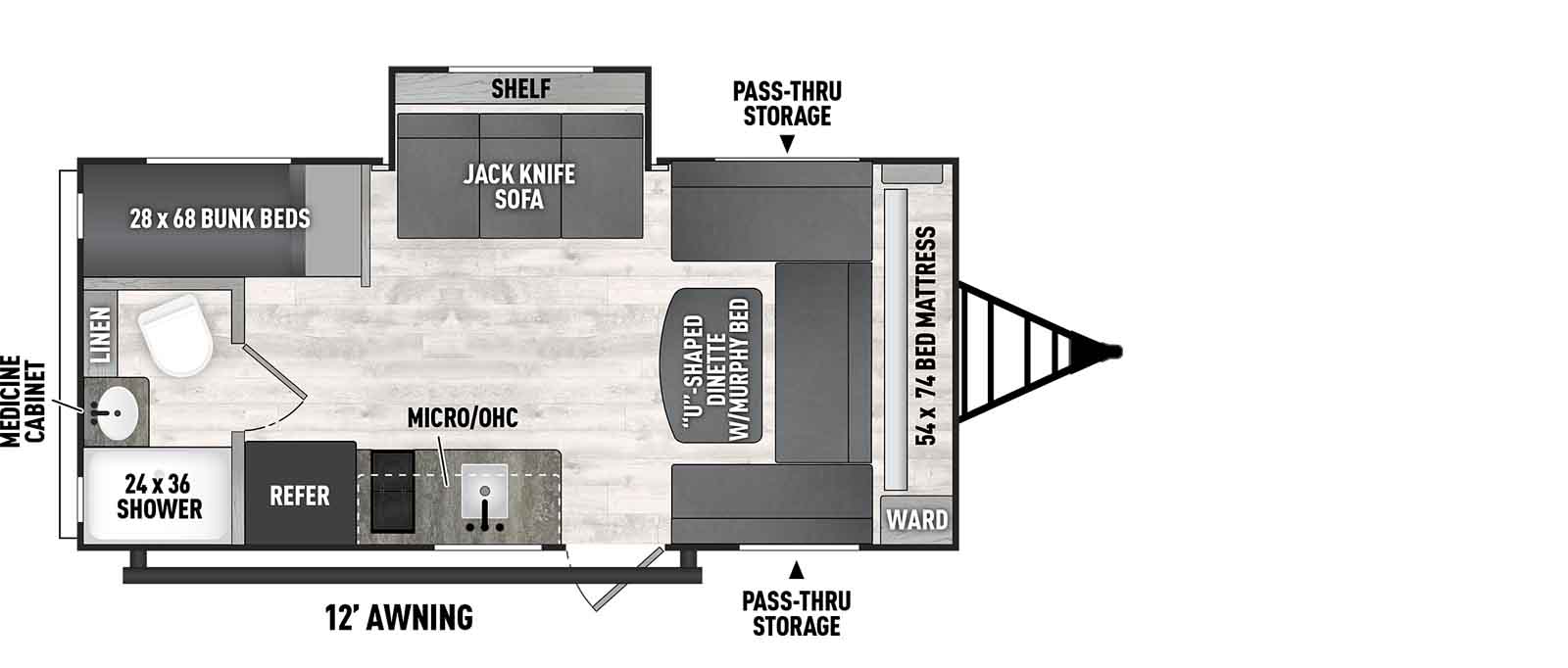

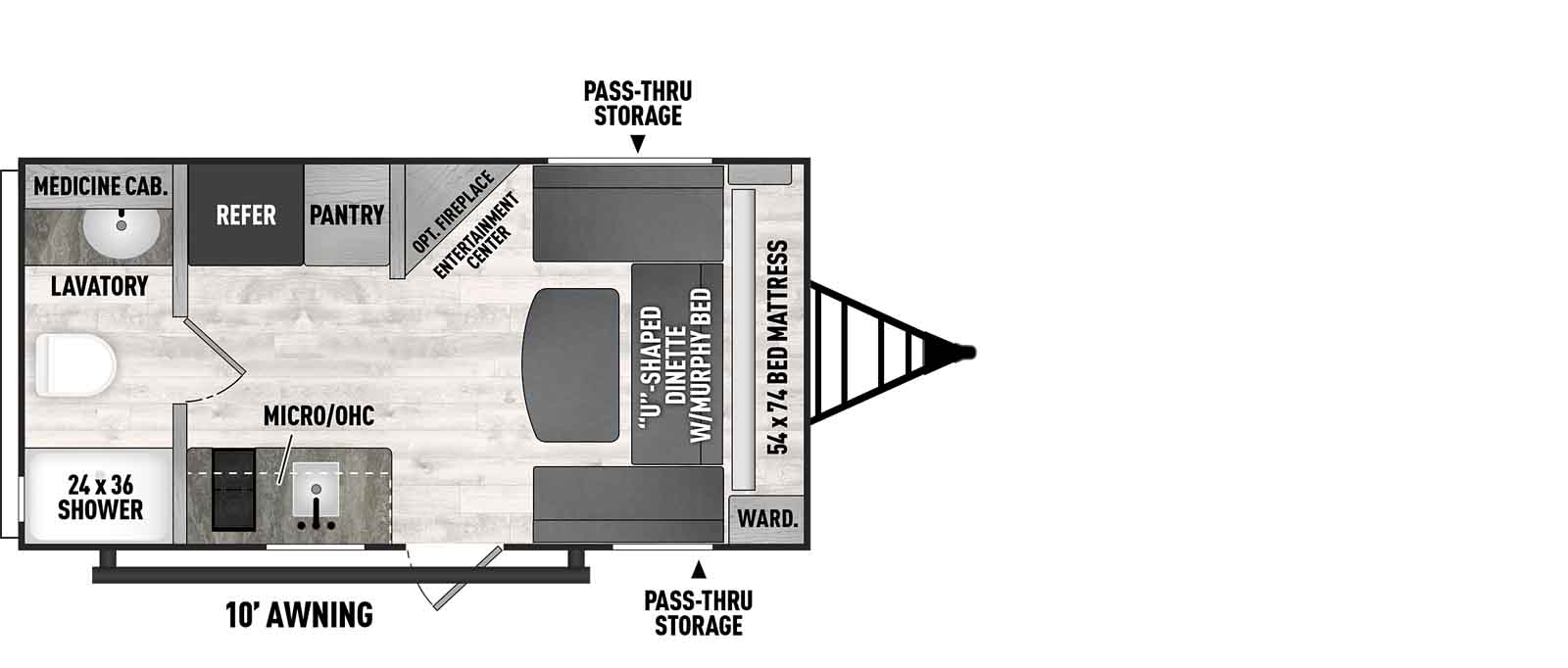

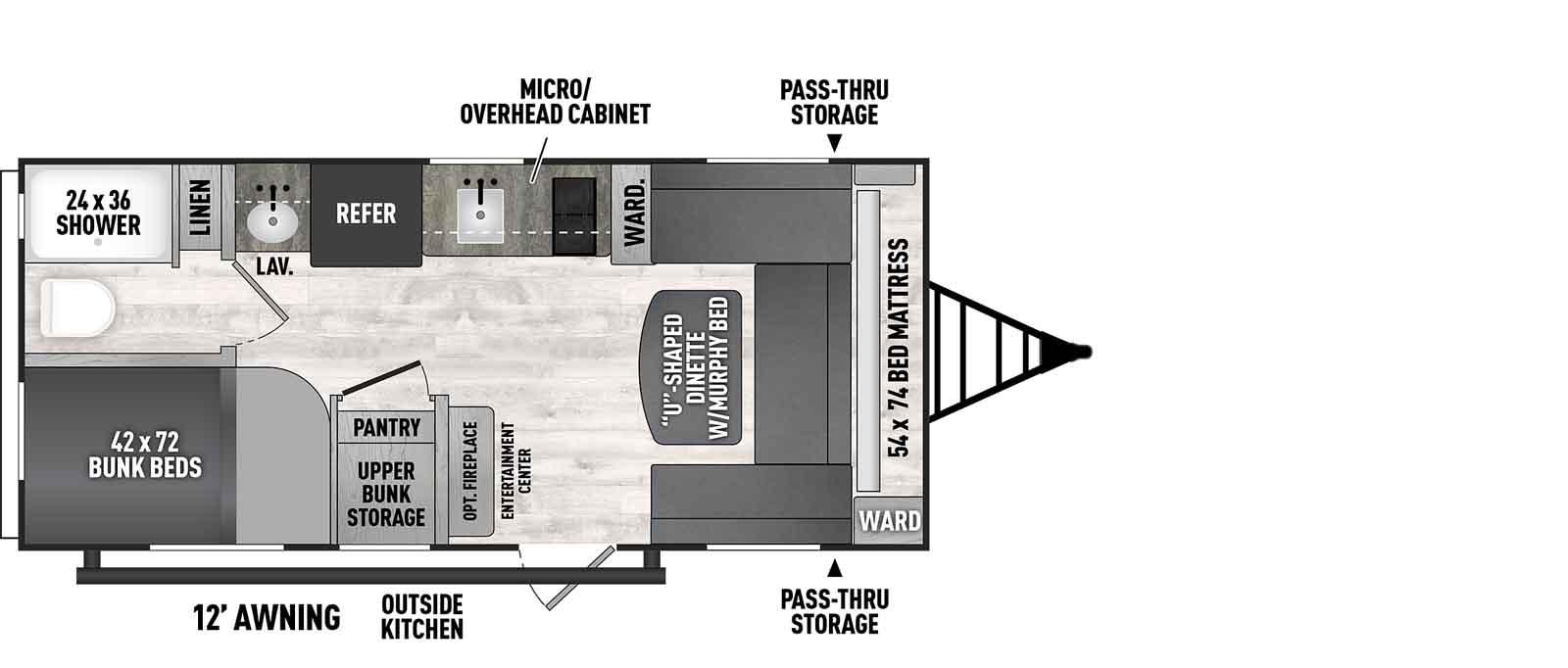

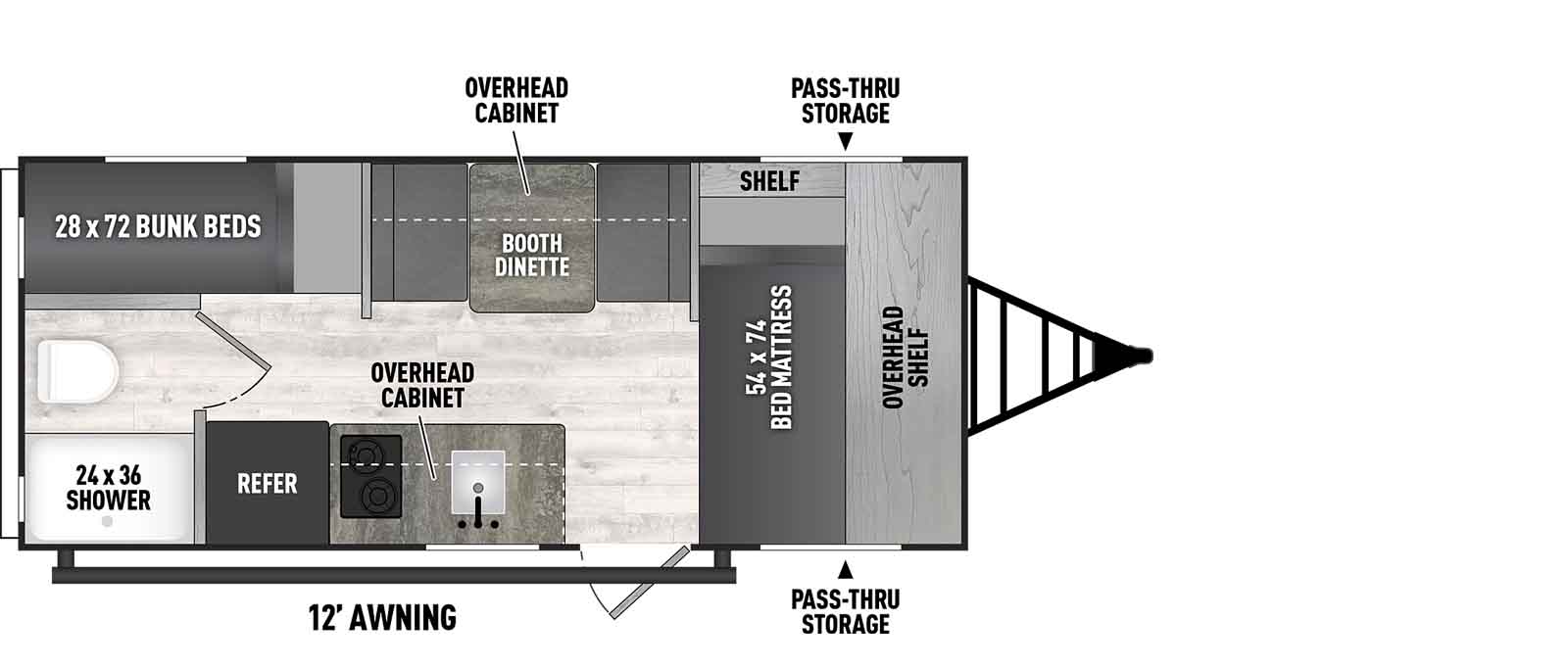

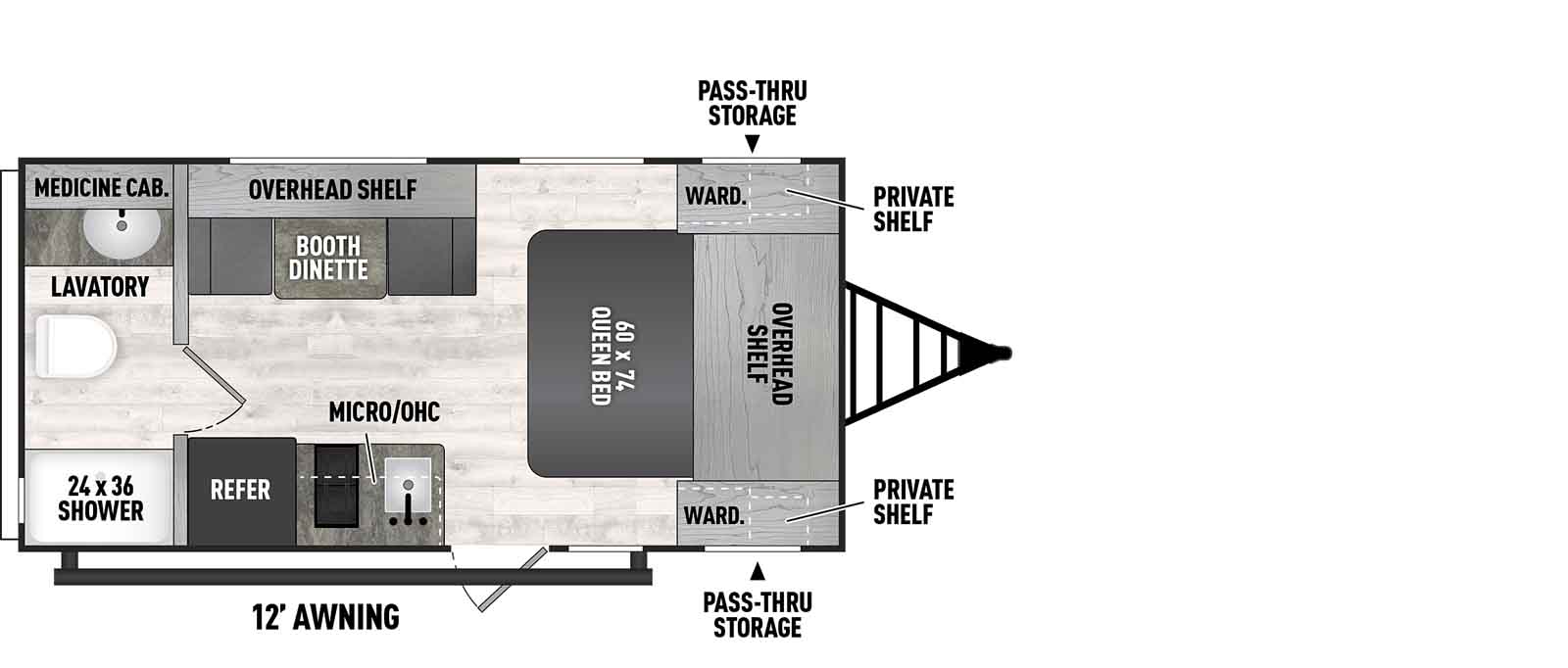

Floorplans

Print

3K Series
4K Series
5K Series
6K Series


Specifications

Print

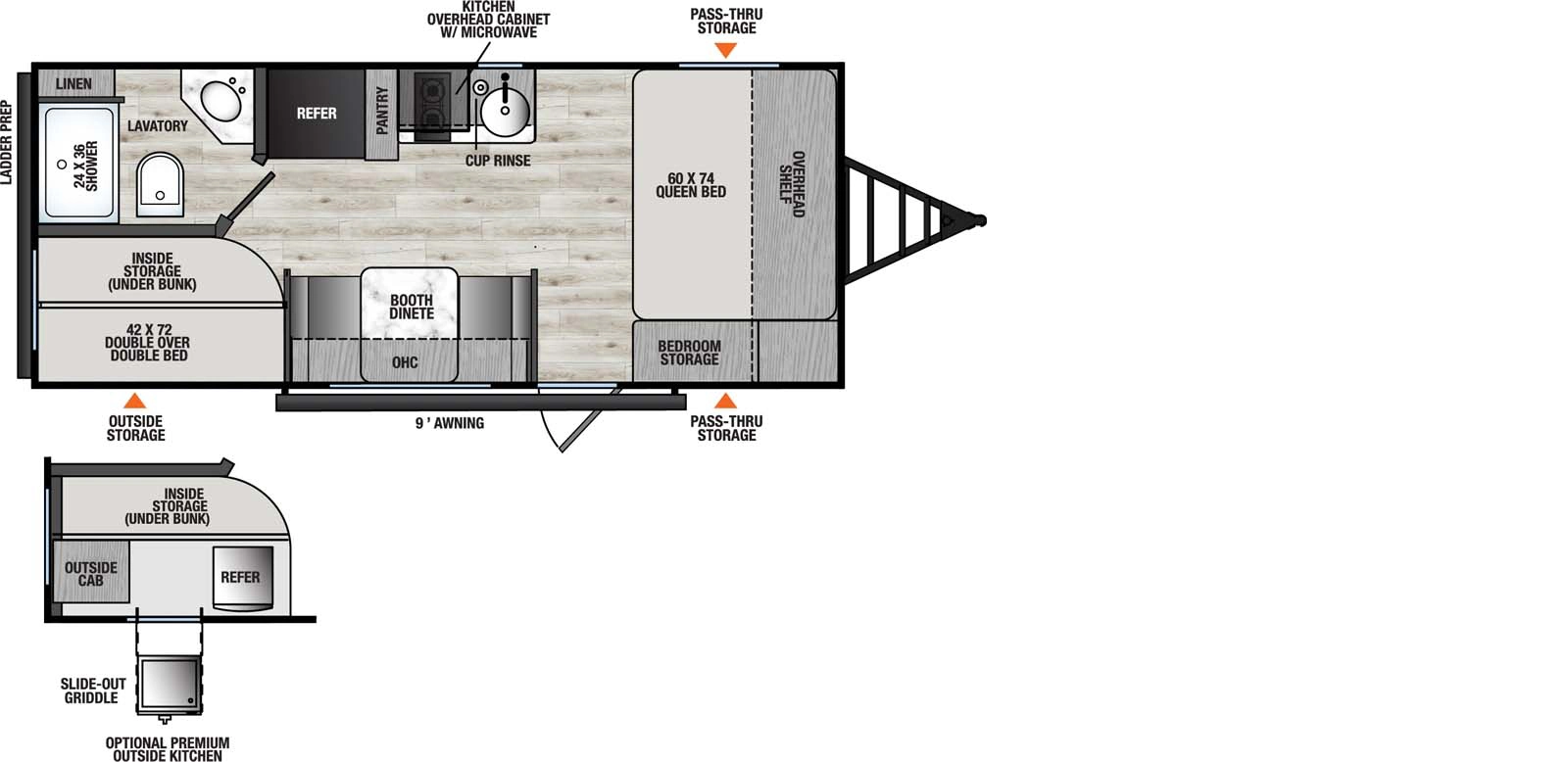

Floorplan: 14CR : 3K Series 15CBH : 3K Series 16CFB : 3K Series 17CBH : 3K Series 17CFQ : 3K Series 162RBU : 4K Series 17MBS : 4K Series 182DBU : 4K Series 18BH : 4K Series 18BHS : 4K Series 18FQ : 4K Series 251RBS : 5K Series 252DBUS : 5K Series 262BHS : 6K Series 272RLS : 6K Series
Hitch Weight:250 lb.330 lb.350 lb.330 lb.330 lb.360 lb.400 lb.425 lb.400 lb.425 lb.400 lb.TBDTBD720 lb.946 lb.
GVWR:3,750 lb.3,830 lb.3,850 lb.3,830 lb.3,850 lb.3,880 lb.4,043 lb.4,433 lb.4,125 lb.4,525 lb.4,090 lb.TBDTBD7,720 lb.7,946 lb.
UVW:2,450 lb.2,540 lb.2,710 lb.2,540 lb.2,910 lb.3,250 lb.3,550 lb.3,840 lb.3,420 lb.3,790 lb.3,390 lb.TBDTBD6,226 lb.5,928 lb.
CCC:1,300 lb.1,290 lb.1,140 lb.1,290 lb.940 lb.630 lb.493 lb.593 lb.705 lb.735 lb.700 lb.TBDTBD1,495 lb.2,018 lb.
Exterior Length:16' 6"17' 10"18' 6"20' 5"20' 5"19' 9"20' 5"22' 3"20' 5"21' 6"20' 5"27' 1"25' 6"32' 0"31' 10"
Exterior Height:10' 0"10' 0"10' 0"10' 0"10' 0"10' 0"10' 0"10' 0"10' 0"10' 0"10' 0"10' 0"10' 0"11' 0"11' 0"
Exterior Width:84"84"84"84"84"96"96"96"96"96"96"96"96"96"96"
Fresh Water:27.00 gal.27.00 gal.27.00 gal.27.00 gal.27.00 gal.40.00 gal.40.00 gal.40.00 gal.40.00 gal.40.00 gal.40.00 gal.40.00 gal.40.00 gal.40.00 gal.40.00 gal.
Gray Water:27.00 gal.27.00 gal.27.00 gal.27.00 gal.27.00 gal.32.00 gal.32.00 gal.32.00 gal.32.00 gal.32.00 gal.32.00 gal.32.00 gal.32.00 gal.32.00 gal.32.00 gal.
Black Water:27.00 gal.27.00 gal.27.00 gal.27.00 gal.27.00 gal.32.00 gal.32.00 gal.32.00 gal.32.00 gal.32.00 gal.32.00 gal.32.00 gal.32.00 gal.32.00 gal.32.00 gal.
Awning Size:8'9'10'12'12'10'12'12'12'12'12'14'14'16'16'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Coachmen RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Coachmen RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Features & Options

Print

  • Electric 3.0 Cu. Ft. Refrigerator
  • 20K BTU Furnace
  • 13.5K BTU A/C (Roof Mounted)
  • 6 gallon Gas/Electric DSI Water Heater
  • 2 Rear Stabilizing Jacks
  • Full Length Power Awning w/LED Strip and Adjustable Legs
  • Foot Flush Toilet
  • Electric Brakes
  • Dexter Easy Lube Axles
  • BAL NXG Frame
  • HUCK Bolt Assembly
  • Front Diamond Plate
  • Back-up Camera Prep
  • Solar Prep
  • USB Charging Ports
  • Seamless One Piece TPO Roof Membrane
  • Jumbo Pass-Through Storage
  • Cable TV Hook-Up
  • Pivoting Waste Valve
  • Friction-Hinge Doors
  • Sink Covers
  • Spare Tire and Carrier
  • 3.3 Cu. Ft. 2-Way Refrigerator (Gas/Electric)
  • 4.3 Cu. Ft. 2-Door Refrigerator (12V)
  • Microwave
  • All-Terrain Package(Off-Road Tires+ Flipped Axle)
  • 7.0 Cu. Ft. Gas/Electric Refrigerator
  • 2-Burner Cooktops (3-Burner on 6K)
  • Microwave
  • 13.5 BTU A/C Roof Mounted
  • 20K BTU Furnace
  • 6 Gallon Gas/Electric DSI Water Heater
  • Spare Tire/Carrier
  • 4 Stabilizing Jacks
  • Power Awning w/LED Light Strip and Adjustable Legs
  • Foot Flush Toilet
  • Electric Brakes
  • Dexter Easy Lube Axles
  • BAL NXG Frame
  • HUCK Bolt Assembly
  • Smooth Metal Front
  • Diamond Plate Rock Guard
  • Back-up Camera Prep
  • Solar Prep
  • USB Charging Ports
  • Large Entrance Grab Handle
  • Backsplash
  • Sink Covers
  • Tub/Shower Surround
  • Outside Hot/Cold Shower
  • Seamless One Piece TPO Roof Membrane
  • Friction Hinge Entrance Doors
  • Jumbo Pass-Through Storage
  • Cable TV Hook-Up
  • Pivoting Waste Valve
  • Omni-Directional TV Antenna
  • 30K BTU Ducted Furnace (5K and 6K)
  • Solid Steps
  • Smart Jack
  • 10.7 Cu. Ft. Refrigerator (12V)
  • Fireplace w/Remote (17MBS, 162RBU)
  • A/C 15K BTU (6K Only)
  • 17" Oven (6K Only)
  • All-Terrain Package (Off-Road Tires + Flipped Axle) (4K only)
