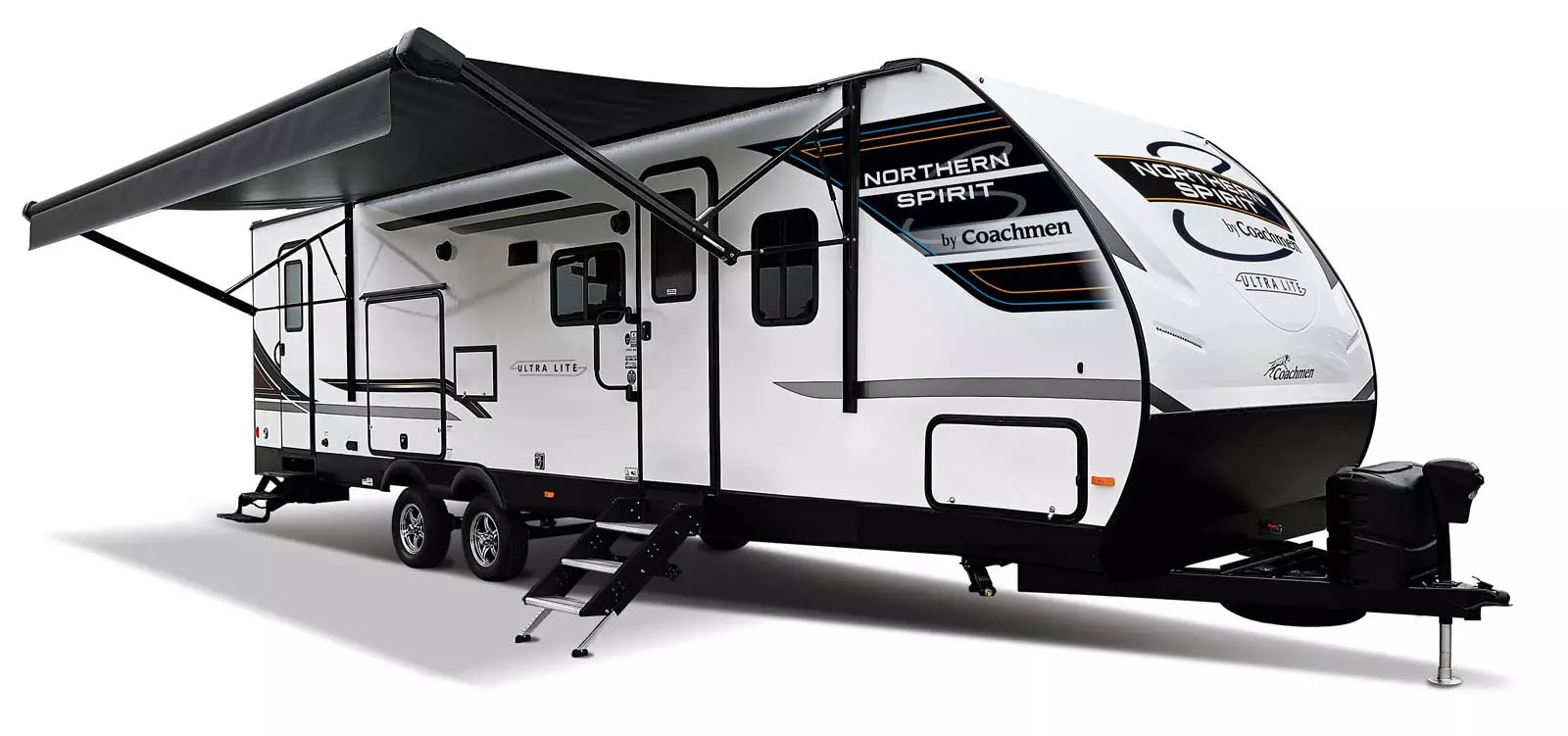

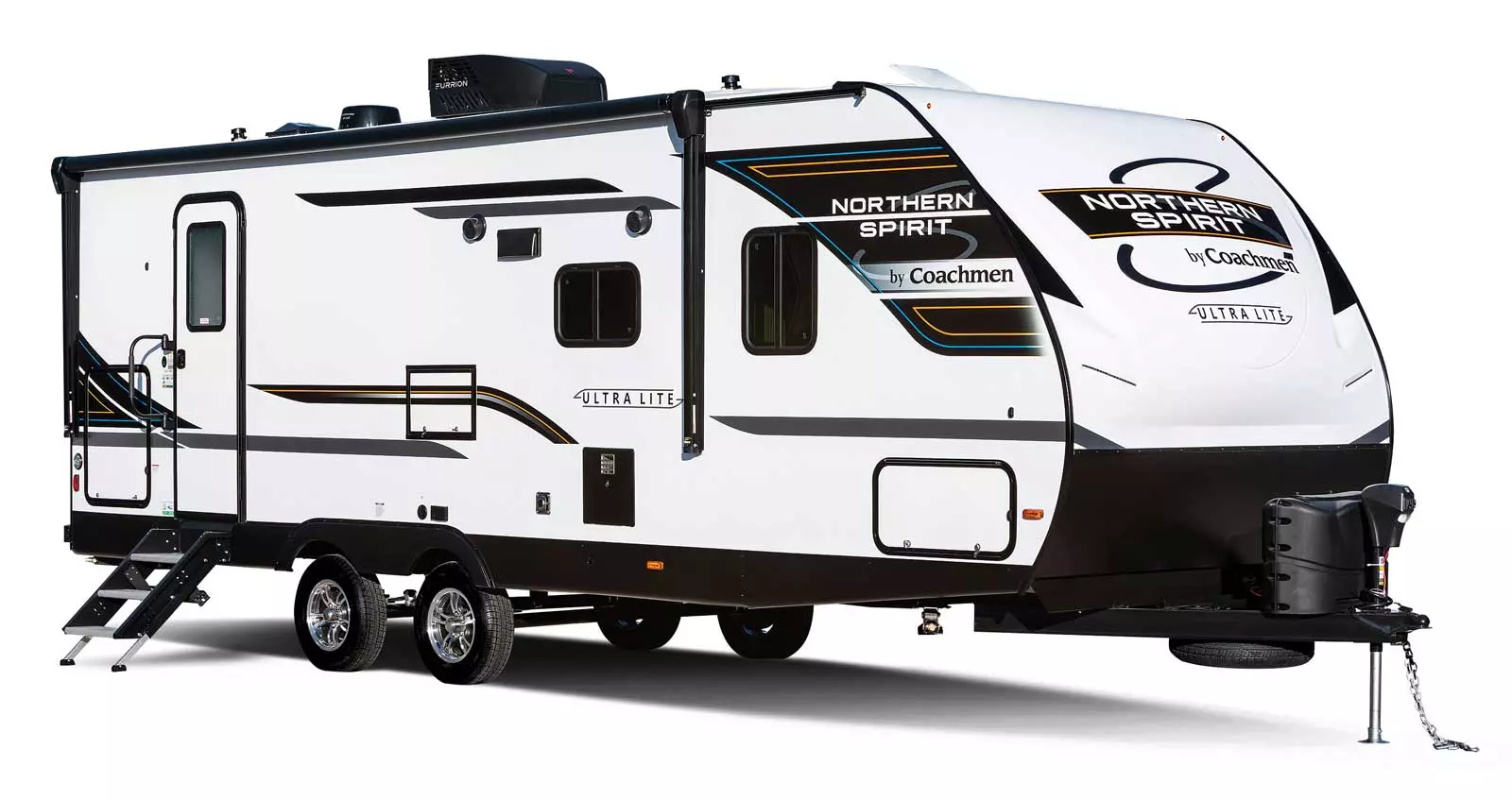

Northern Spirit Travel Trailers

Camping Simplified.

Welcome to the all-new Northern Spirit Ultra Lite. The Northern Spirit was designed with one question in mind: How can we make your camping experience more enjoyable? We think the way to accomplish this is to simplify the camping experience. We call this back to the basics approach Camping Simplified. What is Camping Simplified? It’s providing all of the little things, in the right places, to give you the best camping experience possible. Whether it’s a laundry hamper and tooth brush holder in the bathroom, a place to hide your valuables, or a convenient storage area for your sink covers and fishing poles Camping Simplified is there to make your life easier.

Campers love to take their pets. We think the Northern Spirit is the most pet friendly travel trailer on the market. You will love these pet friendly Camping Simplified features… Pet Center, Dog Wash and even an Exterior Dog Leash Clip! Camping is about relaxation and having fun. Let Northern Spirit be your guide to more of both!


Azdel Onboard™, RV Composite PanelsLink opens in a new tab/window Pet Friendly Product Care Camps, fighting cancer and making memoriesLink opens in a new tab/window

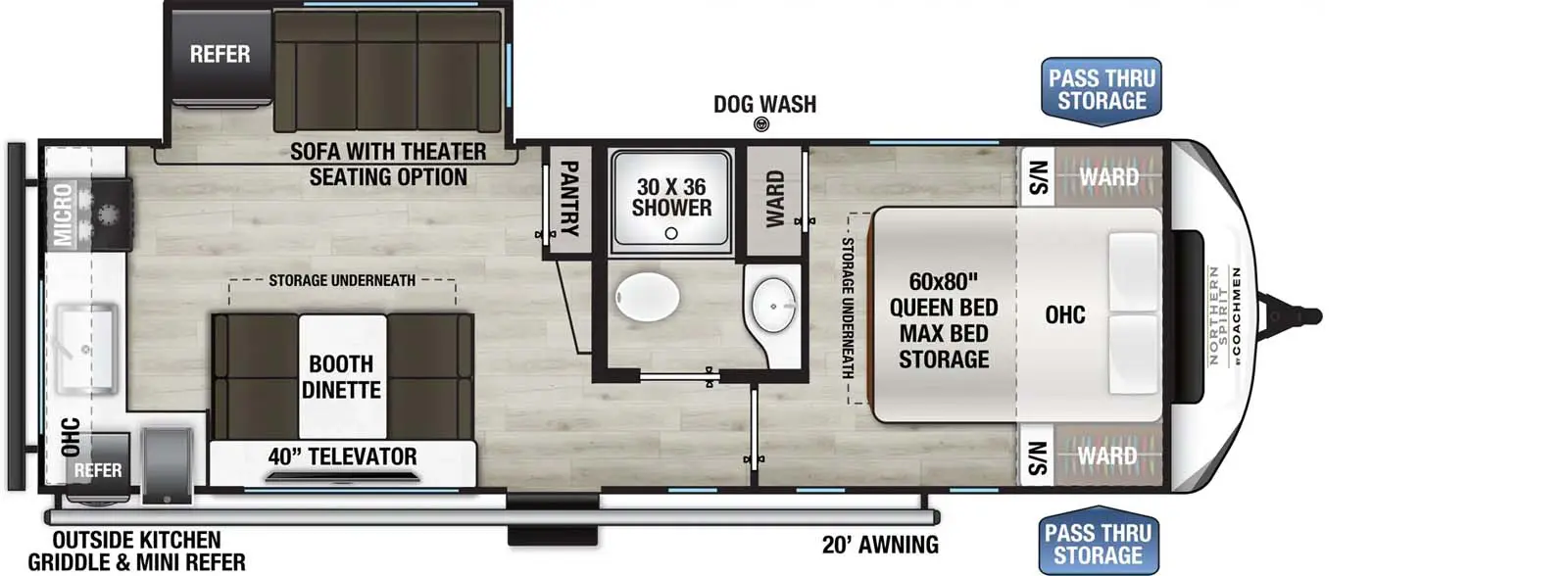

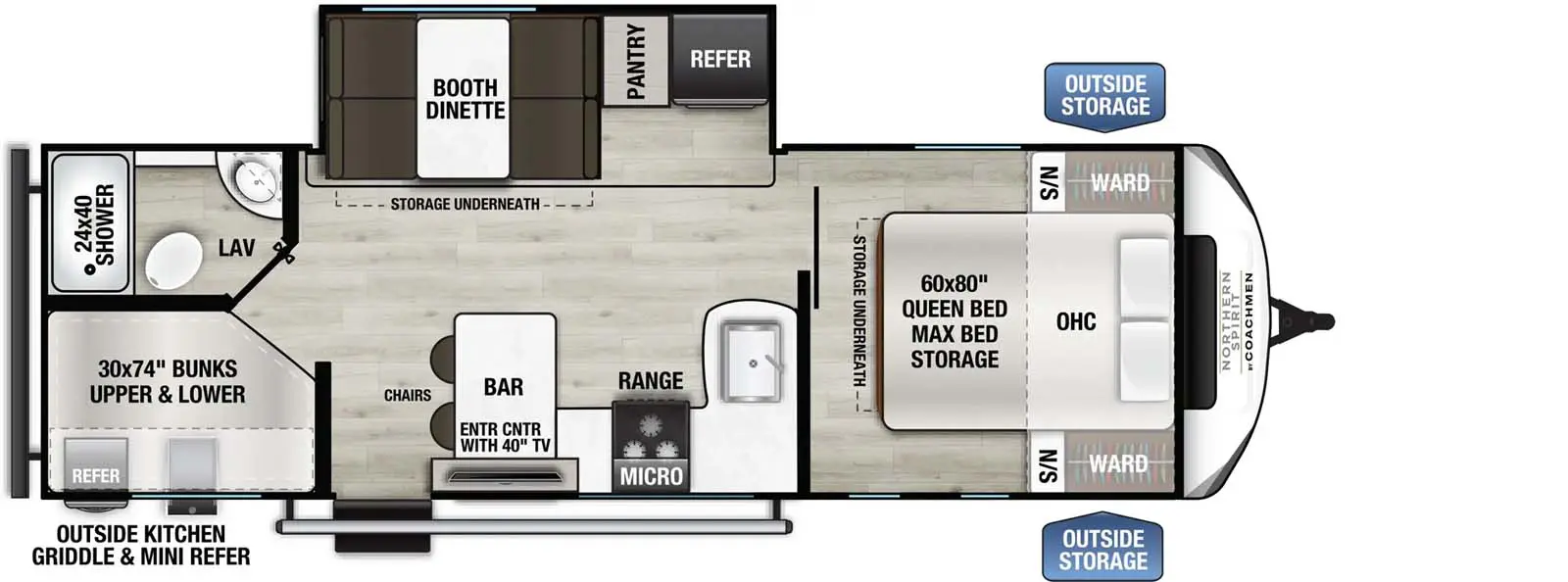

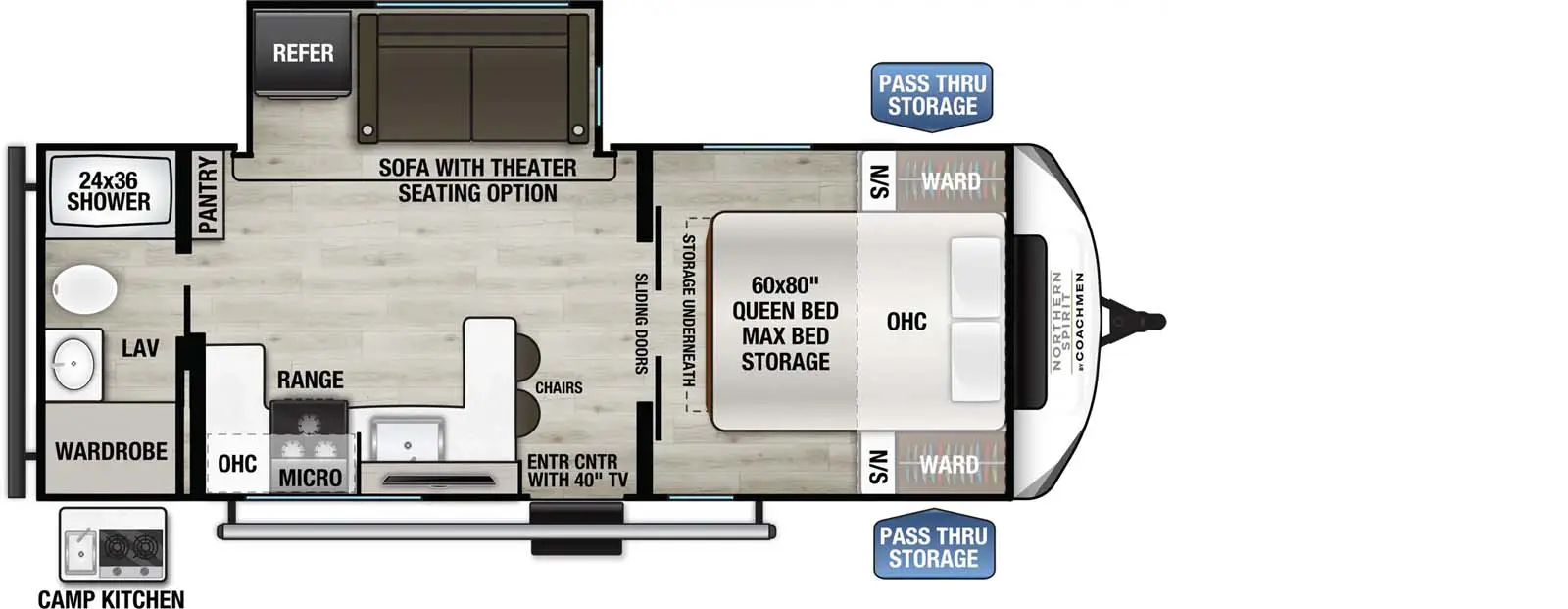

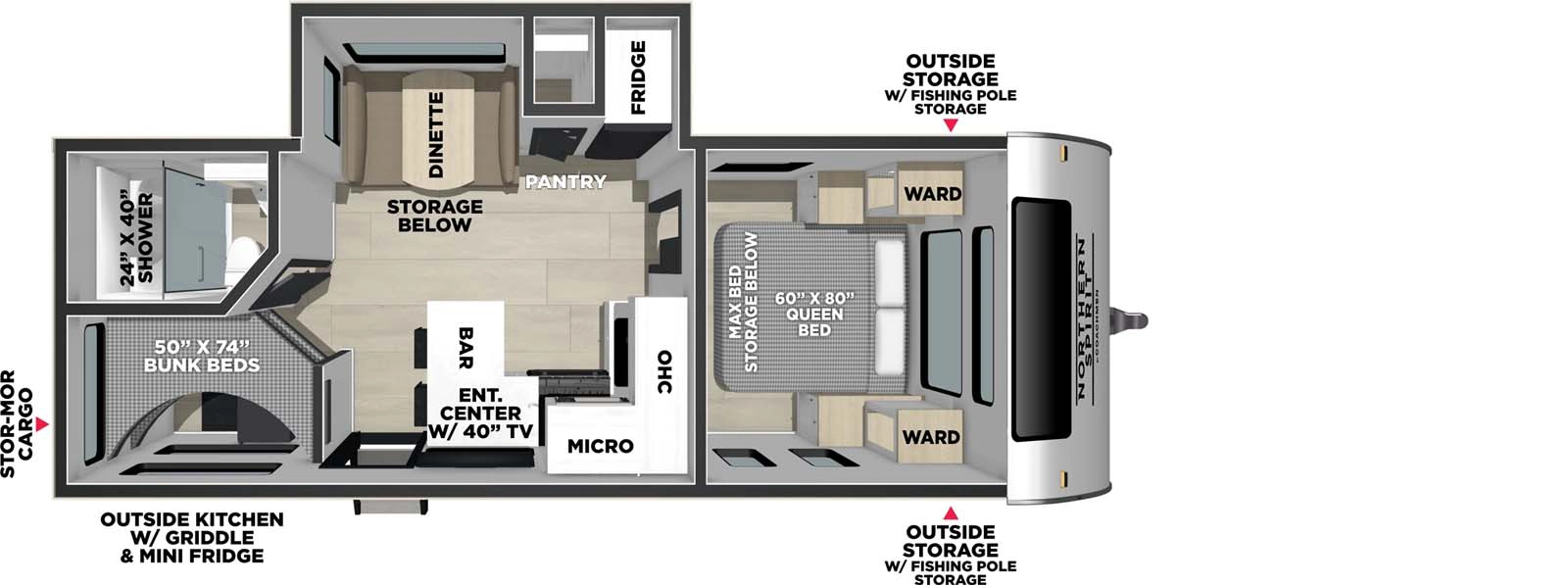

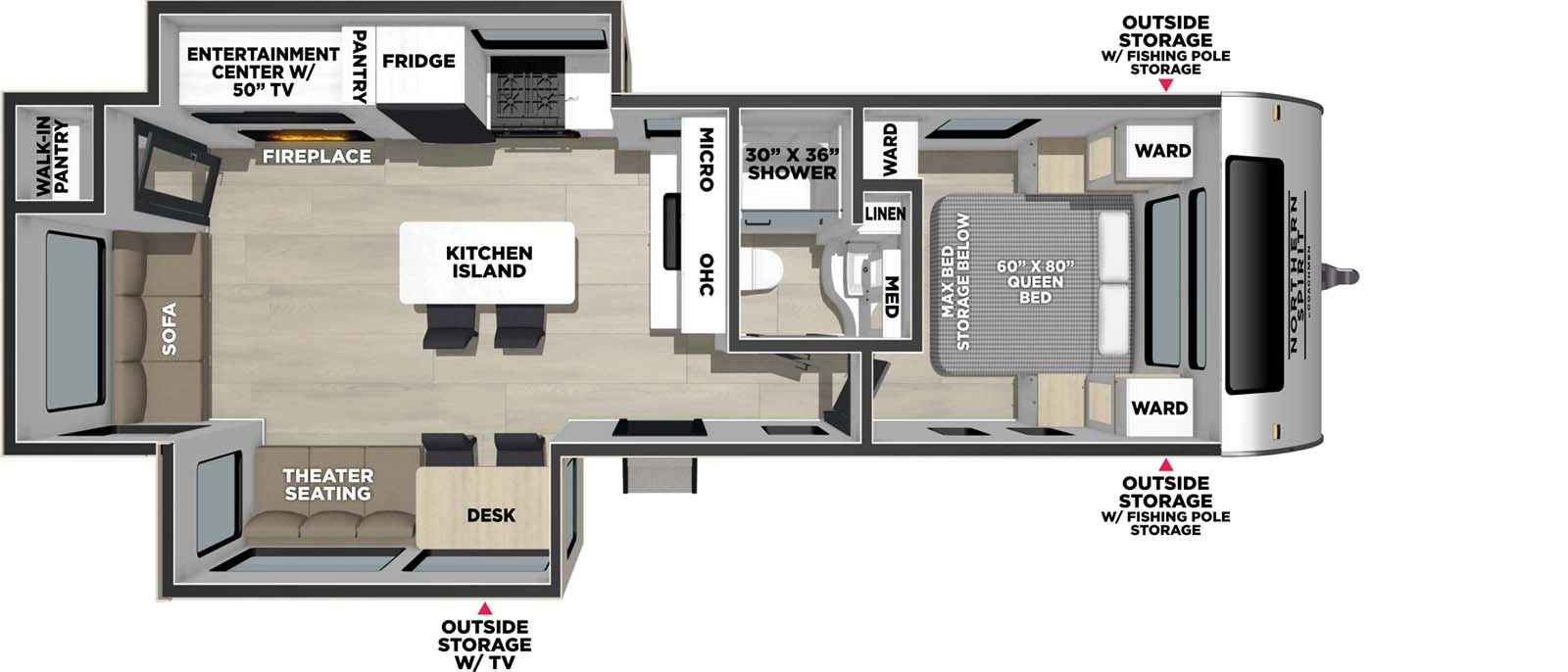

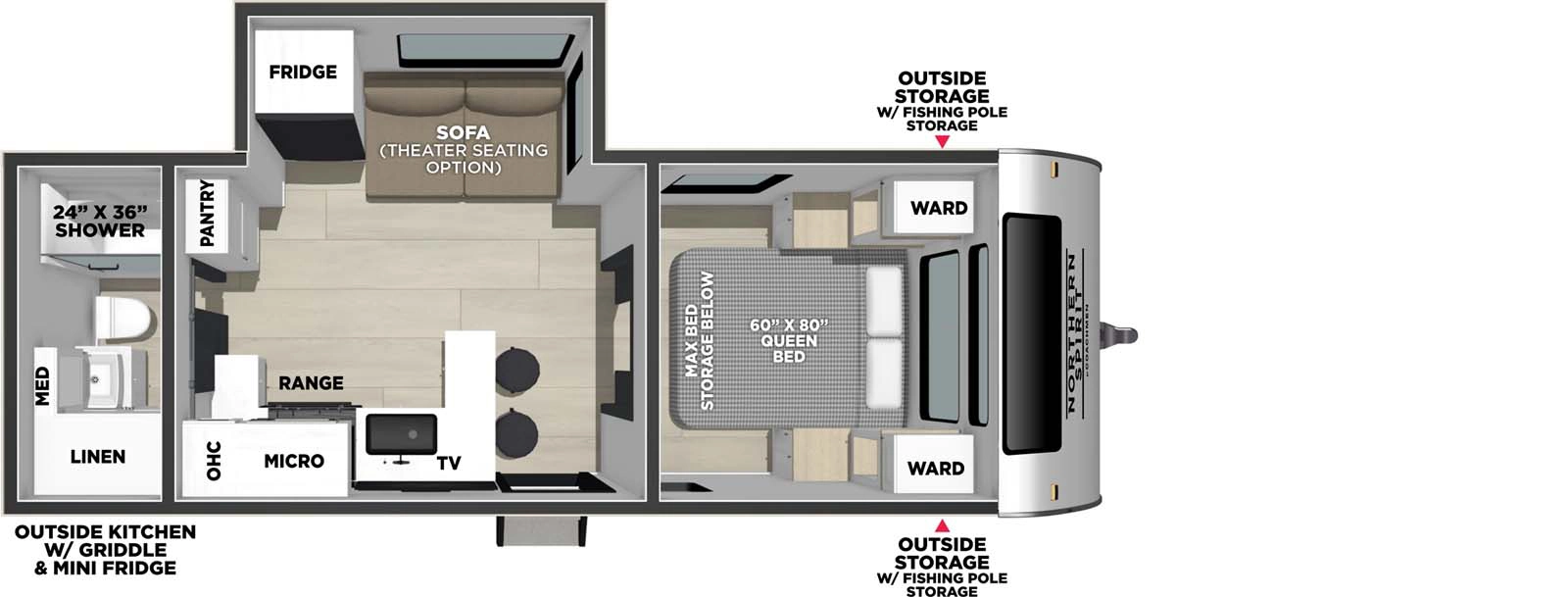

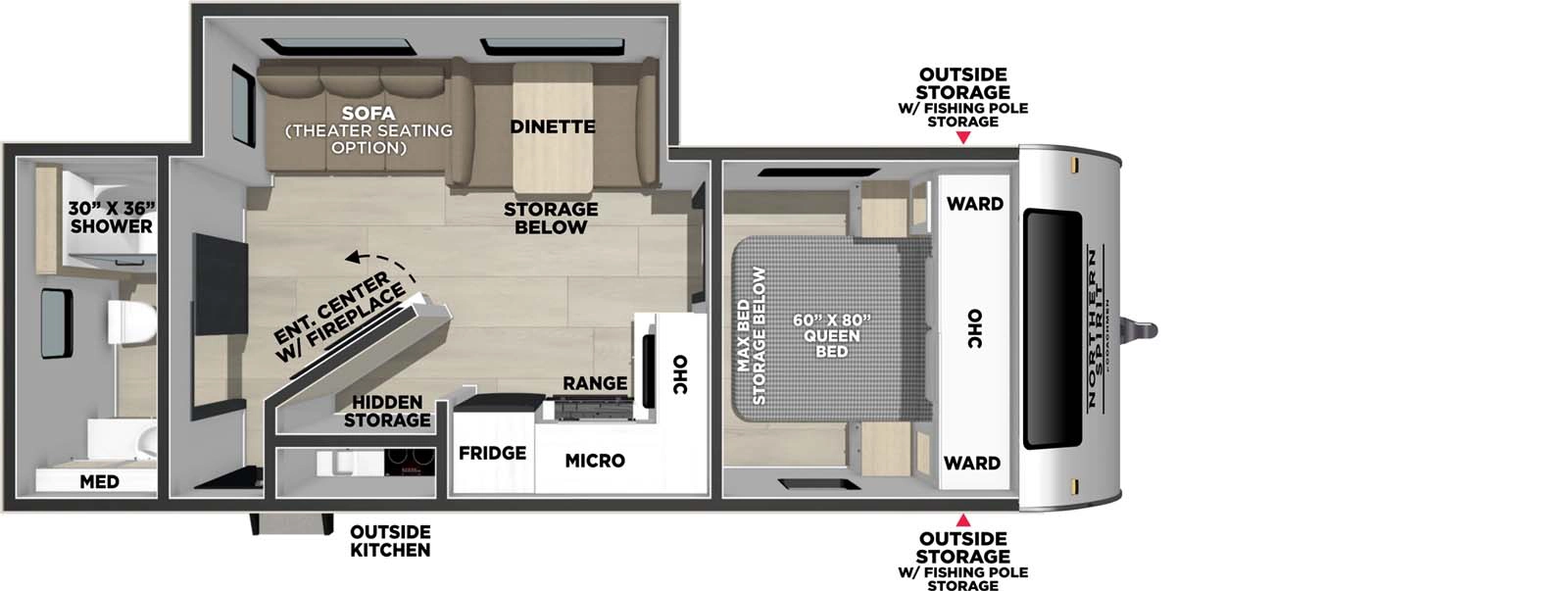

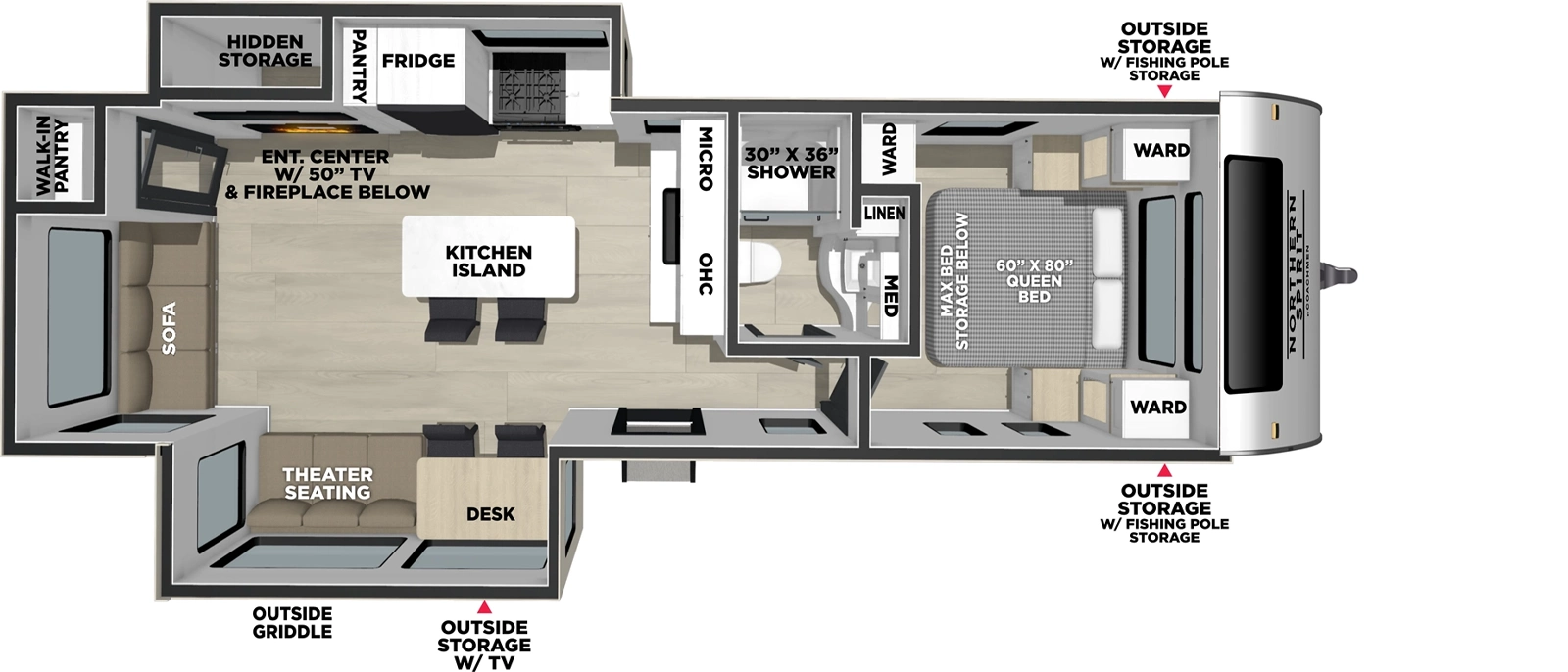

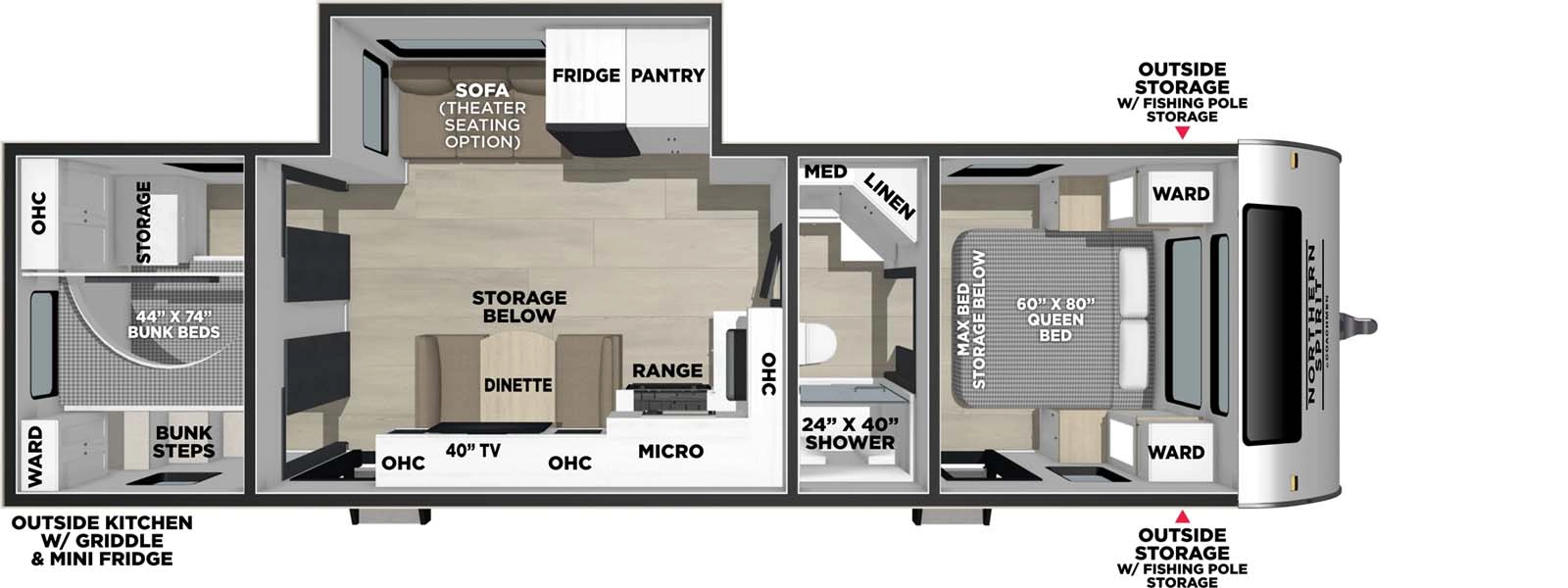

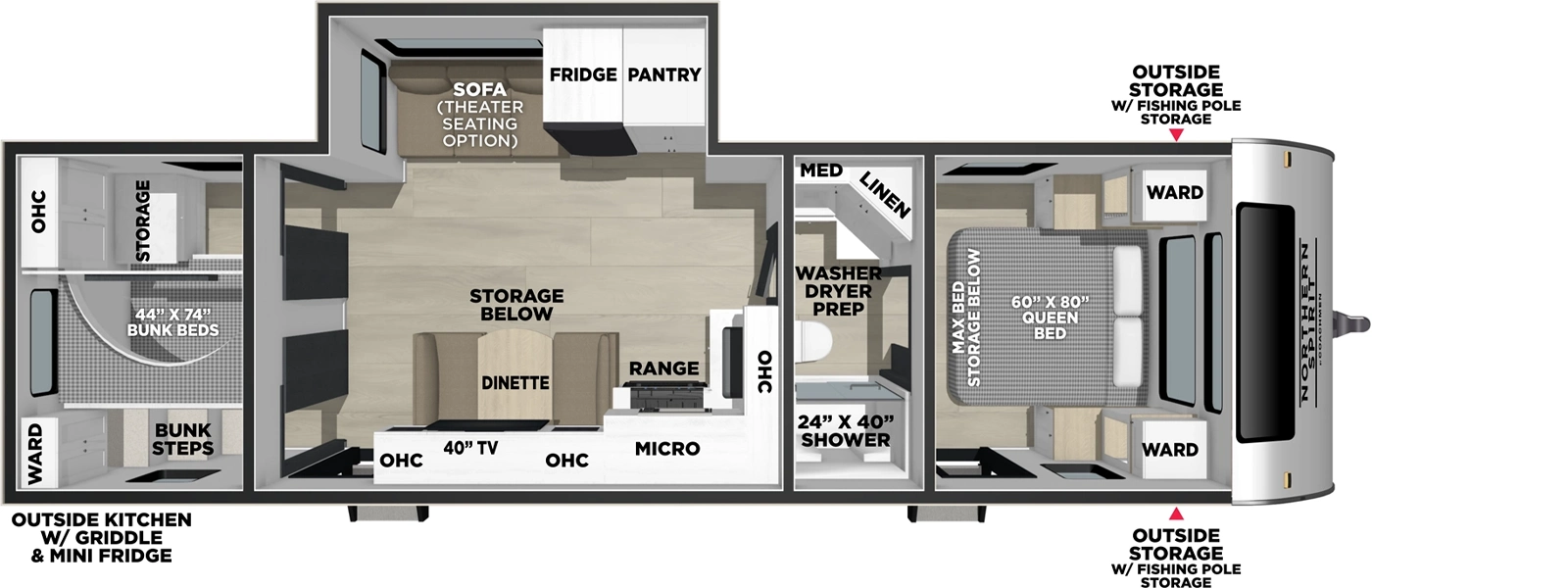

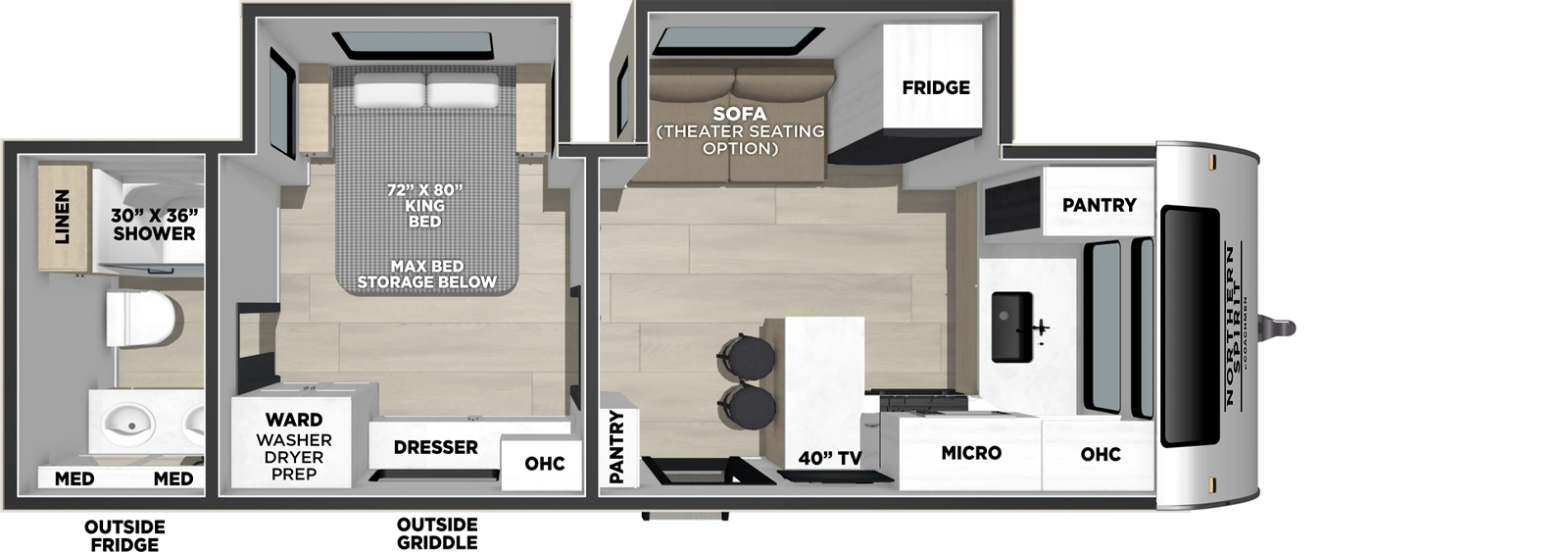

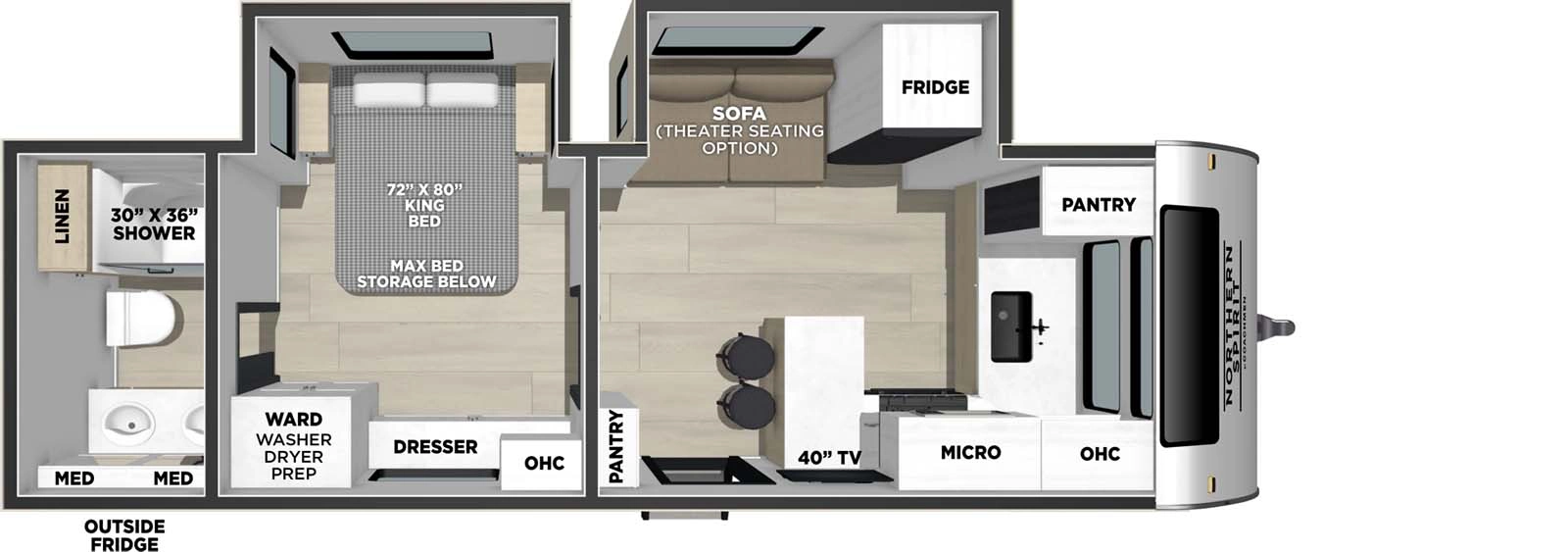

Floorplans

Print

Travel Trailers
Dealer Stock Only


Specifications

Print

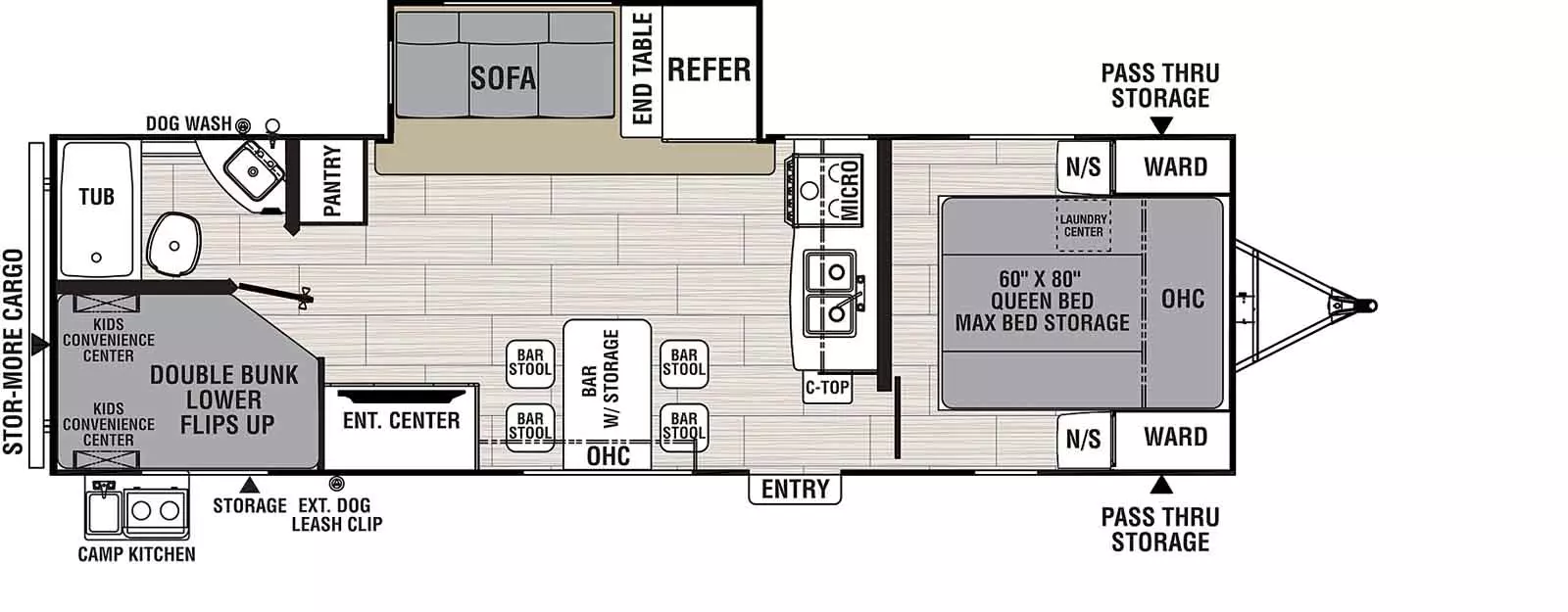

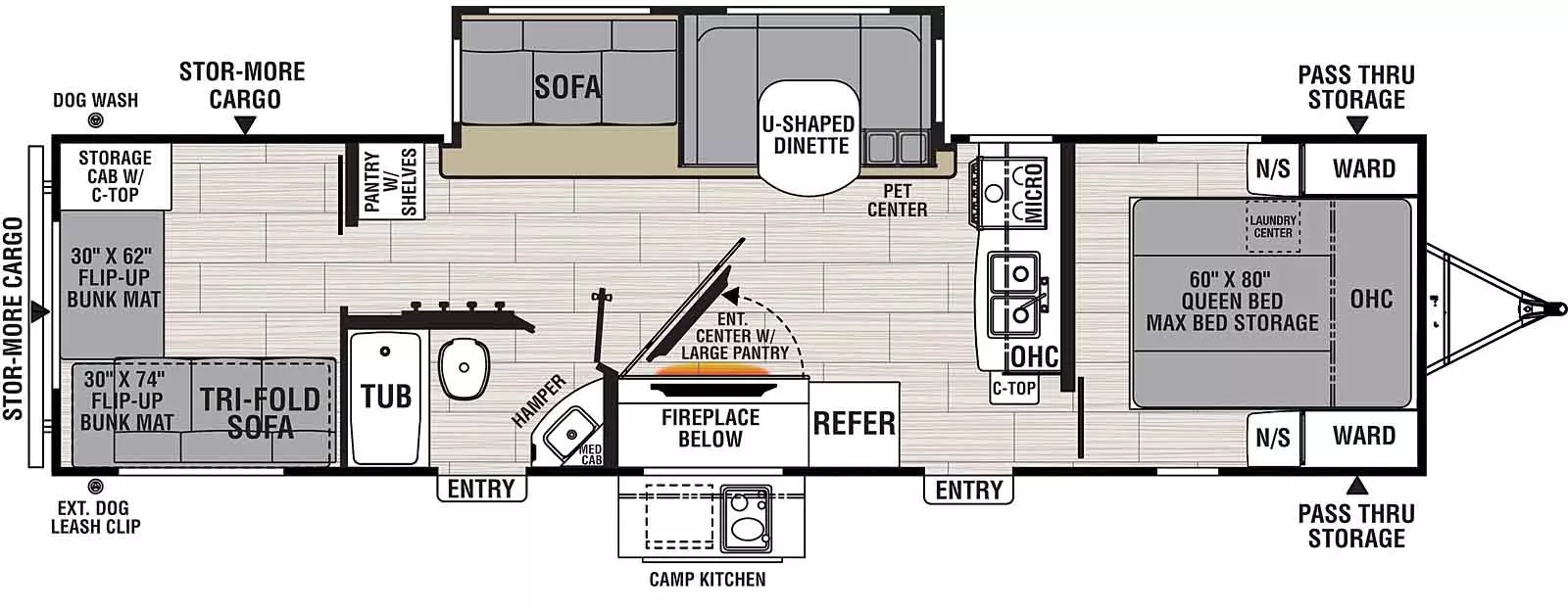

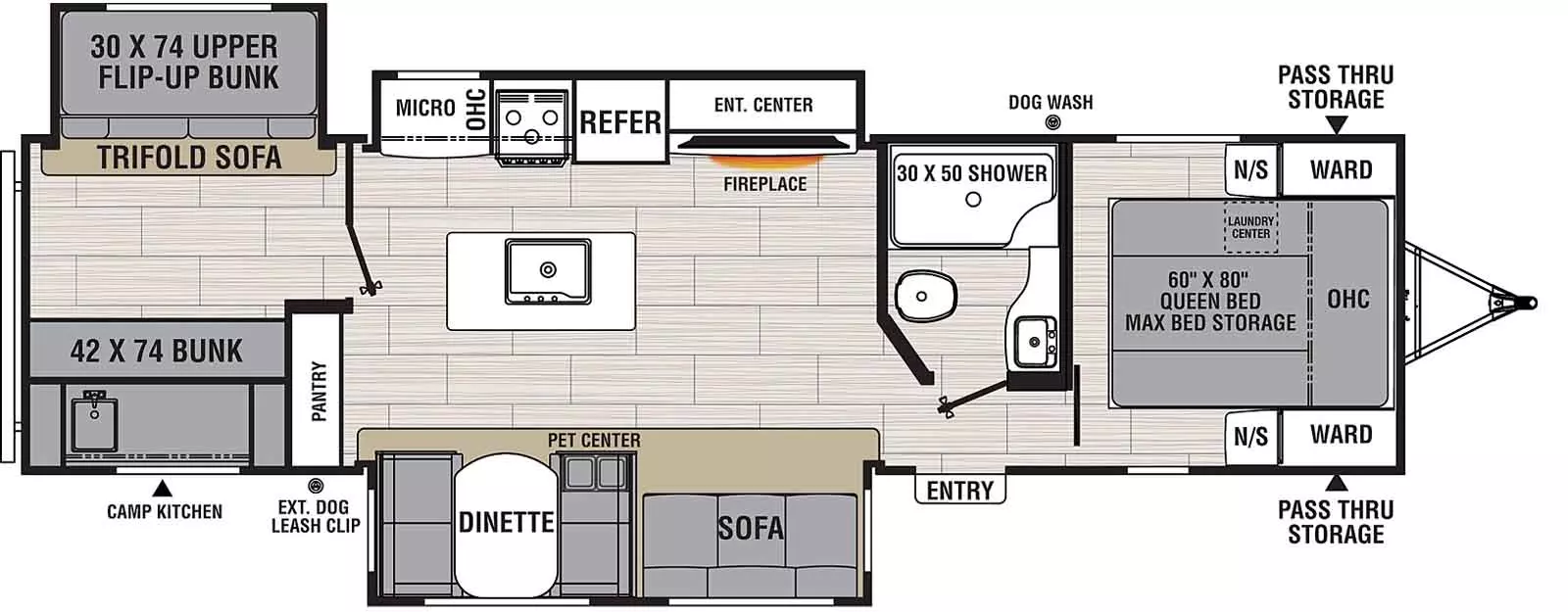

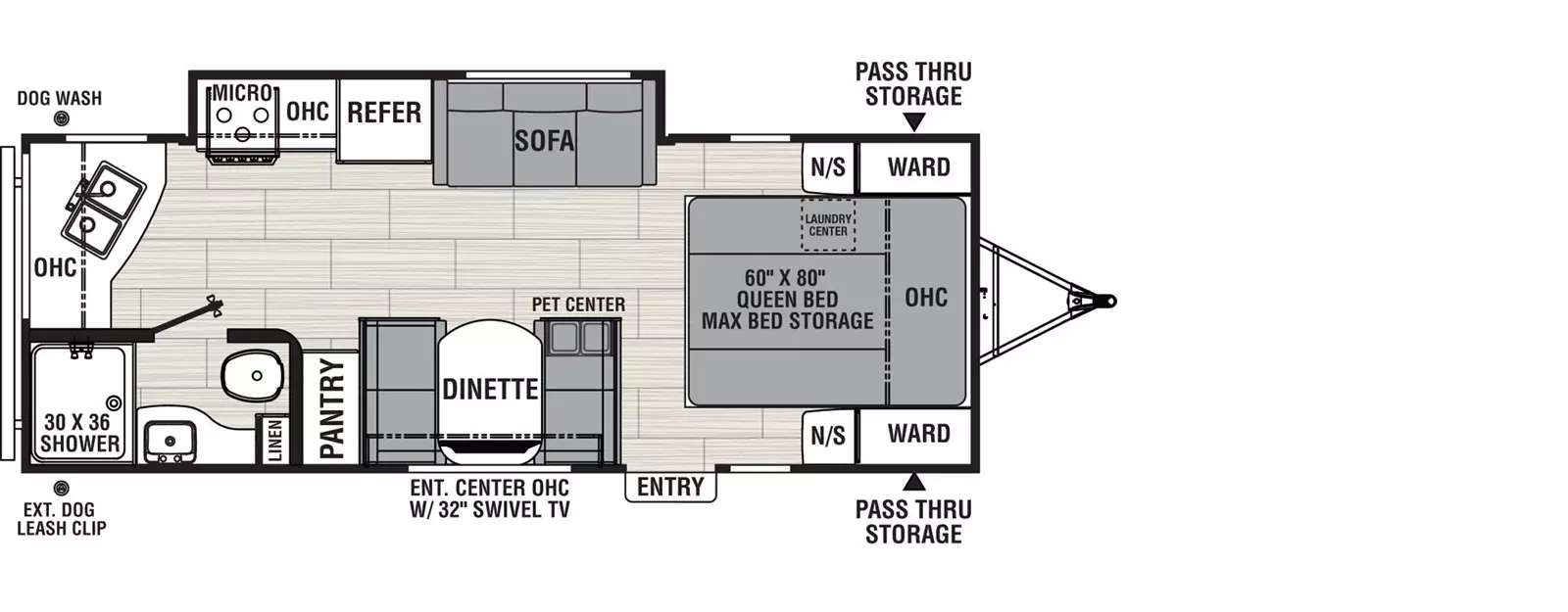

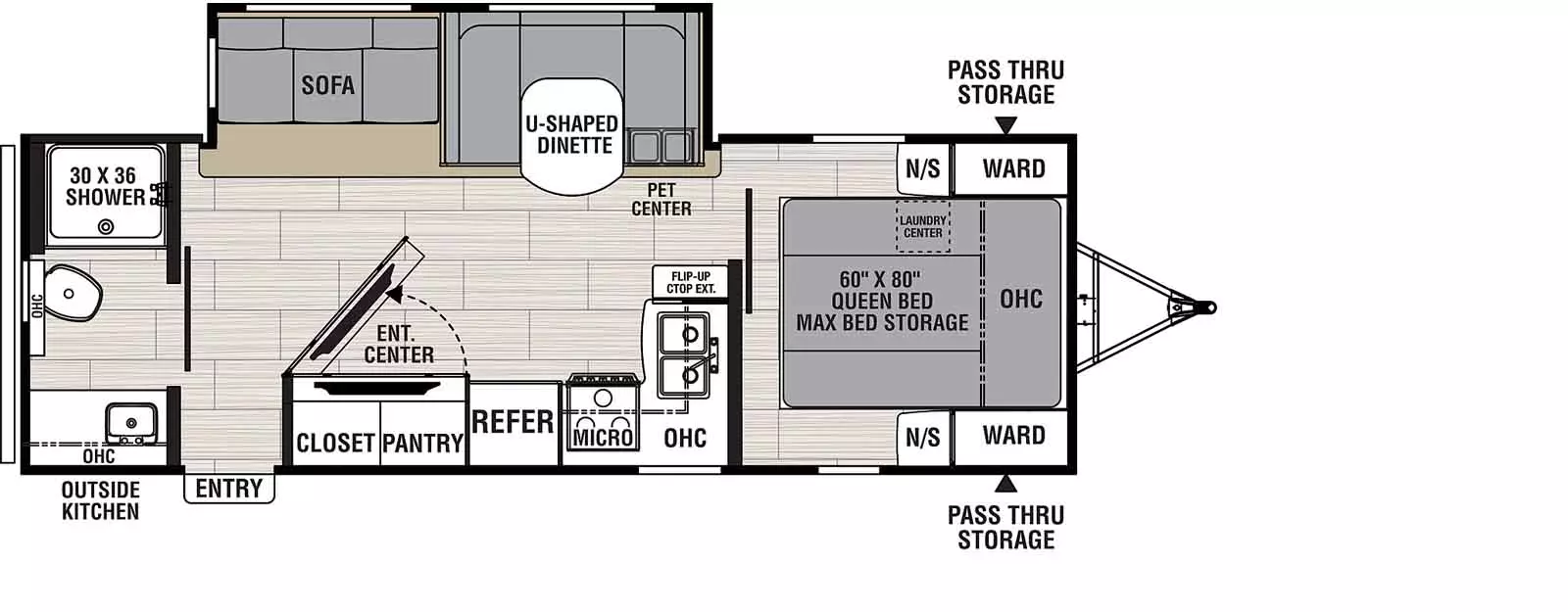

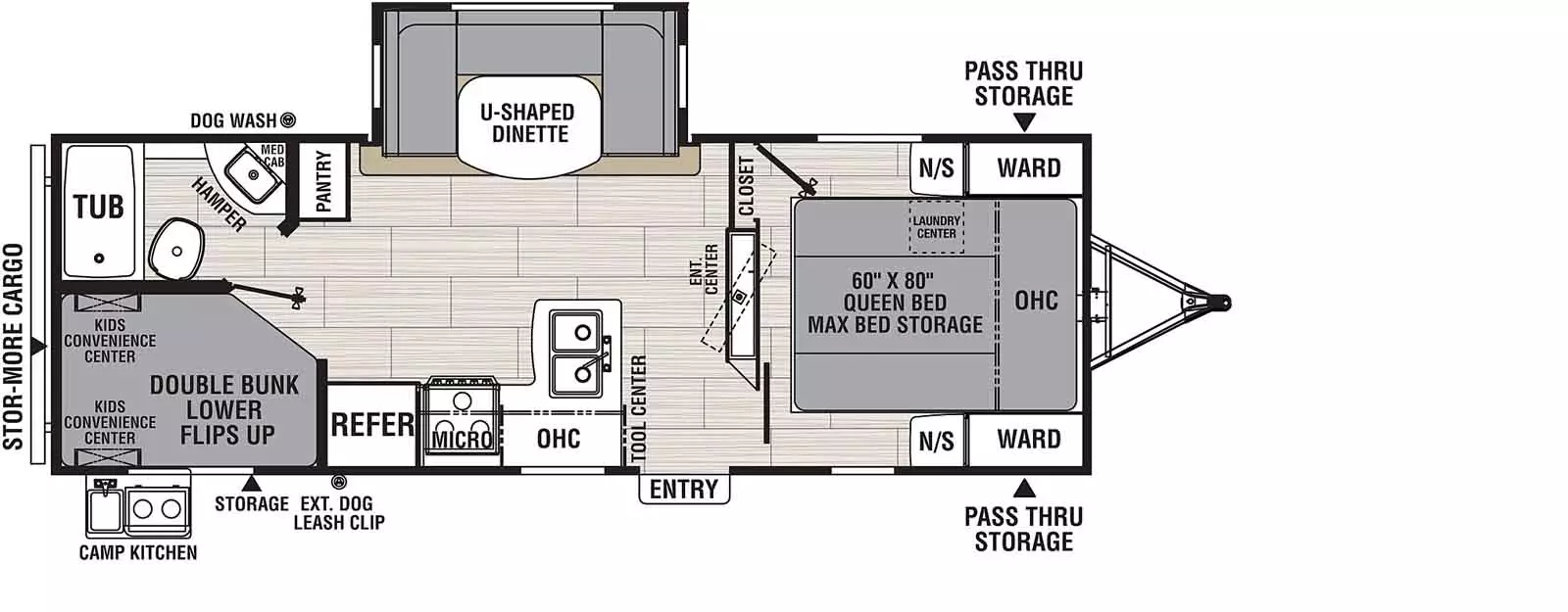

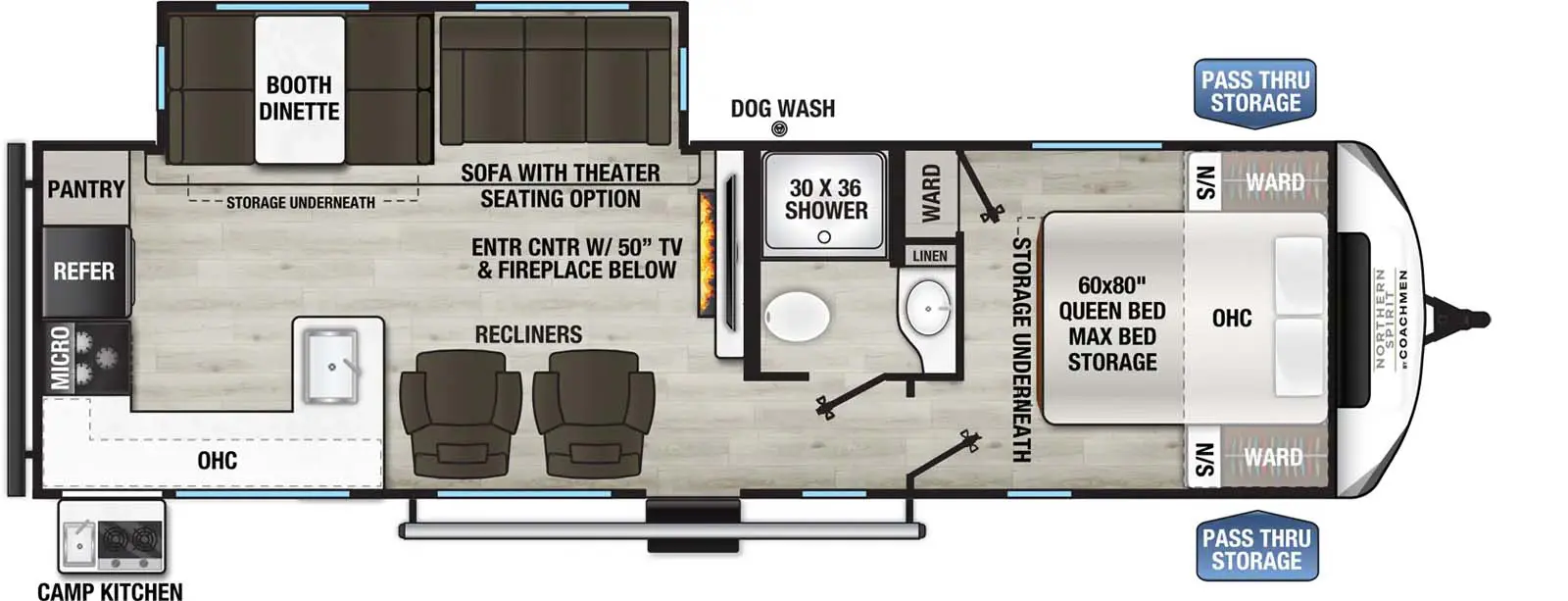

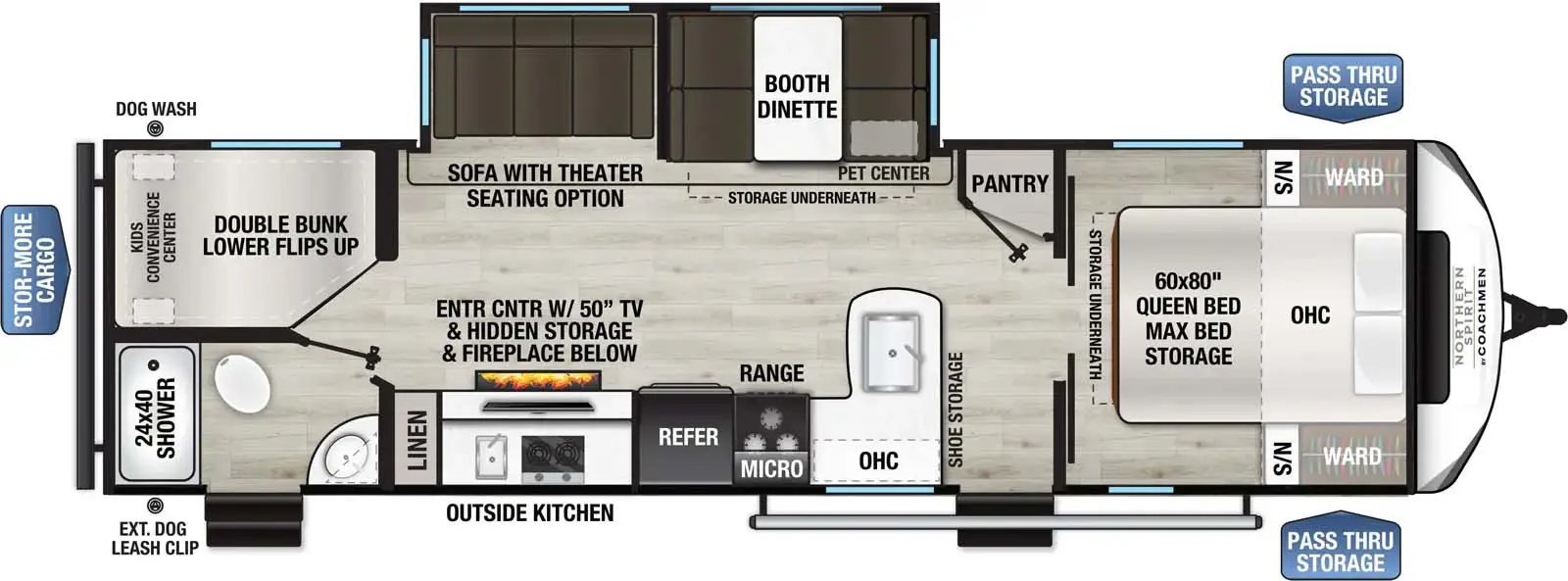

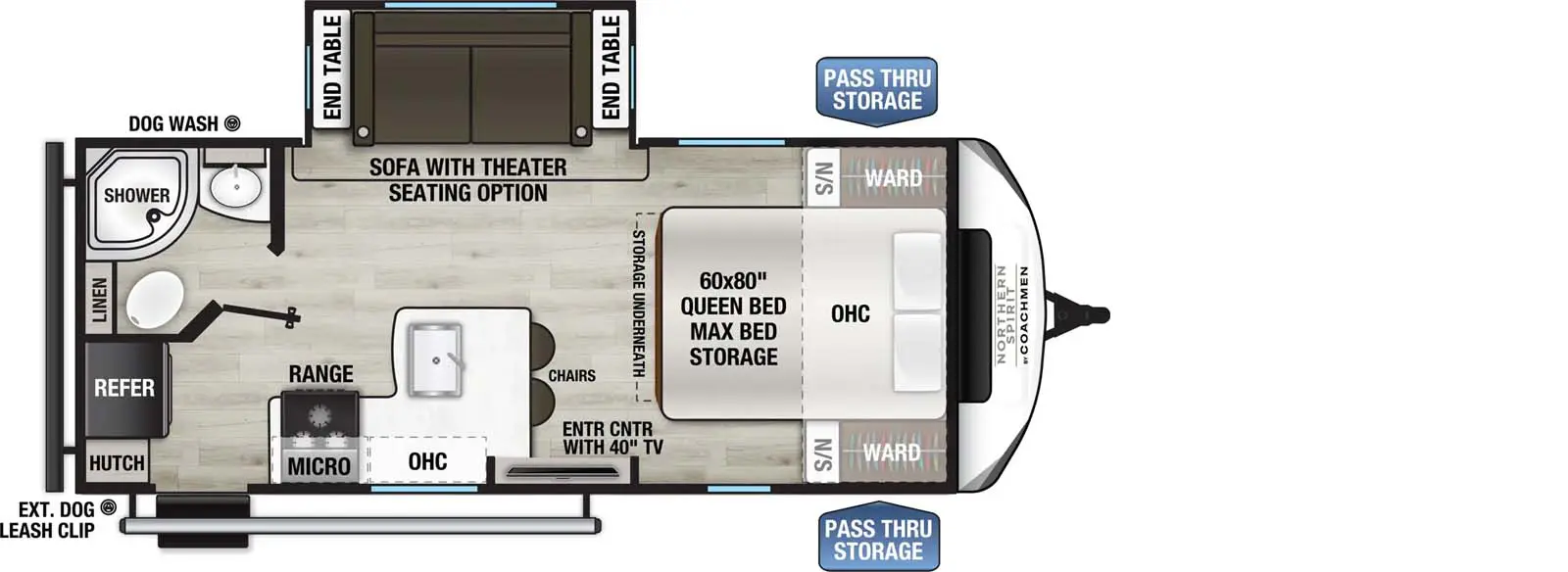

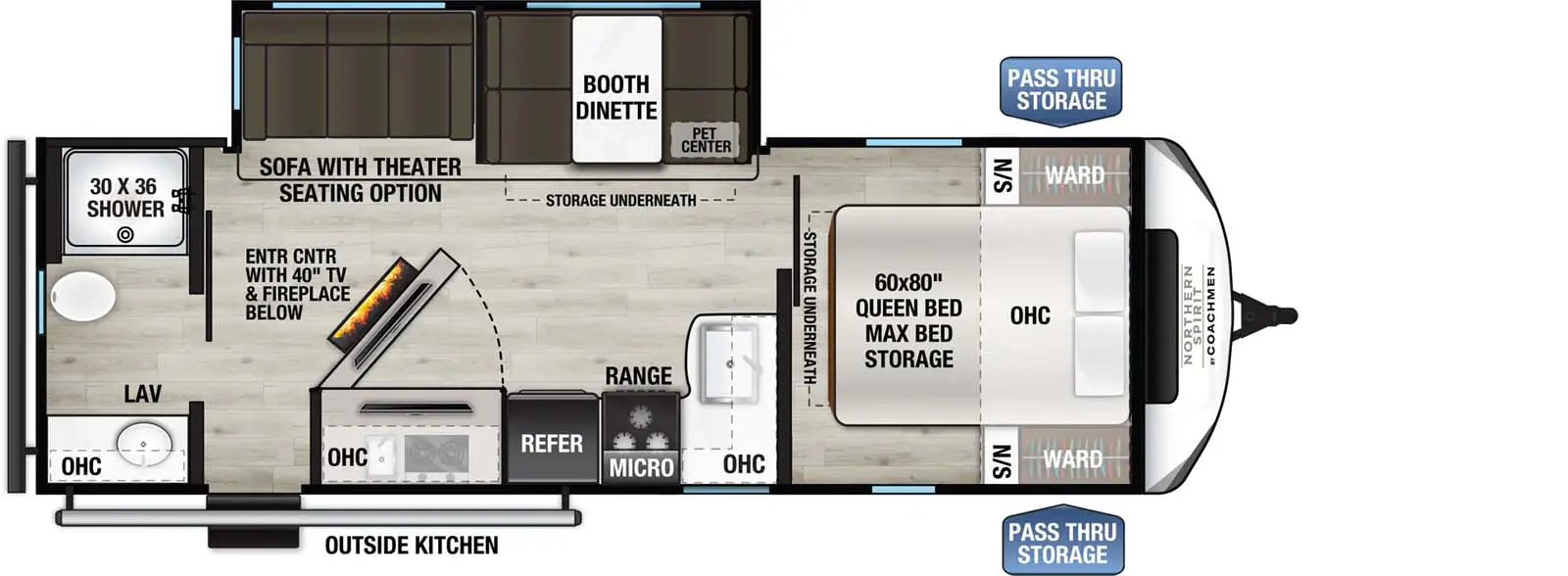

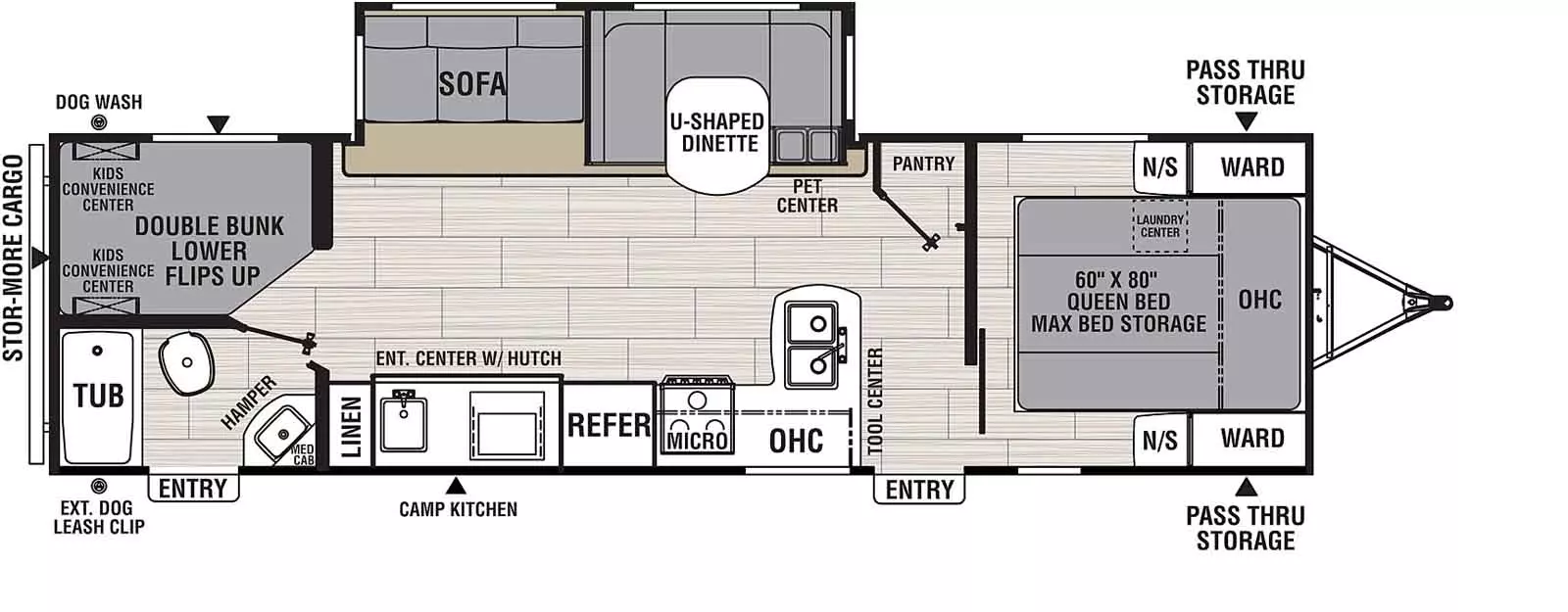

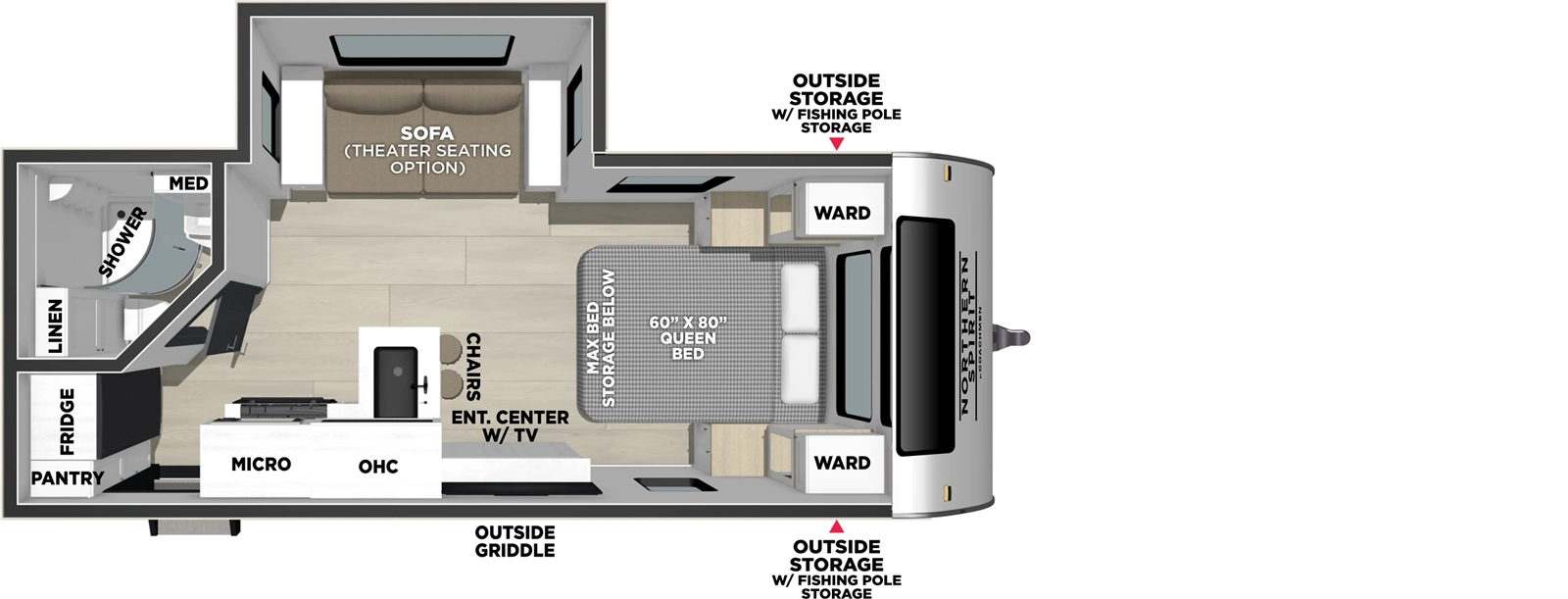

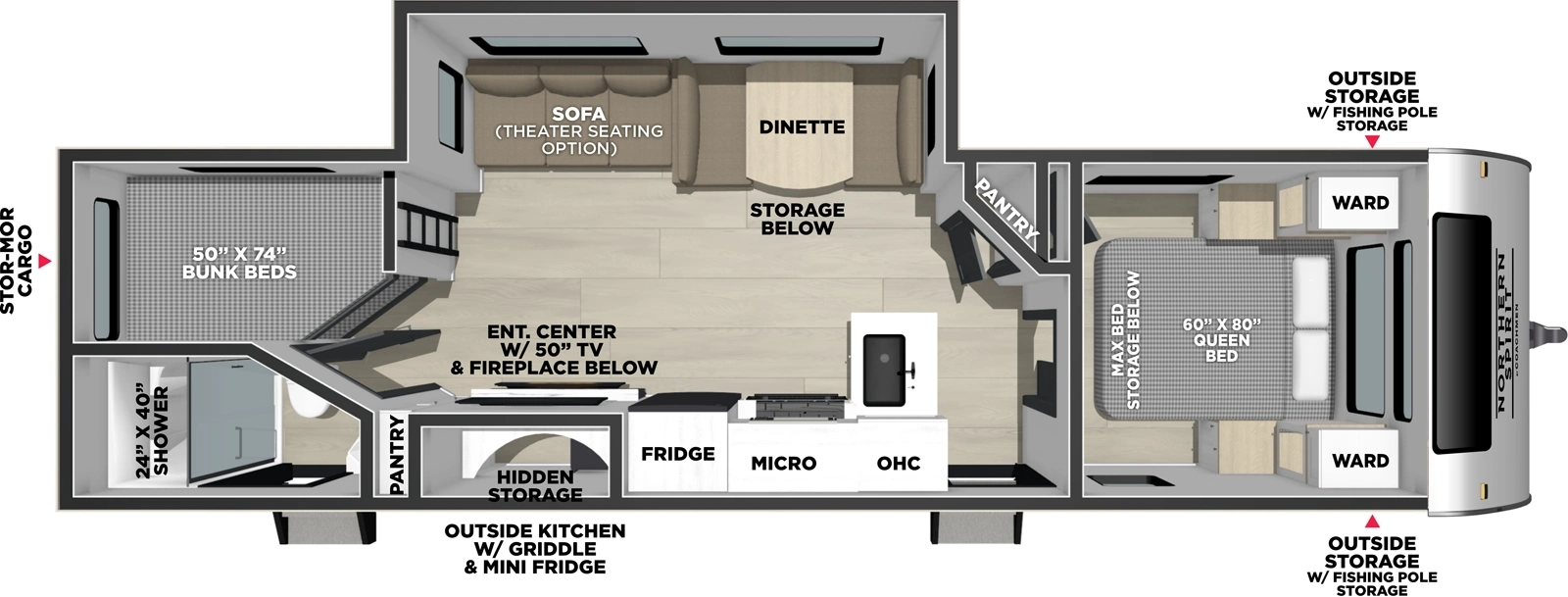

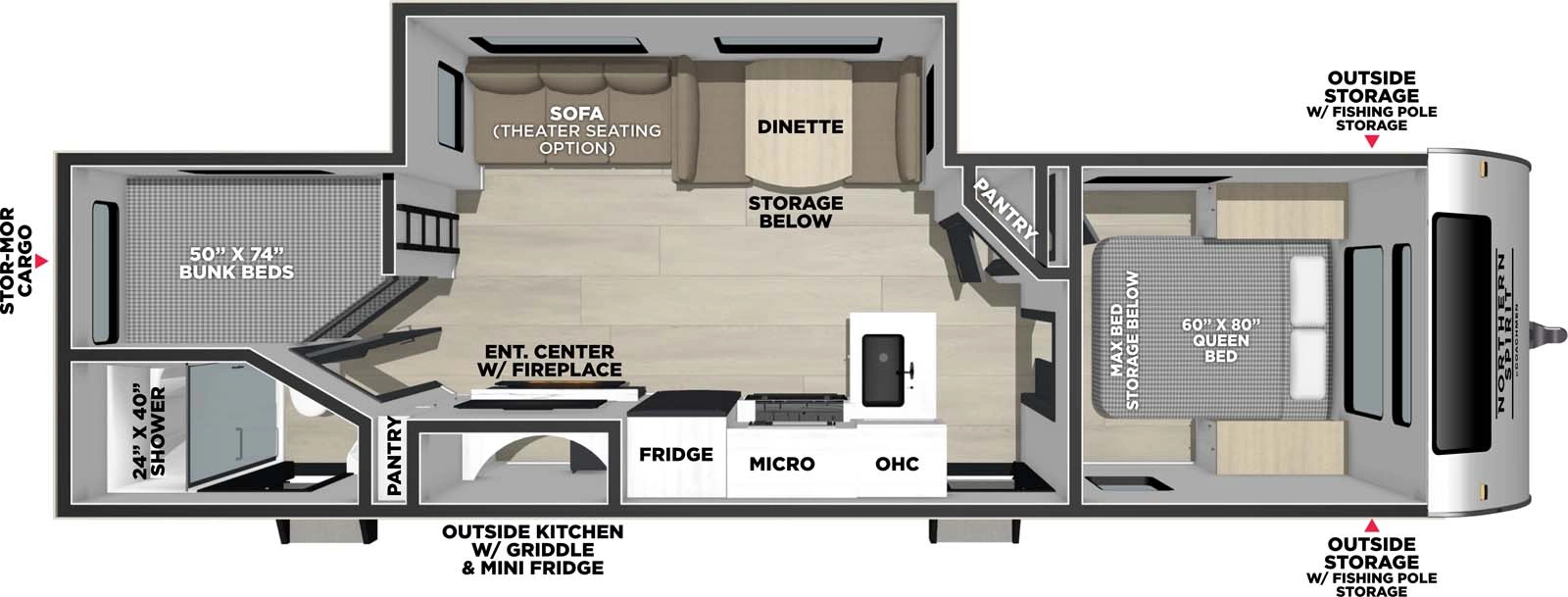

Floorplan: 1943RB : Travel Trailers 2252MD : Travel Trailers 2455BH : Travel Trailers 2557RB : Travel Trailers 2659BH : Travel Trailers 2764RE : Travel Trailers 2963BH : Travel Trailers 2965RK : Travel Trailers 3272BH : Travel Trailers 3379BH : Travel Trailers 2454BH - DSO : Dealer Stock Only
Hitch Weight:520 lb.696 lb.790 lb.648 lb.850 lb.750 lb.760 lb.770 lb.928 lb.1,094 lb.770 lb.
GVWR:6,500 lb.7,600 lb.7,600 lb.7,600 lb.7,600 lb.7,600 lb.7,600 lb.7,600 lb.9,800 lb.9,800 lb.7,600 lb.
UVW:4,926 lb.5,200 lb.5,728 lb.5,842 lb.6,218 lb.6,740 lb.6,408 lb.6,578 lb.7,198 lb.8,248 lb.5,502 lb.
CCC:1,574 lb.2,400 lb.1,872 lb.1,758 lb.1,382 lb.860 lb.1,192 lb.1,022 lb.2,602 lb.1,552 lb.2,098 lb.
Exterior Length:24' 0"26' 11"28' 11"29' 3"31' 10"32' 10"34' 0"33' 5"36' 5"37' 0"28' 10"
Exterior Height:11' 1"11' 1"TBD11' 1"11' 1"11' 4"11' 1"11' 3"11' 4"11' 4"11' 1"
Exterior Width:96"96"96"96"96"96"96"96"96"96"96"
Fresh Water:49.00 gal.49.00 gal.50.00 gal.49.00 gal.49.00 gal.50.00 gal.49.00 gal.50.00 gal.49.00 gal.49.00 gal.49.00 gal.
Gray Water:33.00 gal.33.00 gal.70.00 gal.66.00 gal.66.00 gal.35.00 gal.33.00 gal.70.00 gal.66.00 gal.66.00 gal.33.00 gal.
Black Water:33.00 gal.33.00 gal.35.00 gal.33.00 gal.33.00 gal.35.00 gal.33.00 gal.35.00 gal.33.00 gal.33.00 gal.33.00 gal.
Awning Size:15'18'TBD18'20'12'18'20'20'11' & 8'20'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Coachmen RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Coachmen RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Features & Options

Print

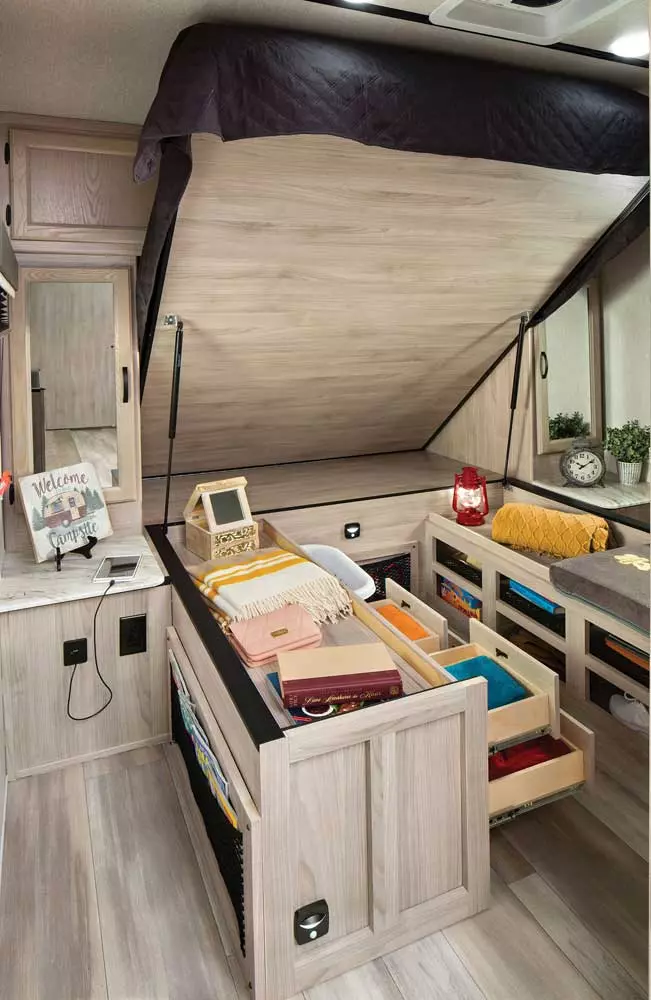

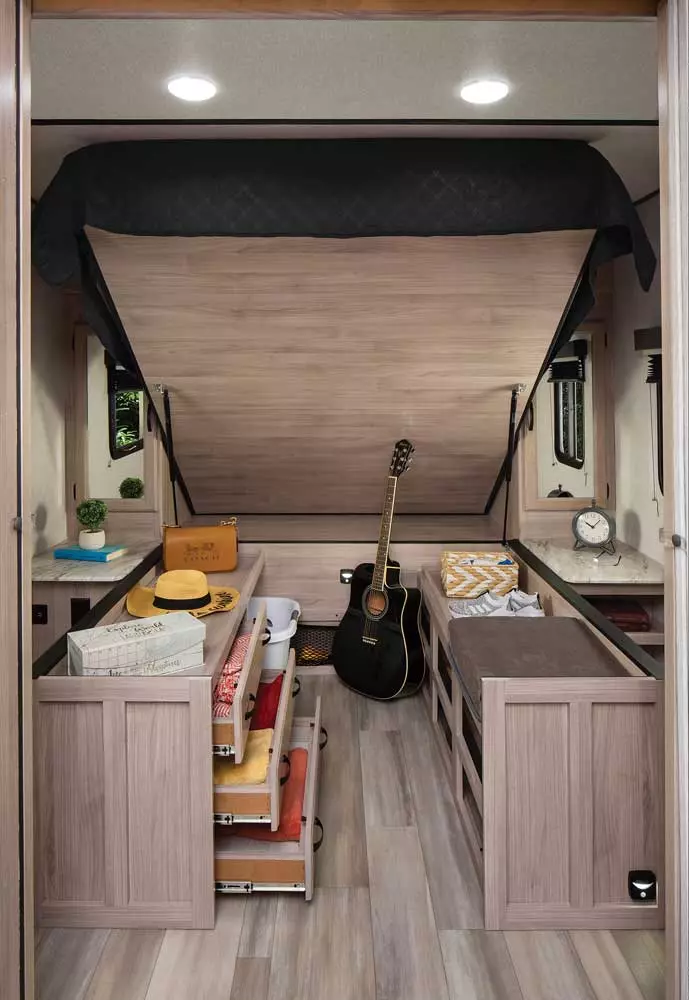

  • MAX BED STORAGE (N/A 3379BH)

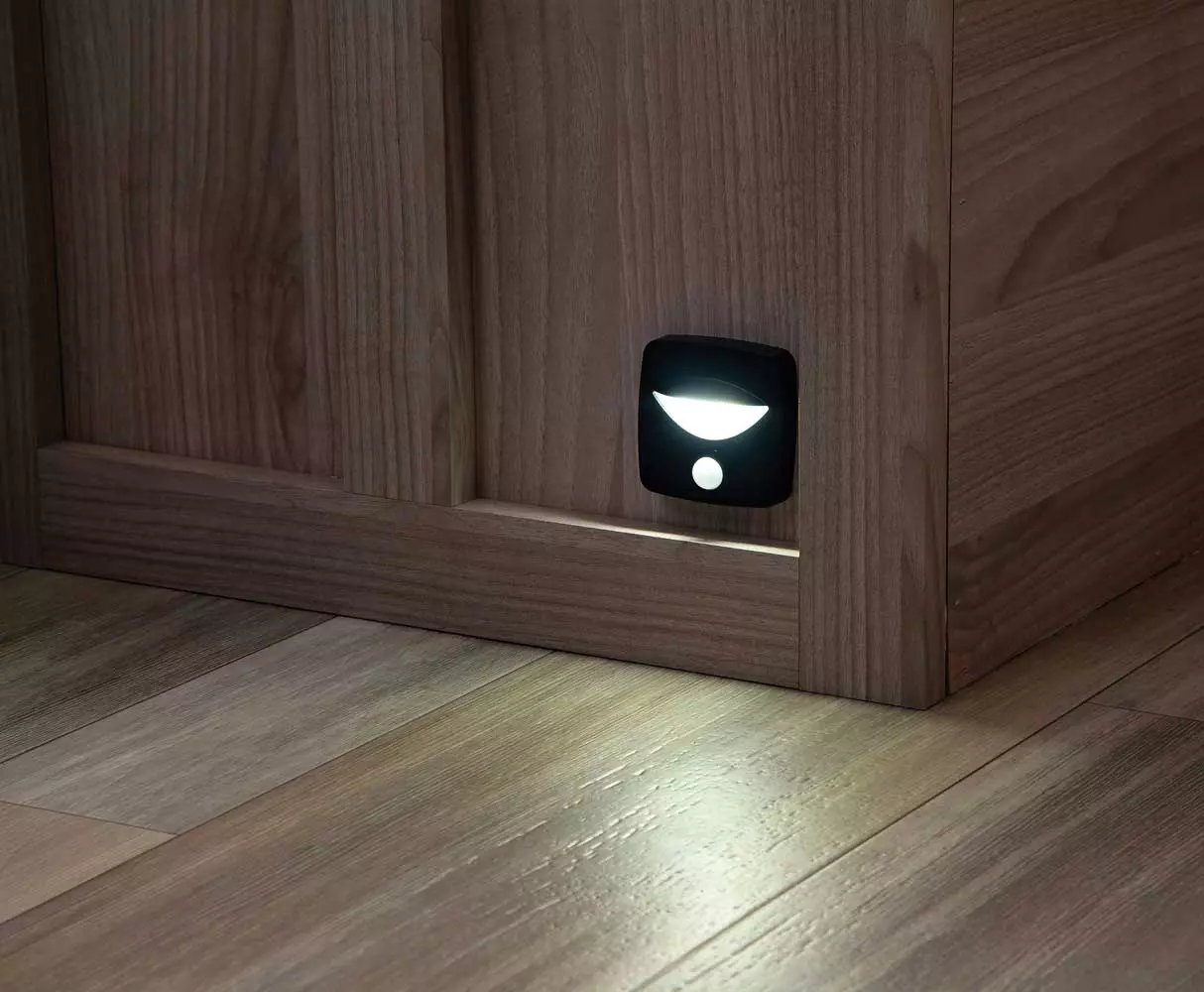

  • Motion Activated Floor Lights (Bedroom and bathroom)
  • Store-More Cargo Center (Bunk models)

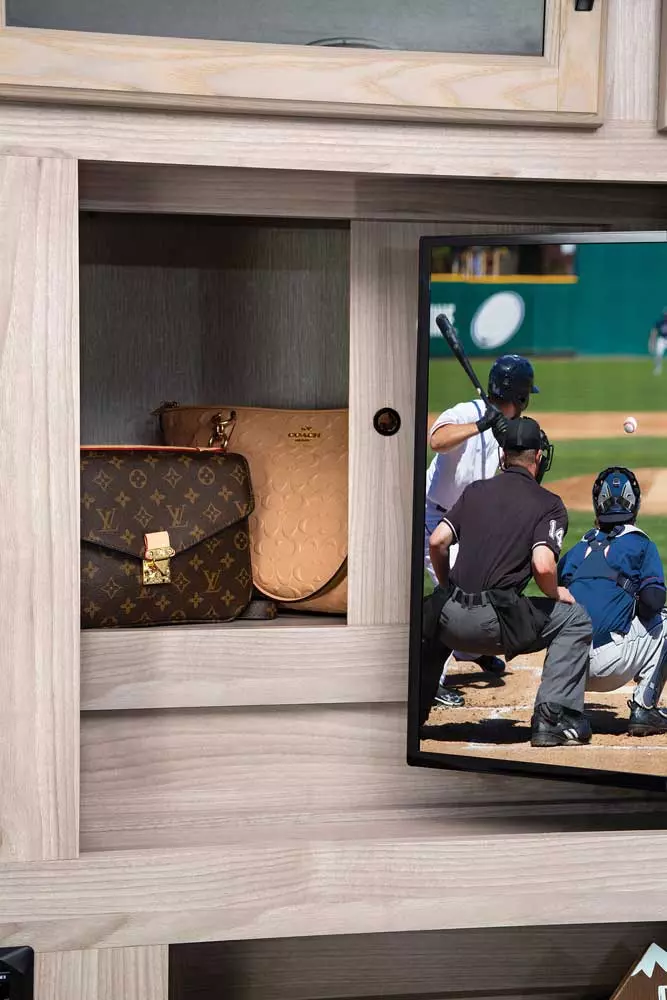

  • Valuables Hutch (Some models)

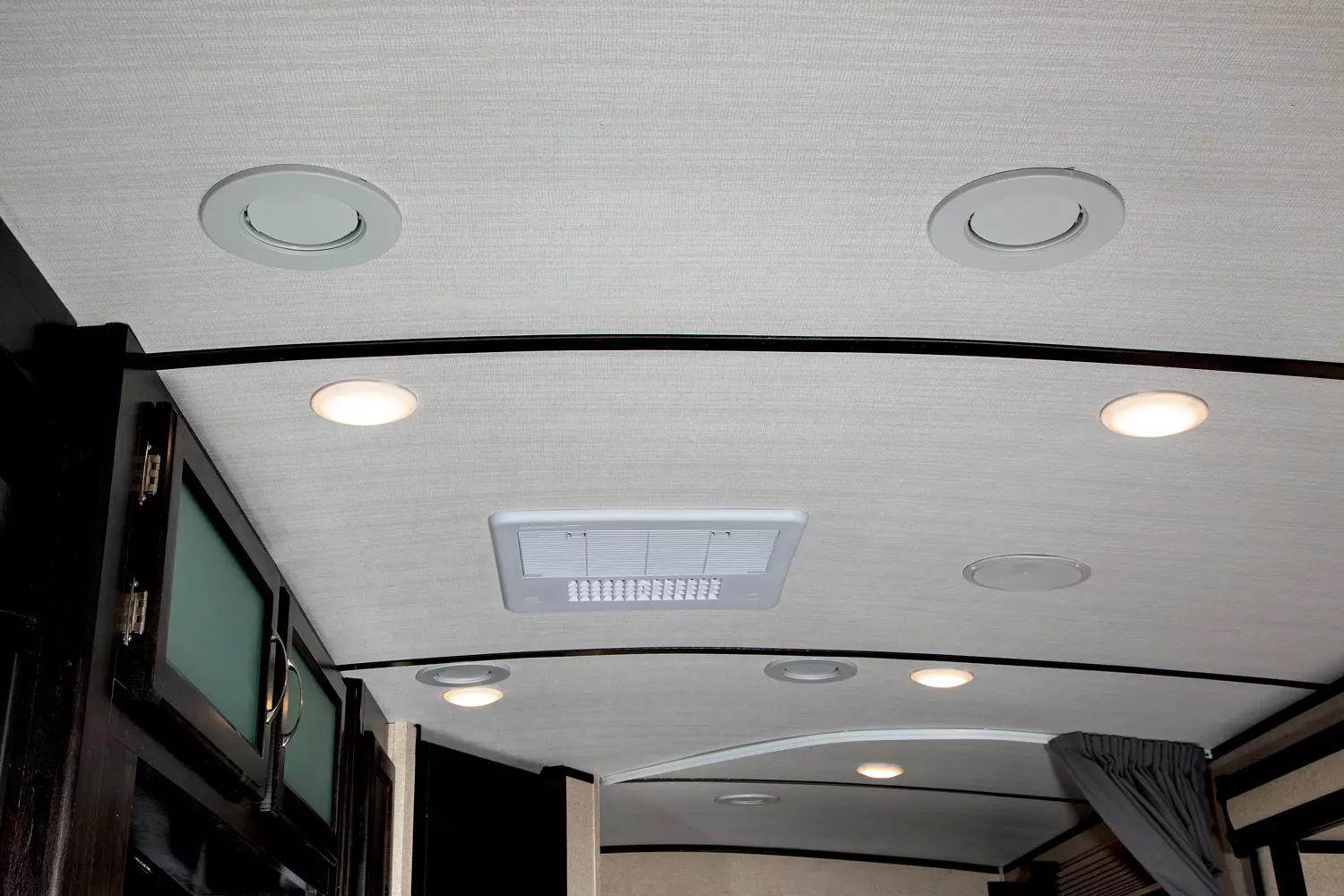

  • “Twice Cool” Dual Ducted Air Conditioning System
  • Lighted USB Ports

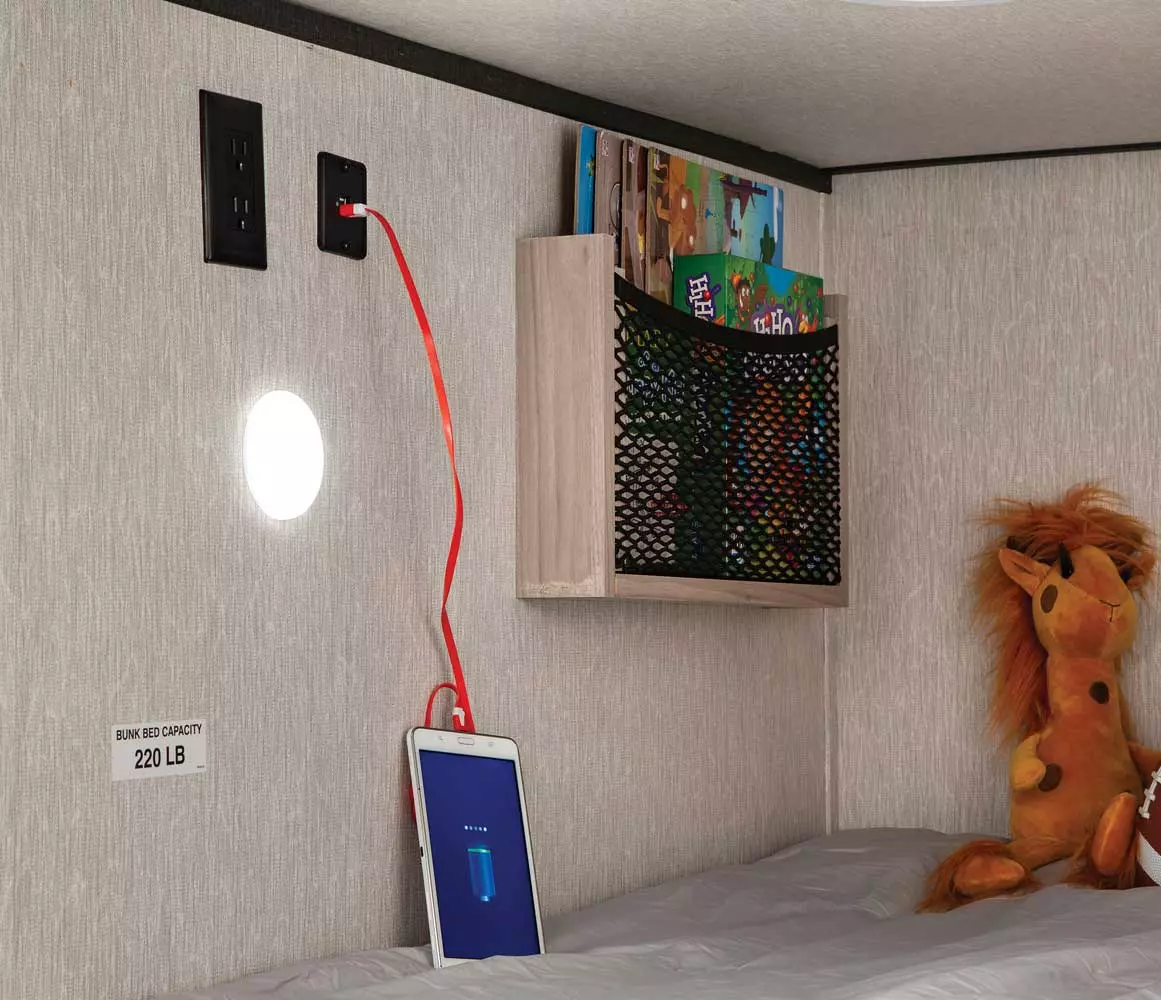

  • Kids Convenience Center

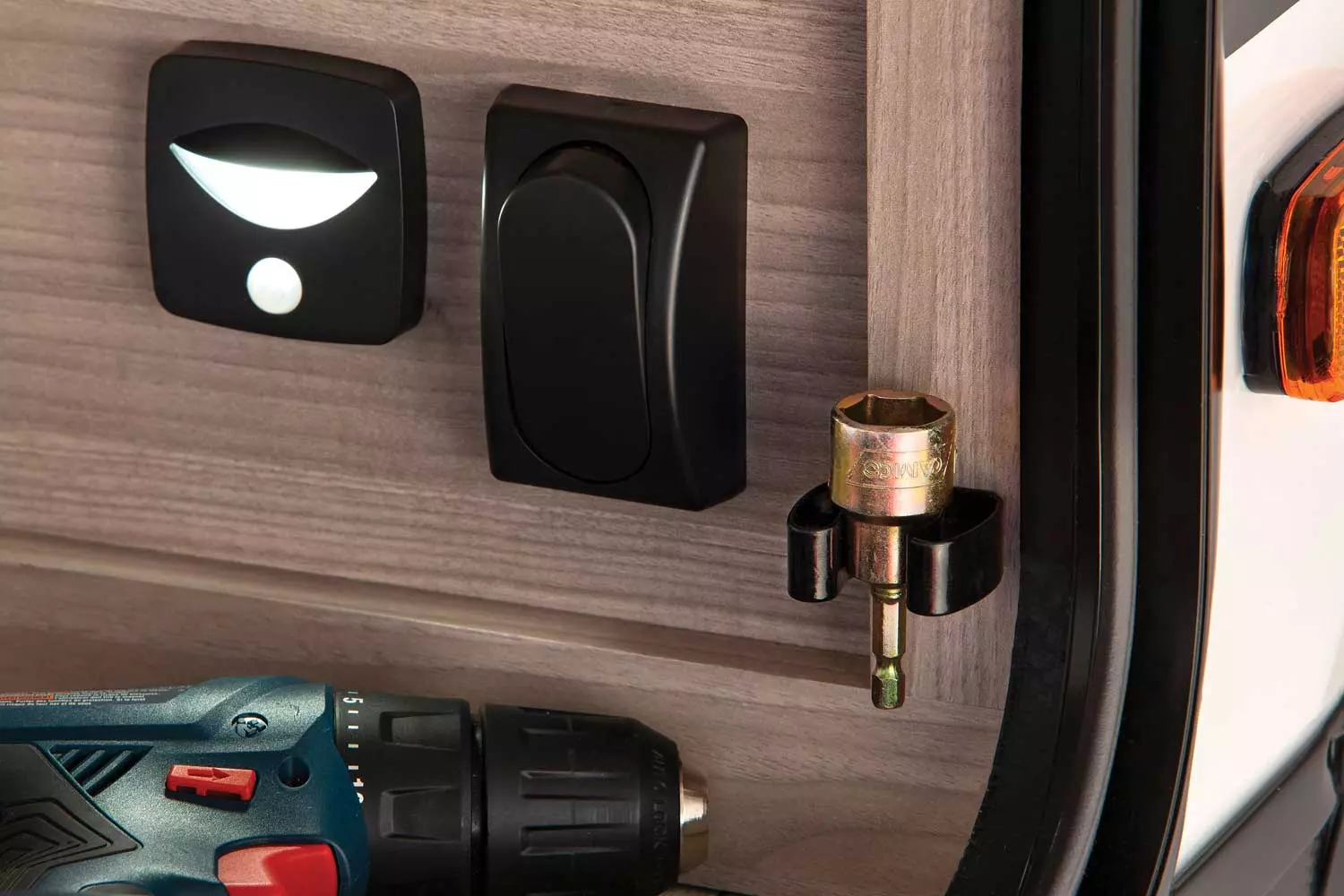

  • “Easy Up” Quick Connect Stabilizer Jack Bit

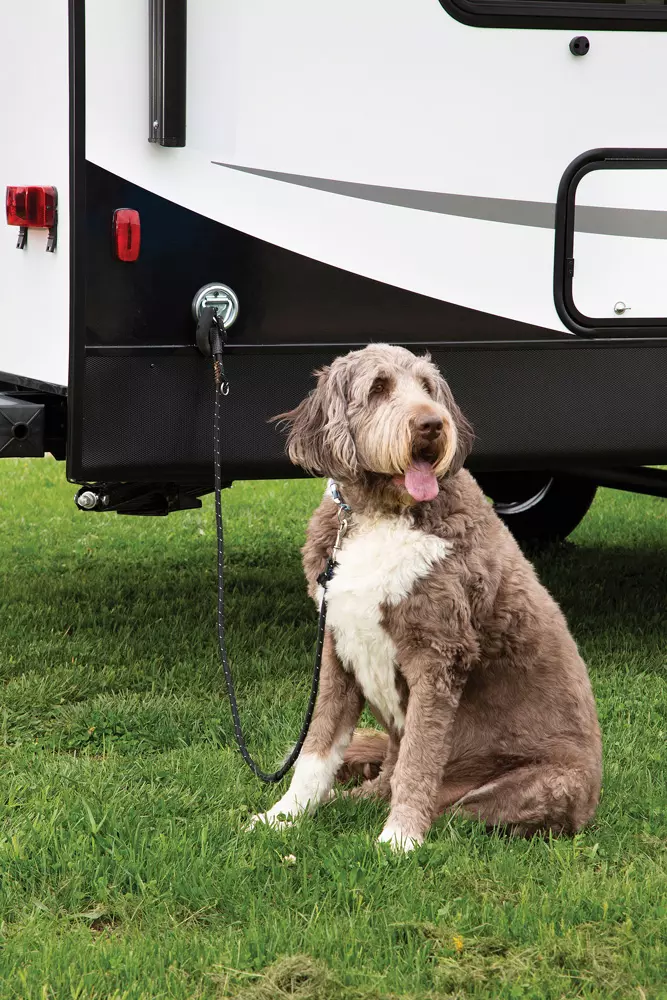

  • Exterior Dog Leash Clip

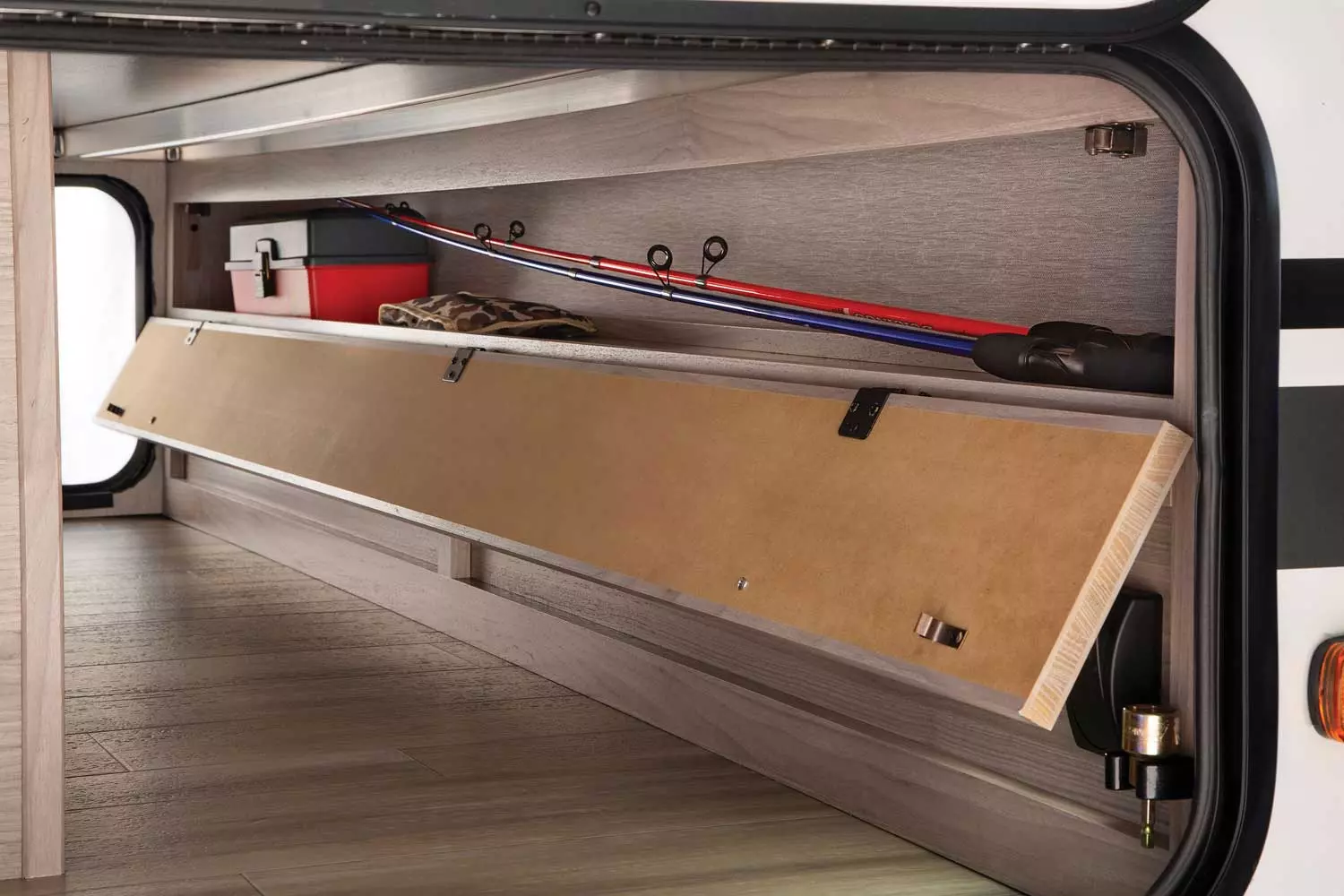

  • Exterior Fishing Pole Storage

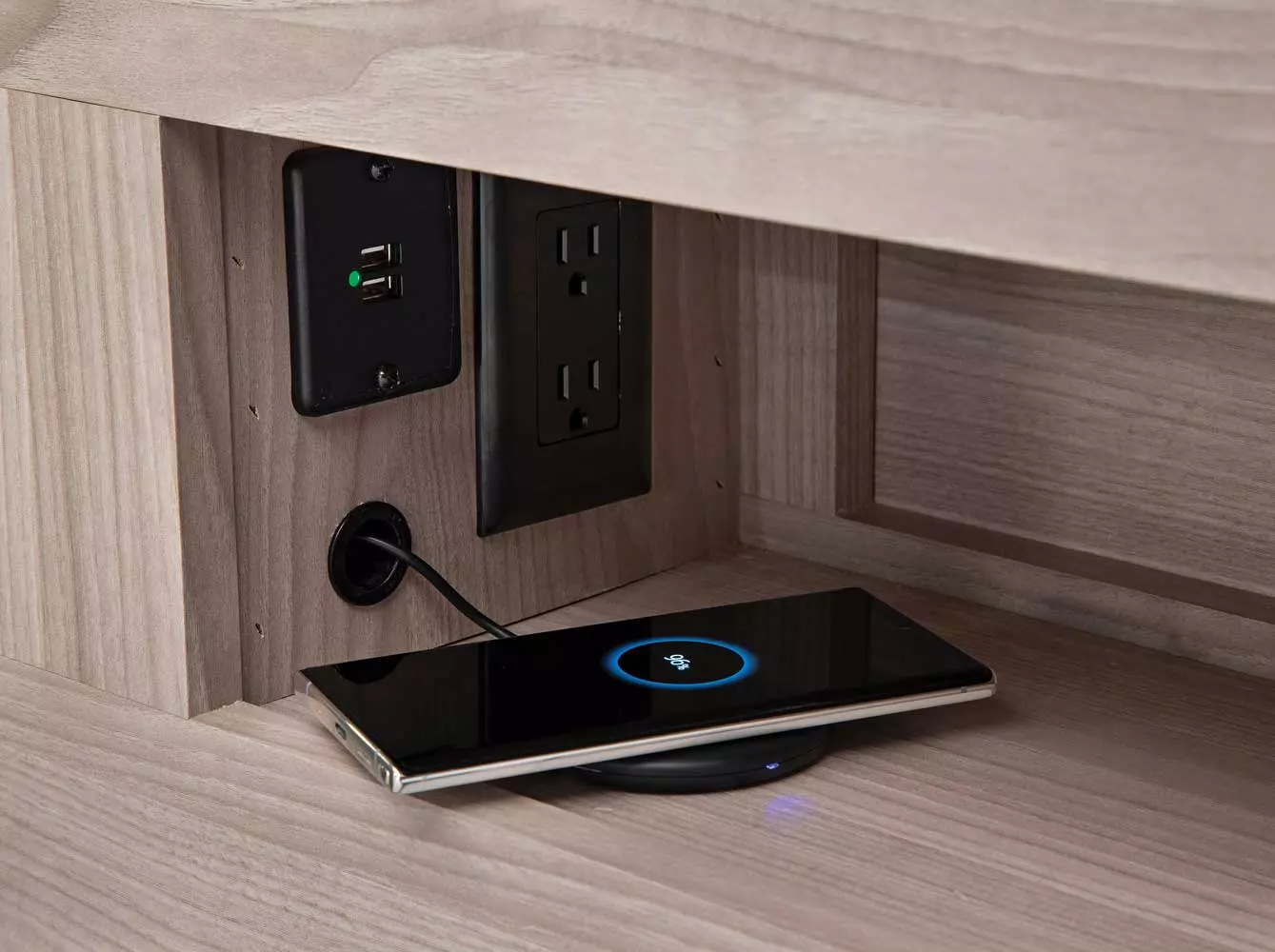

  • Wireless Phone Charger
  • Motion Activated Pass Through Storage Light
  • Battery Disconnect Switch

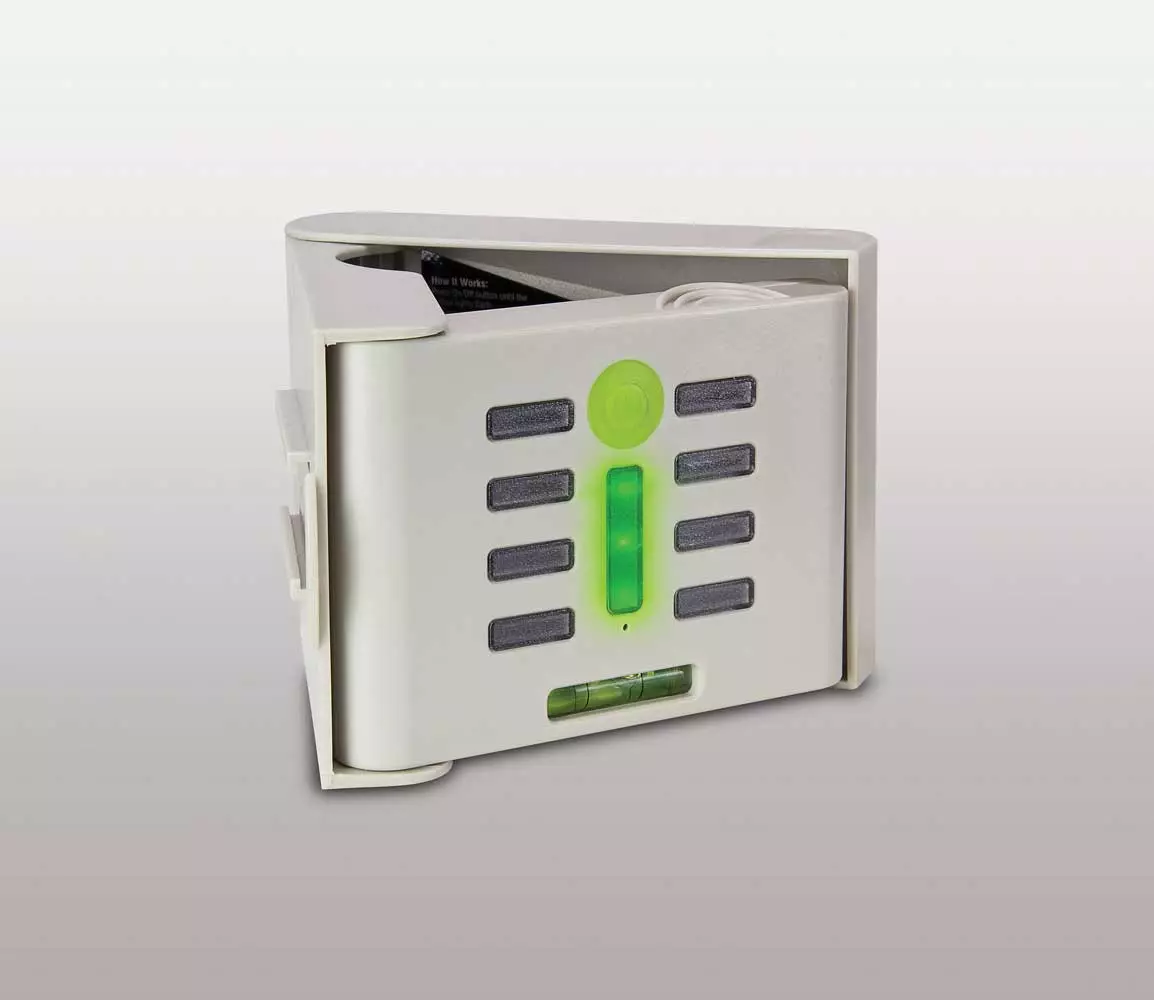

  • Digital Level

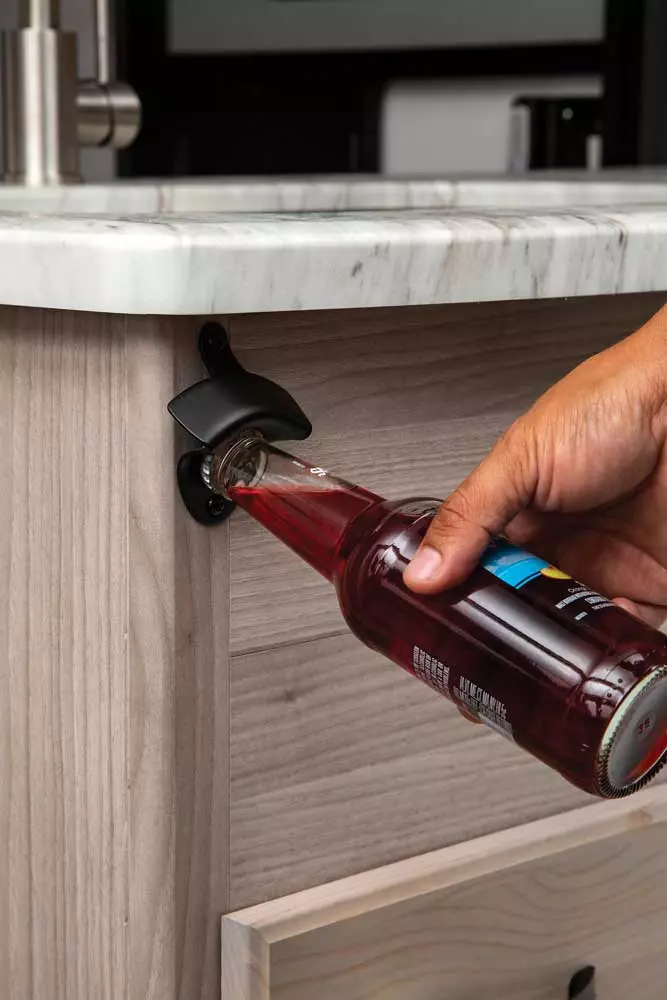

  • Bottle Opener

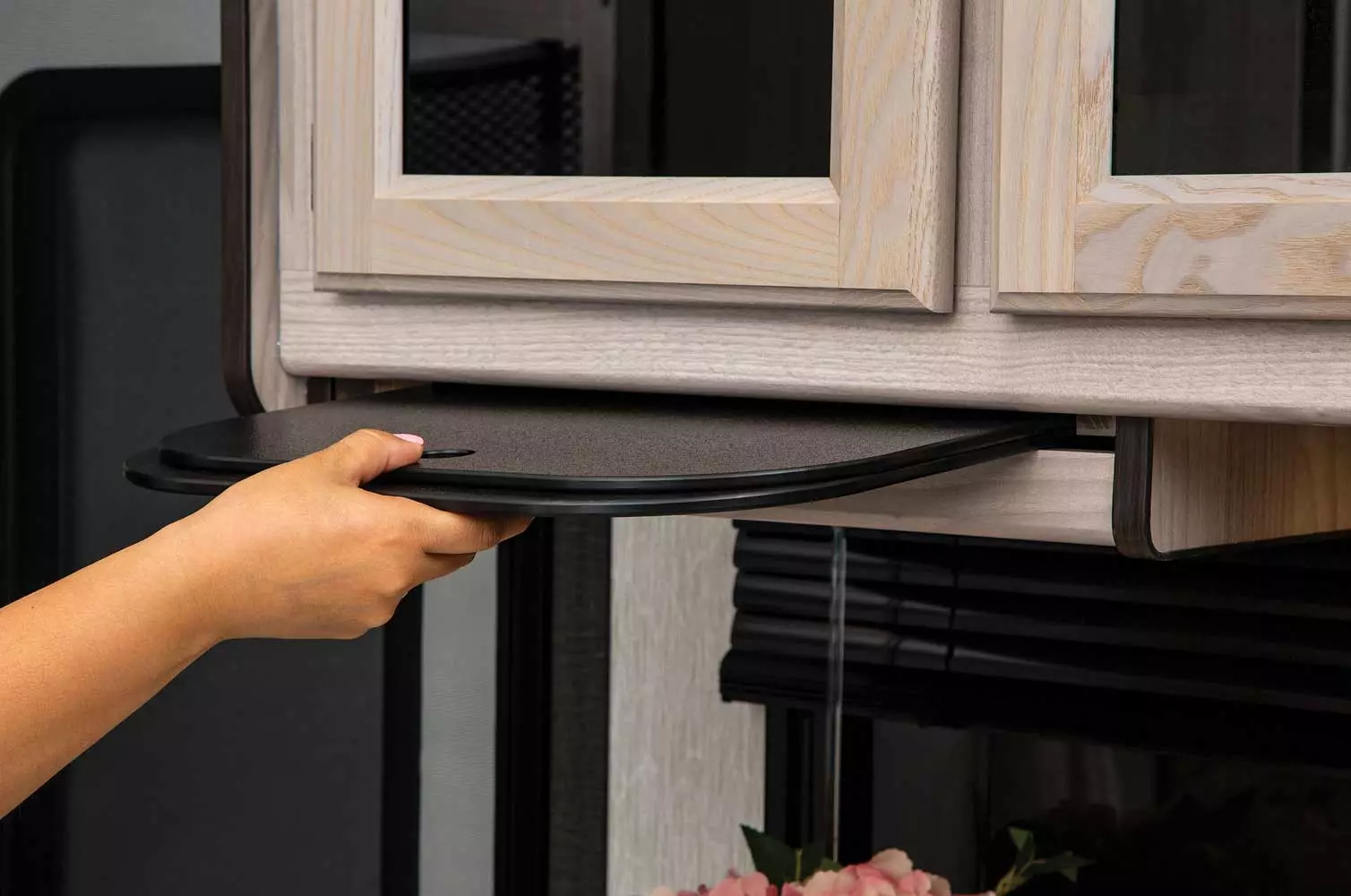

  • Sink Cover Storage

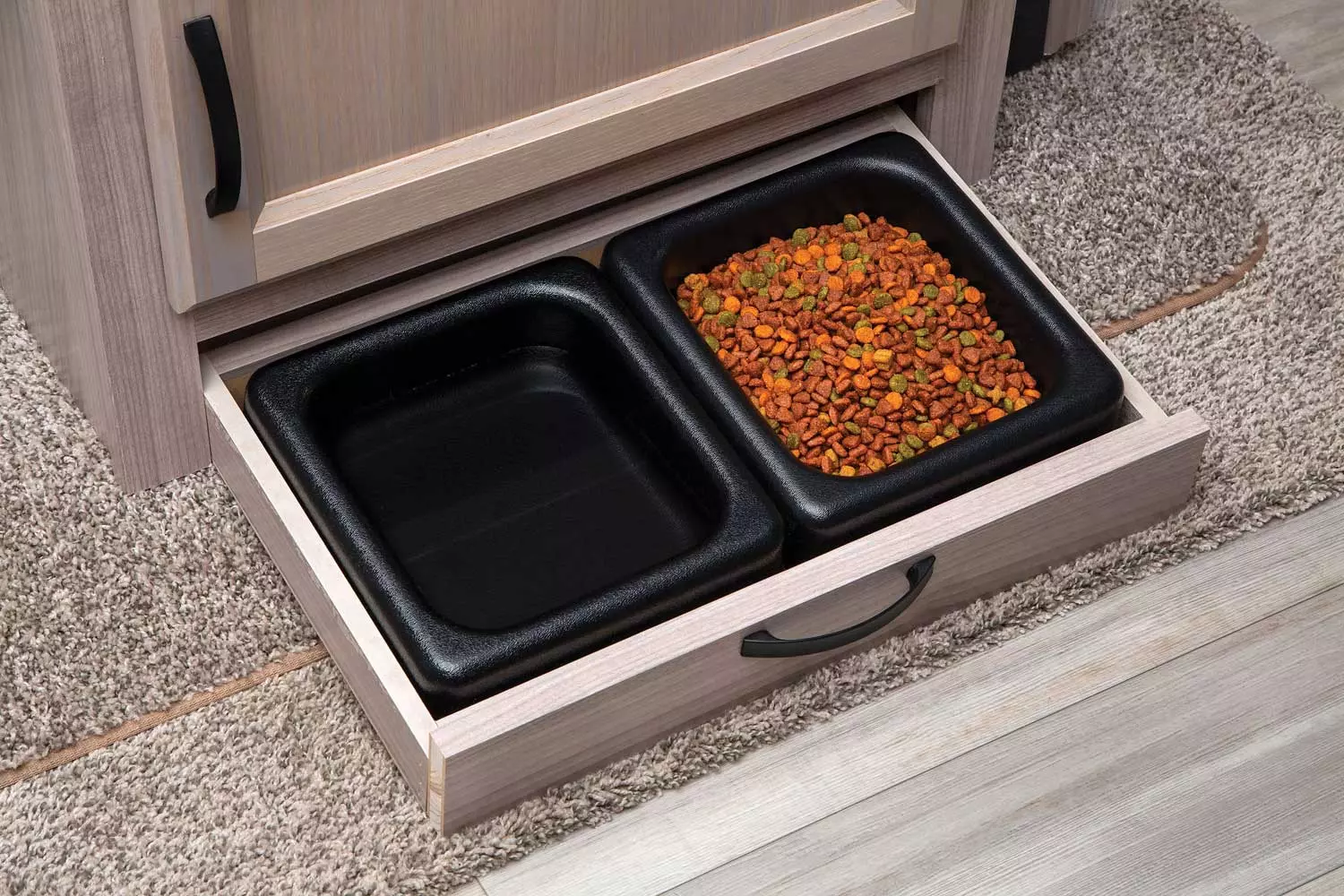

  • Pet Center (Some models)
  • Magnetic Door Catches
  • Drip Rails w/ Downspouts
  • Heated and Enclosed Underbelly
  • Cable / Satellite Prep
  • Solid Entry Steps (N/A 1943RB)
  • Extended Grab Handle
  • Back-up Camera Prep
  • Angled Stabilizer Scissor Jacks
  • Black Tank Flush
  • Exterior Speakers
  • Wide Stance Axles
  • Power Awning
  • 100W Solar Panel w/10 Amp Controller

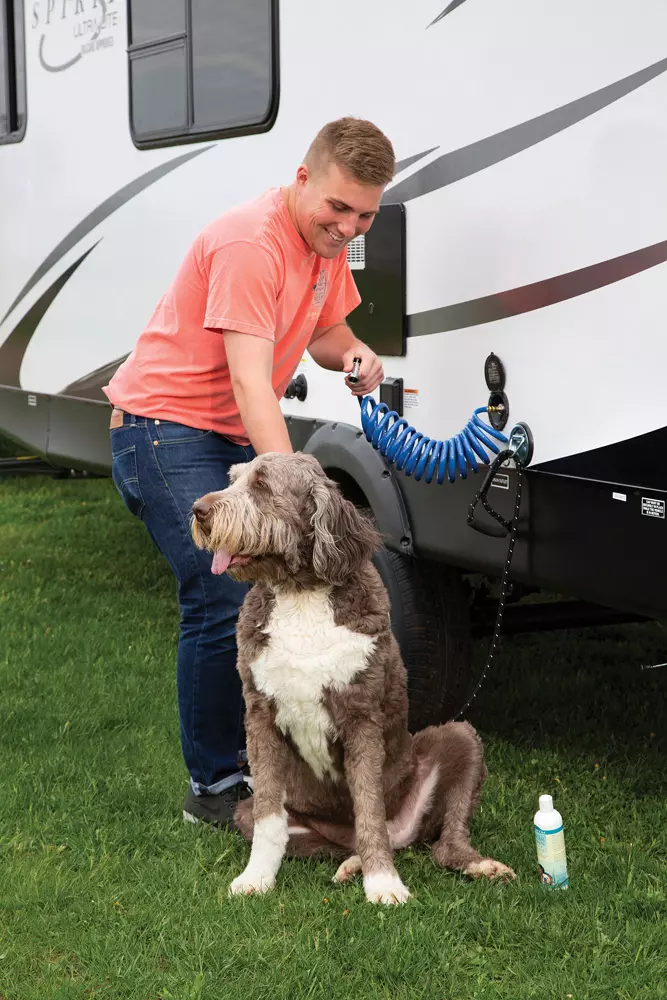

  • Dog Wash
  • Front Rock Guard
  • Power Tongue Jack
  • Spare Tire
  • Detachable Power Chord
  • 20 lb. LP Tanks
  • Water Heater By Pass
  • Aluminum Rims
  • Seamless Thermo Foil Wrapped Countertop

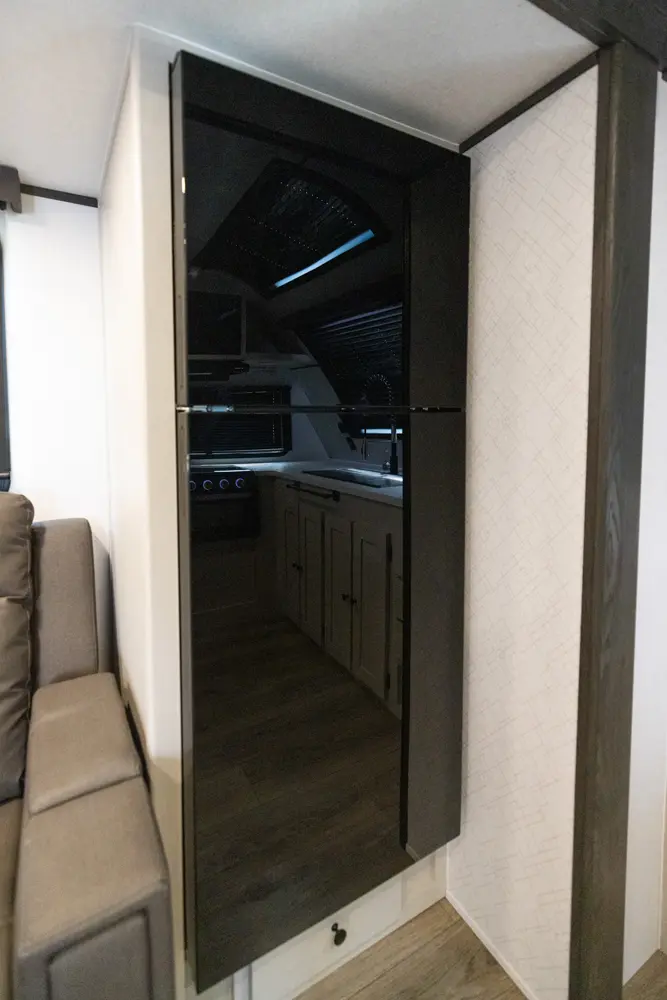

  • 12V 10 Cu. Ft. Refrigerator
  • Microwave
  • Oven w/ 3 Burner Cooktop and Folding Glass Cover
  • AM/FM Bluetooth Stereo
  • Deluxe High Rise Faucet
  • Double Bowl Stainless Steel Sink
  • Under Dinette Storage Doors
  • Tri Fold Sofa Sleeper (Most models)
  • Lighted USB
  • Ducted Furnace
  • 6 Gallon Gas/Electric Water Heater w/ 17.3 Gallon Recovery
  • 55 Amp Power Converter

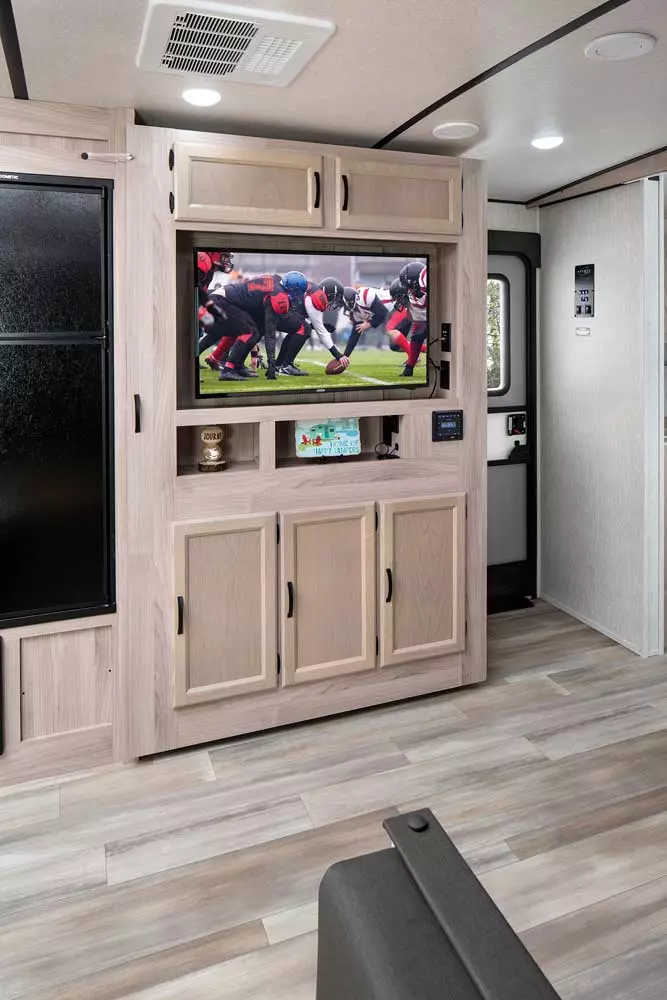

  • LED TV
  • Bunk Privacy Curtains
  • 14.5 BTU Air Conditioner

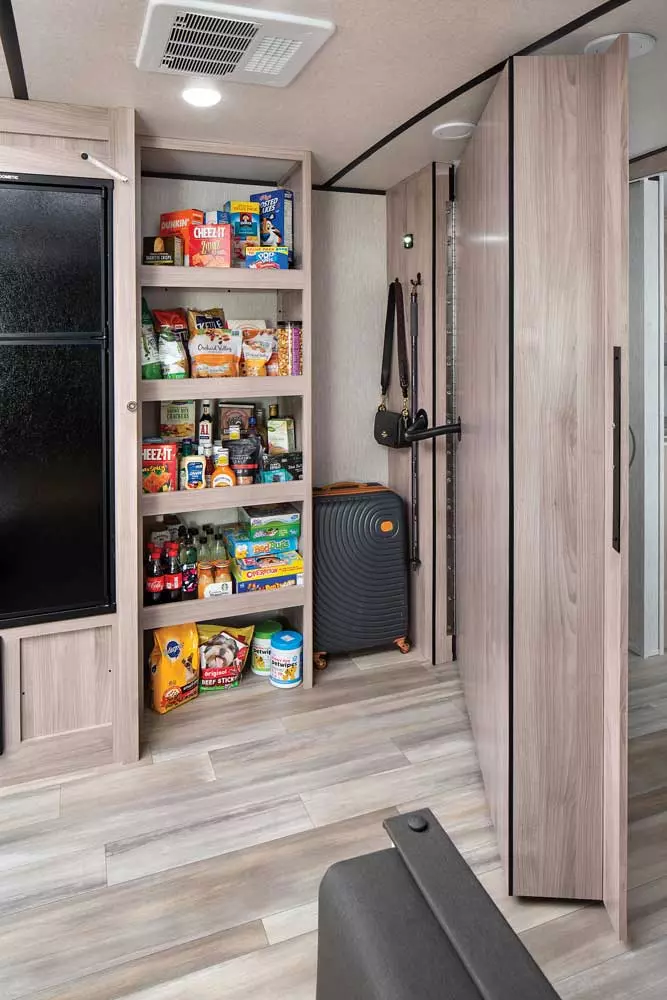

  • Pantry w/ Removable Shelves (Most models)
  • 2 Interior Speakers
  • Sink Covers

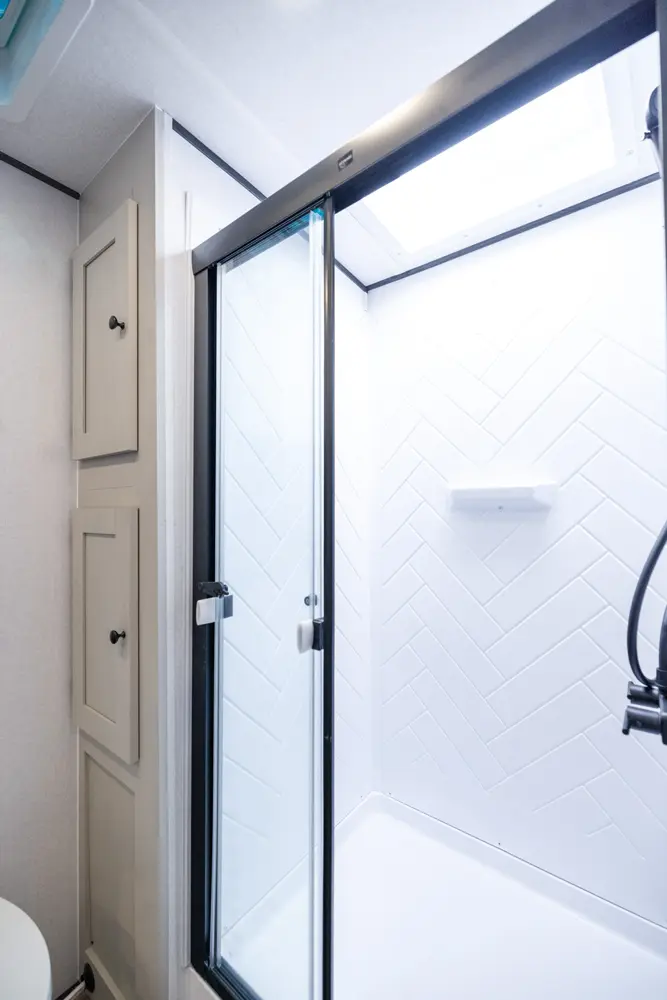

  • Designer Shower Curtain or Glass Shower Doors
  • Medicine Cabinet
  • Towel Hooks
  • Tub Surround
  • Power Vent
  • Skylight
  • Seamless Thermo Foil Wrapped Countertop
  • Bedside Night Stands
  • Shirt Closets
  • Light Switches
  • Lighted USBs
  • Outlets
  • Above Bed Shelf
  • Designer Comforter
  • Reading Lights
  • 60” X 80” Queen Bed
  • Laundry Center

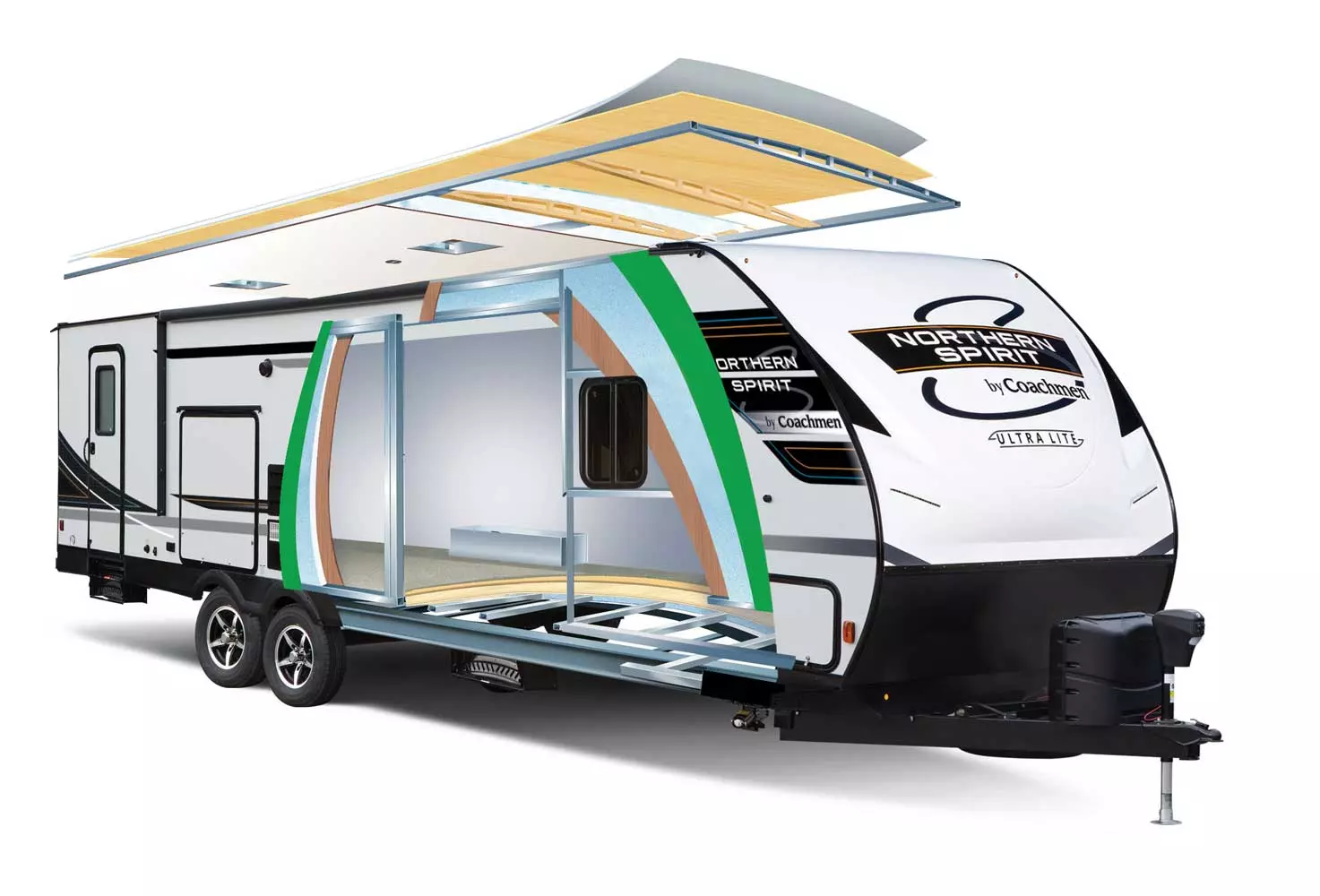

  • Laminated, Aluminum Framed Floor
  • Laminated, Aluminum Framed Sidewalls and Rear Wall
  • 3/4 Painted Fiberglass Front Cap w/ LED Strip Lights
  • Azdel Composite Panels in place of Luaun Plywood
  • 3/8″ Roof Decking
  • Tufflex PVC Roof Membrane
  • 5” Trusses w/ Interior Vault
  • Lumber Core Cabinet Stiles
  • Pocket Screwed Cabinet Stile Joints
  • Mortise and Tenon Cabinet Doors
  • 50 Amp Service, Wired and Prepped
  • Second Bedroom A/C

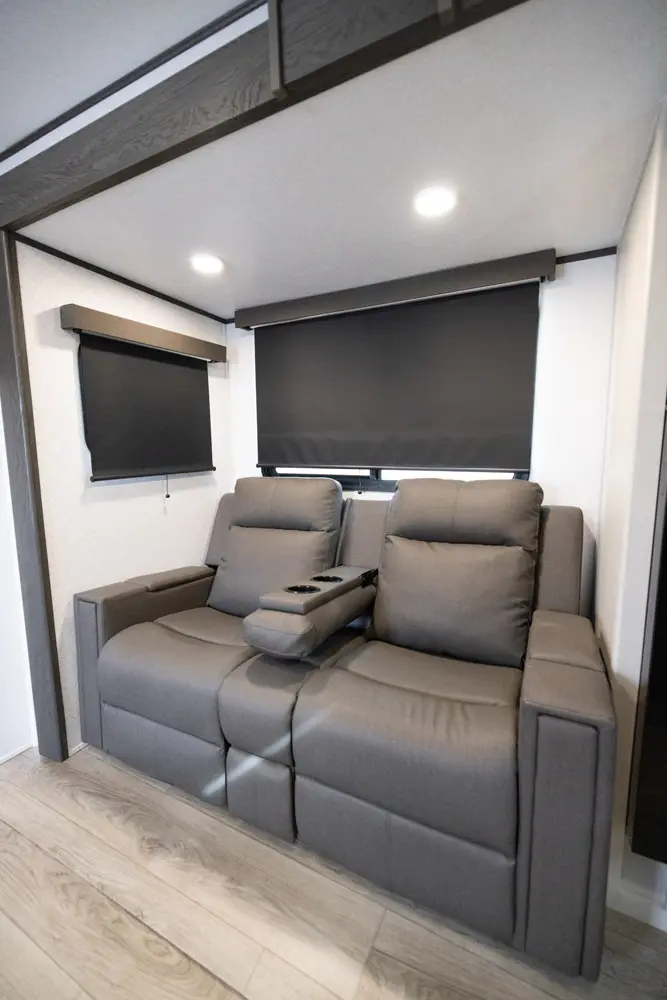

  • Theater Seating


Videos

Some videos may show features or options not available on all products. Contact our service representatives or your local dealer if you have questions about how your specific RV operates.
